MOSFET Touch Lamp
![MOSFET Touch Lamp 01 Device.jpg](/proxy/?url=https://content.instructables.com/FL5/35AZ/K7RREFYM/FL535AZK7RREFYM.jpg&filename=MOSFET Touch Lamp 01 Device.jpg)
![MOSFET Touch Lamp 02 Step 01 Design the Circuit.jpg](/proxy/?url=https://content.instructables.com/F25/ZXPO/K7RREFYN/F25ZXPOK7RREFYN.jpg&filename=MOSFET Touch Lamp 02 Step 01 Design the Circuit.jpg)
![MOSFET Touch Lamp](/proxy/?url=https://content.instructables.com/FR1/NJRO/K7RREG12/FR1NJROK7RREG12.jpg&filename=MOSFET Touch Lamp)
This Instructable shows you how to make a touch lamp with the use of MOSFET.
You can see the circuit working in the video.
Supplies
parts: n-channel MOSFET, 5.6 kohm resistor, bright LEd, 100-ohm resistor, heat sink, heat transfer paste, encasement, wires, bolt, nuts, washer, 2 AA/AAA batteries, 3 V/6 V or 9 V battery harness.
tools: wire stripper, pliers, screwdriver.
optional parts: solder.
optional tools: soldering iron, multimeter, voltmeter.

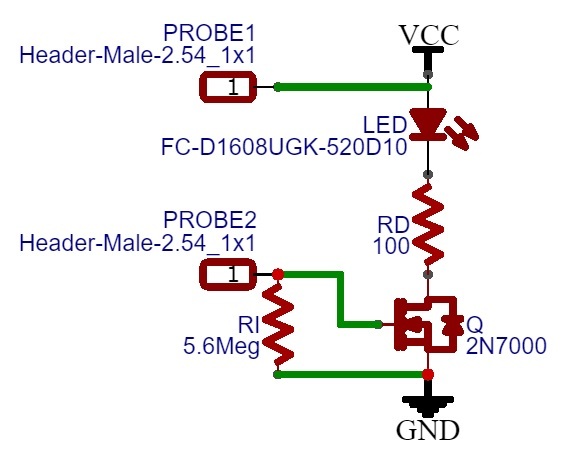

Design the Circuits
![MOSFET Touch Lamp 02 Step 01 Design the Circuit.jpg](/proxy/?url=https://content.instructables.com/F25/ZXPO/K7RREFYN/F25ZXPOK7RREFYN.jpg&filename=MOSFET Touch Lamp 02 Step 01 Design the Circuit.jpg)
You can attach a small capacitor between MOSFET Gate terminal input and ground to filter the noise. However, testing of this circuit showed that even a small capacitor might prevent MOSFET from turning on.
The cutoff frequency of the input low pass filter will equal:
fl = 1/(2*pi*Ri*Ci)
The maximum LED current will equal to:
Imax = (Vs - Vled) / Rd = (3 V - 2 V) / 100 = 10 mA
Keep in mind that bigger LEDs might need 15 mA or 20 mA, not 10 mA of current. There are smaller LEDs that consume 5 mA current.
The minimum n-channel MOSFET turn ON gate voltage could be above 2 V. Thus you will need to raise the power supply to at least 6 V. With the LEDs needing 2 V potential voltage you can connect three LEDs in series and thus eliminate the need for the Rd resistor. However, I cannot guarantee that the LED light will not be dim. The LEDs might need 2.1 V to reach full brightness. You can also try connecting four LEDs in series and use a 9 V battery harness. Then the maximum LED current will equal to:
Imax = (Vs - 4*Vled) / Rd = (9 V - 8 V) / 100 = 10 mA
This is a well known circuit that you can find on the internet. You can click on:
Build the Circuit

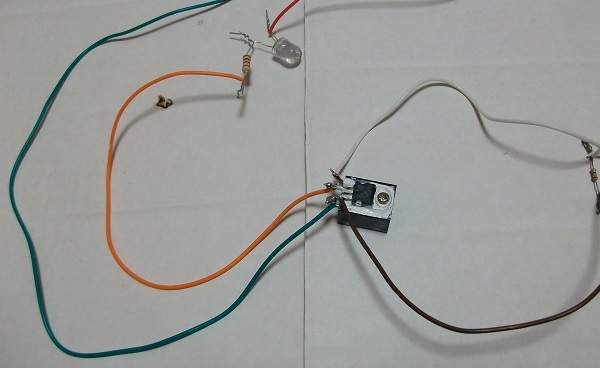

![MOSFET Touch Lamp 03 Step 02 Build the Circuit.jpg](/proxy/?url=https://content.instructables.com/FVR/WXGH/K7RREFYO/FVRWXGHK7RREFYO.jpg&filename=MOSFET Touch Lamp 03 Step 02 Build the Circuit.jpg)
I did use a soldering iron because I thought the wires were loose. However, not all joints were soldered together.
You do not need high power resistors for this circuit. You can see that I never included the input capacitor.
Put in Encasement
![MOSFET Touch Lamp 04 Step 03 Encasement.jpg](/proxy/?url=https://content.instructables.com/FML/B3X0/K7RREFYP/FMLB3X0K7RREFYP.jpg&filename=MOSFET Touch Lamp 04 Step 03 Encasement.jpg)
![MOSFET Touch Lamp](/proxy/?url=https://content.instructables.com/F8C/X0CI/K7RREGPN/F8CX0CIK7RREGPN.jpg&filename=MOSFET Touch Lamp)
I used an old foam packaging material and a high power wire to secure the components to the encasement.
