ME 470 Tutorial: Pattern Features
by lhowar12 in Design > Software
312 Views, 1 Favorites, 0 Comments
ME 470 Tutorial: Pattern Features

Patterns can be a great time saver on parts that have repeated features.
Creating the Sketch

The first step is to draw the feature that will be used in the pattern.
Creating the Feature

For this part an extrude cut was used with the sketch to crate the feature to be patterned
Linear Pattern

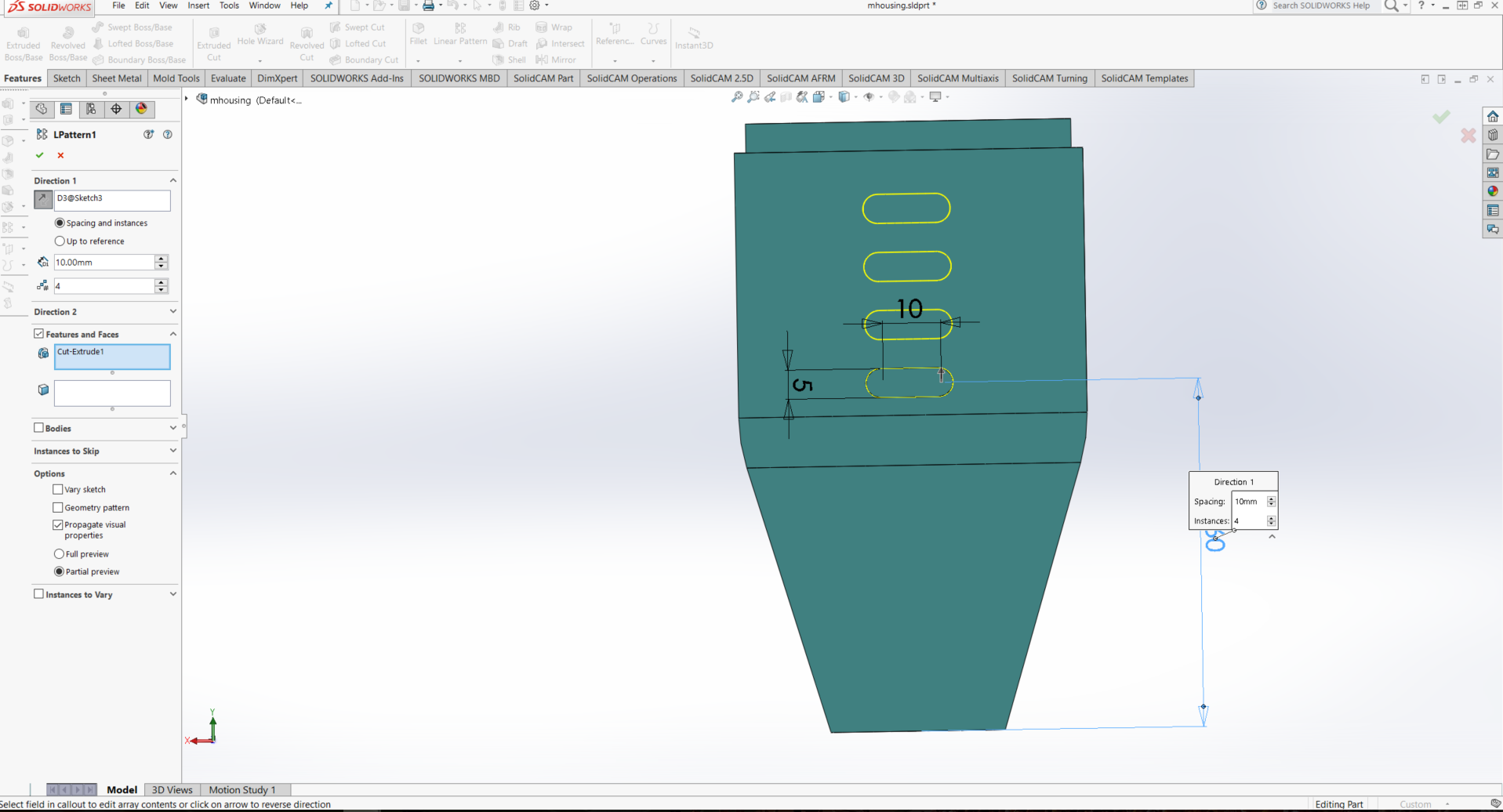

The hole feature created in the last feature was the selected. Using the linear pattern and the settings on the tree the feature was created.
Circular Pattern

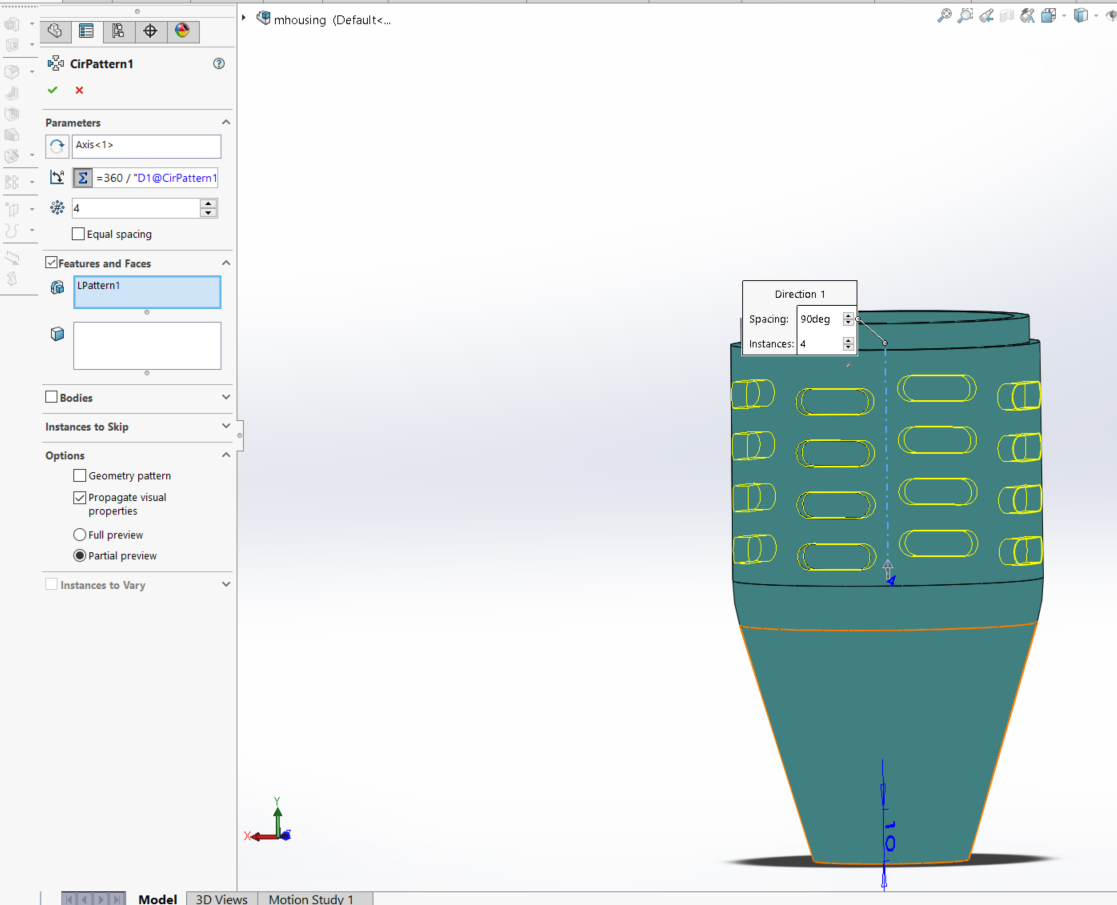

The linear pattern was selected and then a circular pattern was selected. This pattern had 4 copies if the linear pattern equally spaced around the outside of the part.
Circular Pattern

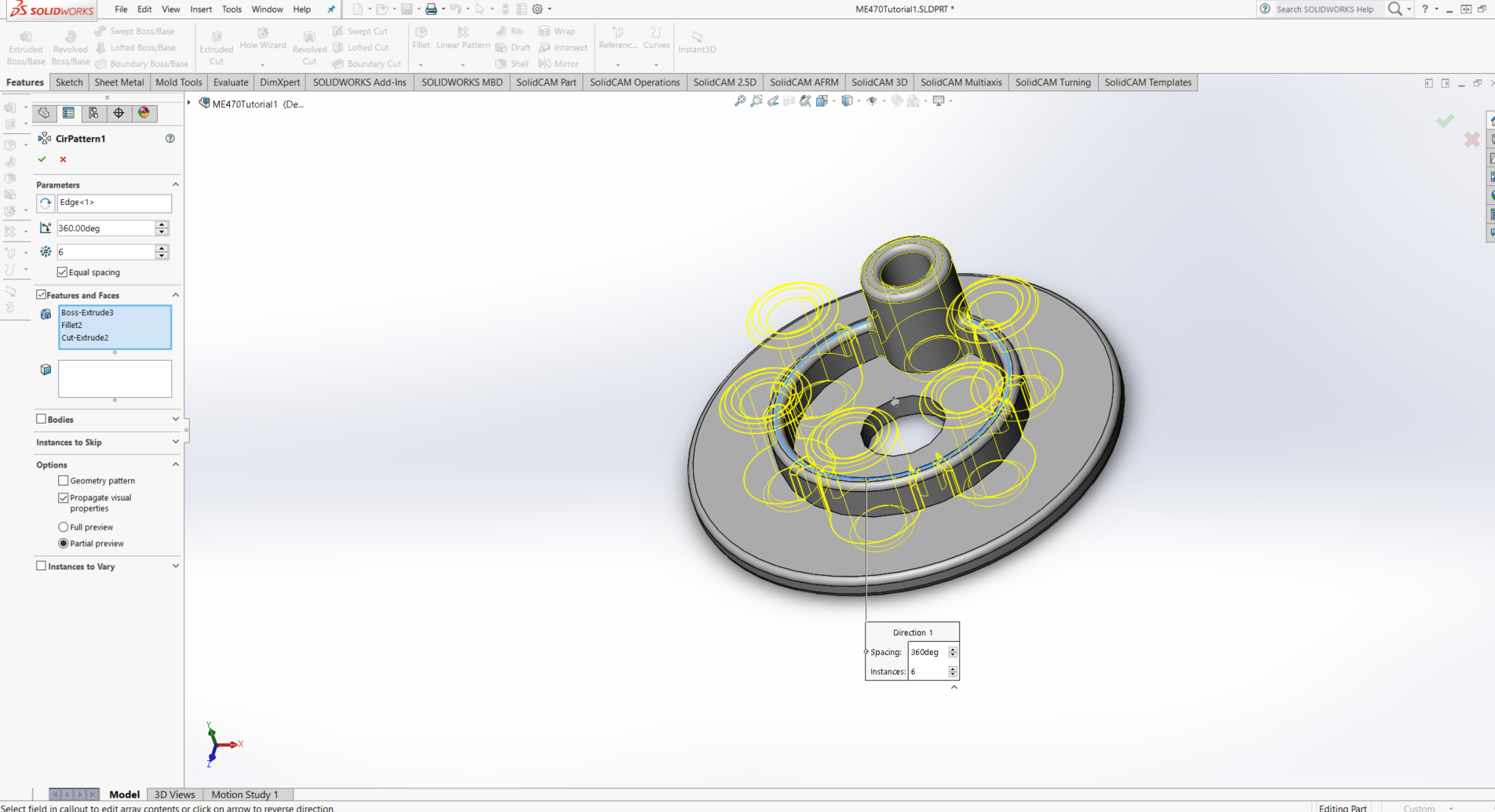

This is another example of a circular pattern in use.
Video Tutorial
