MDF Workbench


Build a workbench for a hobby room or workshop.

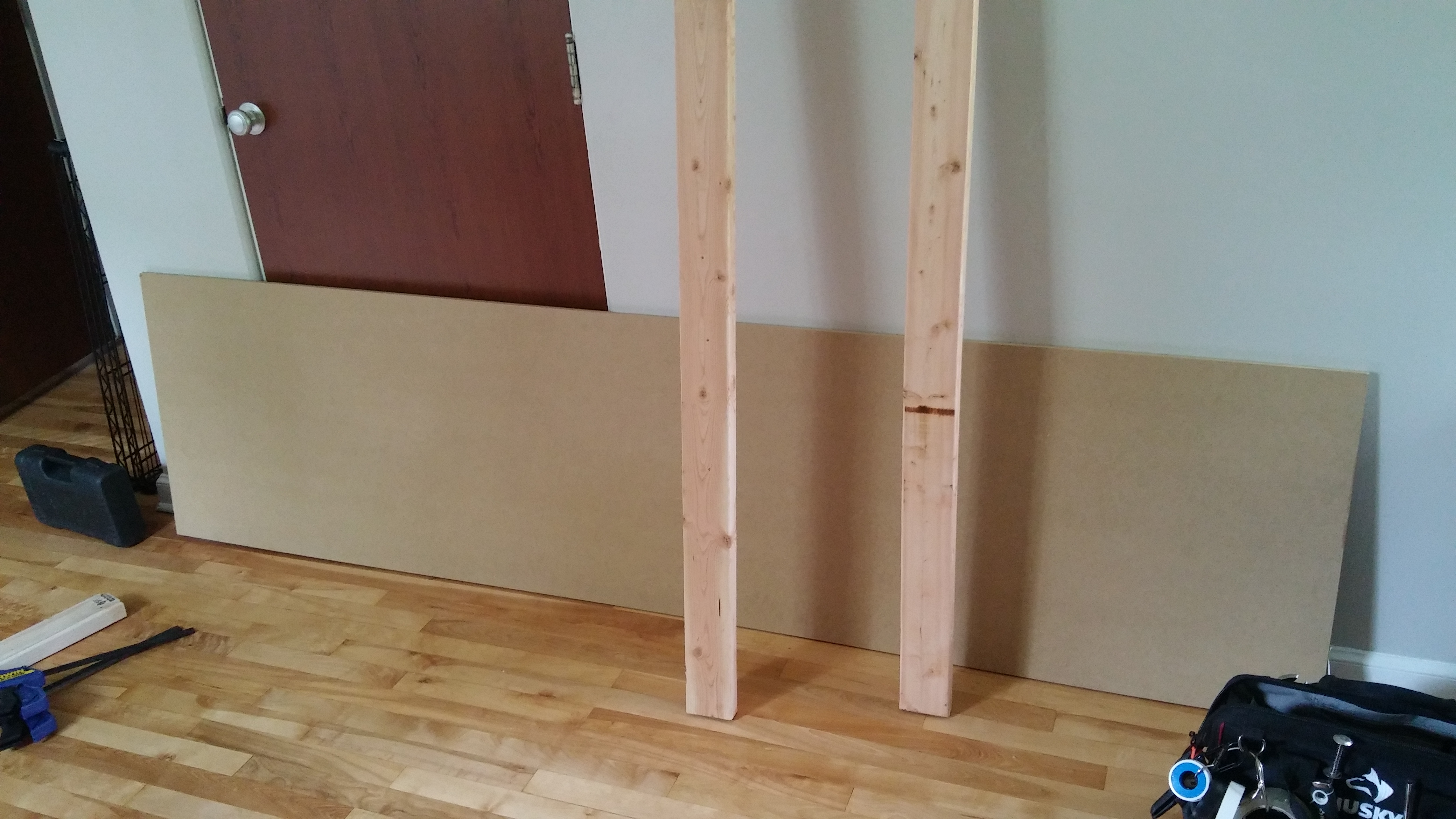

MDF


Cut 2ft width pieces of MDF.

Top Frame


Build a frame for the tabletop.

Shelf Frame


Build a second frame to support a lower shelf.

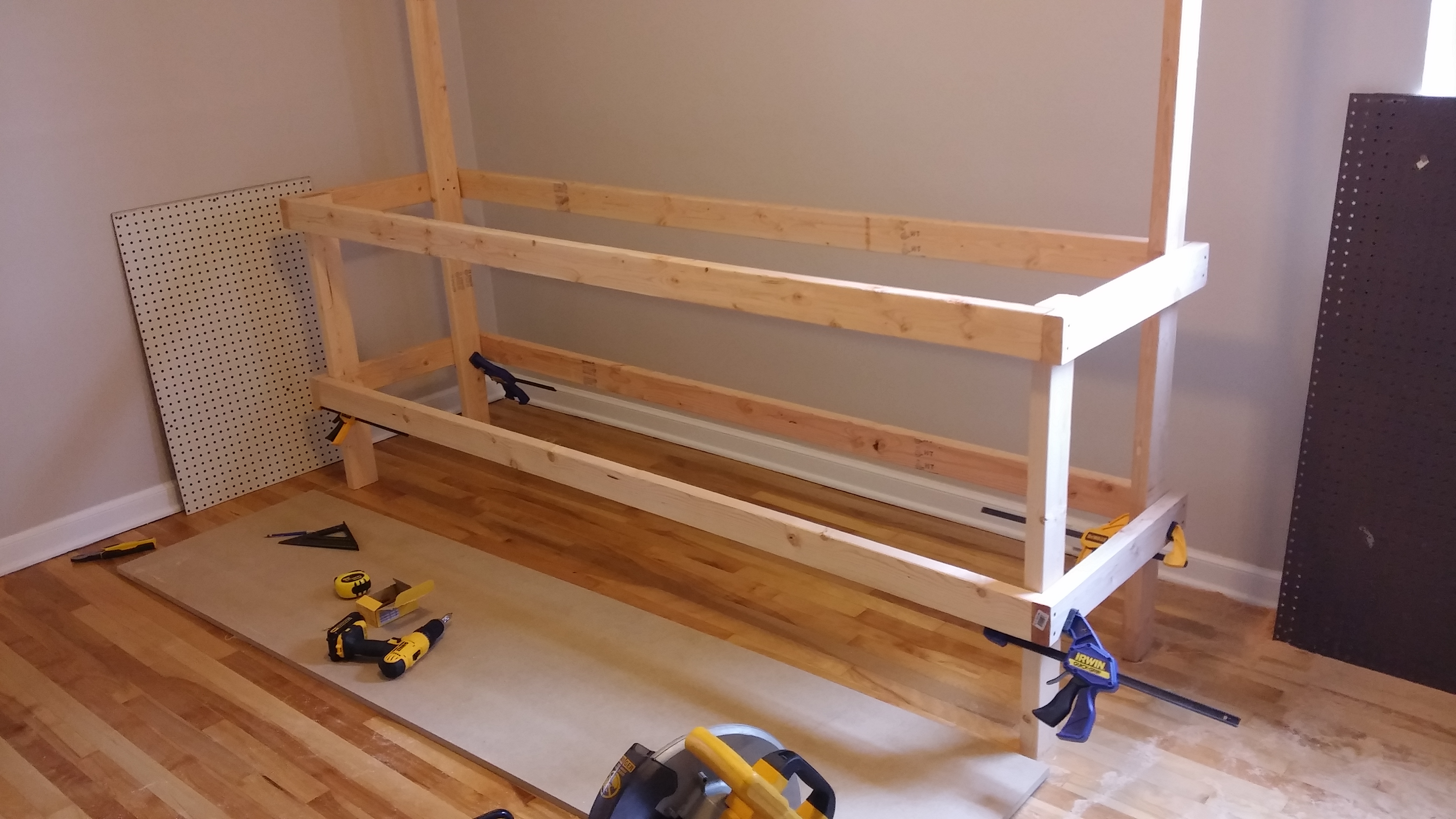

Legs


Attach legs to the top frame. The legs in the back extend higher for storage.

Support Shelf


Attach support shelf frame.

Cross Beam


Attach another beam to support the MDF top.

Foot Pads


Staple faux leather to the feet to prevent scratching the floor with movement.

Shelf


Attach the OSB lower shelf.

Shelves


Build shelves into the frame.

Peg Board


Attach peg board.

More Shelf


Build more shelves using the same principles.

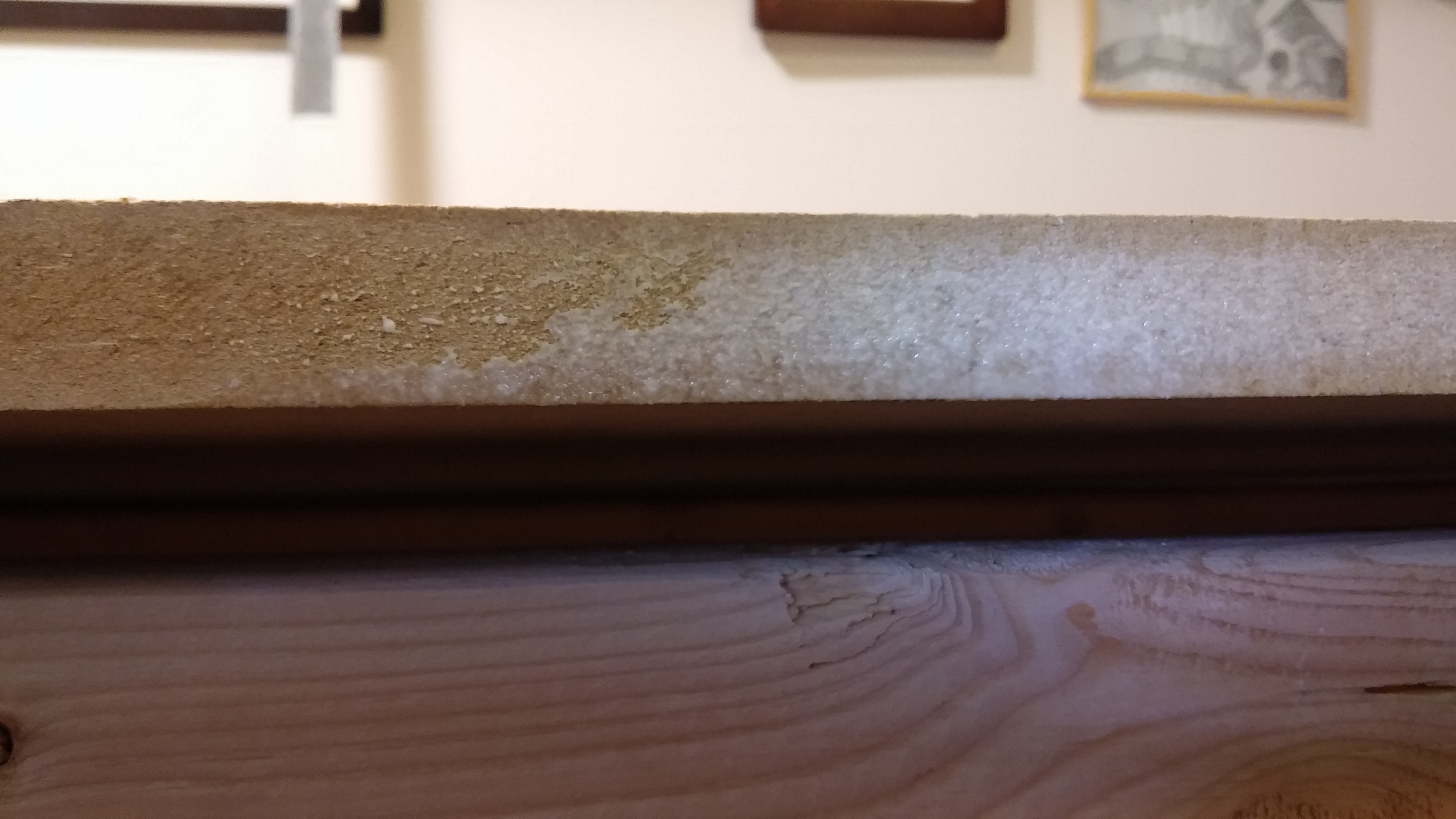

Sizing MDF


Mix 50/50 solution of wood glue and water. Brush on the edges of the MDF to seal. You can apply multiple coats sanding with 220 grit between if desired.

Shellac


Put a coat of shellac on the MDF top. It evaporates quickly helping to pre-seal the top, readying it for Polyurethane.

Polyurethane


Coat with polyurethane. The first coat will be partially soaked up by the MDF. Sand and apply a second coat.

Glossy Sealed Tops


Tops are sealed.
