Making Dr.Octopus Suit Based on Hydraulics

MAKING A DR OCTOPUS'S SUIT
image 1.png
WhatsApp Image 2023-11-14 at 09.24.52.jpeg
WhatsApp Image 2023-11-14 at 09.31.36.jpeg
WhatsApp Image 2023-11-14 at 12.53.06.jpeg
WhatsApp Image 2023-11-15 at 09.07.41.jpeg

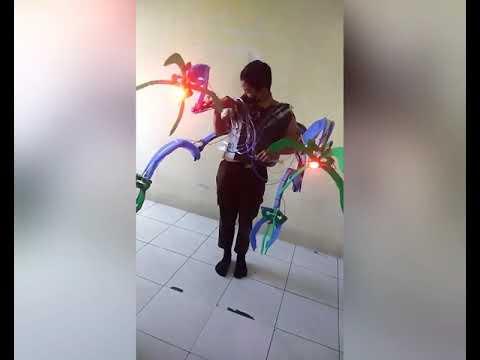

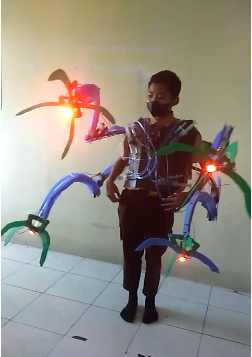

So we will make an octopus doctor's suit with piping for the sleeves and impraboard for the outside. we made it with Azka, Zaidhan, Ahmad and Alif. We also put lights on the hands claws and put the

 battery to make the lights on. we use injection to make

the tentacles move. we also make the belt in the body of

the dr. octopus armor.We use two kinds of injection injection 10ml and 50ml.Hope you are interested!

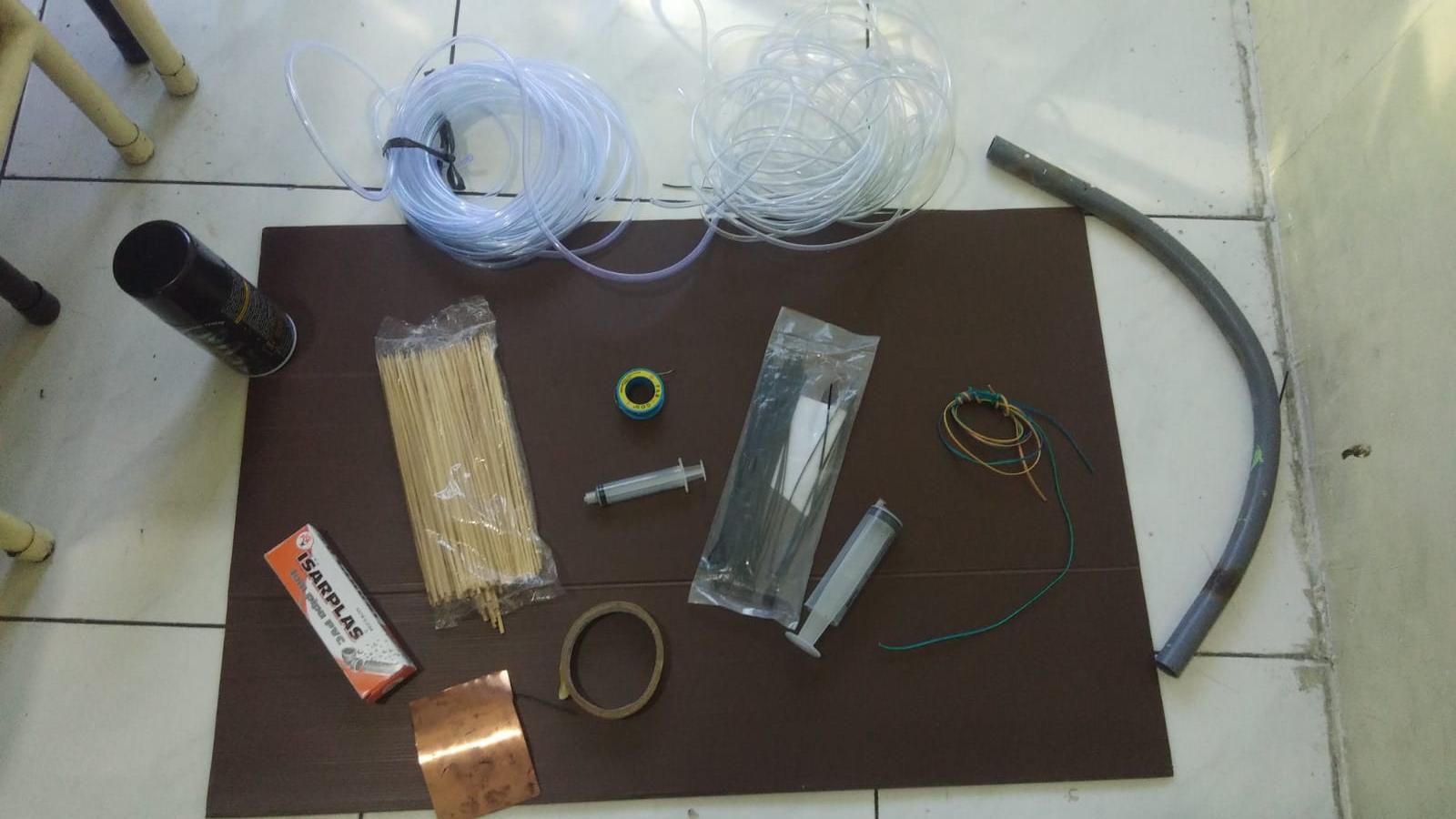

Supplies

WhatsApp Image 2023-11-21 at 15.43.41.jpeg
WhatsApp Image 2023-11-21 at 15.46.29 (1).jpeg
Baju h8itam octopus


Tools:

Electric soldering iron

Mini drill

Gas torch

PVC glue

Screwdriver set

Portable gas cylinder

Cable cutting pliers


Ingredients:

Impraboard

 Color cable

10 x 10 copper sheet

8m hose measuring 14 mm x 10 mm

5m hose measuring 18mm x 14mm

8 10 ml injections

8 injections measuring 50 ml

Cable ties 2.5m x 200 mm

Paper insulation

Tin electric solder

Black spray paint

PVC Glue

PVC pipe

T PVC ½ inch 2 pieces

1 3.7 volt battery

1 3.7 volt battery holder

4 red 12 volt LED lights

JEMARI HIDROLIS BAJU DR.OCTOPUS

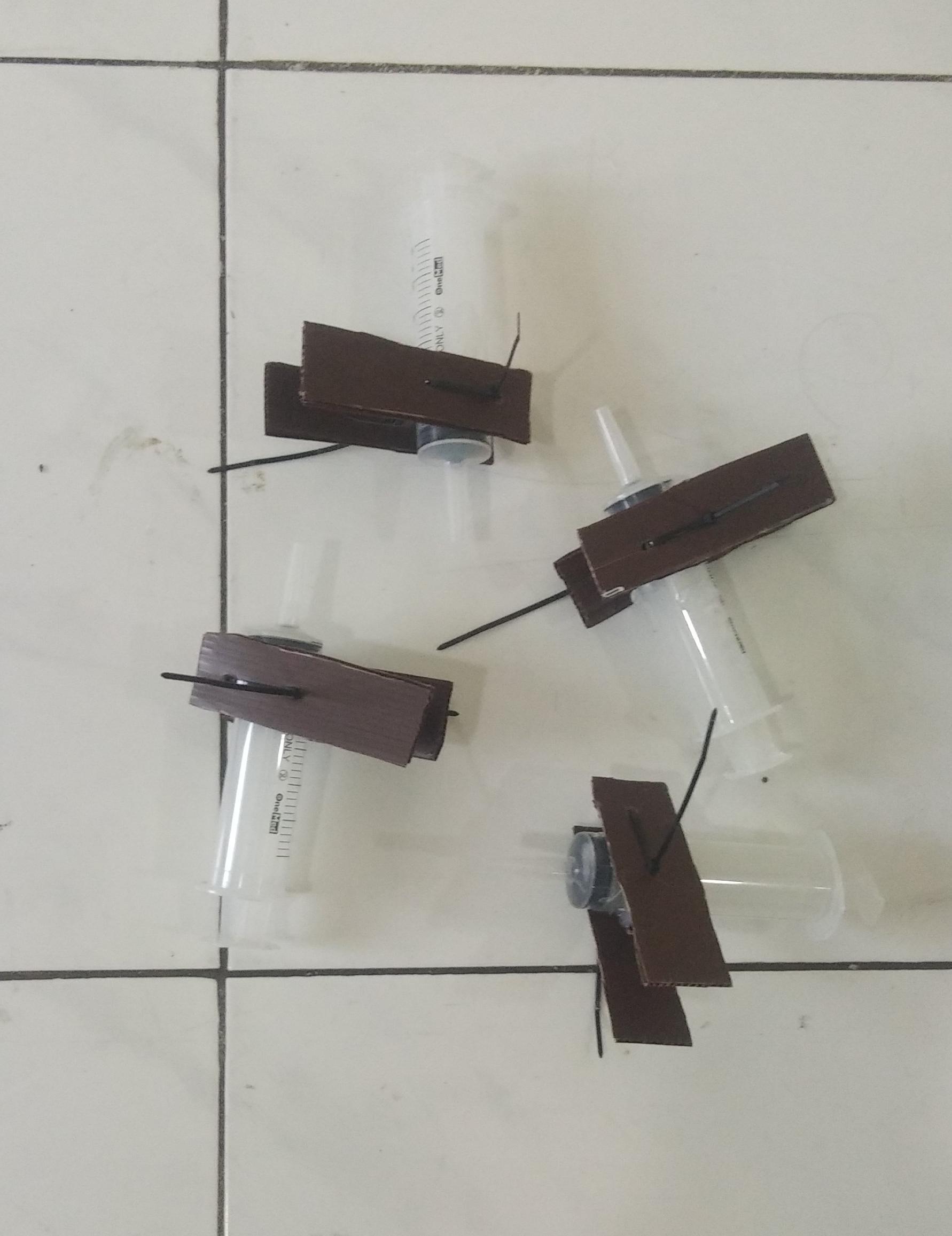

 1.Assemble the 4 claws required

with 8 injections measuring 10ml with hydraulics with a hose measuring 14 mm x 10 mm

2. Assemble the frame from PVC clothes

WhatsApp Image 2023-11-15 at 13.03.13.jpeg

1. Arrange the sleeves of the doctor octopus shirt with 8 10 ml injections with hydraulics

2. Hose measuring 18 mm x 14 mm

1. Assemble the electricity for the Dr. Octopus shirt lamp.

2. Using the existing scheme. The electricity from the 3.7 Volt battery is connected to a DC step up to output 12 volts to light the 4 LED lights in each middle finger of Dr. Octopus' shirt.

3. Install a switch made of copper sheet.

4. Start trying it now!
