Loud Foghorn From Plumbing Parts

This is a how to for building a loud foghorn from easy to get plumbing fittings and an inexpensive double acting air pump, the idea was to emulate the hand operated type used on small ships until the 1950's shown in pic 2.

Here are the basic parts to make a noise

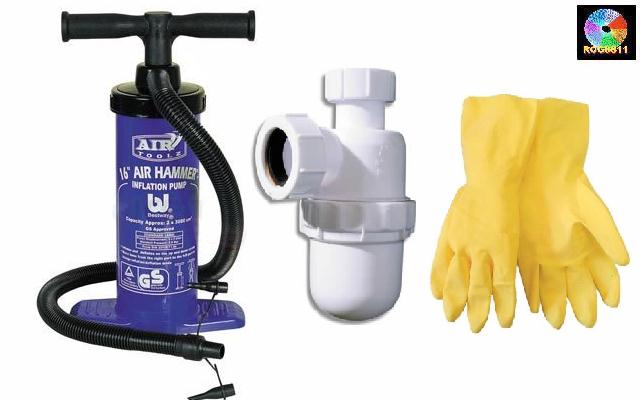

A hand operated pump, a sink waste trap and a rubber glove (for the diaphragm)

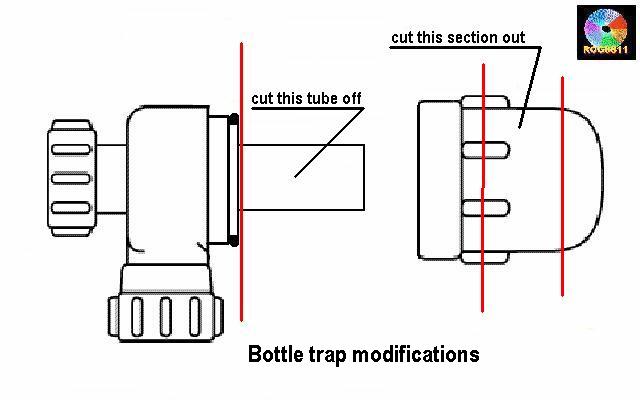

The trap needs the down tube cutting off 1mm above the level of the outer edge, this cut needs to be accurate as this is where the diapragm will go so make sure you smoothe the cut edge with emery cloth.
 I cut the bowl down to size by cutting a section out and sticking the 2 end parts back together. drill a small hole in the back of this part so that it isn't fully sealed.

Cut a circle of rubber from the glove that is just bigger than the size of the o'ring that seals the bowl, lay it on to the o'ring joint  face and trap it with the o'ring before winding on the bowl.

At this stage if you blow into the side of the fitting you will make a noise :)

I am fortunate as I have a lathe and turned up the adaptor from a piece of plastic, but an adaptor can be made from standard plumbing plastic fittings glued together, the main thing to remember is to have a short length of the connection tube that comes with ther pump glued into one end to allow the adaptor to be screwed on and off (allowing the pump to be used for its original purpose).

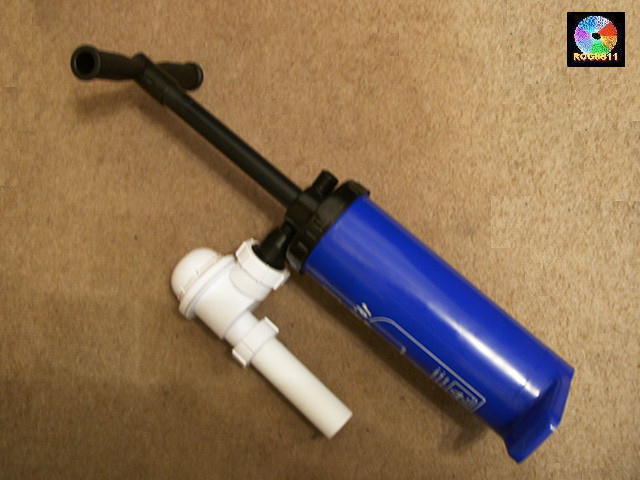

With the parts assembled you now have a working horn and could leave it right there......

This where you can go mad!  Get as many plumbing parts as you can screw and glue together to make the sound path long and wider.
I added a second sink trap........

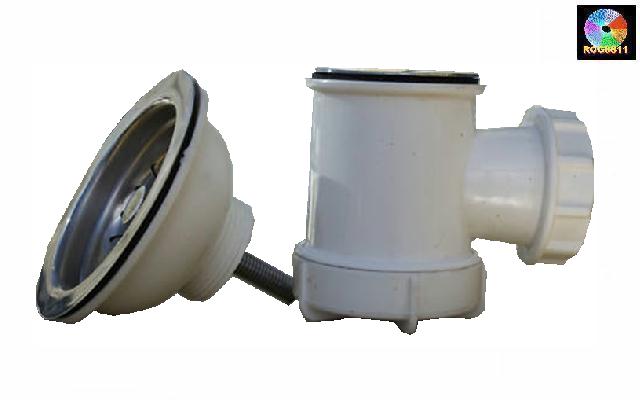

... I also added a shower trap......

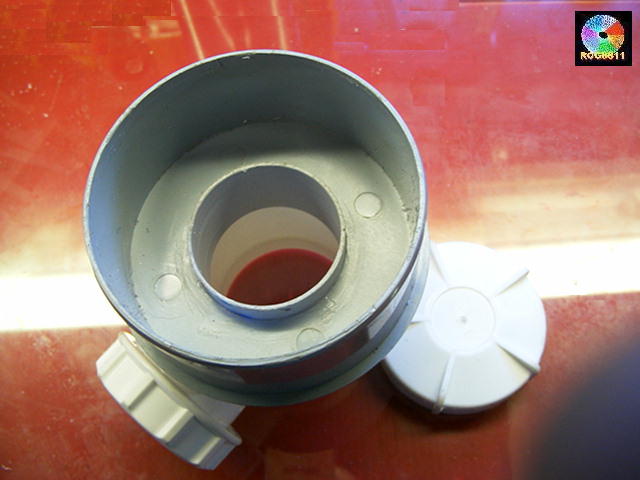

The second picture shows an adaptor for attaching the 100mm diameter soil pipe adaptor shown stuck on the top in the third picture. This is where the last part will plug in!

... the last part being a toilet pan connector! the rubber boot at the bottom plugs into the adaptor, the seal at the top end was removed.

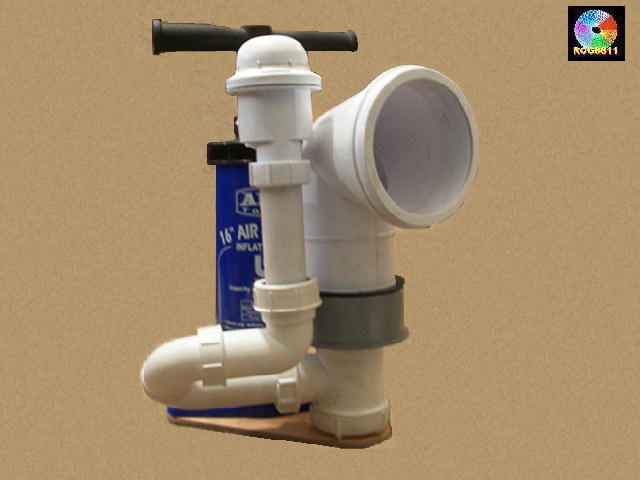

The plumbing parts were all screwed together in as small a space as possible and connected up.
An MDF base was cut to support the lower end using a nut and bolt through the cap of the shower trap, this makes sure it is pretty sturdy.

Ignore the bumble bee that flew past as I was recording and imagine this a lot louder:)

http://www.vimeo.com/21517471

(I tried to imbed this using the code from vimeo but it came up as error on page so I gave up:)

I hope to hear the call of the fog horn throughout the world once you all build your own!

Regards rog8811
