Long Range Spybug.

I am going to show you a step-by-step process to building a spybug from common electrical componenets.
Components

Components list
Part
Part
- C1 1n disk capacitor (102) 1 pc.
- C2 5.6pF disk capacitor(562) 1 pc.
- C3, C4 10 uF Elec. Capacitor(25-50v) 2 pcs.
- C5 3-18 Trimmer Capacitor 1 pc.
- R1 330 ohm 1/8 w Resistor 1 pc.
- R2, R5, R6 4.7k 1/8 w Resistor 3 pc.
- R3 10k 1/8 w Resistor 1 pc.
- R4 100k 1/8w Resistor 1 pc.
- Q1, Q2 2N2222 NPN Transistor 2 pcs.
- L1, L2 5-6 turns copper coil 2 pcs.
- 10mm Electret microphone 1 pc.
- 9v battery and clip
All Resistors can be substituted with 1/4 watt. The transistor can be substituted with a 2n3904-06 transistor.
Schematic

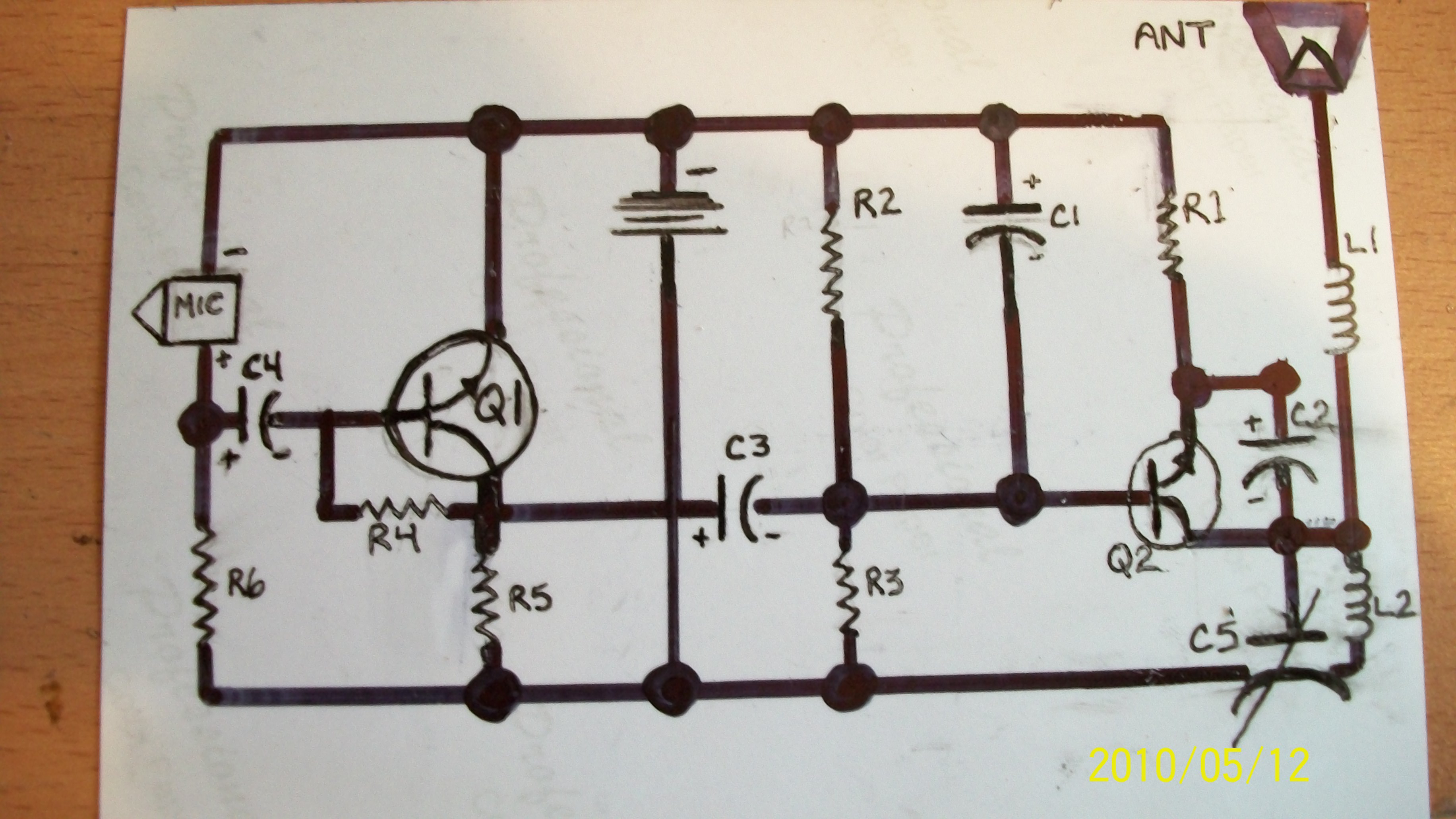

Here's the schematic, any questions leave them I will answer quickly as possible.
PCBV Layout

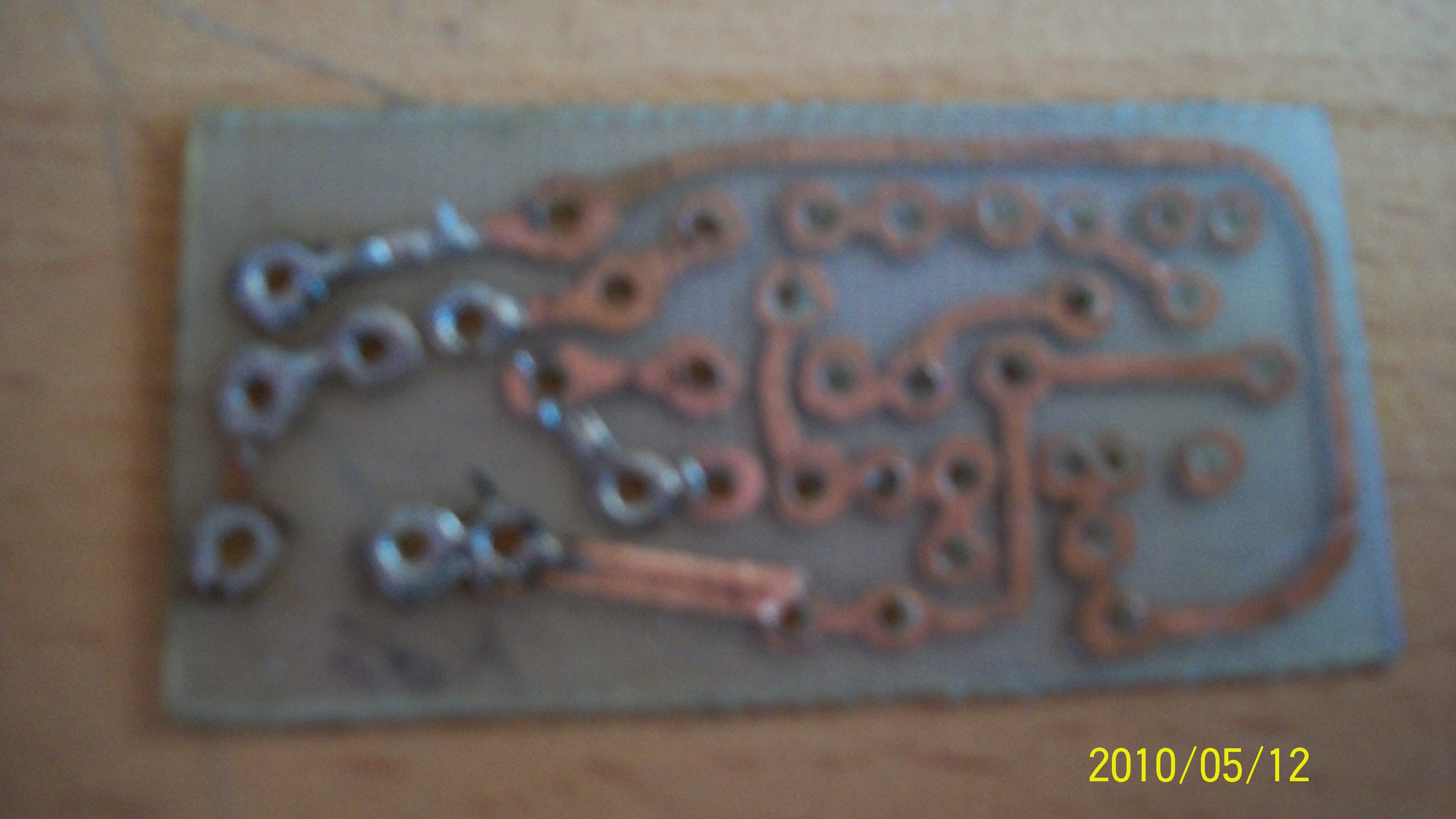

Here is a picture of the PCB that I made for this spybug, or you could just make it on perfboard if you want.
Resistors

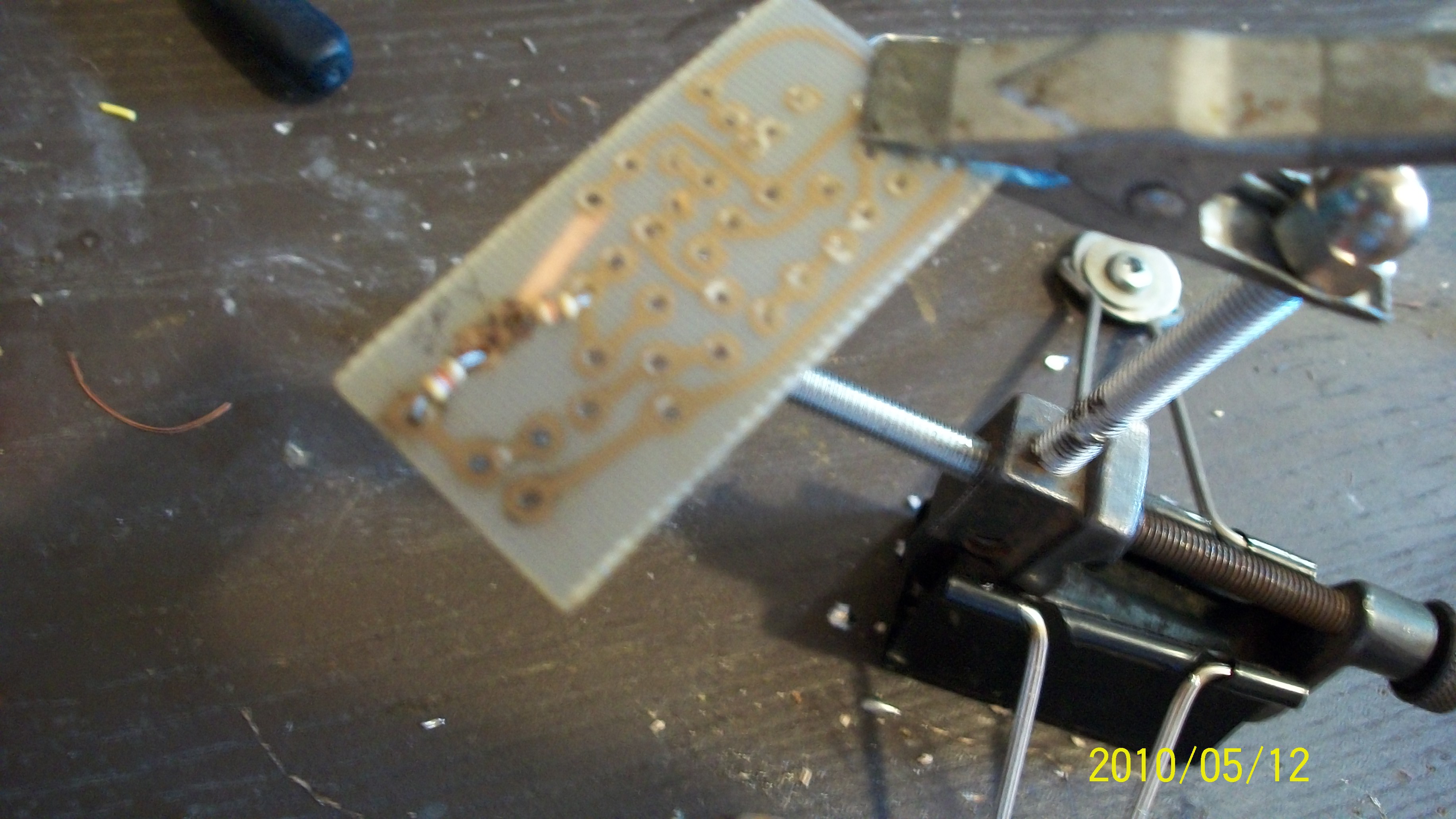

First I soldered the resistors on just below where the mic will go. These are R5 & R6.
Adding Components

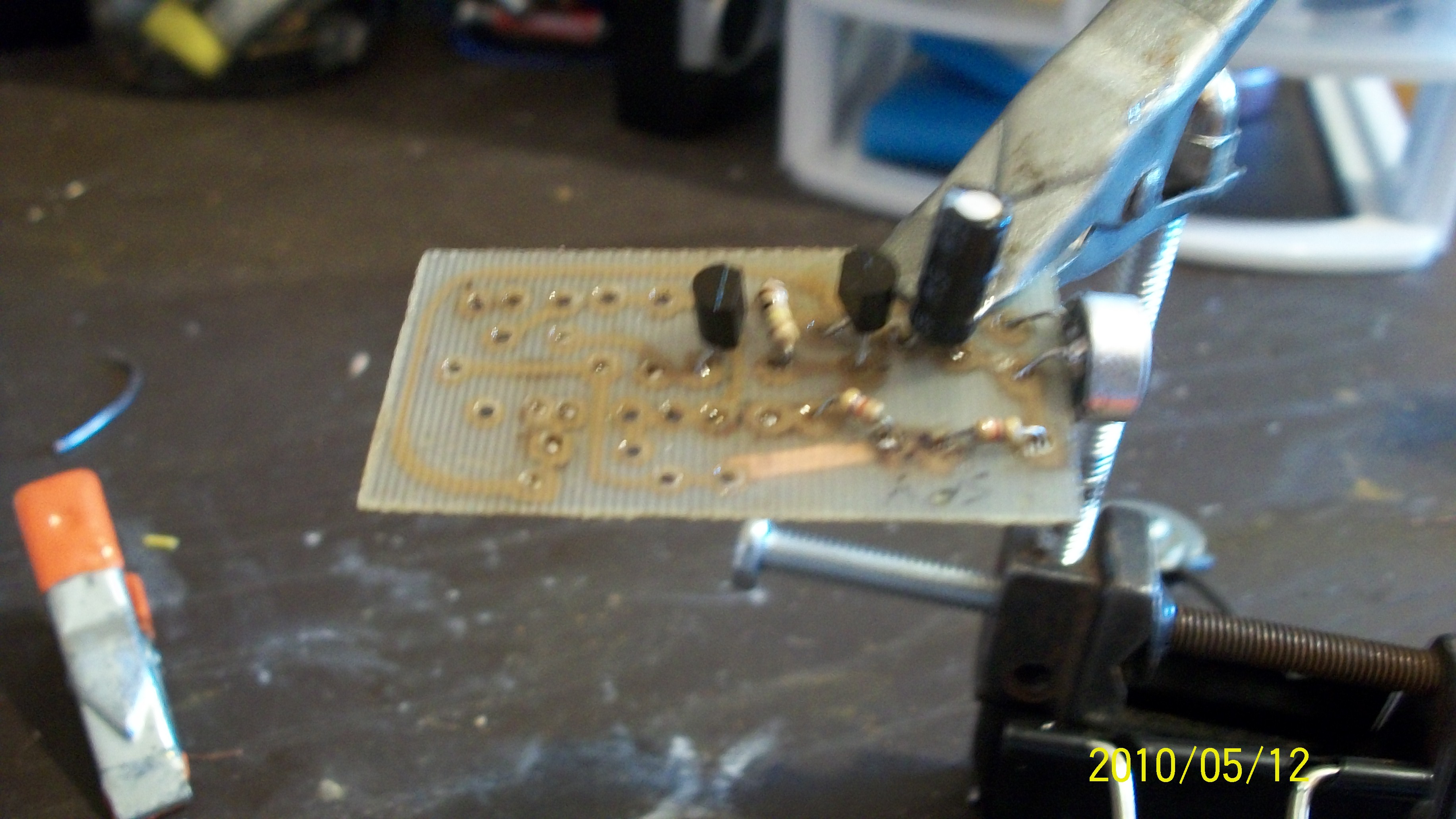

Next I add C4 (10 uF cap), Q1,Q2 (2n3904 transistor) & R4 (100k)
Adding Components

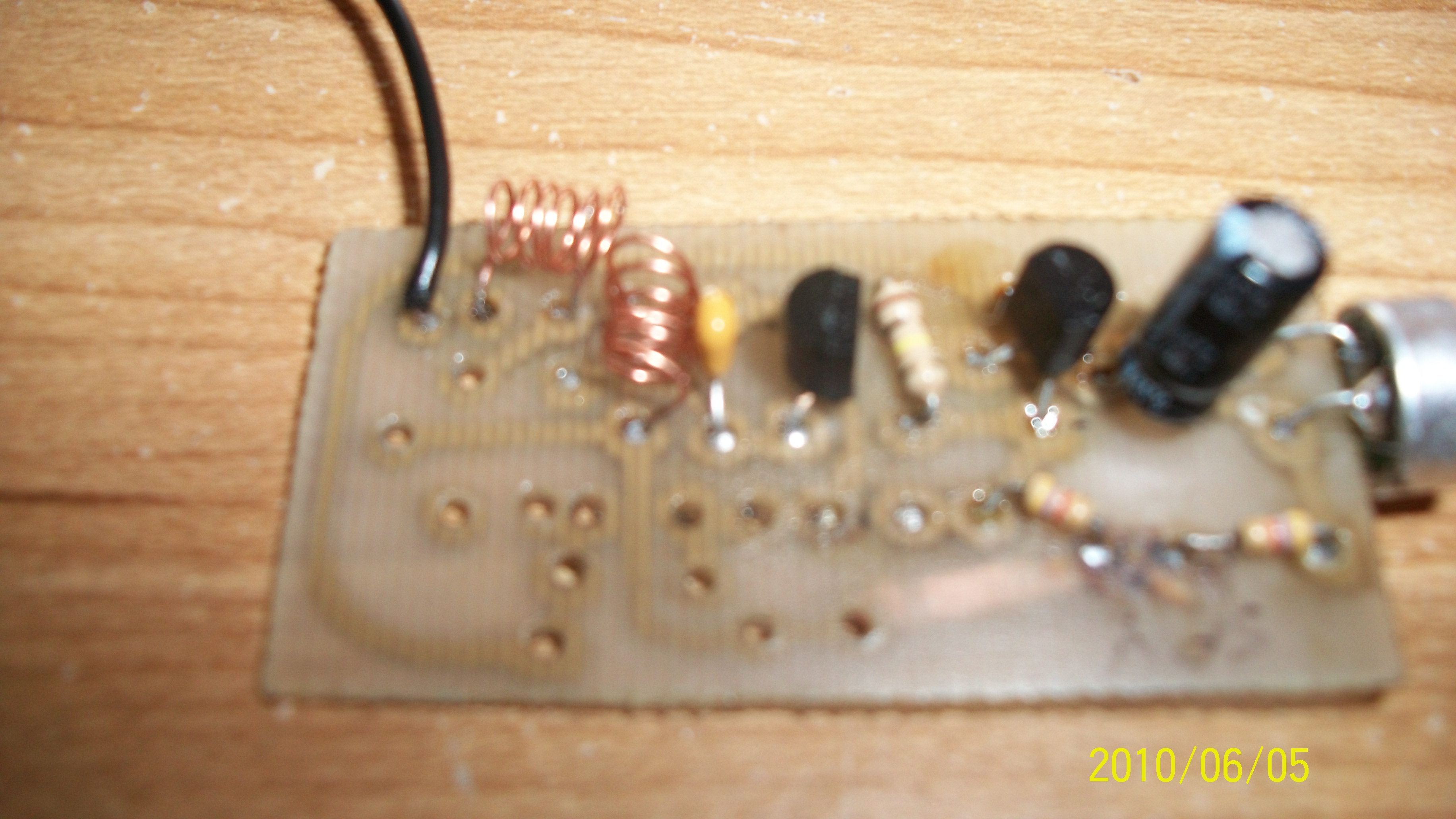

Next step I add the electret microphone, and the two coils. The coils should be wrapped around a 1/4 inch drill bit 6 times to get the coil needed for this project.
Adding Components

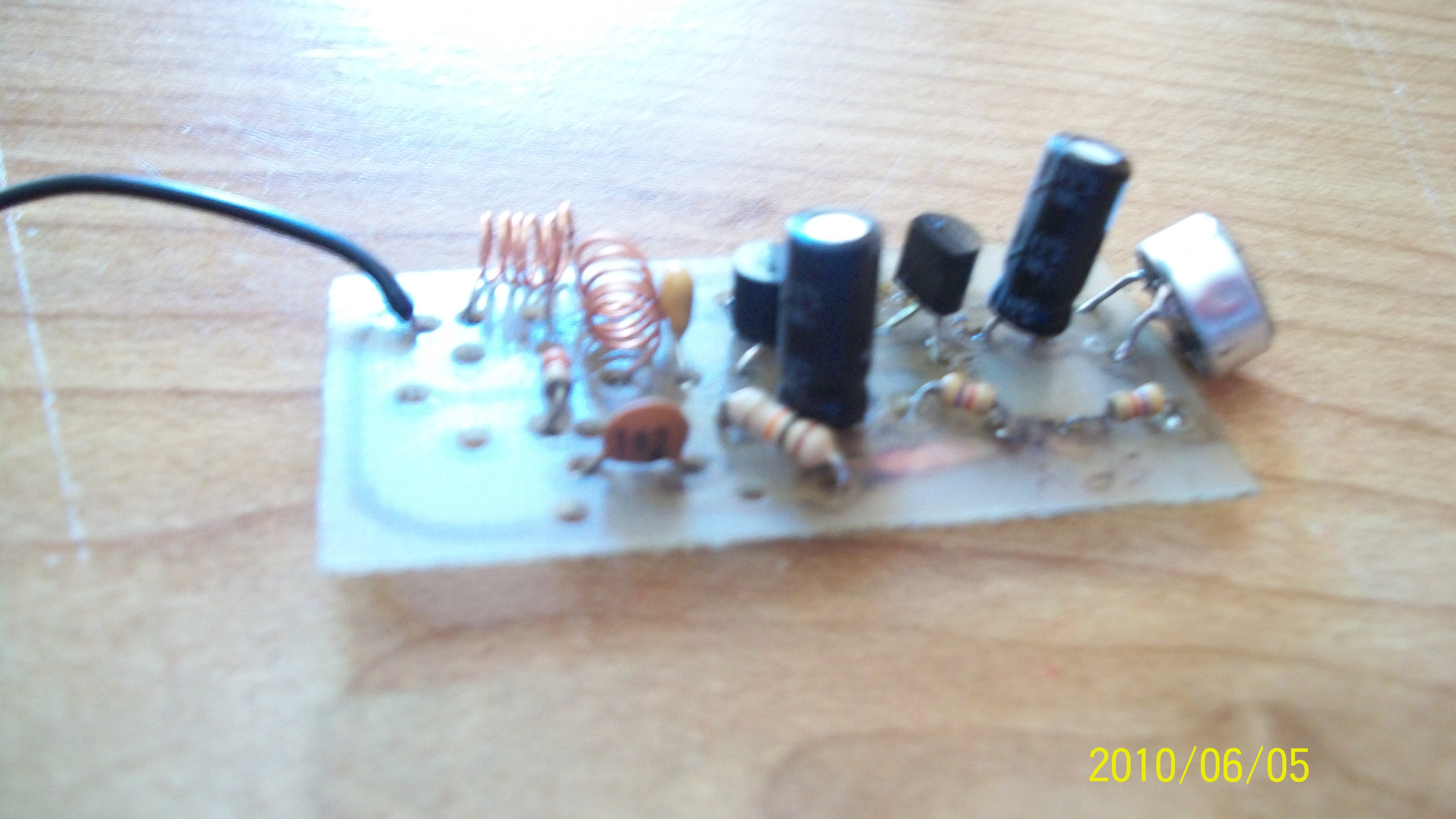

Now I add C1 (102) capacitor, R1 (330 ohm res.), R3 (10k res.) and C4 ( the other 10uF capacitor)
Adding Componenets

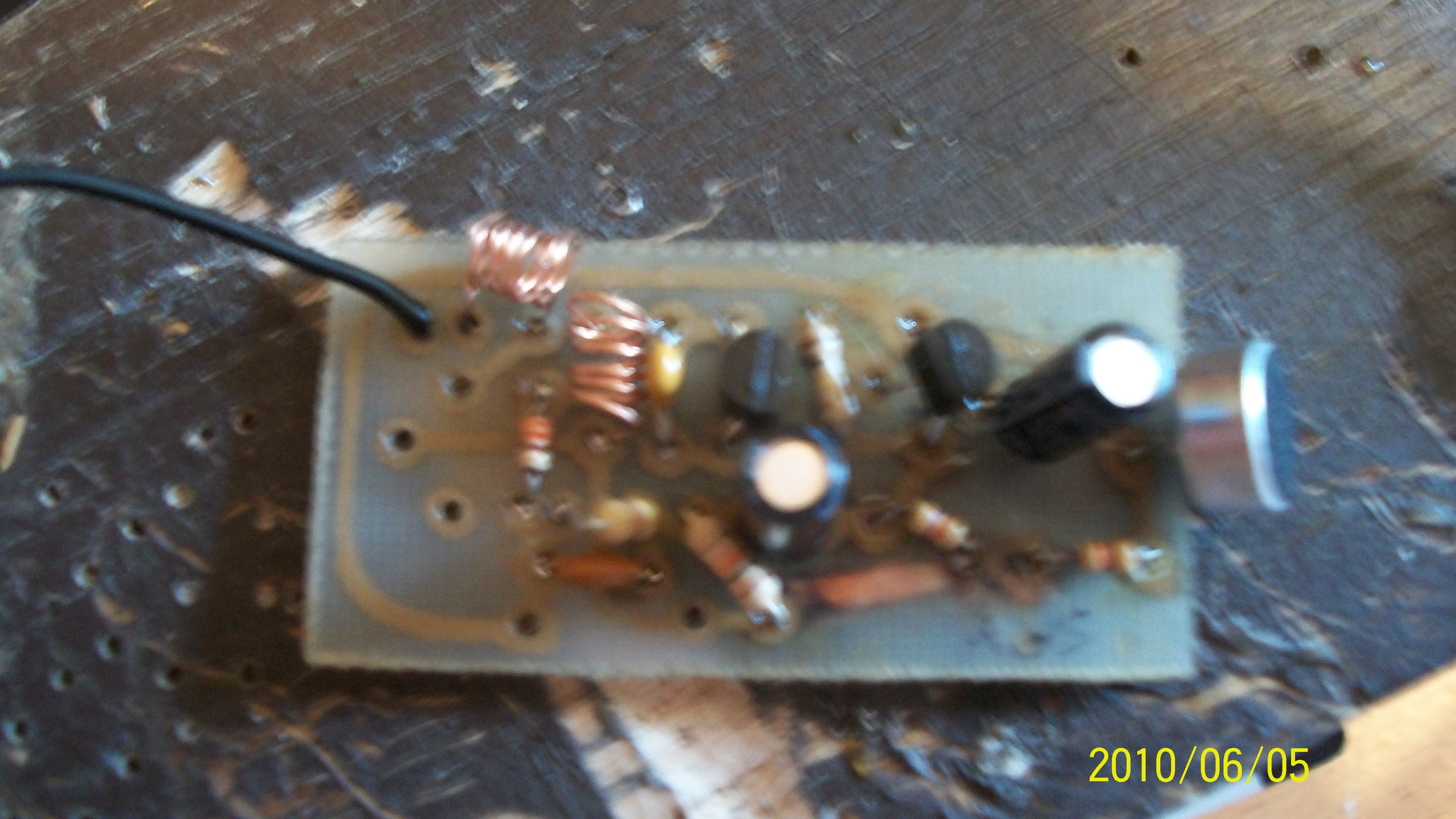

In this step I add the last resistor (R2), then I checked to se if every coponent is where it should be just to be sure.
Adding the Trimmer, Etc.

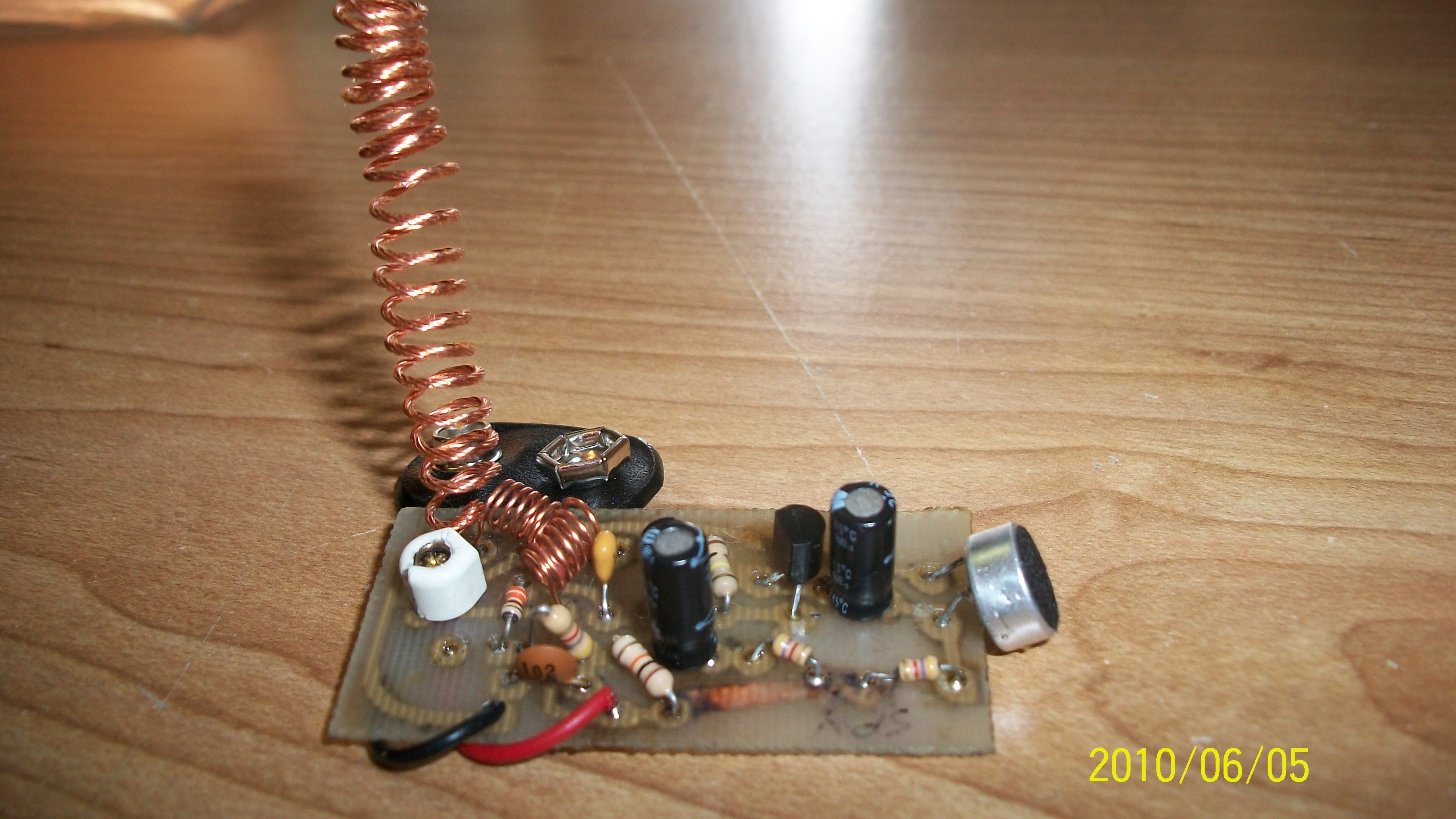

Finally comes the trimmer cap, the battery connector and the antenna wire. I chose to use a braided copper wire for this antenna just to try it but you can use whatever you like.
