Long Wire Antenna 1:9 Balun for 3-50 MHz (by F4HWK)
by kavea in Circuits > Wireless
22604 Views, 45 Favorites, 0 Comments
Long Wire Antenna 1:9 Balun for 3-50 MHz (by F4HWK)
![7.jpg](/proxy/?url=https://content.instructables.com/FG3/GH1D/J5MQAKMW/FG3GH1DJ5MQAKMW.jpg&filename=7.jpg)
Here i present the fabrication steps for a long wire balun having a transformation ratio of 1:9. This balun is simulated with LTSpice and measured with a VNA. The power handling has also been tested with a 50 W (SSB) of injected power without any problems.
Simulation results are available on my blog : http://kavea.free.fr
Materials
- Ferrite toroids FT114-61 (2 pcs)
- Copper wire, 1 mm diameter, 35 cm length (3 pcs)
- RF connector (e.g. SO239) (1 pc)
- Butterfly screw (1 pc)
- Any enclosure box (1 pc)
Wire Winding
![1.jpg](/proxy/?url=https://content.instructables.com/FBJ/C9Y9/J5MQA84J/FBJC9Y9J5MQA84J.jpg&filename=1.jpg)
![2.jpg](/proxy/?url=https://content.instructables.com/FOD/VUMW/J5MQA869/FODVUMWJ5MQA869.jpg&filename=2.jpg)
![2017-07-28 12_06_59-figures - Microsoft Visio.png](/proxy/?url=https://content.instructables.com/FXA/AWQ5/J5MQC0FX/FXAAWQ5J5MQC0FX.png&filename=2017-07-28 12_06_59-figures - Microsoft Visio.png)
![3.jpg](/proxy/?url=https://content.instructables.com/F4E/75WT/J5MQA88X/F4E75WTJ5MQA88X.jpg&filename=3.jpg)
![4.jpg](/proxy/?url=https://content.instructables.com/FTU/IYV7/J5MQA8AS/FTUIYV7J5MQA8AS.jpg&filename=4.jpg)
Wire winding should be done around two FT114-61 toroids (cf. photo) with the respect of the scheme (cf. photo). Wires should have some isolation coating (e.g. enameled wires).
Enclosure Box
![5.jpg](/proxy/?url=https://content.instructables.com/FSX/KR9N/J5MQA8DH/FSXKR9NJ5MQA8DH.jpg&filename=5.jpg)
![IMG_20170720_200434.jpg](/proxy/?url=https://content.instructables.com/FZF/EI8H/J5MQA8PW/FZFEI8HJ5MQA8PW.jpg&filename=IMG_20170720_200434.jpg)
![IMG_20170720_205105.jpg](/proxy/?url=https://content.instructables.com/F6I/USPM/J5MQA8SP/F6IUSPMJ5MQA8SP.jpg&filename=IMG_20170720_205105.jpg)
![IMG_20170720_205114.jpg](/proxy/?url=https://content.instructables.com/F85/DJFO/J5MQA8UP/F85DJFOJ5MQA8UP.jpg&filename=IMG_20170720_205114.jpg)
![6.jpg](/proxy/?url=https://content.instructables.com/FAA/KBVX/J5MQA8EE/FAAKBVXJ5MQA8EE.jpg&filename=6.jpg)
![7.jpg](/proxy/?url=https://content.instructables.com/FFU/NGFU/J5MQA8GB/FFUNGFUJ5MQA8GB.jpg&filename=7.jpg)
![8.jpg](/proxy/?url=https://content.instructables.com/FGB/ZF10/J5MQA8HB/FGBZF10J5MQA8HB.jpg&filename=8.jpg)

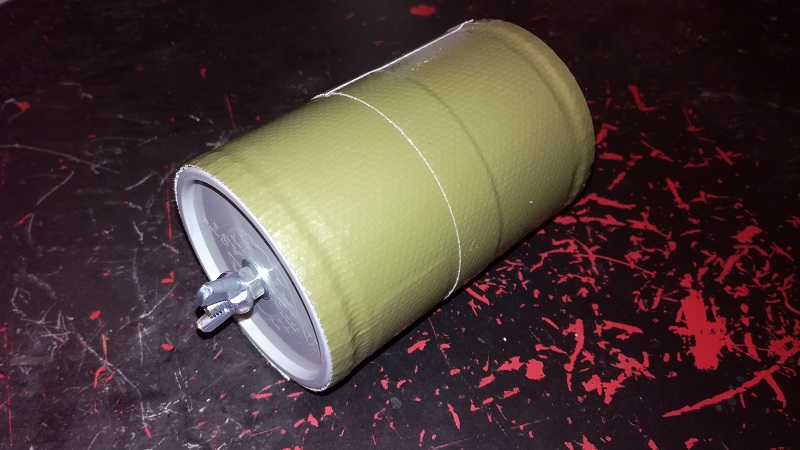

In my case i used a 50 mm diameter PVC tube to enclose the balun. Solder corresponding wires to the RF port and to the butterfly screw (cf. photo). Now the balun is fully assembled.
Measurements
![2.gif](/proxy/?url=https://content.instructables.com/FIY/QKX4/J5MQA84K/FIYQKX4J5MQA84K.gif&filename=2.gif)

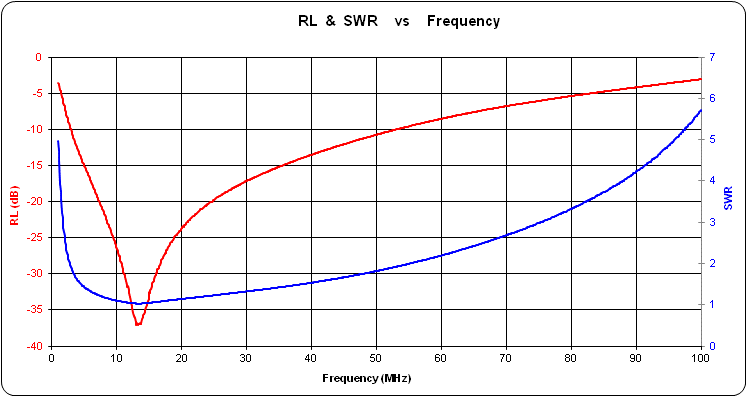

To check the transformation ratio of 1:9, the balun has been measured with a VNA. In this measurement the balun is connected to a 470 ohms resistor (the impedance of the VNA port is 50 ohms).
As we can see on the picture, the balun assure a bandwidth going from 3 MHz up to 50 MHz with the respect of SWR of 2:1.
The balun has been tested with an output power of 50 W without any problems.
