Lock Picking Tools From Scratch

Hello friends! today I'm going to teach them how to make tools to open any padlock or drum lock with only a Wiper/Washer!

For this project we will only need:

• Wiper/Washer
• Some tools like a grinder or bench grinder
• files
• blade of Jigsaw (optional)

• pliers

Let's begin!

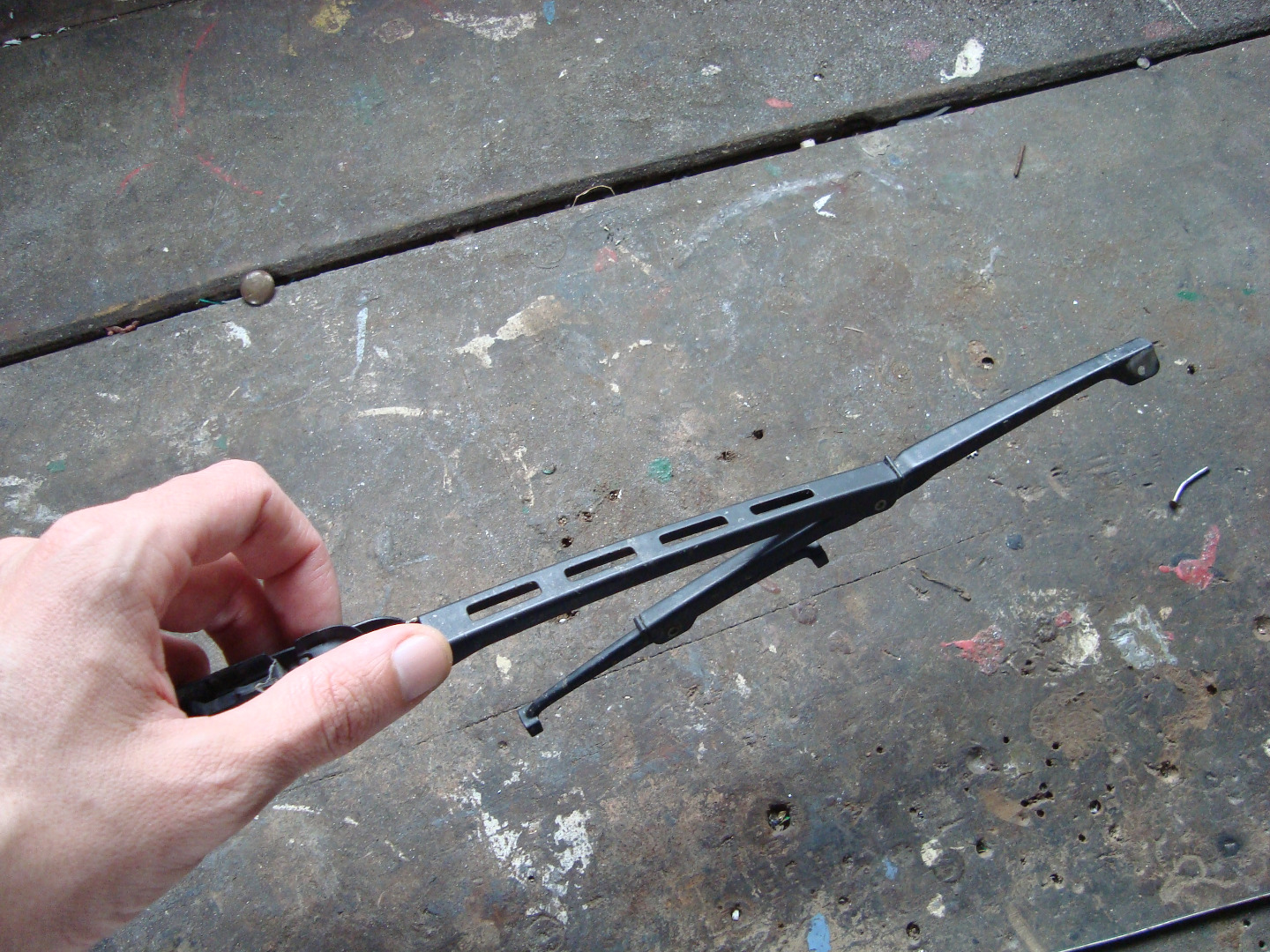

The first thing to do is to disassemble the wiper/washer, for that we must remove the rubber weatherstrip, and then remove the two metal blade insert.

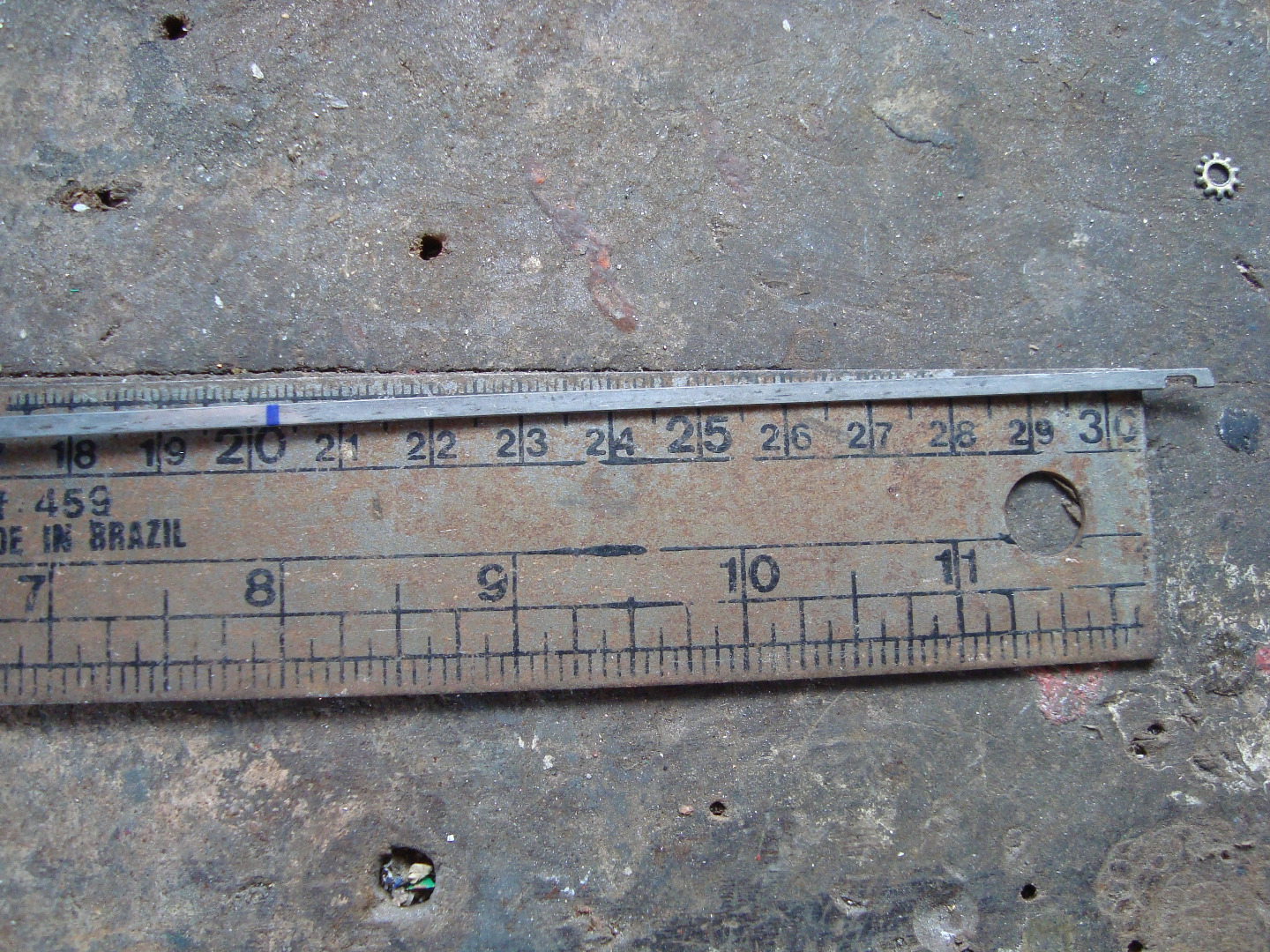

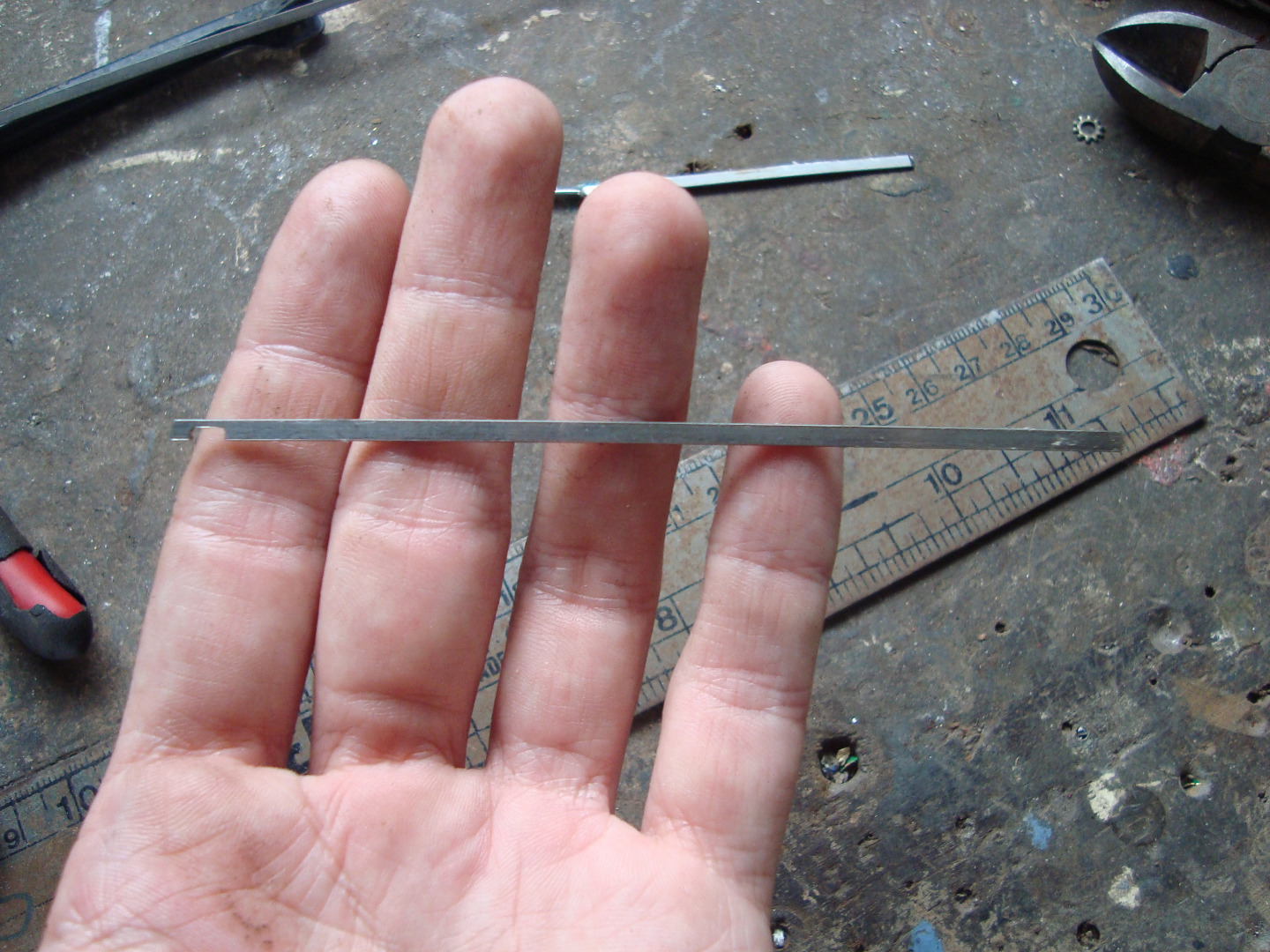

Now we take one of the rods and proceed to mark and cut, we need to make two cuts, one of 4 inches and another of 3.5 inches.

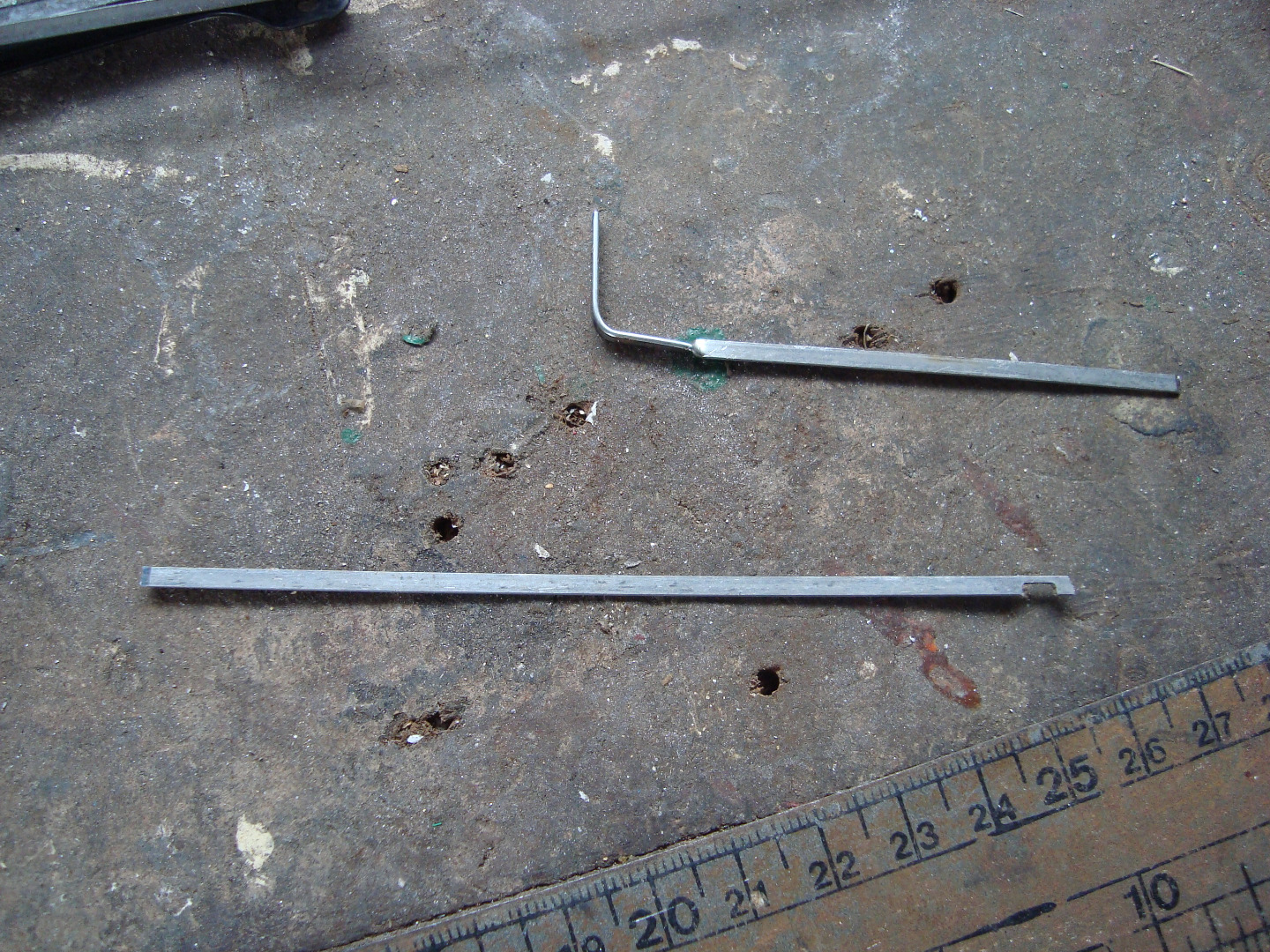

Now take the 3.5 inches and bend the tip to 0.3 inches (1 cm) and then apply a twist to the middle of the tensioner to give it more rigidity.
We already have our tensor ready! we only have to make our picks

.

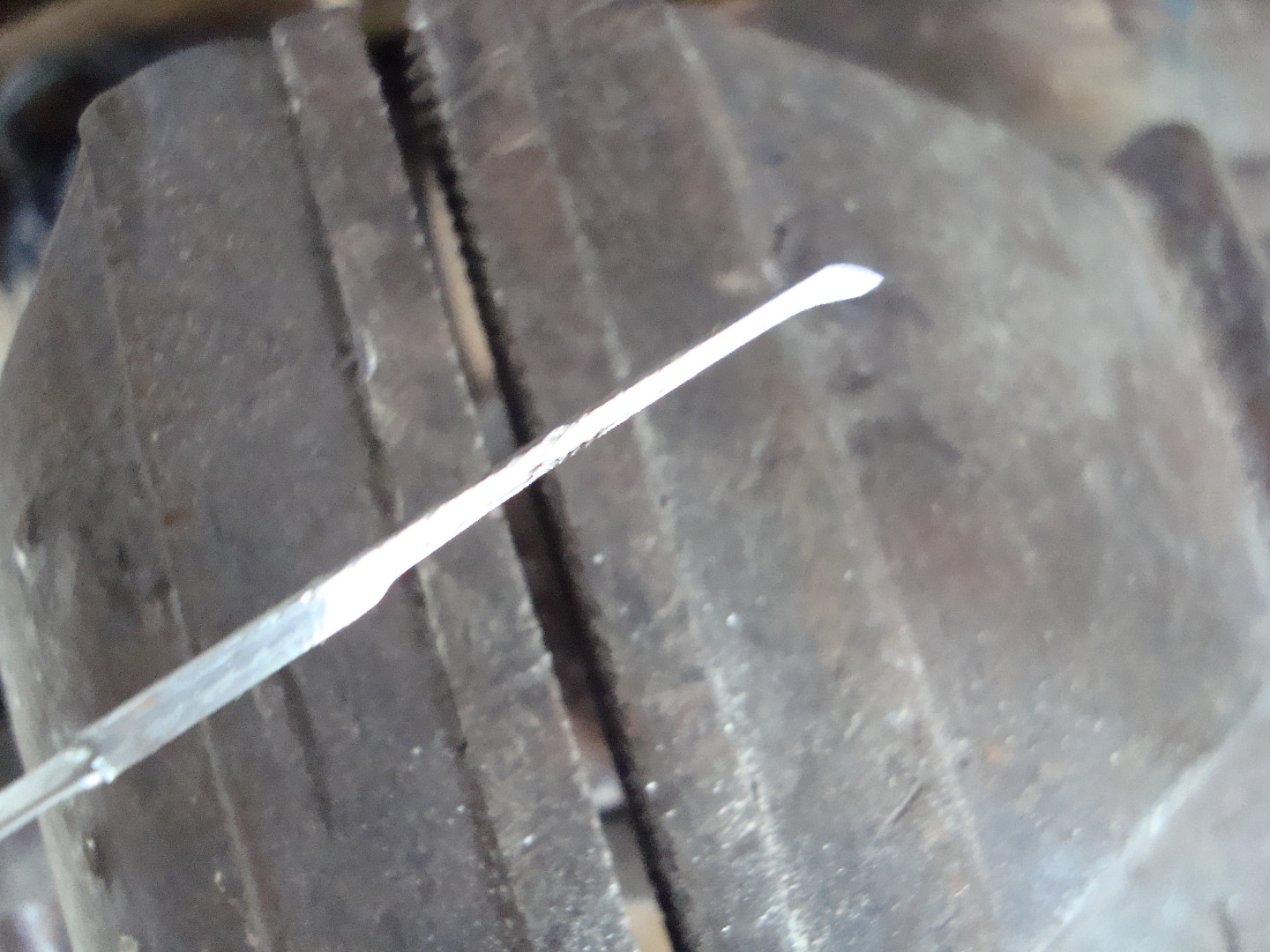

To make the picks we occupy the blade of 4 inches (10 cm), with a round file we roughly chopped close to the tip and once made said muezca, with a flat file we match the surface about 1.5 inches (4 cm) as we can appreciate in the pictures...
Instead of wiper blade, we can use the blade of a jigsaw tool.

And ready! now we can open any kind of padlocks or drum locks!

Here I leave this template so you can take as an example when making your picks! In the video you can also see how a ganzua works with a blade of jigsaw tool. I hope it has been useful, see you in the next instructable!
