LittleBits Disco Ball

by NSCAP_CBC in Circuits > Art

1671 Views, 9 Favorites, 0 Comments

LittleBits Disco Ball


I'm sure we've all run into this problem.....

You're having a party and say to your friends "I really wish we had a disco ball".

You're wish is our command! You can make this awesome disco ball that recognizes when music is playing and keeps the party going all night long.

Gather Supplies


Craft Supplies:

Large foam ball

Something reflective to put around foam ball (we used stickers from the dollarstore)

Rubberband

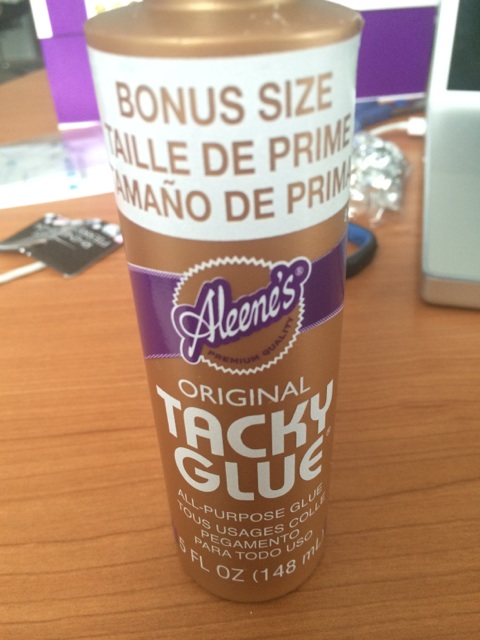

White glue (Aleene's is the BEST)

Glue gun

Toothpick

Cardboard

LittleBits:
Power block, sound sensor, neon light-up, dc motor, 1 orange wire

Make Your Disco Ball


Cover your styrofoam ball in glue and start placing reflective stickers all around the outside.

Tip: It helps to use a toothpick to move the ball around while the glue dries.

Create a Box and Attach Your Disco Ball to the Top


Using scrap cardboard create a box by gluing the sides together with hot glue.

Remove your toothpick and poke it through a rubber band, then attach the toothpick to your disco ball again.

Cut a hole in the top of your box and thread the rubber band through the top.

Attach LittleBits


Now it's time to attach your littleBits to the box and the disco ball.

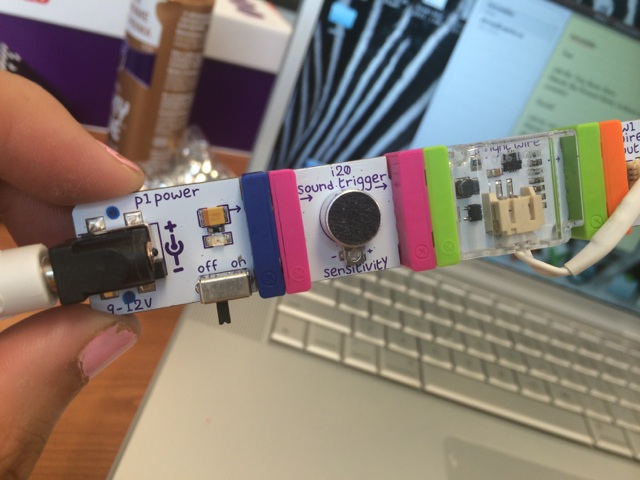

Start with a power bit

Then a sound trigger (this bit will only activate if there is sound in the room...like the sound coming from your sweet audio system).

Then add the light wire.

Then you will need to add and extension wire on so that you can attach the DC motor to the top of the box.

Attach Light Wire


Cut small holes in the sides of the box and weave the light wire through the holes. When this light from the wire hits the spinning disco ball. You're in business.

Enjoy Your Work!

littleBits Disco Ball for Instructables
