Lithium Ion Charger

You might get a cheap charger from amazon that comes with your 18650 flashlight, but that charger is very dangerous as all the 120 volt pins are very close together. The soldering is very shabby. The cheapo charger charges at a constant voltage of 4.2 volts and does not sense the voltage of the battery. Furthermore this only charges at 650 mah.

By replacing the inside with the circuit from a cheap battery bank we get a safer charger as it uses a usb wall plug to bring down the voltage. This charger can sense the battery voltage and will regulate the voltage. The charging current is almost double at 1200 mah.

What you need

• hot glue
• soldering iron
• solder
• prying tool
• screwdriver
• a cheap battery bank
• a cheap charger

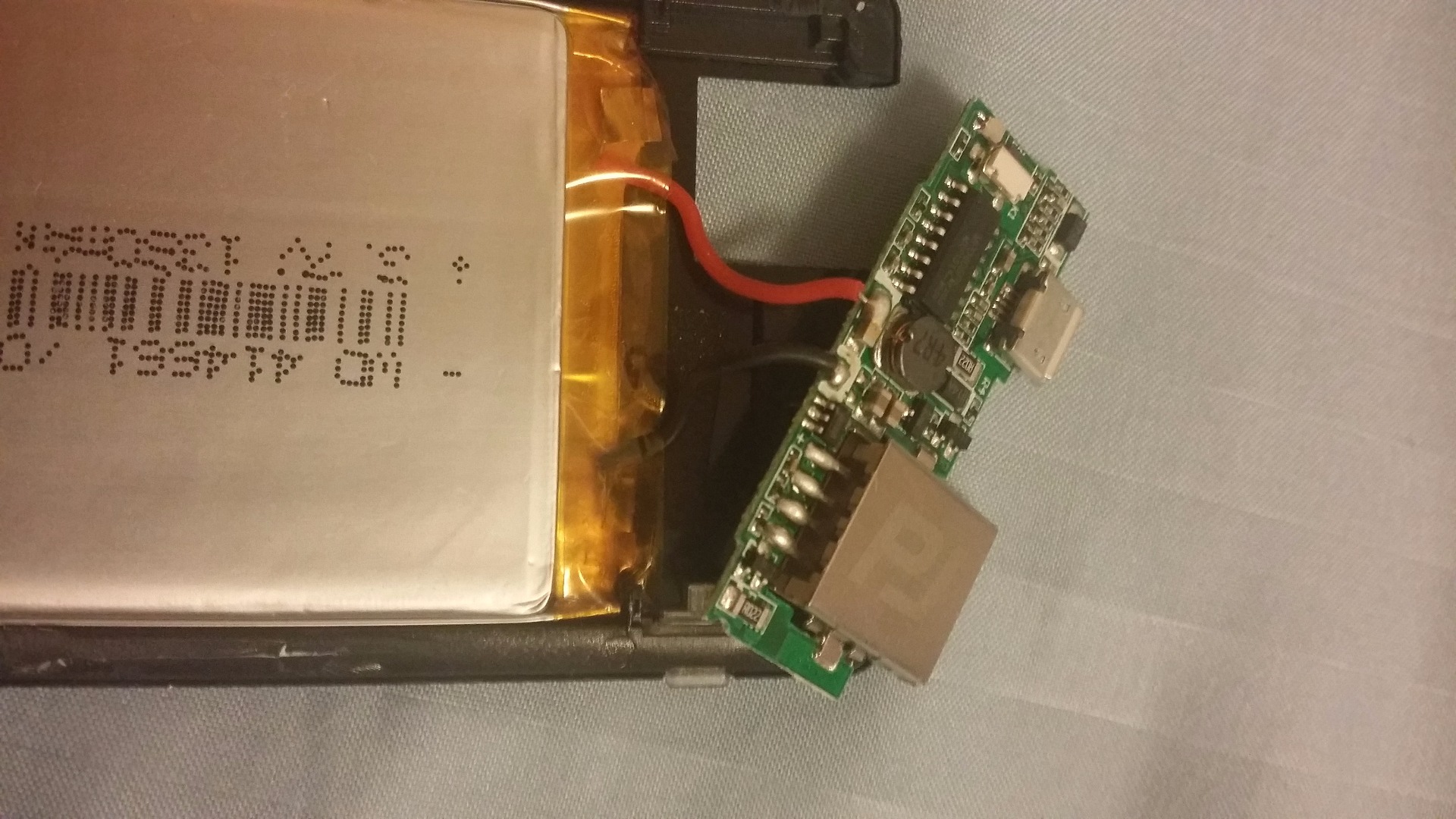

Pry open the battery pack to reveal the lithium battery and circuit.

Leave the wires on if you do not have a soldering gun to make soldering easier.

Carefully pry off the USB port.

Remove the screws under the label

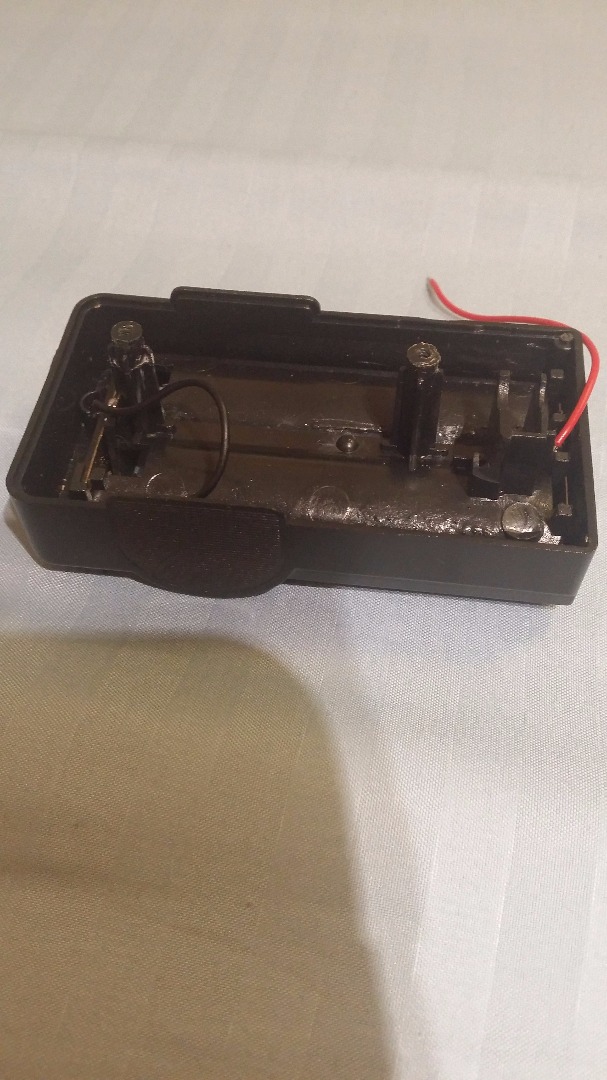

Remove the circuit board and de-solder the wires

Mark out where the micro USB is.

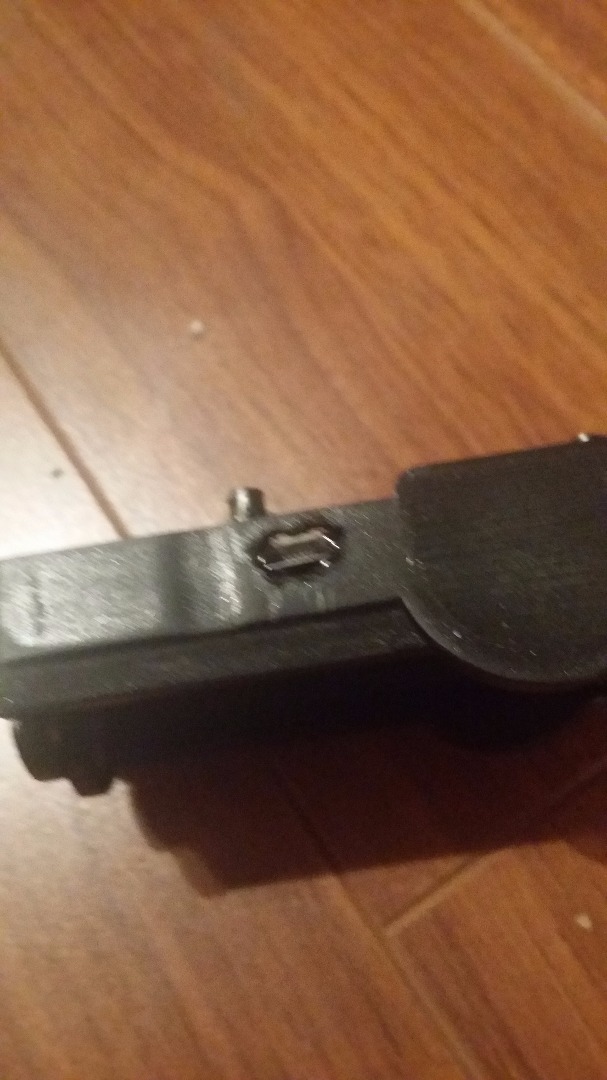

Then drill a hole that would fit the usb

Hot glue the Circuit board in.

Solder Black to Black and Red to Red.

Red is positive

Black is negative

Put the Screws back in.

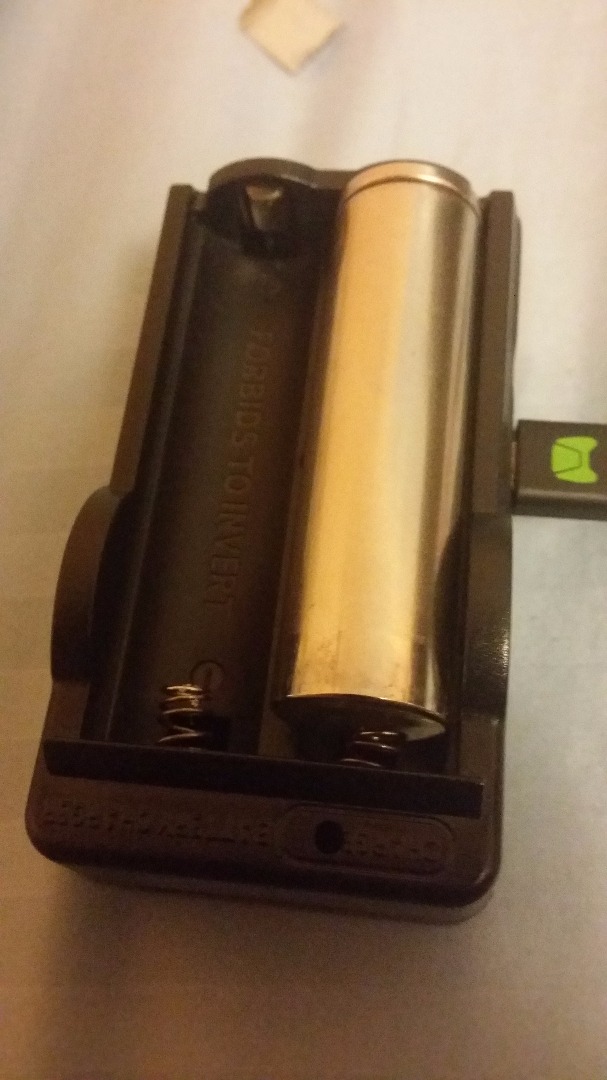

Test that there is voltage

Then you are done
