Linkin's Lightning Carbine (LLC) | a K'nex SMG

This is the first gun I have ever made by myself, and I am so happy with the result. After about five attempts, I decided to make a machine pistol. That machine pistol turned into an SMG pretty quickly. Now, I called it the Lightning Carbine because...a weapon name generator online came up with it for me :P. Now for the stats:



• 6 inch pin (Excluding the connector)
• SUPER comfy handle
• Attachment rail at the bottom (Currently holding the grip here)
• Iron sights
• Small rail for sight
• Comfy stock (The bit that rests on your shoulder curves and is designed by The Red Book Of Westmarch)
• Removable pre-loadable magazine (Friction held)
• Trigger guard
• Shoots grey 1 slot connectors attached to a green rod
• 7 layers thick
• Sturdy
• - Stock wiggles a bit
• - Uses cut pieces (In the magazine and trigger)
• - Simple pin gun
• - Handle sometimes breaks
• - Sight rail obscures iron sights (When building this part of the gun, you can choose to have no attachment rail at the top, a single row, or two parallel rows)


I haven't included the range as I have nowhere to measure it and I have no idea how to measure it, however I speculate it can get about 30 feet.

Please tell me what you think of it down in the comments! Subscribe for more builds like this in your 'you' page. Favorite and share but more importantly, have a great day!

At first I wanted a pistol, however I didn't want a handle magazine. After seeing some curved magazines, I wanted to use one of them, however I realised it made the gun look like an assault rifle. So I set about Instructables and looked at tons of internals of guns to get a feel for how to build mine.

I started with the internals of the barrel after the mag and build around that.

My next step was to make a magazine. I took a white rod magazine and modified it to be pre loadable. I also curved the base of it (which looks really cool in my opinion)

Next I made the internals fit the magazine, and started on the layers that encase the internals. This meant I could start work on the other wide of the barrel.

I started the internals (behind the mag) and the trigger. The trigger was great, until later on I shot the gun and the pin pushed the trigger out of the way.

I then built the handle, taking some inspiration from CorgiCritter, and attached it. It is EXTREMELY comfy!

I then went to work on the stock which I knew would be the hardest part. I started with the centre three layers and worked around them.

For the actual shoulder part, I already knew I wanted to use The Red Book Of Westmarch's curved bendy rod design and I worked around that.

After test shooting the gun and realising the trigger didn't work, I spent a LONG time getting a trigger to work, and eventually got a perfect one!

The whole gun was complete at this point. My first k'nex gun built by me alone. I was so happy and satisfied, even if it is a simple pin gun.

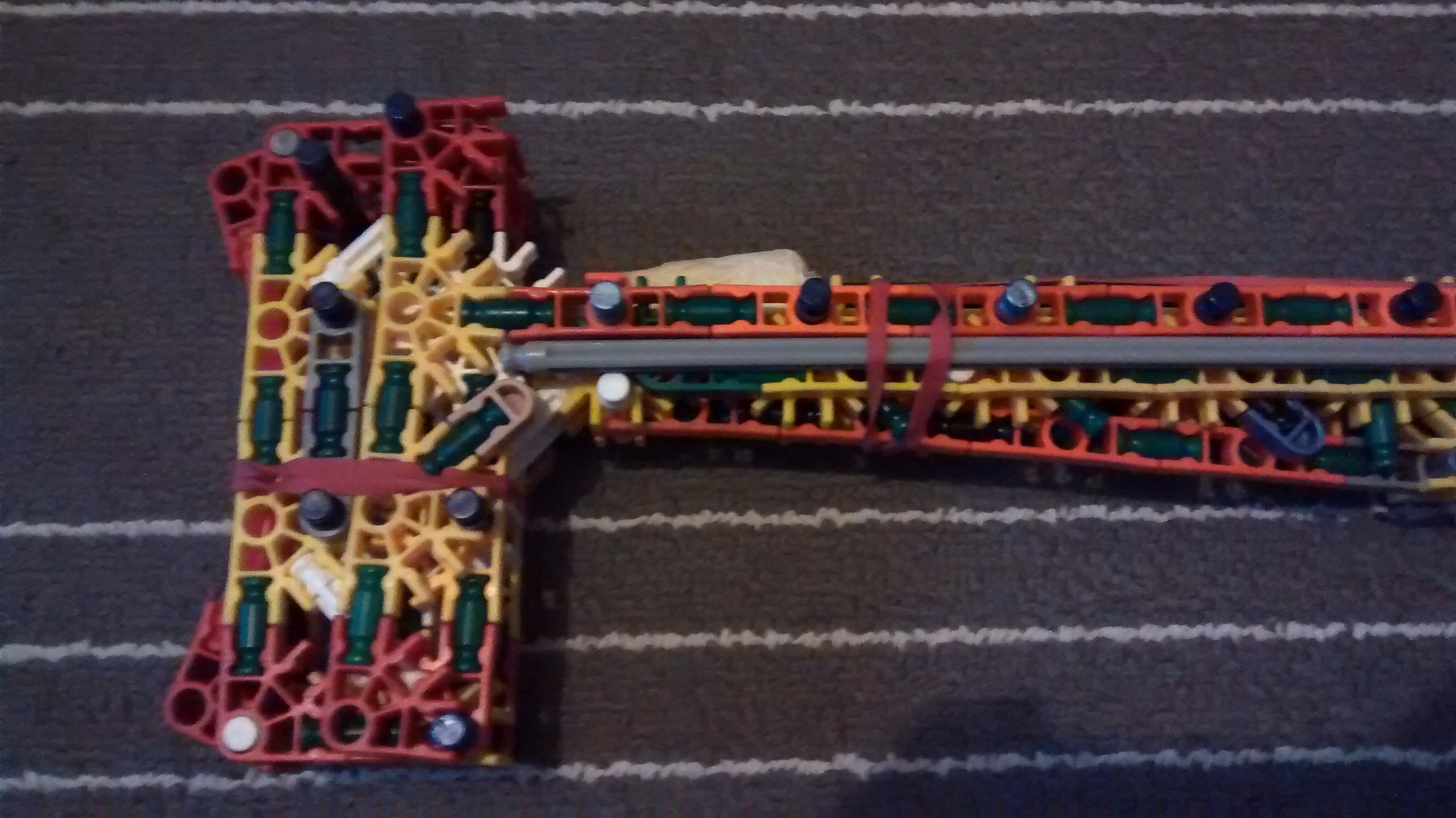

Here are some internals.
