Linear Actuator in 5 Minutes
by sanyam jain in Circuits > Electronics
13287 Views, 84 Favorites, 0 Comments
Linear Actuator in 5 Minutes
![DSC_0103.jpg](/proxy/?url=https://content.instructables.com/FOS/8QPX/IZ6BXKMR/FOS8QPXIZ6BXKMR.jpg&filename=DSC_0103.jpg)
Always wanted the linear motion but were stuck with the circular motion of the motor .You have landed on the correct place
Supplies Needed
![DSC_0086.jpg](/proxy/?url=https://content.instructables.com/FDX/8XF7/IZ6BXIOL/FDX8XF7IZ6BXIOL.jpg&filename=DSC_0086.jpg)
List of the material you need is
- a power drill
- a flat file
- tape
- a bolt (of about 75 mm length)
- 3 nuts of that size
- motor
- wire cutter
- a coupler used in tube lights
Making the Shaft
![sanding with drill](/proxy/?url=https://content.instructables.com/FYT/RT2E/IZ6BXIOC/FYTRT2EIZ6BXIOC.jpg&filename=sanding with drill)
![DSC_0089.jpg](/proxy/?url=https://content.instructables.com/FUX/6YOO/IZ6BXIQH/FUX6YOOIZ6BXIQH.jpg&filename=DSC_0089.jpg)
![DSC_0088.jpg](/proxy/?url=https://content.instructables.com/F27/G6TY/IZ6BXIQE/F27G6TYIZ6BXIQE.jpg&filename=DSC_0088.jpg)
![DSC_0091.jpg](/proxy/?url=https://content.instructables.com/FNI/HXUA/IZ6BXIQM/FNIHXUAIZ6BXIQM.jpg&filename=DSC_0091.jpg)

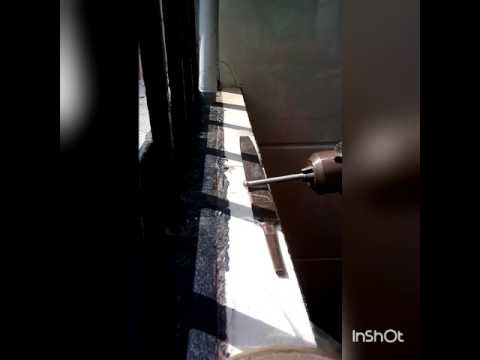

Take the bolt fix it in the drill machine and stick the file flat with help of a tape
Coupler
![DSC_0093.jpg](/proxy/?url=https://content.instructables.com/FME/HNKN/IZ6BXIQQ/FMEHNKNIZ6BXIQQ.jpg&filename=DSC_0093.jpg)
![DSC_0094.jpg](/proxy/?url=https://content.instructables.com/F1W/6N63/IZ6BXIQW/F1W6N63IZ6BXIQW.jpg&filename=DSC_0094.jpg)
![DSC_0098.jpg](/proxy/?url=https://content.instructables.com/FBJ/HCYM/IZ6BXINF/FBJHCYMIZ6BXINF.jpg&filename=DSC_0098.jpg)
![DSC_0099.jpg](/proxy/?url=https://content.instructables.com/F2O/ELGK/IZ6BXINS/F2OELGKIZ6BXINS.jpg&filename=DSC_0099.jpg)
take the coupler remove its plastic shaeth and arrange them
Piece for Movement
![DSC_0100.jpg](/proxy/?url=https://content.instructables.com/F03/AWQH/IZ6BXIO4/F03AWQHIZ6BXIO4.jpg&filename=DSC_0100.jpg)
![DSC_0102.jpg](/proxy/?url=https://content.instructables.com/F4O/NGG6/IZ6BXIO7/F4ONGG6IZ6BXIO7.jpg&filename=DSC_0102.jpg)
![DSC_0104.jpg](/proxy/?url=https://content.instructables.com/FVO/QYSL/IZ6BXIR0/FVOQYSLIZ6BXIR0.jpg&filename=DSC_0104.jpg)
take the 3 nuts and screw them on the bolt such that the bolt is free to move . Now solder the 3 nuts together
Completed
![final](/proxy/?url=https://content.instructables.com/FUD/7TOB/IZ6BXIR5/FUD7TOBIZ6BXIR5.jpg&filename=final)
![DSC_0107.jpg](/proxy/?url=https://content.instructables.com/FGL/CYF1/IZ6BXIOF/FGLCYF1IZ6BXIOF.jpg&filename=DSC_0107.jpg)

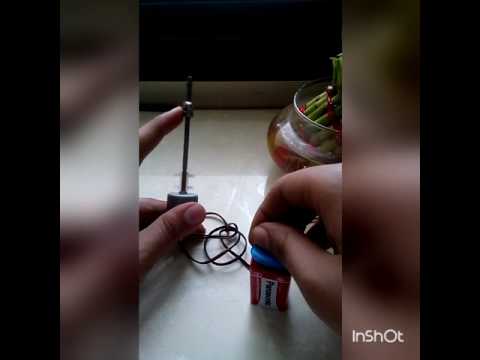

On one polarity goes up and on other goes down
