Lighting Up LEDs With Switches
by Lola Wang in Circuits > Arduino
348 Views, 0 Favorites, 0 Comments
Lighting Up LEDs With Switches
Light up the LEDs using Switches!
The Original Work: https://www.instructables.com/Lighting-Up-and-LED...
I have changed plenty of parts from the original work.
Supplies
3 Switches
3 LED Light Bulbs
A Breadboard
An Arduino
Several Wires
A Box
Connect and Build Up the Switches and LEDs
Connect the switches and the LEDs on the breadboard like the picture.
Three groups of switches and LEDs are connected in the same way.
Make the switches and LEDs longer so that they can work after wrapping with a box.
What I've changed: 1 group of a switch and LED --> 3 groups (3 different color instead of 1)
Coding
Program the code following the website in the link:
https://create.arduino.cc/editor/lolawang/b24b4938...
What I've changed: add codes for 2 more switches and LEDs

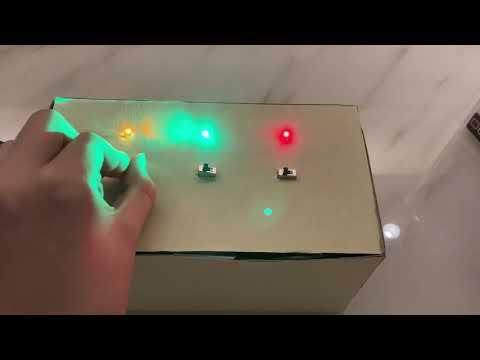

Wrap It Up and Working!
Make it look nicer by wrapping up with a box.
Fixed the switches and the LEDs on the box.
At last, MAKE IT WORK!
