Lighting Controller With Freely Adjustable WS2812 LED Color

In this article, I'm going to make a light controller, using Squareline_studio and MaTouch ESP32-S3 Rotary IPS Display with Touch 2.1 “ST7701”

Hello everyone, are you like me preparing for Christmas? I recently learnt how to make a delicate little Christmas tree online, which can be used as a desktop decoration. I was so impressed that I made a quick purchase of some materials and couldn't wait to get started. However, when I powered up the coloued lights, I found that I don't like the color of my Christmas decorations colored lights, it's not as pretty as I thought it would be.

So, I made a light controller that can freely adjust the colors of the colored lights, and make it able to turn off at regular intervals.

• The MaTouch ESP32-S3 Rotary IPS Display with Touch 2.1“ ST7701

It has a rotary encoder, which can be used as a control trigger for colour fine tuning

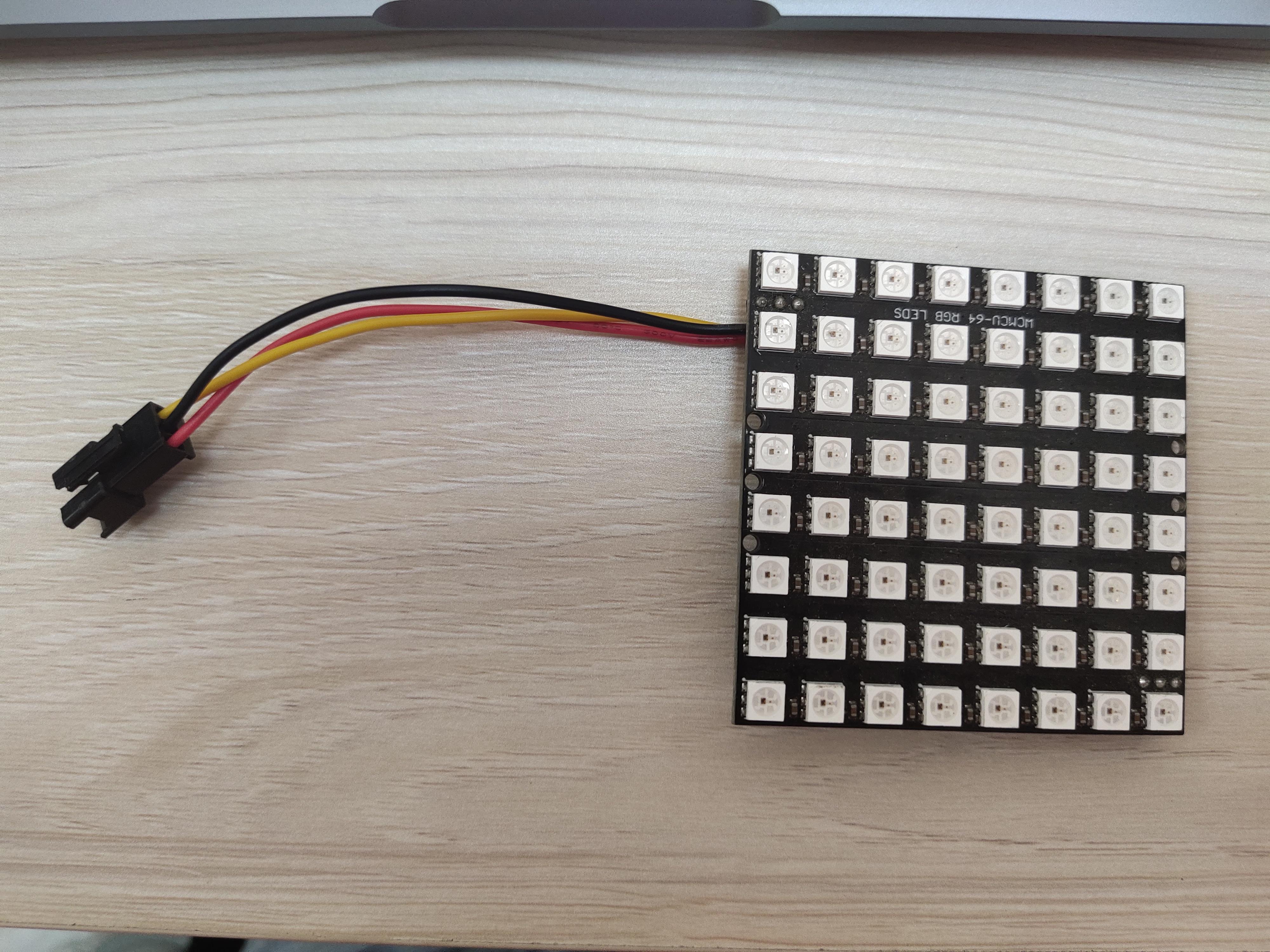

• WS2812 LED

Intelligent control LED integrated light source

• Software support: Arduino, SquareLine

• Create a new product

Choose the Arduino and enter in parameters. According to the features of MaTouch ESP32 S3 2.1 Rotary TFT with Touch, the resolution is 480*480, the shape is a circle, and the color depth is 16-bit.

• Design the screen

Add the colorwheel ,switch, and buttons on the interface, the color wheel for getting colors, the switch for light switch, and buttons for timed triggers，and you can modify the parameters of them on the Inspector panel. After that , you can select some other widgets to decorate your interface, all is determined by your preference.

• Basic usage of Squareline with MaTouch 2.1

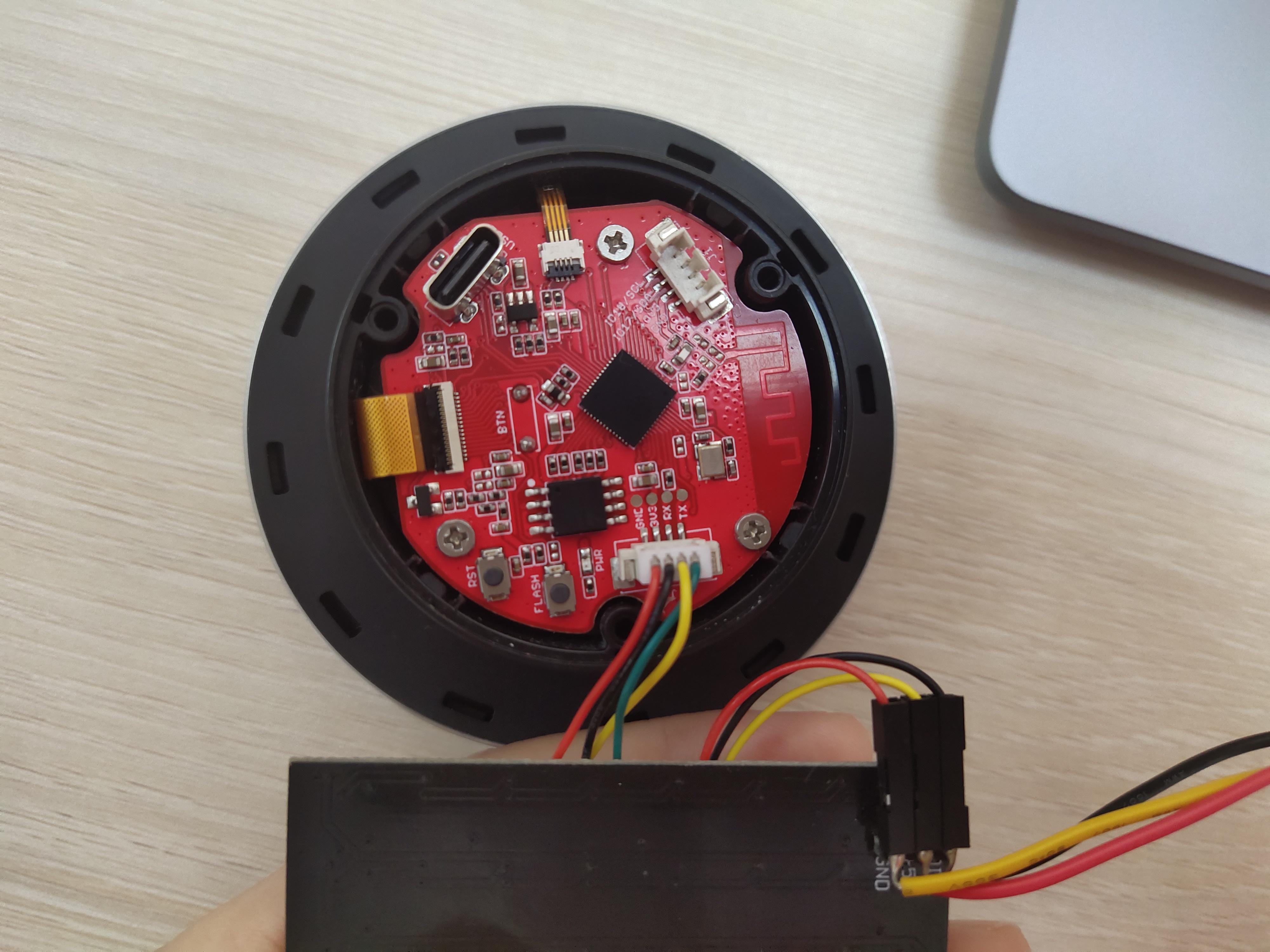

• connect J2 to WS2812 LED:

3V3 to +5V;

GND to GND;

RX to DIN;

• This share uses a light board as an example, but it also applies to ws2812 strip lights.

• The MaTouch ESP32 S3 2.1 Rotary TFT with Touch is not compatible with the TFT_eSPI library, so I use the GFX_Library_of_Arduino library instead of the driver.

Since I did not use the TFT_eSPI library, it is needed to delete or comment all the codes related to the TFT_eSPI library.

#include <TFT_eSPI.h>

TFT_eSPI tft = TFT_eSPI(screenWidth, screenHeight); /* TFT instance */

    tft.startWrite();
    tft.setAddrWindow( area->x1, area->y1, w, h );
    tft.pushColors( ( uint16_t * )&color_p->full, w * h, true );
    tft.endWrite();

    tft.begin();          /* TFT init */
    tft.setRotation( 3 ); /* Landscape orientation, flipped */

When I use the GFX library， it is needed to define the GFX Library For the Arduino Interface pin.

Arduino_ESP32RGBPanel *bus = new Arduino_ESP32RGBPanel(
    1 /* CS */, 46 /* SCK */, 0 /* SDA */,
    2 /* DE */, 42 /* VSYNC */, 3 /* HSYNC */, 45 /* PCLK */,
    11 /* R0 */, 15 /* R1 */, 12 /* R2 */, 16 /* R3 */, 21 /* R4 */,
    39 /* G0/P22 */, 7 /* G1/P23 */, 47 /* G2/P24 */, 8 /* G3/P25 */, 48 /* G4/P26 */, 9 /* G5 */,
    4 /* B0 */, 41 /* B1 */, 5 /* B2 */, 40 /* B3 */, 6 /* B4 */
);

// Uncomment for 2.1" round display
Arduino_ST7701_RGBPanel *gfx = new Arduino_ST7701_RGBPanel(
    bus, GFX_NOT_DEFINED /* RST */, 0 /* rotation */,
    false /* IPS */, 480 /* width */, 480 /* height */,
    st7701_type5_init_operations, sizeof(st7701_type5_init_operations),
    true /* BGR */,
    10 /* hsync_front_porch */, 8 /* hsync_pulse_width */, 50 /* hsync_back_porch */,
    10 /* vsync_front_porch */, 8 /* vsync_pulse_width */, 20 /* vsync_back_porch */);

• LVGL is a user interface library primarily focused on display functionality, but it lacks user interaction capabilities. So, I need something to help me touch or interact with the screen.

 Modify the touchpad function according to the pre-set functions in touch.h, and pass the state of the touchpad to the LVGL graphics library.

void my_touchpad_read( lv_indev_drv_t * indev_driver, lv_indev_data_t * data )
{
   int touchX = 0, touchY = 0;

    if (read_touch(&touchX, &touchY) == 1)
    {
        data->state = LV_INDEV_STATE_PR;

        data->point.x = (uint16_t)touchX;
        data->point.y = (uint16_t)touchY;
    }
    else
    {
        data->state = LV_INDEV_STATE_REL;
    }
}

• Initialising the input device，and we need to associate the encoder with the color wheel

To create a group use lv_group_t * g = lv_group_create(), to add an object to the group use lv_group_add_obj(g, obj), and to associate a group with an input device use lv_indev_set_group(indev, g);

/*Initialize the (dummy) input device driver*/
    static lv_indev_drv_t indev_drv;
    lv_indev_drv_init(&indev_drv);
    indev_drv.type = LV_INDEV_TYPE_POINTER;
    indev_drv.read_cb = my_touchpad_read;
    lv_indev_drv_register(&indev_drv);


    // encoder
    static lv_indev_drv_t indev_drv2;
    lv_indev_drv_init(&indev_drv2);
    indev_drv2.type = LV_INDEV_TYPE_ENCODER;
    indev_drv2.read_cb = my_encoder_read;
    lv_indev_t *encoder_indev = lv_indev_drv_register(&indev_drv2);

    lv_group_t *g = lv_group_create();
    lv_group_add_obj(g, ui_Colorwheel1);
    lv_indev_set_group(encoder_indev, g);

• Encoder pin level change triggers interrupt to change color wheel value

void pin_init()
{
    pinMode(TFT_BL, OUTPUT);
    digitalWrite(TFT_BL, HIGH);


    pinMode(ENCODER_CLK, INPUT_PULLUP);
    pinMode(ENCODER_DT, INPUT_PULLUP);
    old_State = digitalRead(ENCODER_CLK);


    attachInterrupt(ENCODER_CLK, encoder_irq, CHANGE);


    Wire.begin(I2C_SDA_PIN, I2C_SCL_PIN);
}

void encoder_irq()
{
    State = digitalRead(ENCODER_CLK);
    if (State != old_State)
    {
        if (digitalRead(ENCODER_DT) == State)
        {
            counter++;
        }
        else
        {
            counter--;
        }
    }
    old_State = State; // the first position was changed
}

void my_encoder_read(lv_indev_drv_t *drv, lv_indev_data_t *data)
{
    if (counter > 0)
    {
        data->state = LV_INDEV_STATE_PRESSED;
        data->key = LV_KEY_LEFT;
        counter--;
        move_flag = 1;
    }


    else if (counter < 0)
    {
        data->state = LV_INDEV_STATE_PRESSED;
        data->key = LV_KEY_RIGHT;
        counter++;
        move_flag = 1;
    }
    else
    {
        data->state = LV_INDEV_STATE_RELEASED;
    }


    // if (enc_pressed())
    //     data->state = LV_INDEV_STATE_PRESSED;
    // else
    //     data->state = LV_INDEV_STATE_RELEASED;
}

• Getting color wheel colous and displaying it on WS2812 LEDs.

#define WS2812_PIN RX_PIN
#define NUMPIXELS 20

color_status = lv_color_to32(lv_colorwheel_get_rgb(ui_Colorwheel1));


    pixels.begin();
    pixels.setBrightness(60);
    pixels.clear();
    pixels.show();

void fresh_led()
{
    if (light_flag == 0)
    {
        pixels.clear(); // Set all pixel colors to 'off'
        pixels.show();
    }


    else
    {
        for (int i = 0; i < NUMPIXELS - 4; i++)
        { // For each pixel...


            // pixels.Color() takes RGB values, from 0,0,0 up to 255,255,255
            // Here we're using a moderately bright green color:
            // pixels.setPixelColor(i, pixels.Color(0, 150, 0));


            pixels.setPixelColor(i, color_status);


            pixels.show(); // Send the updated pixel colors to the hardware.


            // vTaskDelay(DELAYVAL); // Pause before next pass through loop
        }
    }
}

• Setting the timer function

long runtime = 0;
long led_runtime = 0;
long status_runtime = 0;
void Task_main(void *pvParameters)
{
    while (1)
    {
        if (move_flag == 1)
            if ((millis() - runtime) > 500)
            {


                fresh_led();
                move_flag = 0;


                runtime = millis();
            }


        if (clock_flag == 1)
        {
            clock_status = 1;
            clock_flag = 0;
            led_runtime = millis();
        }
        if (clock_status == 1)
        {
            if ((millis() - status_runtime) > 500)
            {
                int remain_time = clock_count - (millis() - led_runtime) / 1000;
                if (remain_time > 0)
                {
                    char c[20];
                    sprintf(c, "Remain: %4d s", remain_time);
                    lv_label_set_text(ui_Label5, c);
                }
                else
                {
                    light_flag = 0;
                    move_flag = 1;
                    clock_status = 0;
                    lv_label_set_text(ui_Label5, "Close");
                    lv_obj_clear_state(ui_Switch1, LV_STATE_CHECKED);
                }


                status_runtime = millis();
            }
        }


        vTaskDelay(10);
    }
}

• The raw code

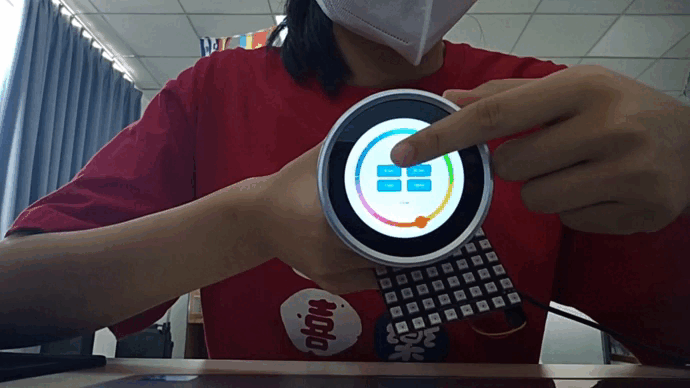

When I open the switch, the WS2812 lights up, and the LED's color changes with the color of the colorwheel knob. I can change the colorwheel knob position by touching the screen or rotating the encoder. And when I click the button,the light will be turn off at the setting time .
