Lighthouse Based Off of Lighthouse Lamp


I designed a light house based off of a lamp.

Design

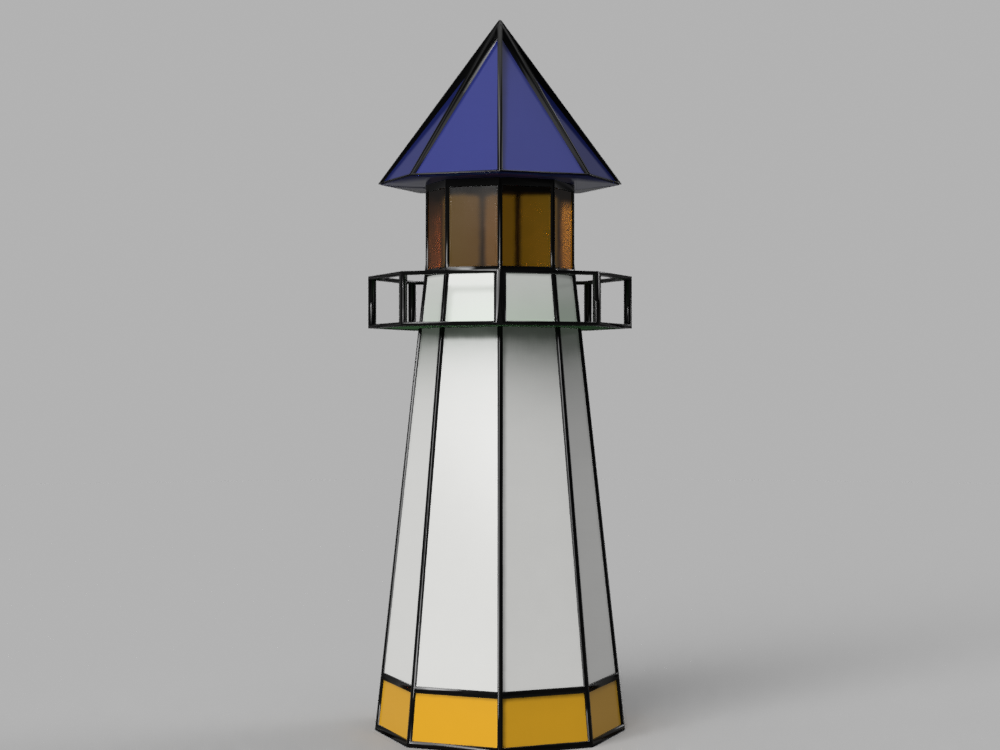

Copy of Lighthouse.png
  • Used the polygon shape generator with a point
  • Stretched it cut out top copied
  • Cut ones bottom and the others top
  • Designed light with polygon
  • Made top with another one of those shape generators stretched
  • Used a polygon to make platform
  • Another with hole cut in it for guard
  • Added rectangles to guard
  • Created black lines by making a layout, grouping it with a slightly lighthouse shaped hole and aligning with lighthouse

Photos


Printing

Print with supports
