Light on Time
![20200621_152523.jpg](/proxy/?url=https://content.instructables.com/F2F/5R9M/KDX3P38N/F2F5R9MKDX3P38N.jpg&filename=20200621_152523.jpg)
My wife purcahsed this LED illumintaed sign and hung it in our small hallway.
She was very good at switching it on, but very forgetful re switching it off ! The obvious result being the fact we were changing the batteries far too often!
I decided the best solution to have it switch on by a sensor, but my main concern was drain on the batteries caused by the sensor.
Then I came across a 'little gem' PIR MH-SR602. It only draws 20 micro amps, (yes micro amps) while sensing and it has an adjustable 'on' time too!
Problem solved!
Component List
![20200623_105340.jpg](/proxy/?url=https://content.instructables.com/FLI/H80V/KDX3P38O/FLIH80VKDX3P38O.jpg&filename=20200623_105340.jpg)
MH-SR602 - eBay
100 uF capacitor (essential for stability an false trigger prevention !)
100 K timing resistor (this can be any value between 0 ohms & 316 M)
4.7K resistor
BC337 or pretty much any NPN transistor
About the MH-SR602
![s-l64.jpg](/proxy/?url=https://content.instructables.com/FZW/Y9N4/KDX3P3U6/FZWY9N4KDX3P3U6.jpg&filename=s-l64.jpg)
![ceca46ed3f97ac39e8b00eb8770b67d9.png](/proxy/?url=https://content.instructables.com/FS0/VXNJ/KDX3P4I3/FS0VXNJKDX3P4I3.png&filename=ceca46ed3f97ac39e8b00eb8770b67d9.png)
There is some good information on the aliexpress site ...
https://www.aliexpress.com/item/32948972482.html?s...
The photo of the postion of the timing resistor is far better than my sketch!
I didnt bother with the sensitivity resistor, I actually removed it in error, nor did I bother with a photo resistor. I could not find much information pertaining to these 2 functions but I did not need them !
I did change the timing resistor.
****NOTE **** The table on the aliexpress site for the timing resistor is different to the one I used ! I'm not sure why it is different, but the 100K resistor I used gives me about 1 minute 'on' time !! ( Google MH-SR602 and look at 'images' !)
The default 'on' time is 2.5 seconds.
The 100uF capacitor is essential, as without it, all sorts of false triggering will occur!
The Circuit & Fitting
![20200623_105624.jpg](/proxy/?url=https://content.instructables.com/FTP/144T/KDX3P38P/FTP144TKDX3P38P.jpg&filename=20200623_105624.jpg)
![20200816_152458.jpg](/proxy/?url=https://content.instructables.com/FXD/581F/KDX3P4SI/FXD581FKDX3P4SI.jpg&filename=20200816_152458.jpg)
![20200623_105740.jpg](/proxy/?url=https://content.instructables.com/FLL/SWPY/KDX3P38Q/FLLSWPYKDX3P38Q.jpg&filename=20200623_105740.jpg)
![20200816_144003.jpg](/proxy/?url=https://content.instructables.com/FOL/GEXQ/KDX3P3MB/FOLGEXQKDX3P3MB.jpg&filename=20200816_144003.jpg)
The circuit itself it pretty straight forward.
When the MH-SR602 is triggered the output pin goes high for a duration dependant on the timing resistor and turns the transistor on, which in turn allows current to flow through the LEDs.

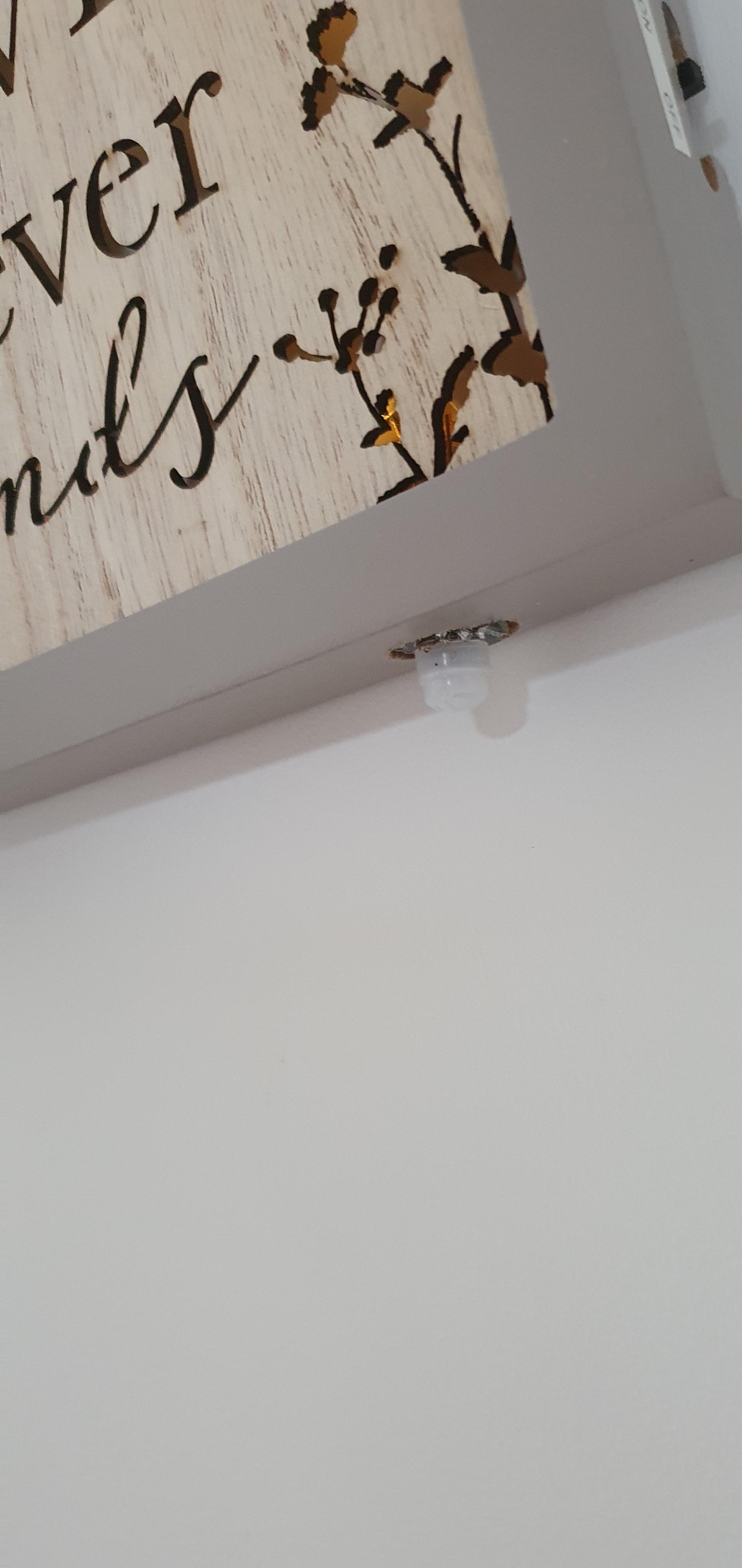

I removed the battery compartment and put the circuit between the negative battery wire and the battery connector. I drilled the bottom of the case and inserted the small circuit board.
Job done :-)
