In this project I make a light synced color changing LED.
Normal LEDs don't work.
They only work with transistors and stuff but I'm trying to make this as simple as possible :)

Parts

16, 1:19 PM.jpg
To make the color changing light synced speaker you need-

1 speaker
1 color changing led
2 wires that are stripped
1 headphone jack

Attach One Wire

16, 1:19 PM.jpg

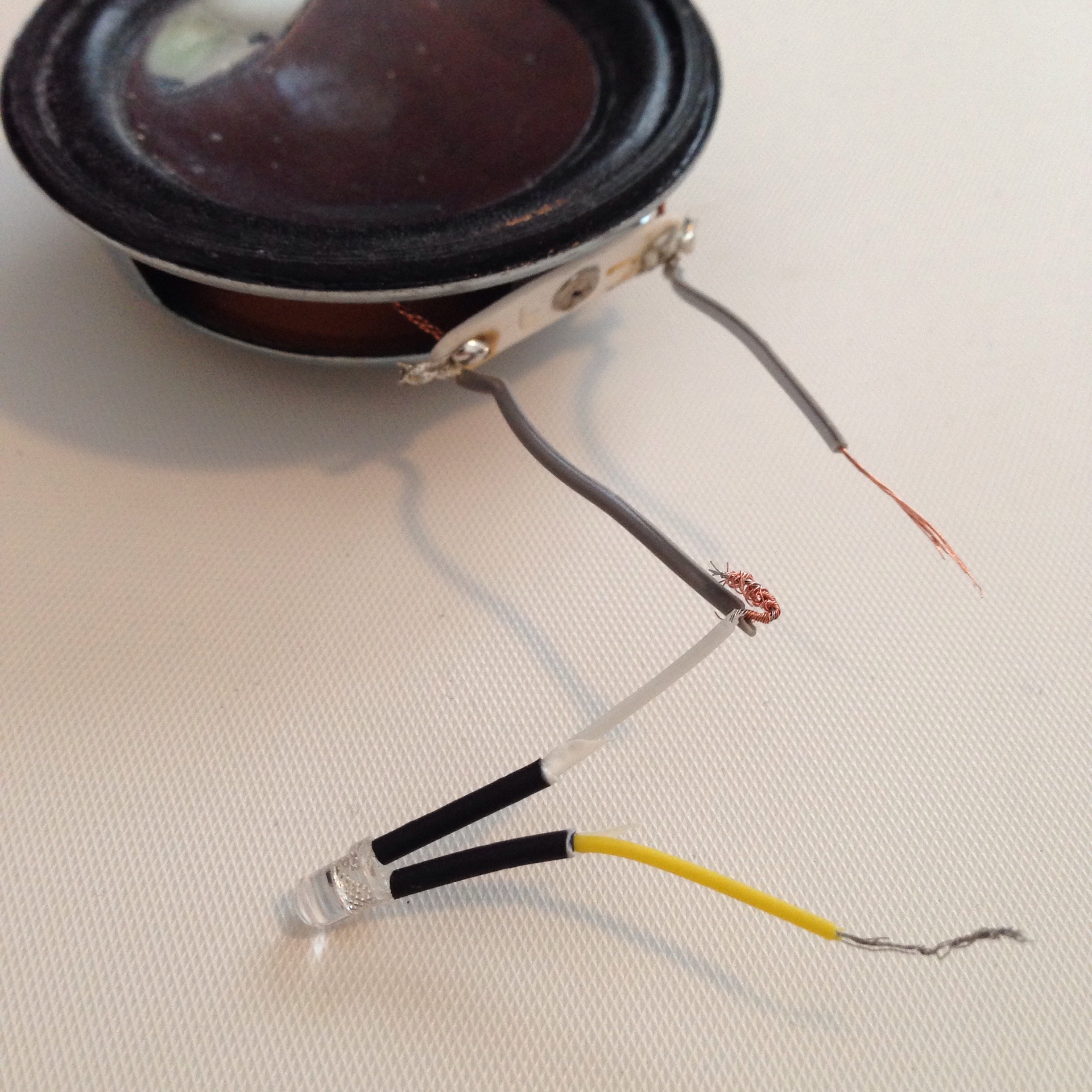

Attach one wire of the Led to one wire on the speaker. It dose t matter which wires because we will use AC current.

Attach Two Wires

16, 1:19 PM.jpg
Attach 2 wires to the two remaining wires on the speaker and the Led.

Wrap

16, 1:19 PM.jpg
Wrap the two ends of the wires on these parts of the headphone jack. They need to be touching them.

Secure It

16, 1:19 PM.jpg
Secure the connections with tape.

Test

16, 1:19 PM.jpg
Test the circuit by plugging it in. You need to put the radio or whatever you are going to Use on its highest volume because the LED takes a lot of electricity from the speaker.

After Testing

16, 1:19 PM.jpg
After testing it and seeing if it works you can tape everything to the back. Make sure wires don't touch others.

The bass might be too loud but it still works ._.
