Light Show Using Ardiuno and Vixen

A simple light effect show using ardiuno mega and vixen

1.Ardiuno Mega

2.5v Ardiuno relay(3 pieces) 3.single colour led strips (50m,12v,30led/meter) 4.12v 10amps SMPS 5 connection wires

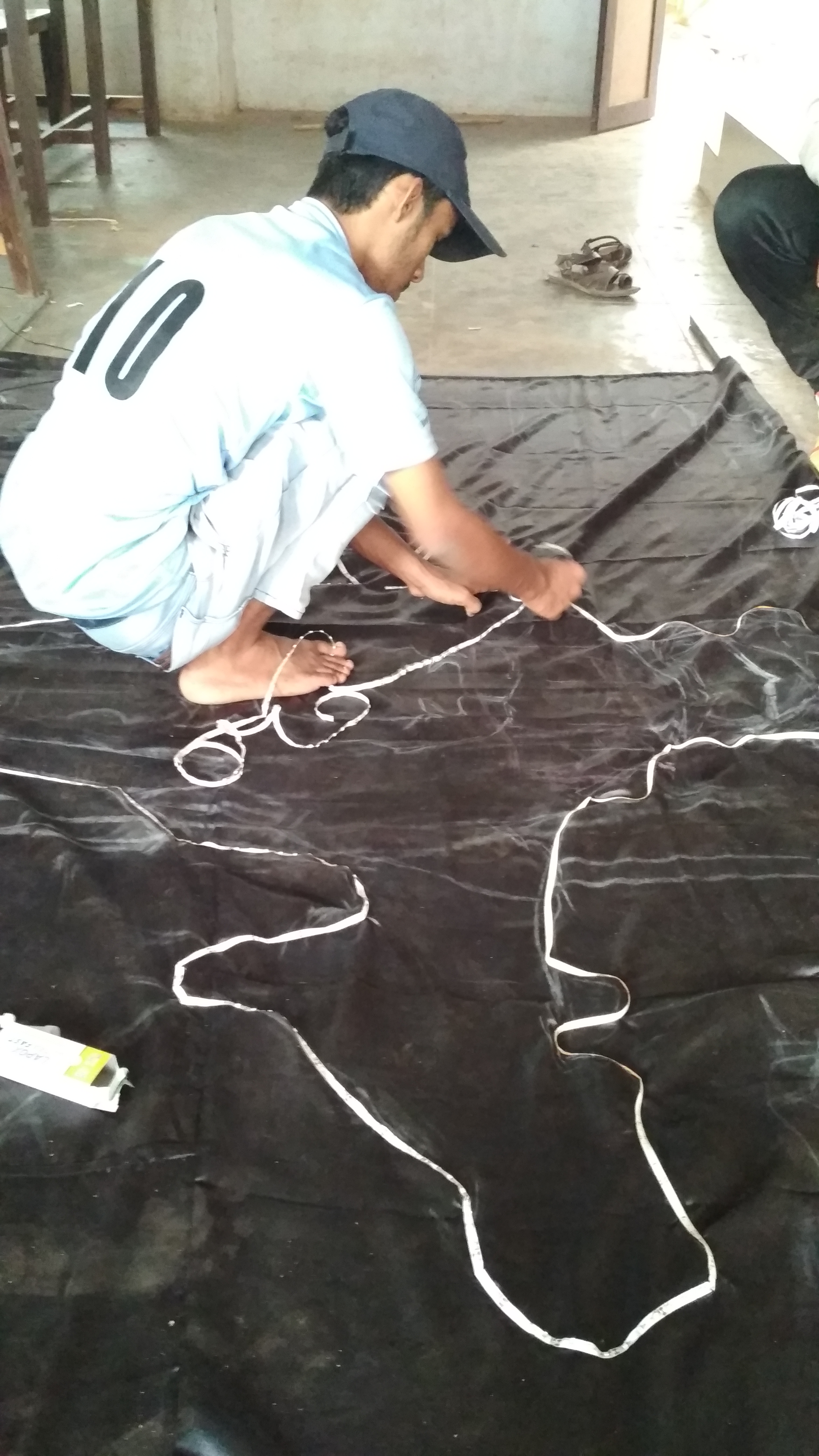

Roughly draw your theme on black background and paste the led strips across the outline

check the pasted led strips using external dc supply

All the negative terminal of led strip is shorted together with the common of the SMPS

+V terminal of SMPS and the +ve terminal of led strip is connected to the 5v ardiuno relay

The software used here are ardiuno ide and vixen.

The song is prepared using vixen.

Screen is framed and assembled and ready to go.

(More details will be added soon).
