Light Inducing Seizure Warning System
by TechMartian in Circuits > Assistive Tech
1111 Views, 4 Favorites, 0 Comments
Light Inducing Seizure Warning System
![UNADJUSTEDNONRAW_thumb_b6b.jpg](/proxy/?url=https://content.instructables.com/FDA/OGRW/J6WGPUB2/FDAOGRWJ6WGPUB2.jpg&filename=UNADJUSTEDNONRAW_thumb_b6b.jpg)
![UNADJUSTEDNONRAW_thumb_b68.jpg](/proxy/?url=https://content.instructables.com/F90/91NA/J6WGPUBN/F9091NAJ6WGPUBN.jpg&filename=UNADJUSTEDNONRAW_thumb_b68.jpg)

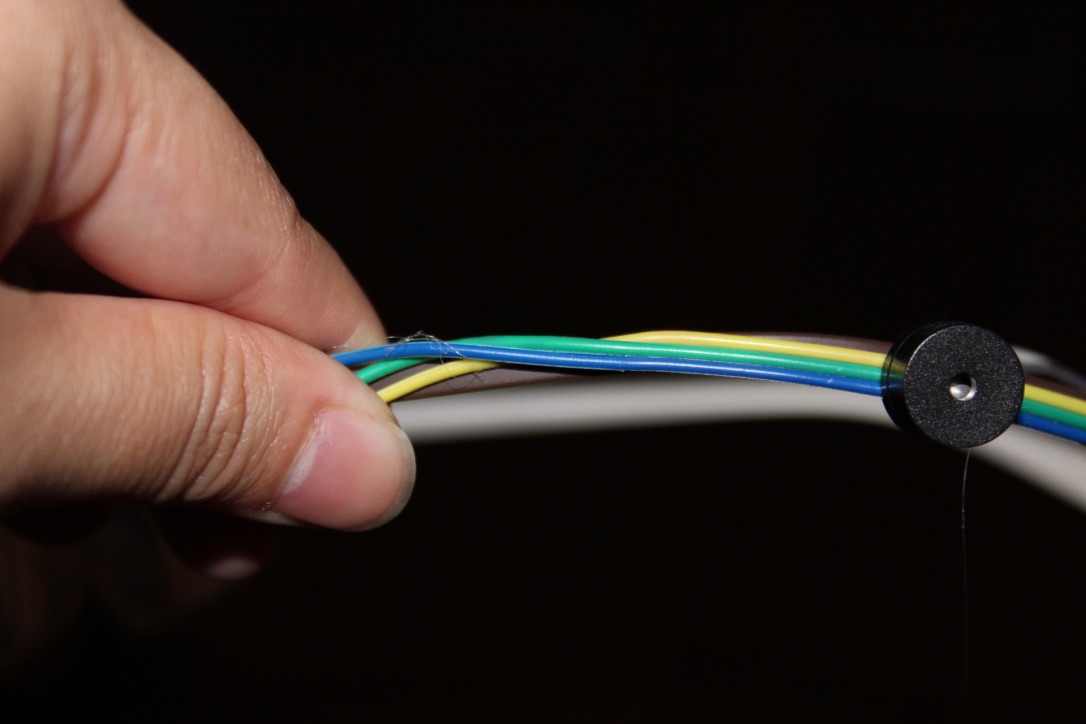

In 1997, a Pokemon episode was banned since the flashing lights in the episode caused seizures in many Japanese Children. Inspired by this event, this is a photosensor mount on someone's glasses to detected the light sources in front of a subject that could be seizure inducing and send a warning signal to a user by buzzer.
BoM
![IMG_20170827_144527.jpg](/proxy/?url=https://content.instructables.com/FP1/LFCJ/J6WGO8DP/FP1LFCJJ6WGO8DP.jpg&filename=IMG_20170827_144527.jpg)
* Arduino
* Photosensor
* Buzzer
Tools:
* Hot glue gun and hot glue
* Soldering Iron and solder
Soldering
![IMG_20170827_110228.jpg](/proxy/?url=https://content.instructables.com/F8U/4OIW/J6WGO99F/F8U4OIWJ6WGO99F.jpg&filename=IMG_20170827_110228.jpg)
![IMG_20170827_110327.jpg](/proxy/?url=https://content.instructables.com/F8K/MGA1/J6WGO99I/F8KMGA1J6WGO99I.jpg&filename=IMG_20170827_110327.jpg)
![IMG_20170827_110414.jpg](/proxy/?url=https://content.instructables.com/F2M/6WR4/J6WGO99J/F2M6WR4J6WGO99J.jpg&filename=IMG_20170827_110414.jpg)
![IMG_20170827_110608.jpg](/proxy/?url=https://content.instructables.com/FA6/5QBM/J6WGO99R/FA65QBMJ6WGO99R.jpg&filename=IMG_20170827_110608.jpg)
![IMG_20170827_110850.jpg](/proxy/?url=https://content.instructables.com/FLV/A4WW/J6WGO99S/FLVA4WWJ6WGO99S.jpg&filename=IMG_20170827_110850.jpg)
Solder a voltage divider onto the photoresistor as shown above.
* Solder a 10kΩ resistor onto one of the terminals.
* On this same terminal, solder a wire.
* Solder another wire onto the other pin of the photresistor
Wiring
![IMG_20170827_144424.jpg](/proxy/?url=https://content.instructables.com/FB3/8OIE/J6WGO8BA/FB38OIEJ6WGO8BA.jpg&filename=IMG_20170827_144424.jpg)
![IMG_20170827_144446.jpg](/proxy/?url=https://content.instructables.com/FE6/PST6/J6WGO8CW/FE6PST6J6WGO8CW.jpg&filename=IMG_20170827_144446.jpg)
![IMG_20170827_144508.jpg](/proxy/?url=https://content.instructables.com/F05/QDNX/J6WGO8DJ/F05QDNXJ6WGO8DJ.jpg&filename=IMG_20170827_144508.jpg)
Follow the table below for the connections between of the photosensor and the buzzer to the Arduino
I/O | I/O pin | Arduino Pin |
---|---|---|
Photosensor | 1 | A0 |
Photosensor | 2 | GND** |
Buzzer* | 1 | 9 |
Buzzer* | 2 | GND** |
* Order of pins do not matter for the buzzer
** The Arduino board has at least 3 GND pins
Code and Upload
![Screen Shot 2017-08-30 at 7.34.49 PM.png](/proxy/?url=https://content.instructables.com/FVS/RRDJ/J6WGPUSE/FVSRRDJJ6WGPUSE.png&filename=Screen Shot 2017-08-30 at 7.34.49 PM.png)
Upload the following code to the Arduino.
//cosntants for the pins where sensors are plugged into.
const int sensorPin = 0; const int buzzPin = 9;
unsigned long minute1; float time1;
//Set up some global variables for the light level an initial value. int dark; // initial value int lightVal; // light reading
void setup() { // We'll set up the LED pin to be an output. dark = 300; //we will take a single reading from the light sensor and store it in the lightCal //variable. This will give us a prelinary value to compare against in the loop }
void loop() {
lightVal = analogRead(sensorPin); // read the current light levels
//if lightVal is less than our initial reading withing a threshold then it is dark.
while (lightVal > dark) { // still sitting tone (buzzPin, 1000, 100); delay (100); noTone(buzzPin); } }
}
Mount
![UNADJUSTEDNONRAW_thumb_b69.jpg](/proxy/?url=https://content.instructables.com/FDE/JERO/J6WGPUBO/FDEJEROJ6WGPUBO.jpg&filename=UNADJUSTEDNONRAW_thumb_b69.jpg)
![UNADJUSTEDNONRAW_thumb_b67.jpg](/proxy/?url=https://content.instructables.com/FK0/JY0U/J6WGPUB4/FK0JY0UJ6WGPUB4.jpg&filename=UNADJUSTEDNONRAW_thumb_b67.jpg)
![UNADJUSTEDNONRAW_thumb_b6a.jpg](/proxy/?url=https://content.instructables.com/FAH/5QKO/J6WGPUAZ/FAH5QKOJ6WGPUAZ.jpg&filename=UNADJUSTEDNONRAW_thumb_b6a.jpg)
