Arduino Light Following Robot With Catduino

It is a Arduino Light Following Robot.

You can make this robot with Arduino UNO. But I used Catduino Robotic Coding Kit.

So I could make the robot much easier.

Project Details: https://kurumsal.alpgenrobotics.com/isik-izleyen-robot

Used Materials:

Catduino Robotic Coding Kit: https://alpgenrobotics.com/urun/CATDUINO-ROBOTIK-K...

2 x DC Motor: https://alpgenrobotics.com/urun/6V-250RPM-DC-MOTOR...

3 x LDR Light Sensor Module: https://alpgenrobotics.com/urun/LDR-ISIK-SENSOR-M...

Jumper Cables

DC motors and jumper cables are already internal in Catduino Robotic Coding Kit.

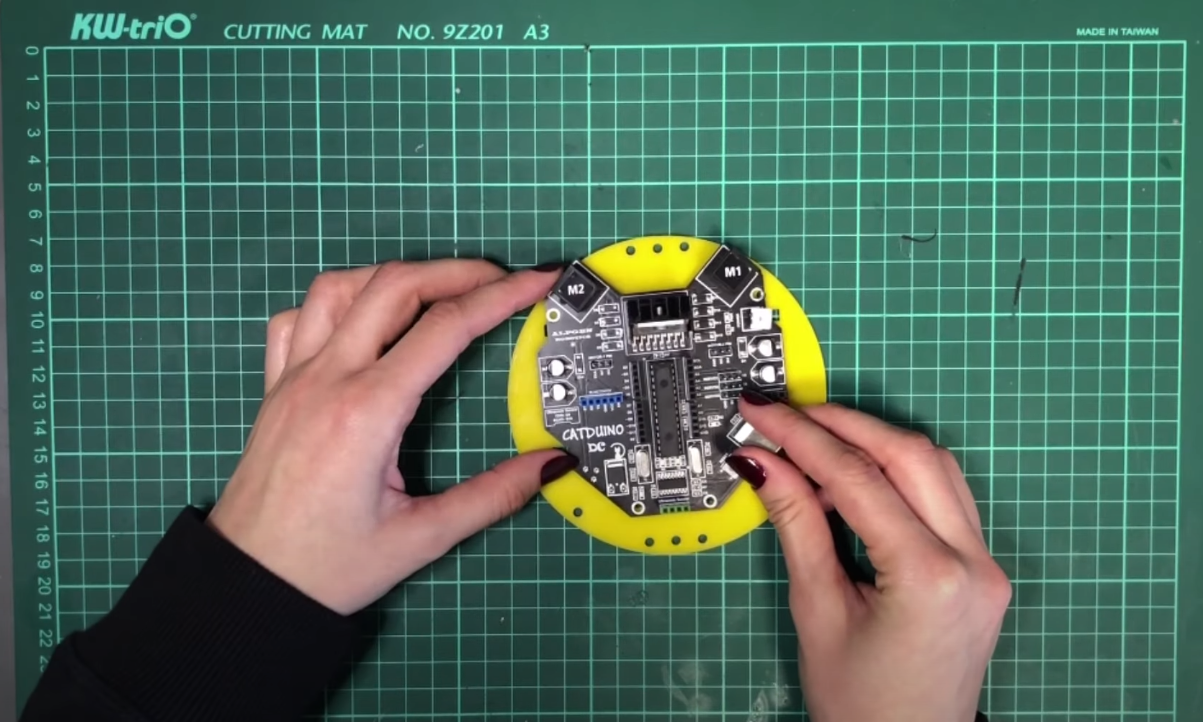

First, let's fix the Catduino to the upper chassis.

Then, let's fix the other components to the lower chassis.

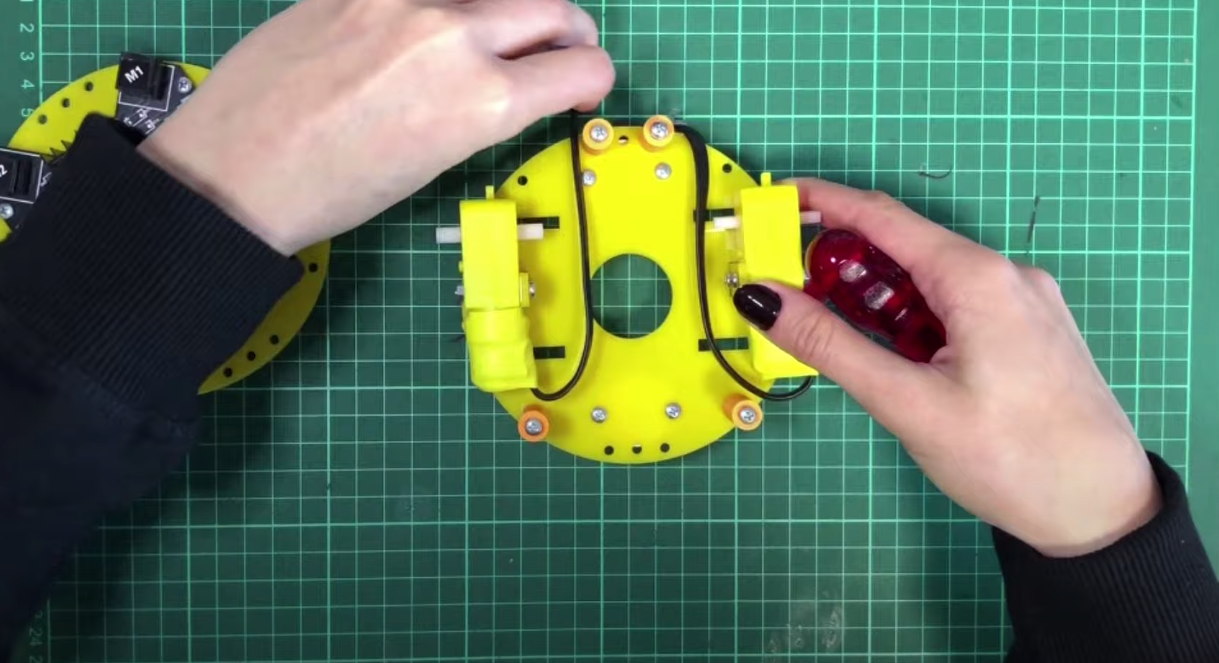

Now, fix the dc motors to the lower chassis.

after dc motors fixing, fix wheels to dc motors with screws.

let's place the first LDR

Fix upper chasis to lower chasis with screws

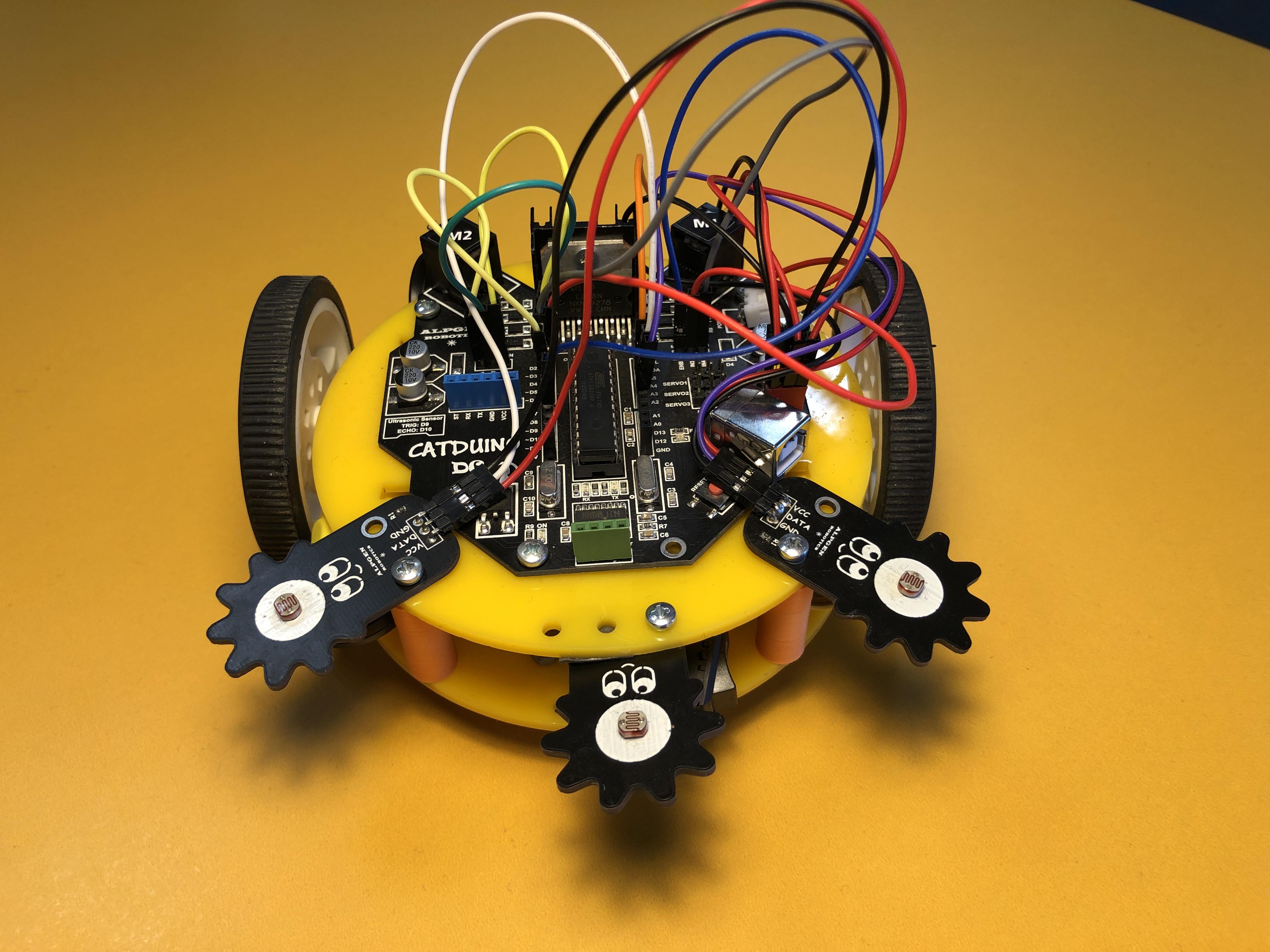

Fix LDR's to upper chasis with screws

Finally, fix the jumper cables.

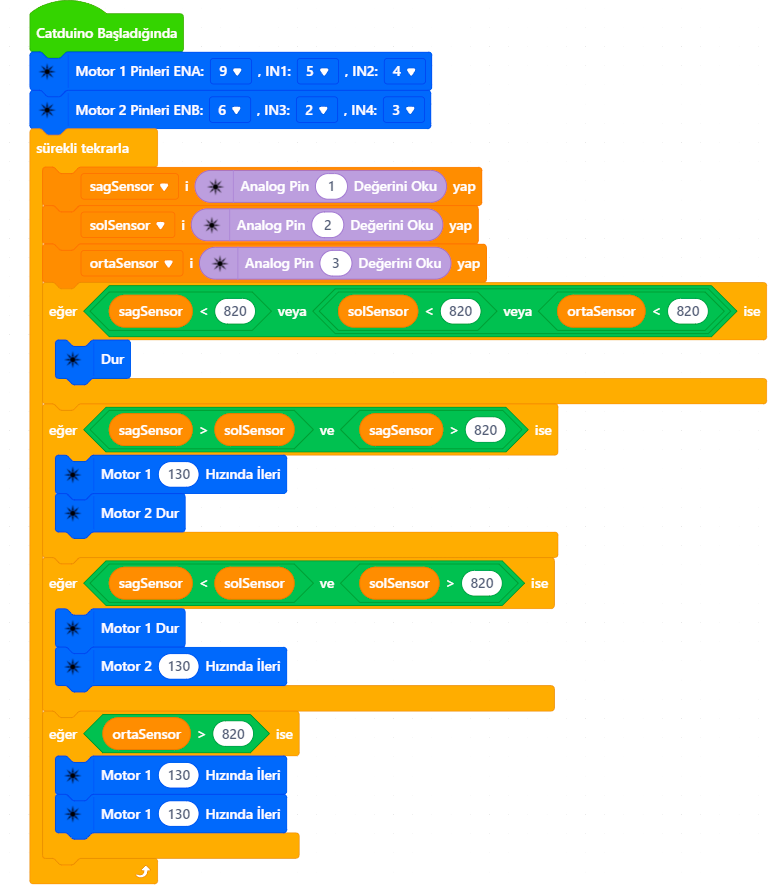

upload code to Catduino from mBlock. if you want, you can write this code in Arduino IDE with C.
