Light Bulb Lamp

by bumpus in Workshop > Lighting

227284 Views, 826 Favorites, 0 Comments

Light Bulb Lamp

After seeing this forum post I was dumb-founded that, Brooklyn Industrial Designer Sergio Silva, was selling these pairs of Light Bulb Lamps for $650!! So, with my creative senses tingling, I went scavenging around the house for what would become a much cheaper rendition of Sergio Silva's own, Oyule Lamp Set.

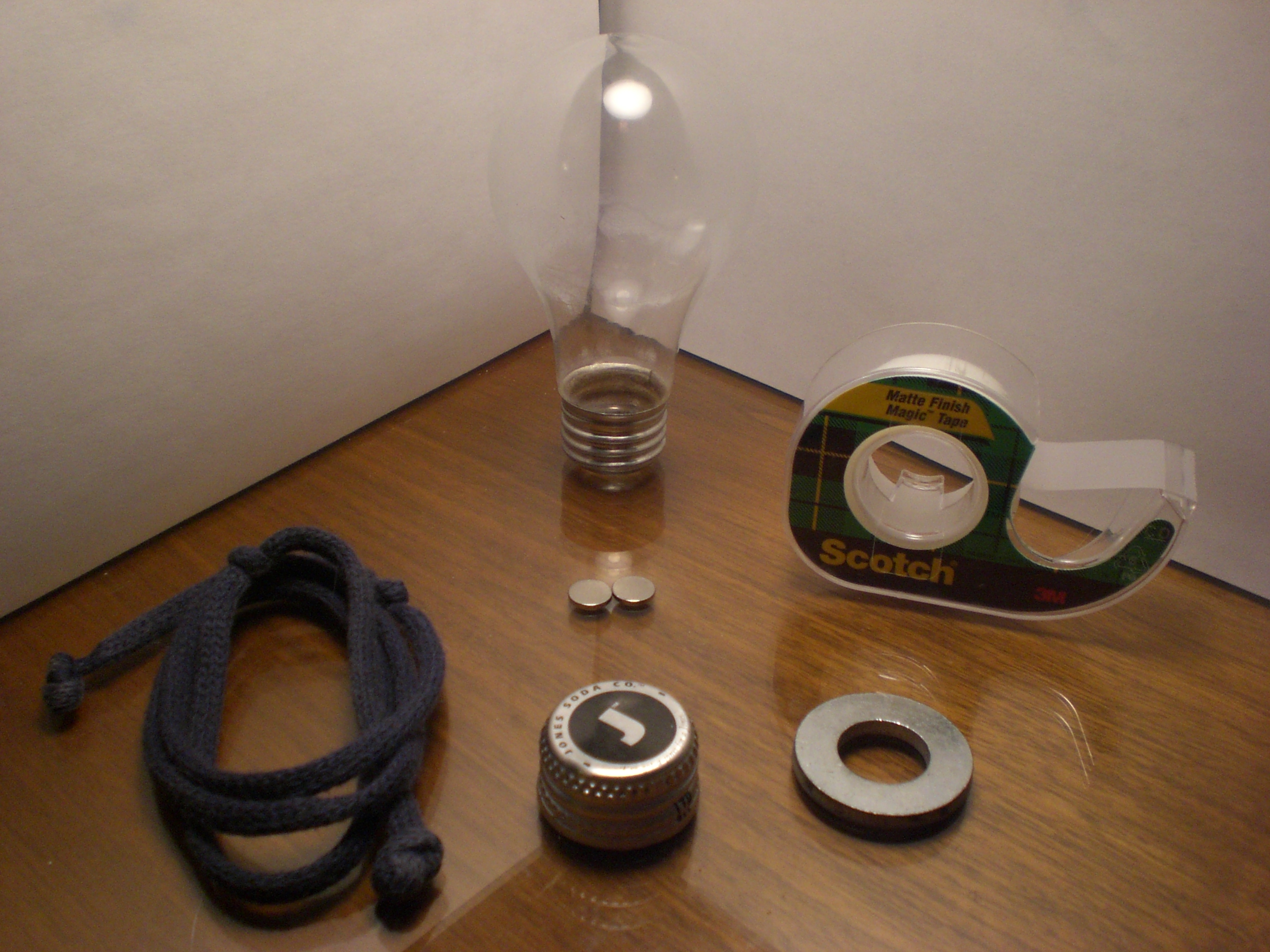

Supplies

So, you want to beat the system and not pay $650 for a set of Light Bulb Lamps? Sounds good, you'll need:

  • a clean light bulb
  • a shoe lace (cotton)
  • a metal bottle cap
  • a rather large washer/spacer
  • two little magnets

Tools:

  • drill/punch
  • drill bit a little smaller than your shoe lace
  • tape
  • lamp oil
  • preferably sand, its more abrasive...
  • water

Disassembling/Cleaning the Light Bulb

First, take your drill/punch and tap at the bottom of the light bulb, until you break the black glass.

Then tap on the inner tube inside the bulb with the wire in it, then extract the insides of the beast.

Now, go grab your granular substance (sand works best) and put some into the bulb, now add water and swirl the mixture, while your swirling you'll notice that the inner white coating will flake off.

Once all the white coating has detached itself from the inside of the bulb, rinse the bulb thoroughly and set it aside.

The Cap

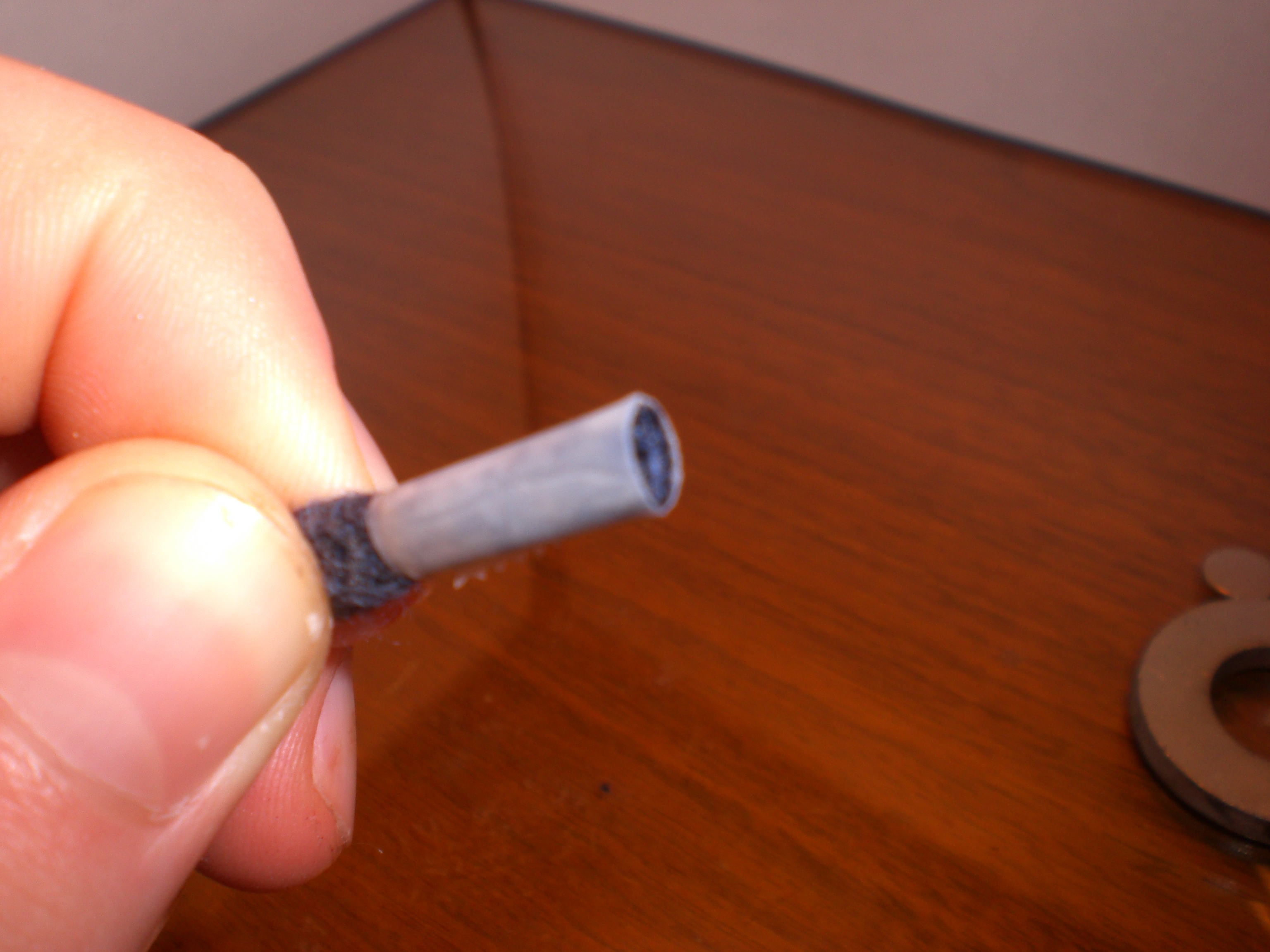

After you have cleaned the innards of the bulb and washed the inside, grab your bottle cap and shoe lace. Locate the center of the cap and drill your hole, start with a small hole and work your way up to just under shoe-lace-diameter. Before you cut your shoe lace, tape the middle with a little bit of tape, so when you do cut (in the middle of the tap band), you wont have a frayed mess. Thread your taped end into the fresh wound in your bottle cap and pull the lace through. Screw the cap (with the lace threaded) onto the top of light bulb and do a measure test, you want a little slack at the bottom, but not much. Take off the cap and find where your magnets have run off too.

Making the Base

With your washer/spacer in hand, and magnets stuck to some valuable electronic devise, put a small length of tape on the one side. Flip it over and center one of your little magnets on the tape. Cut another length of tape and stick it on the washer/spacer, trapping the menacing little beast in between.

Finishing

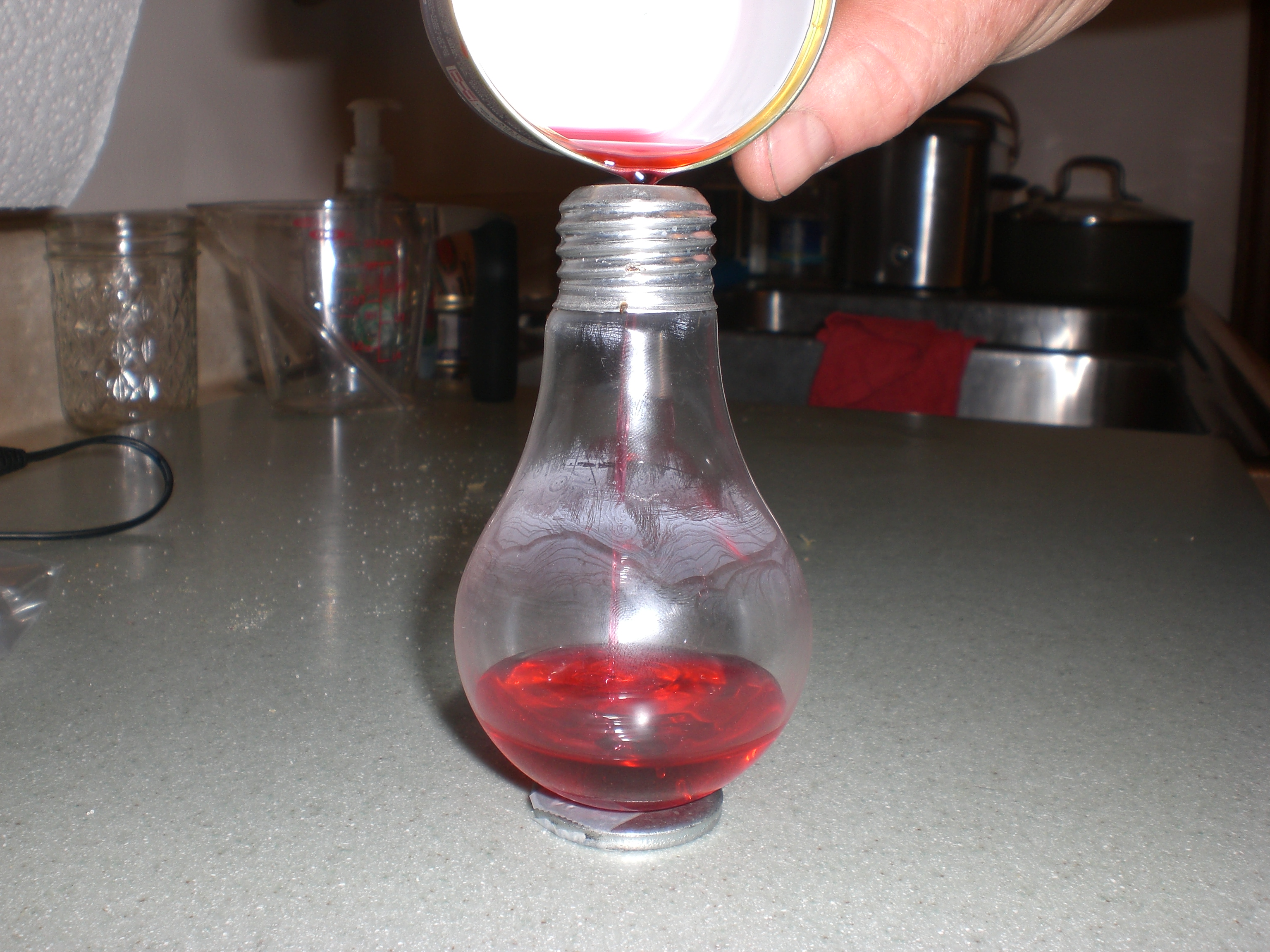

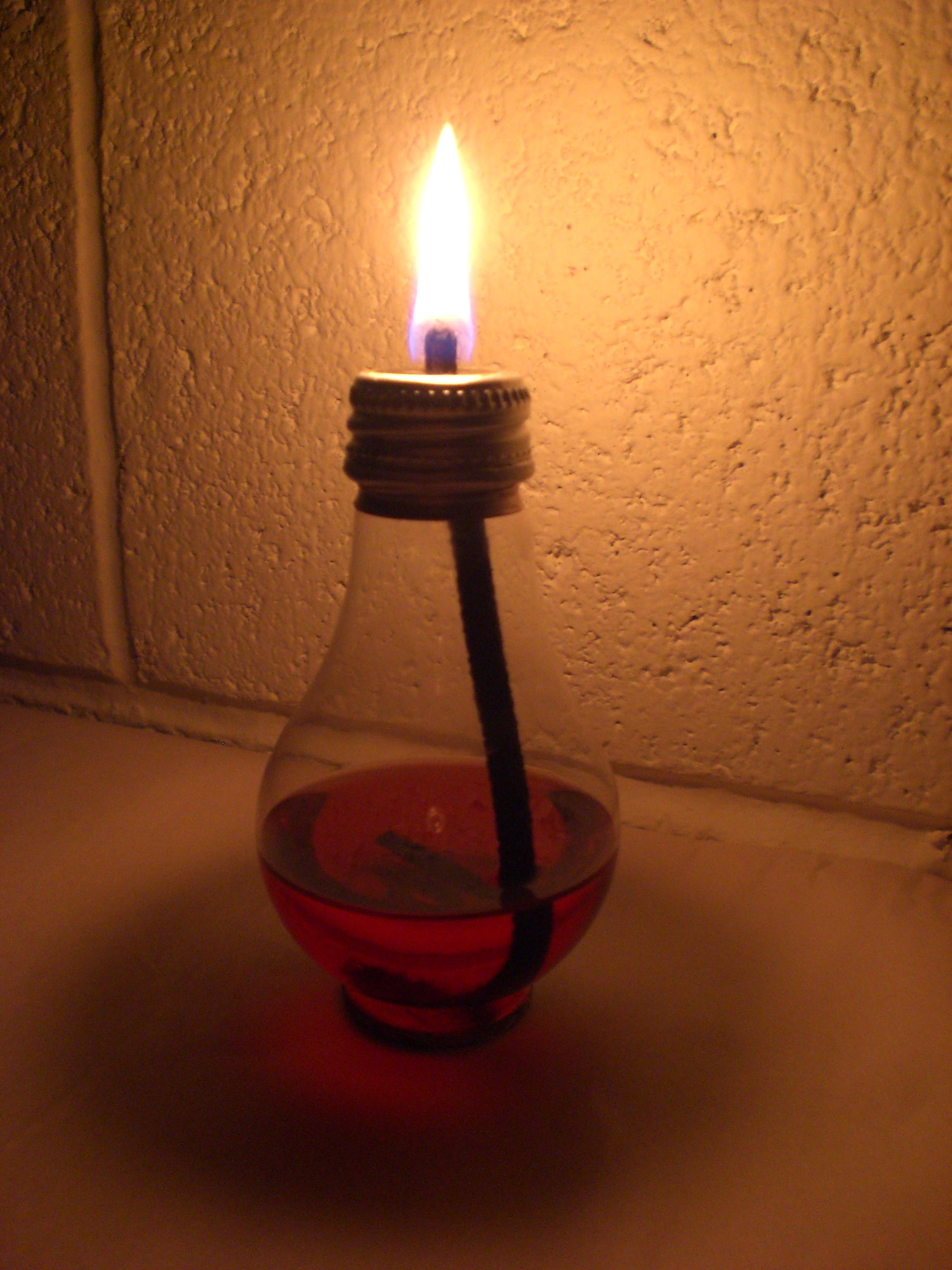

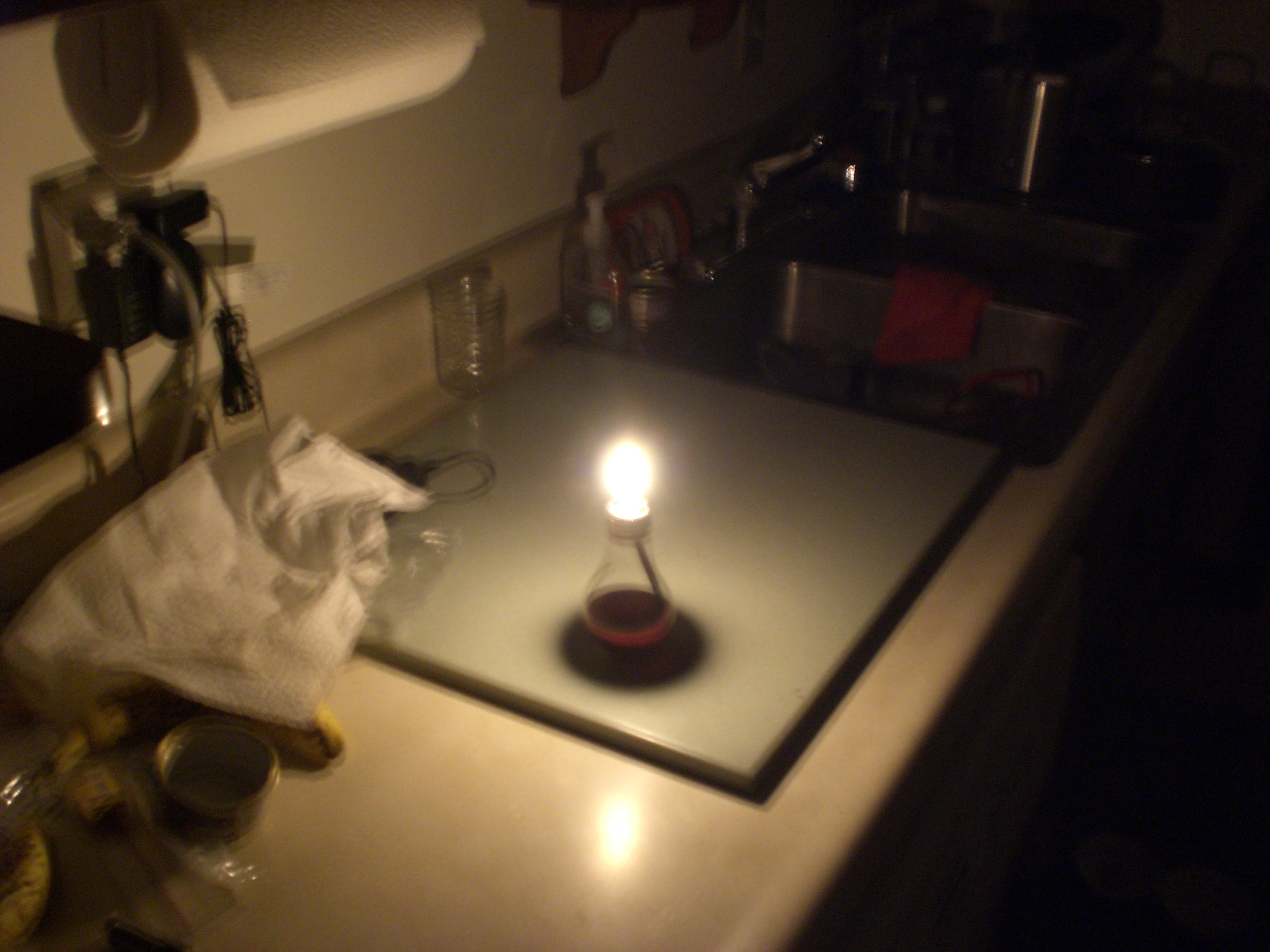

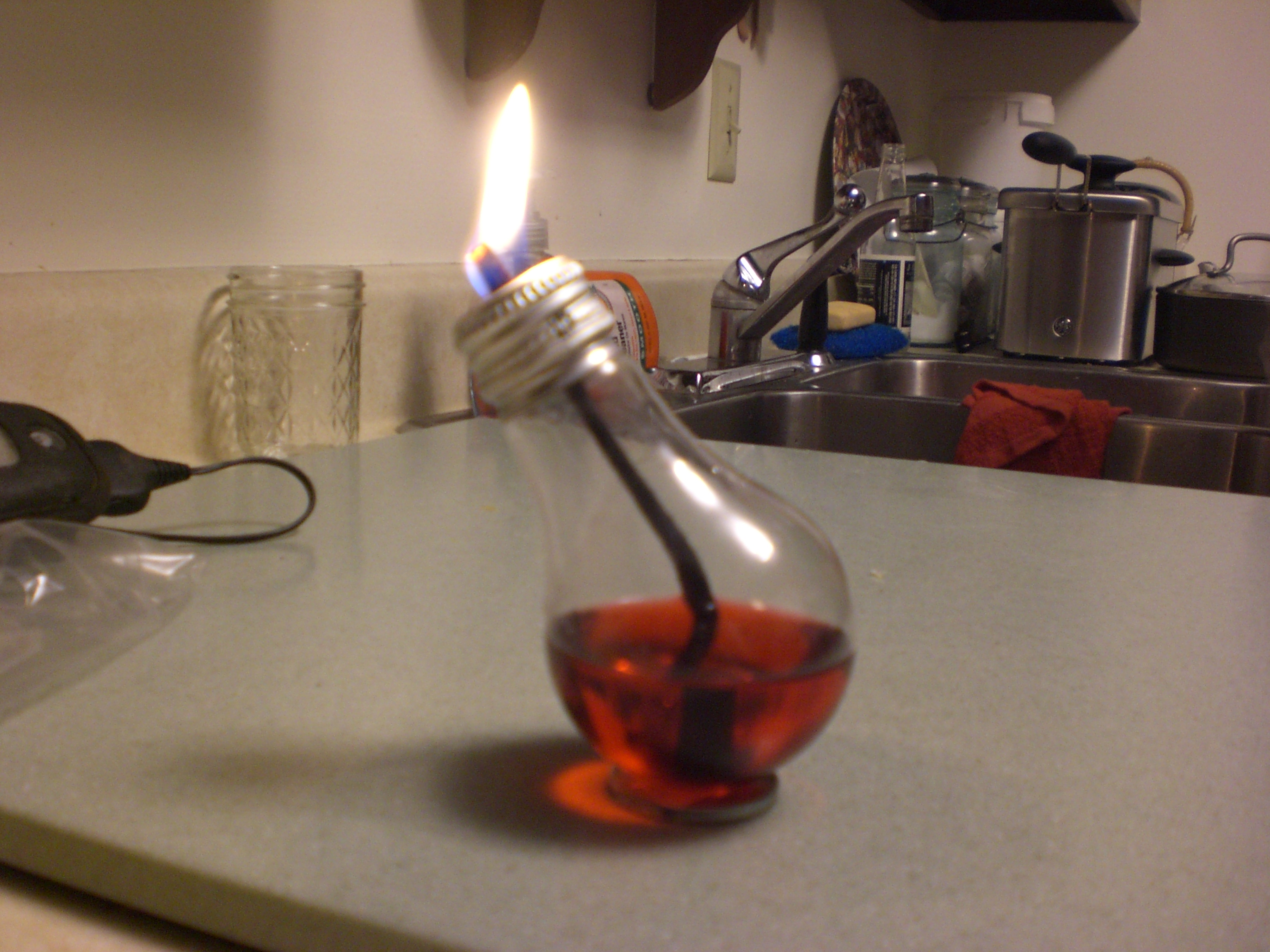

Go ahead and find your lamp oil. Before pouring the oil, put the other magnet into the bulb, and set on the base. Carefully pour about 2-3 teaspoons of lamp oil into the bulb. Find your cap, complete with shoe lace wick, and screw the cap on to the light bulb. You may need to roll the liquid around a bit to get the wick a little damp. There should only be no more than 1/2 of an inch of wick poking out the top of the cap. Grab your lighter, and light it up!!


(save your breath, you need to smother the flame in order to extinguish the flame)

-bumpus
