Home-Made LED Flashlight USB Charger (12V 1.8Ah Li-ion Battery!)


This is a project is powered by a 12 VOLT 1.8 AMP hour Lithium Ion Battery that powers two flashlights (warm and cold), USB charger, And 12 VOLT output.

This isn't a step by step tutorial because anyone can build it to fit their own needs, I'm just showing how I built it.

There will be a video at the last step showing some of the features I made, I do recommend watching it, But it doesn't include all of the features that are shown here

This Is the Battery


A high power 12 VOLT 1.8 AMP hour battery

Link to eBay

The second picture shows the charger

LED's


These are the led's I used:

Cool LED

Warm White LED

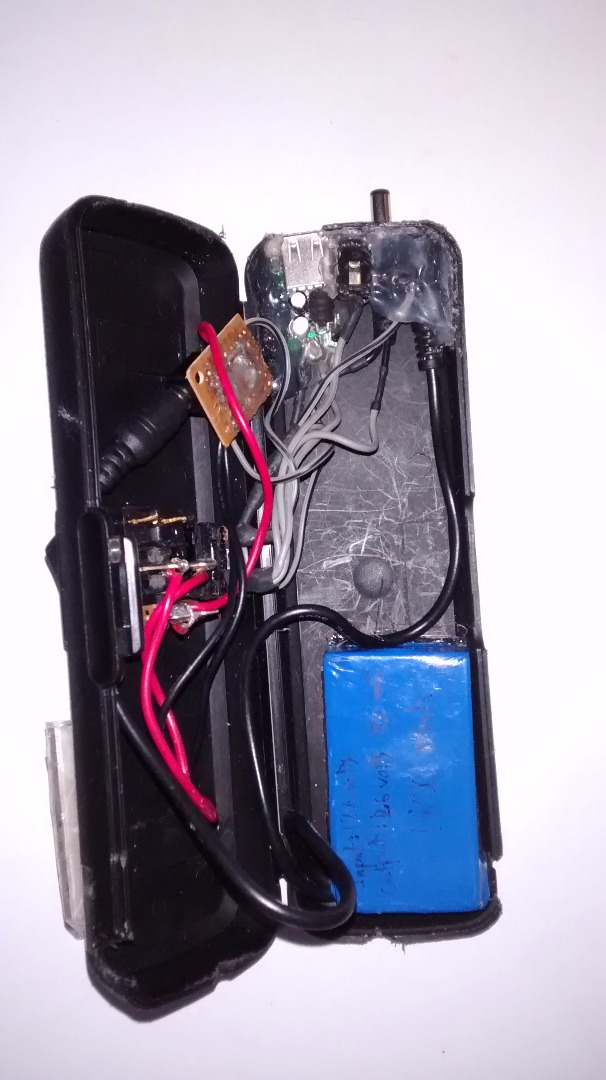

A Look Inside


This is how the inside looks:

The battery, USB and 12V Outputs, Switch Connections, And the PCB.

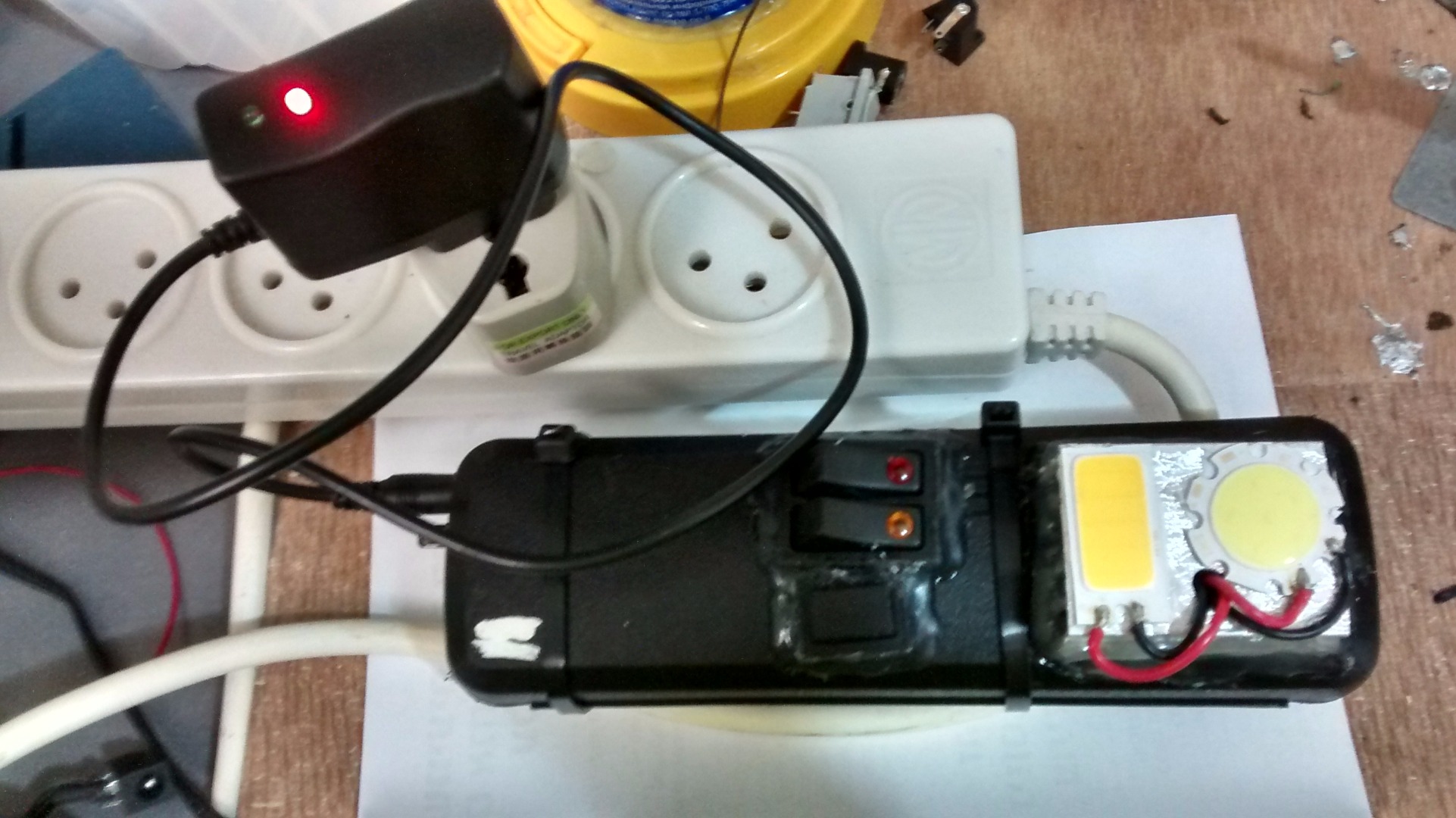

Outputs


If you hover your mouse over each output there will be text that explains each one

The button switch has to be pressed to activate the outputs (press again to disconnect the outputs)

Main Switch


This is the main button switch has to be in the on position. Nothing will work if the the main switch is off.

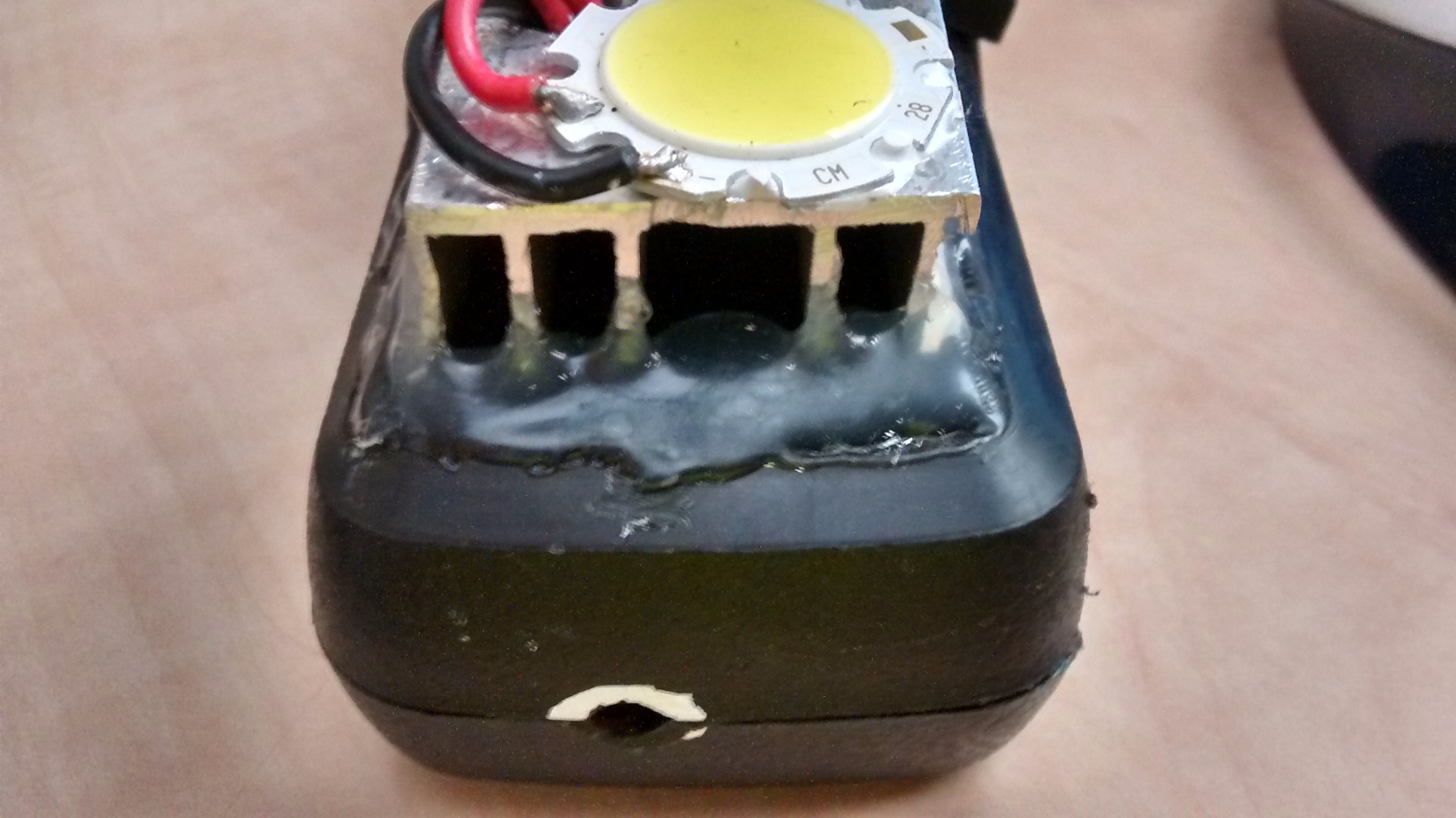

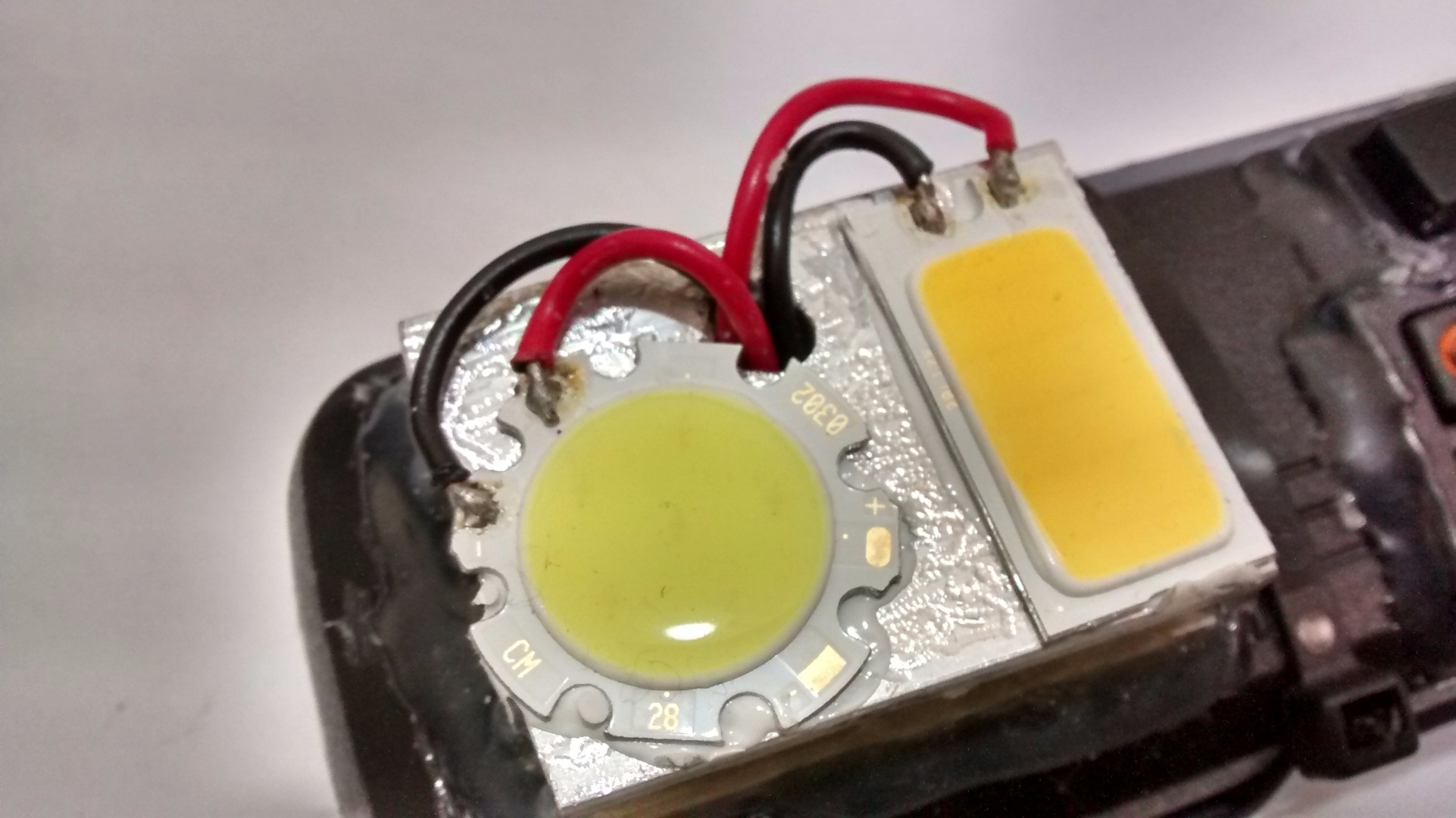

Mounting the LED's


The LED's are mounted to a heat sink (that was sawed in half to fit) with thermal epoxy. The heat sink was then hot glued onto the outside case with hot glue (It doesn't heat up enough to melt it).
