Let's Build an Emergency! Box

What is an Emergency! Box

By definition, a box containing the equipment, supplies, and medications needed to provide an initial assessment and manage life-threatening conditions. In this case, our box provided a sound and light beacon during emergency situations such as storms, car accidence, etc.

I also hope that you follow our Power Breadboard Projects series and that is why you are here to turn the prototype into a finished product. This article will provide everything you need to know to turn any prototype into a finished product. We will use our knowledge about the 555 timers for this project.

1. Aluminum Enclosure
2. 4 Binding Postes
3. On/Off/On Switch
4. 2 Solderable Boards

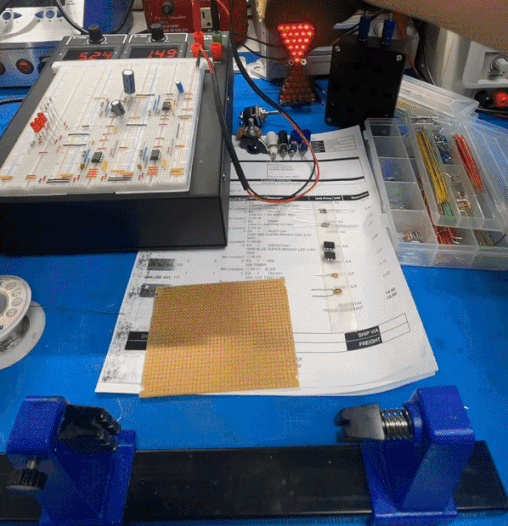

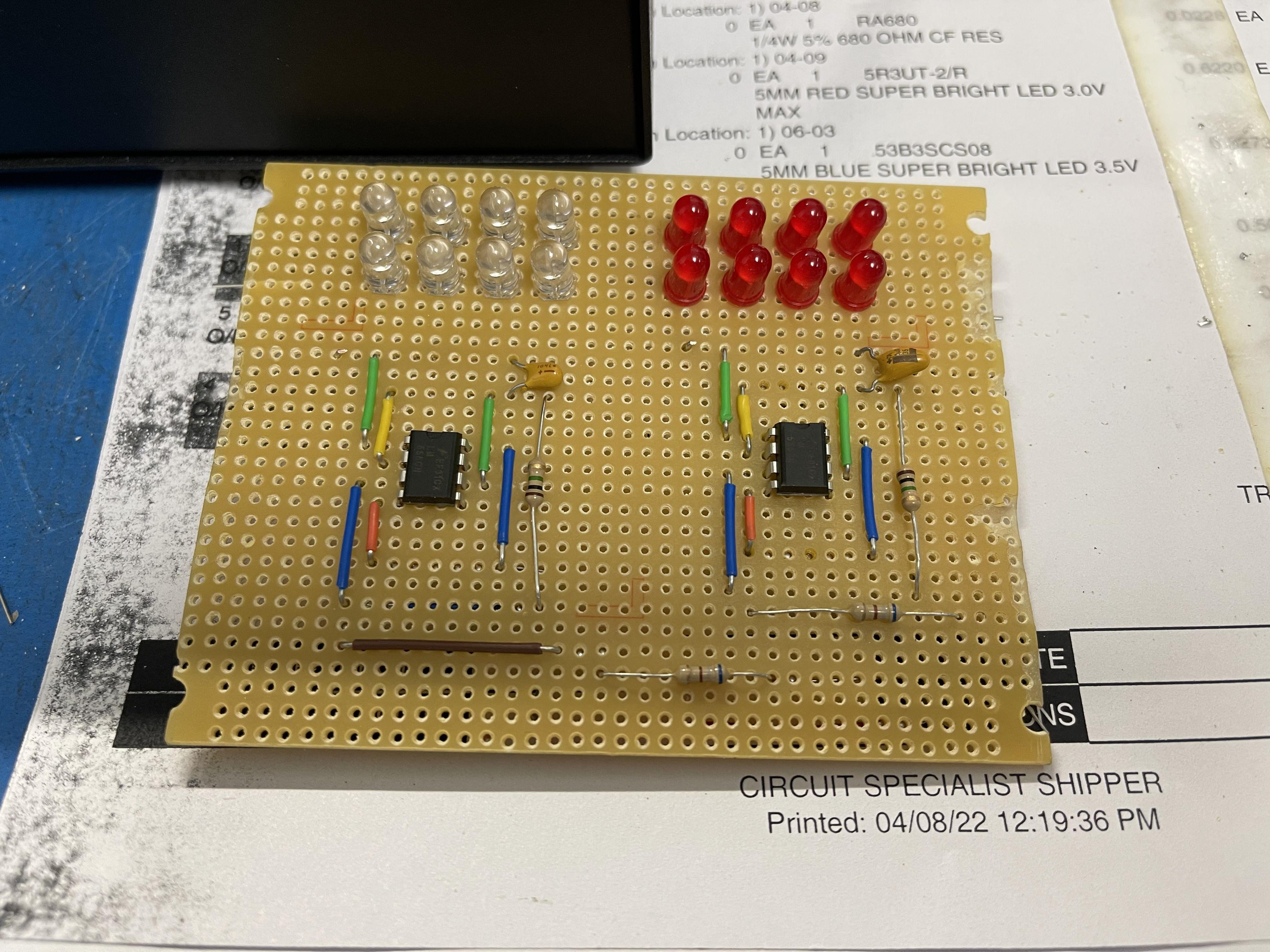

First, lay down the components.

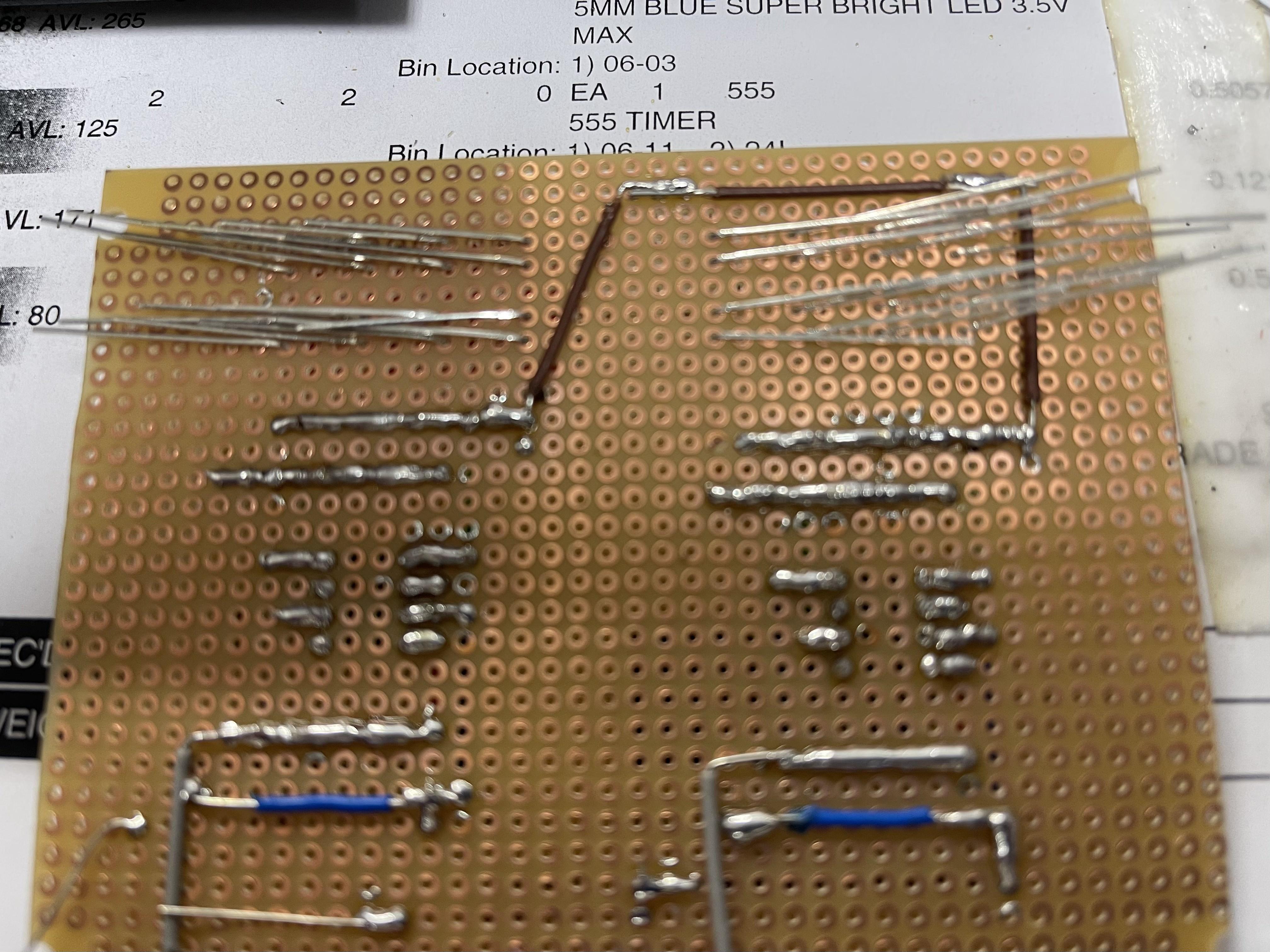

Then solder the path accordingly to the schematic.

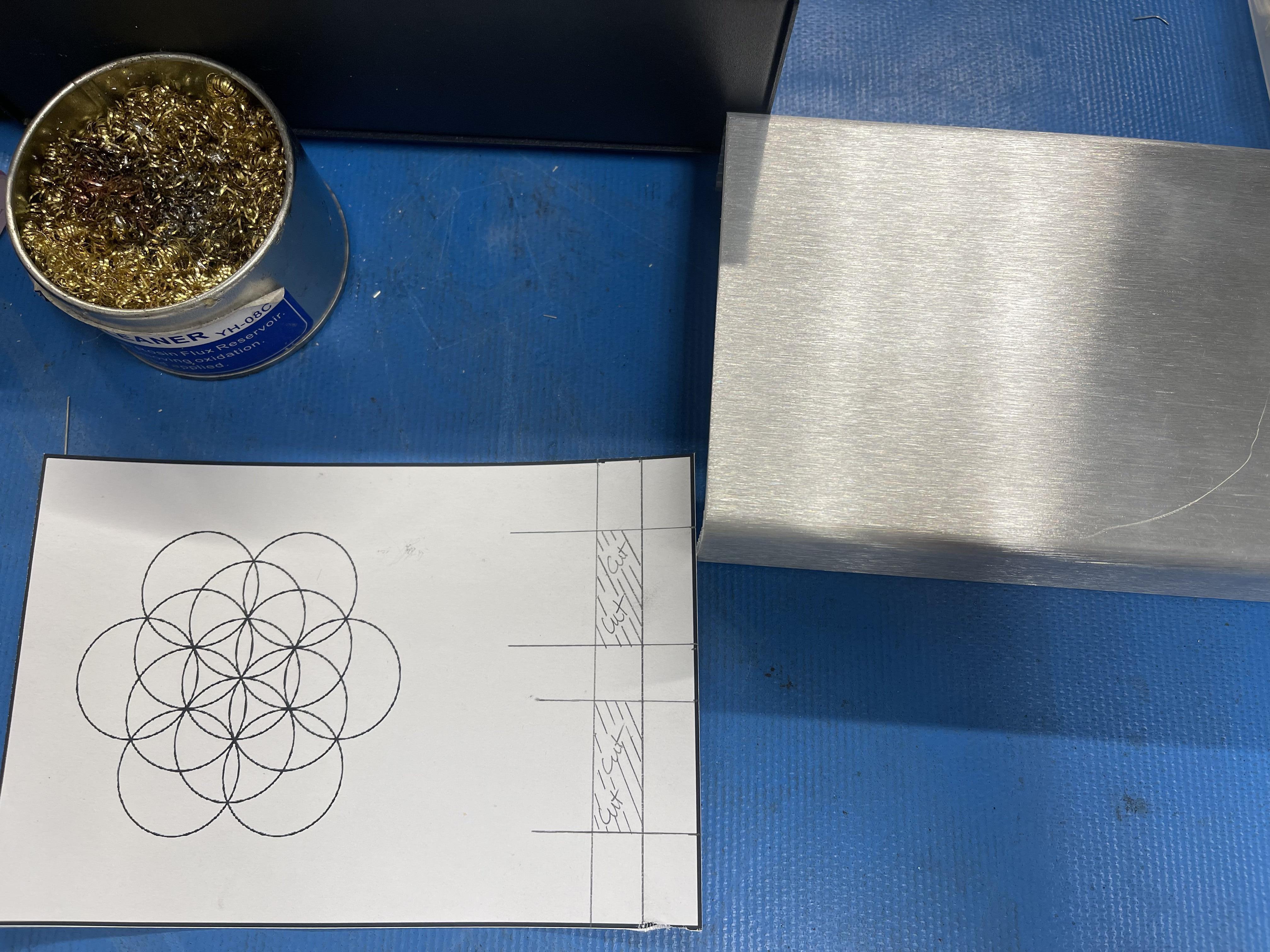

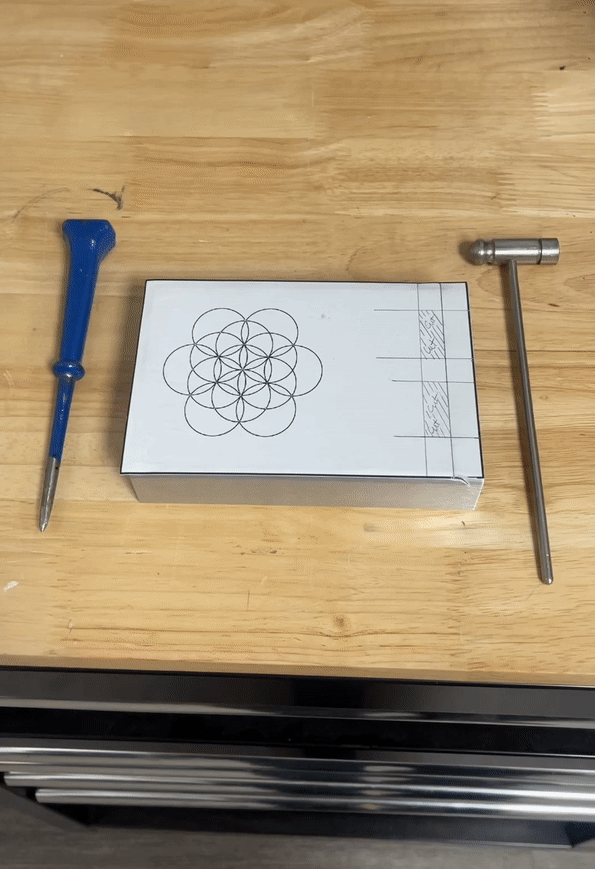

First, print the pattern.

Then, snap your finger!

First look at the schematic.

Then solder accordingly.

Finally, connect the battery before closing the unit.

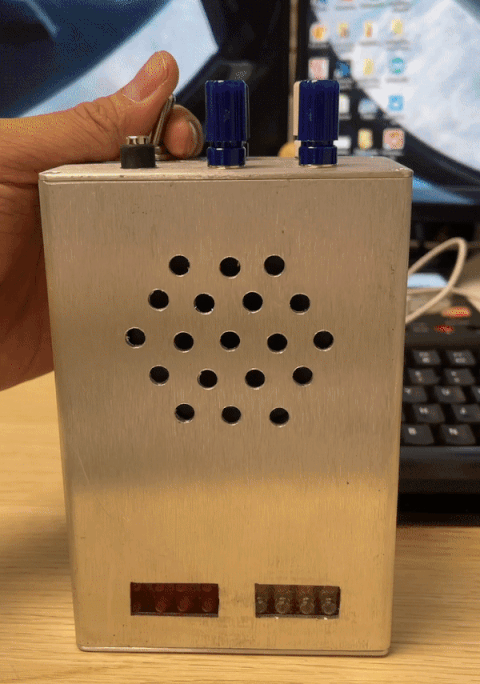

Reassemble the enclosure after testing.

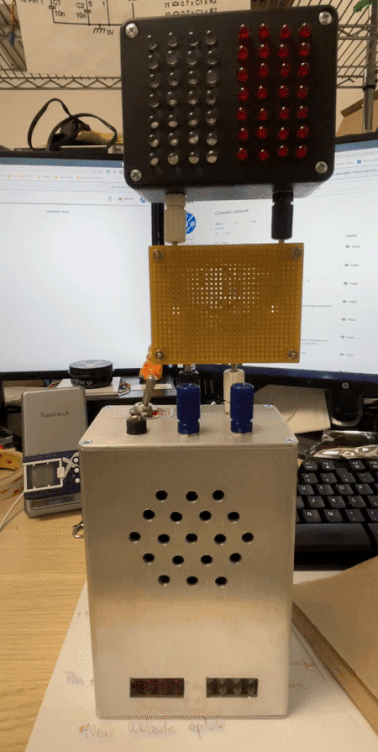

I hope that this article will provide everything you need to know to turn any prototype into a finished product. For this project, I use the last couple of projects' information for this project. The Emergency! Box is a module system in terms of which more light and sound modules can be connected to the Emergency! Box to expand the area covered.
