Lego Car With Spinning Engine

this instructable will show you how to make a car with a crankshaft and two pistons. if you do not have pieces that I do improvise and if you see a better way to do things, feel free to make adjustments.

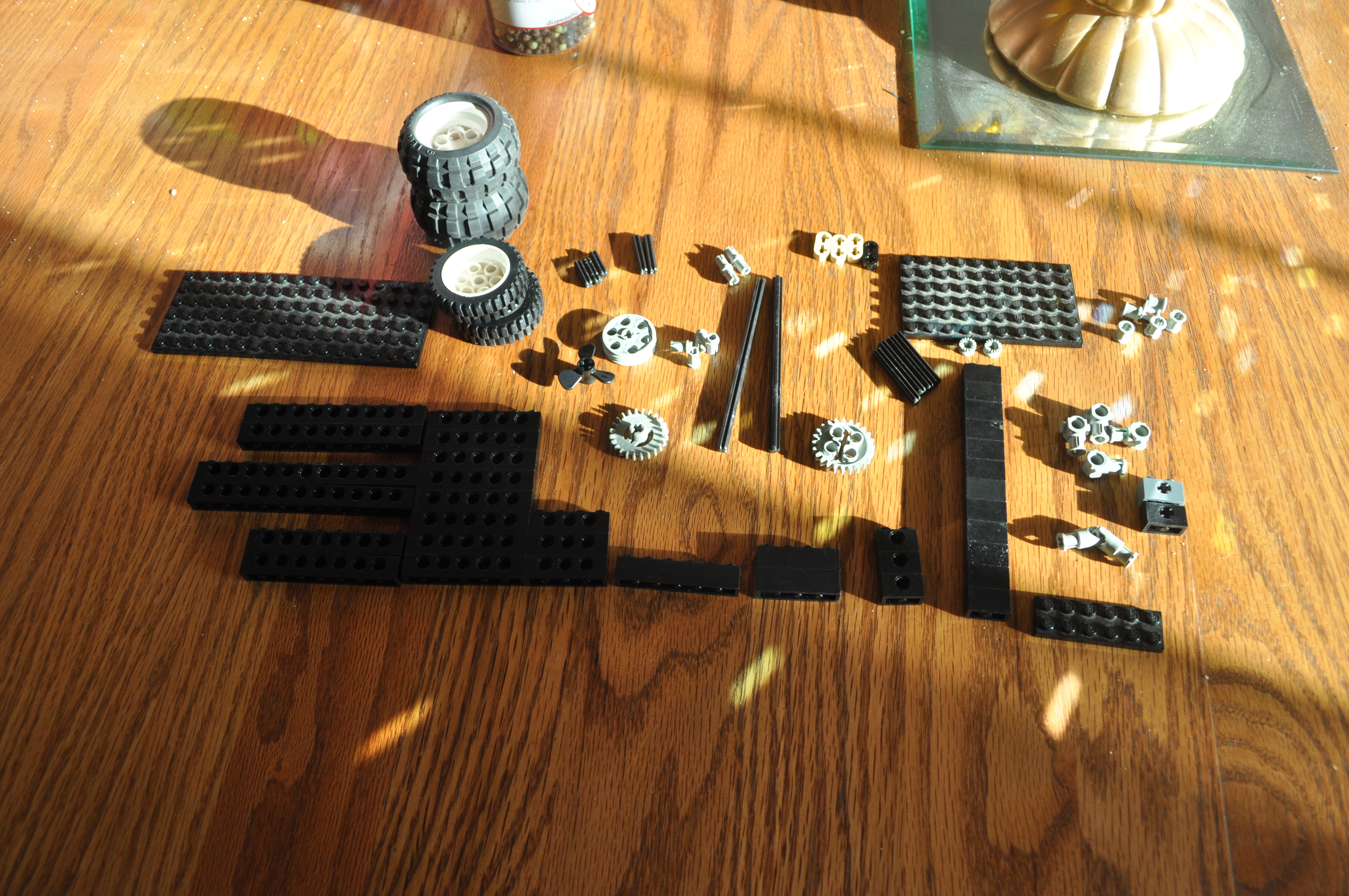

1x flat 6x16 piece,

1x flat 6x10 piece,

1x flat 6x2 piece,

1x tall 6 piece,

2x tall 4 pieces,

2x tall 8 pieces with holes,

2x tall 10 pieces with holes,

2x tall 12 pieces with hole,

2x tall 2 pieces with crossbar hole,

3x tall 4 pieces with holes,

3x tall 2 pieces with hole,

8x tall 6 pieces with holes,

12x tall 2 pieces (regular)

1x driveshaft u joint,

1x propeller/fan (optional)

4x T crossbar pieces,

6x long crossbar wheel stopper,

2x short crossbar wheel stopper,

2x long crossbar,

4x kinda short cross bar,

2x shorter crossbar,

3x shortest crossbar,

4x 2 level crossbar stopper,

2x low friction pin,

4x low friction pin cutoff

1x medium gear,

1x medium gear w/ bent teeth,

2x wheel with holes and no tire,

2x front wheel,

2x rear wheel,

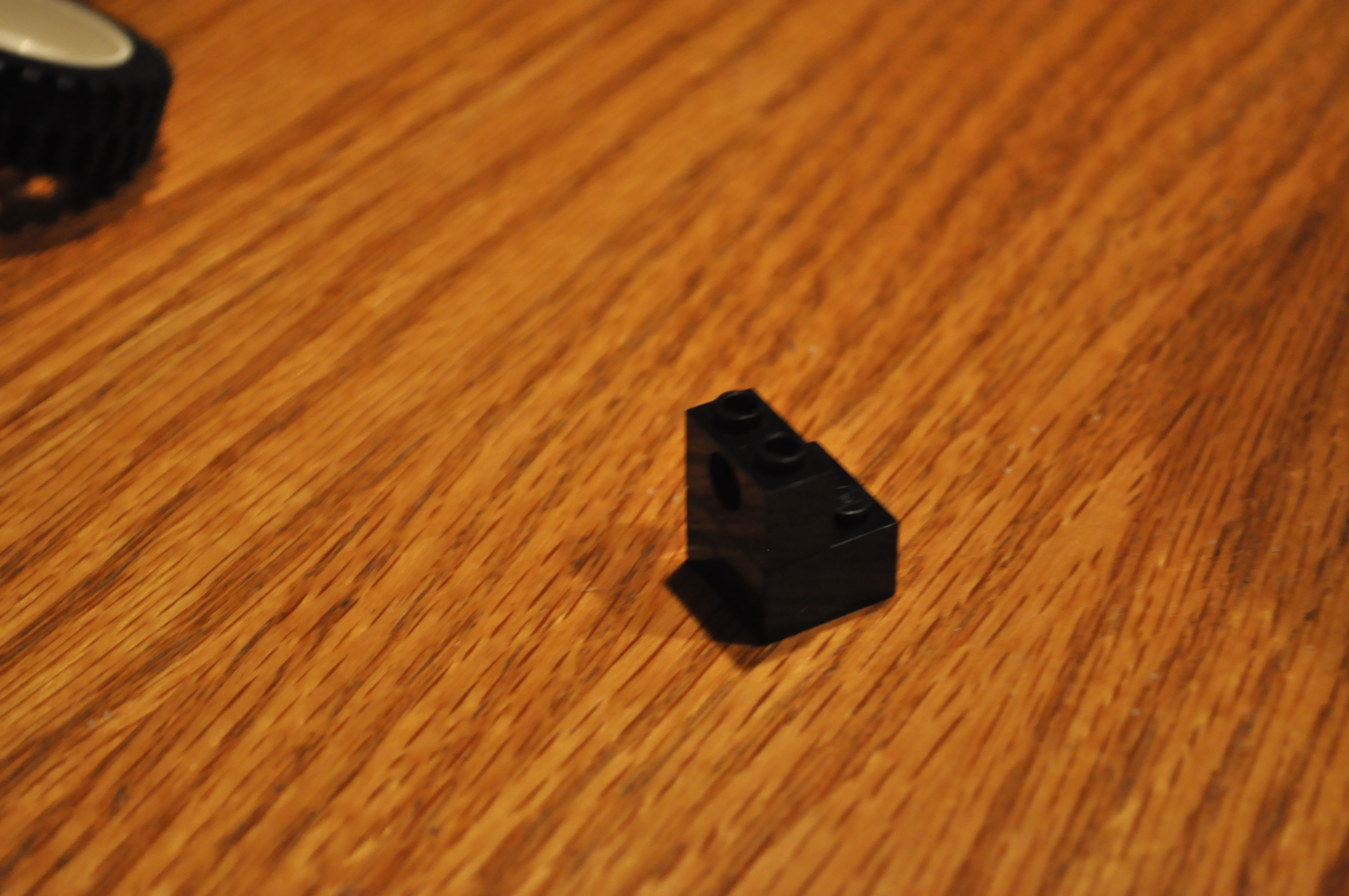

2x tall 1 space wide slanted piece (needed in making track for other piston (continued))

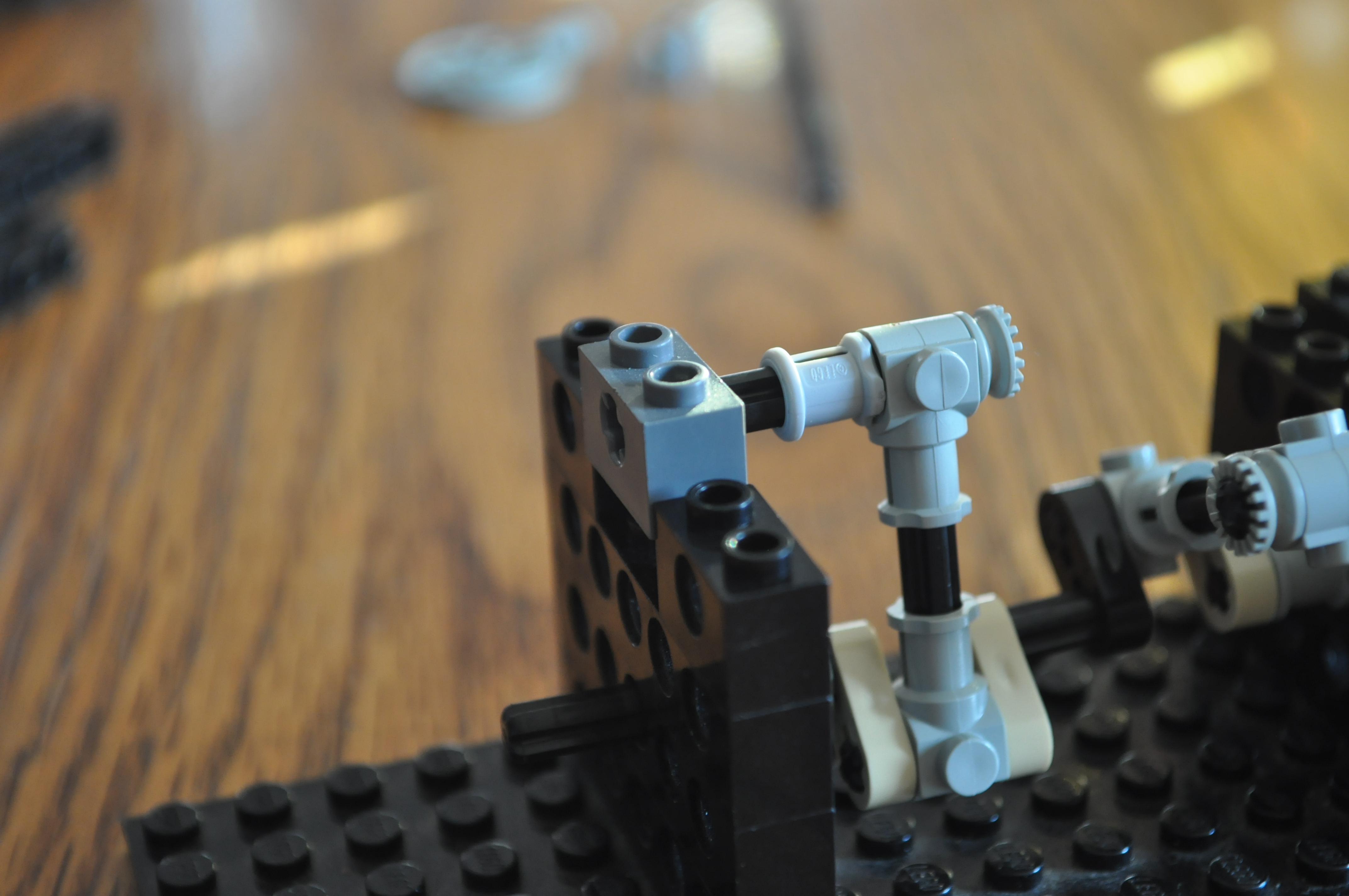

use 2 level crossbar stoppers and shortest crossbar and T crossbar pieces to make the crank. on the rod use shorter crossbars to connect the 2 T pieces and I think you can see the rest.

use tall 6 pieces to set the crank in. for base use the flat 6x16 piece. leave 2 places in front for "radiator" thing

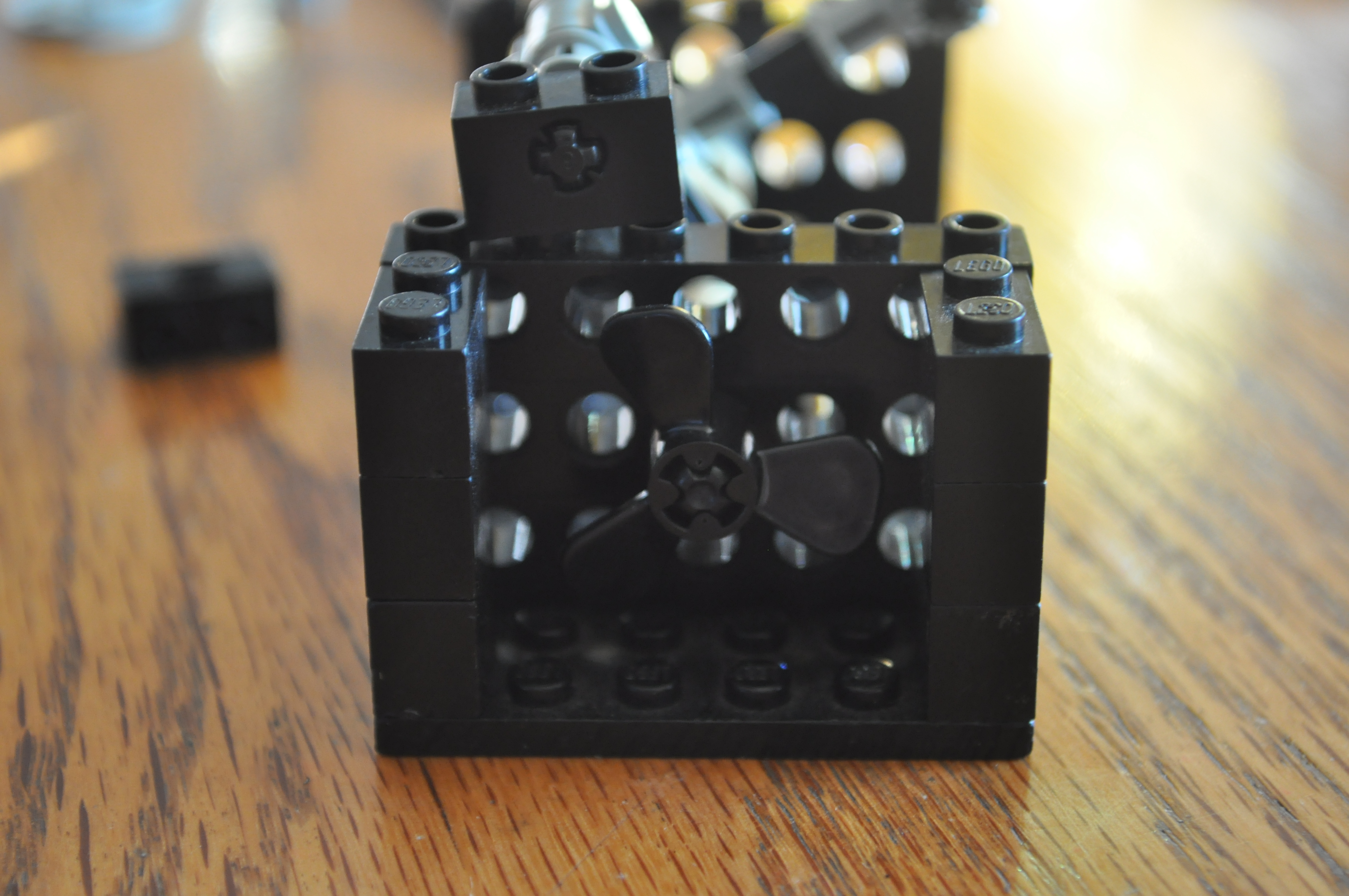

put cooling fan on front of "engine"

build up 3 tall 2 pieces on each side of the cooling fan and put the flat 2x6 on top

stack 1 of the tall 2 pieces with the hole in it on each side of the "piston" (make sure you put these on the back of your engine)

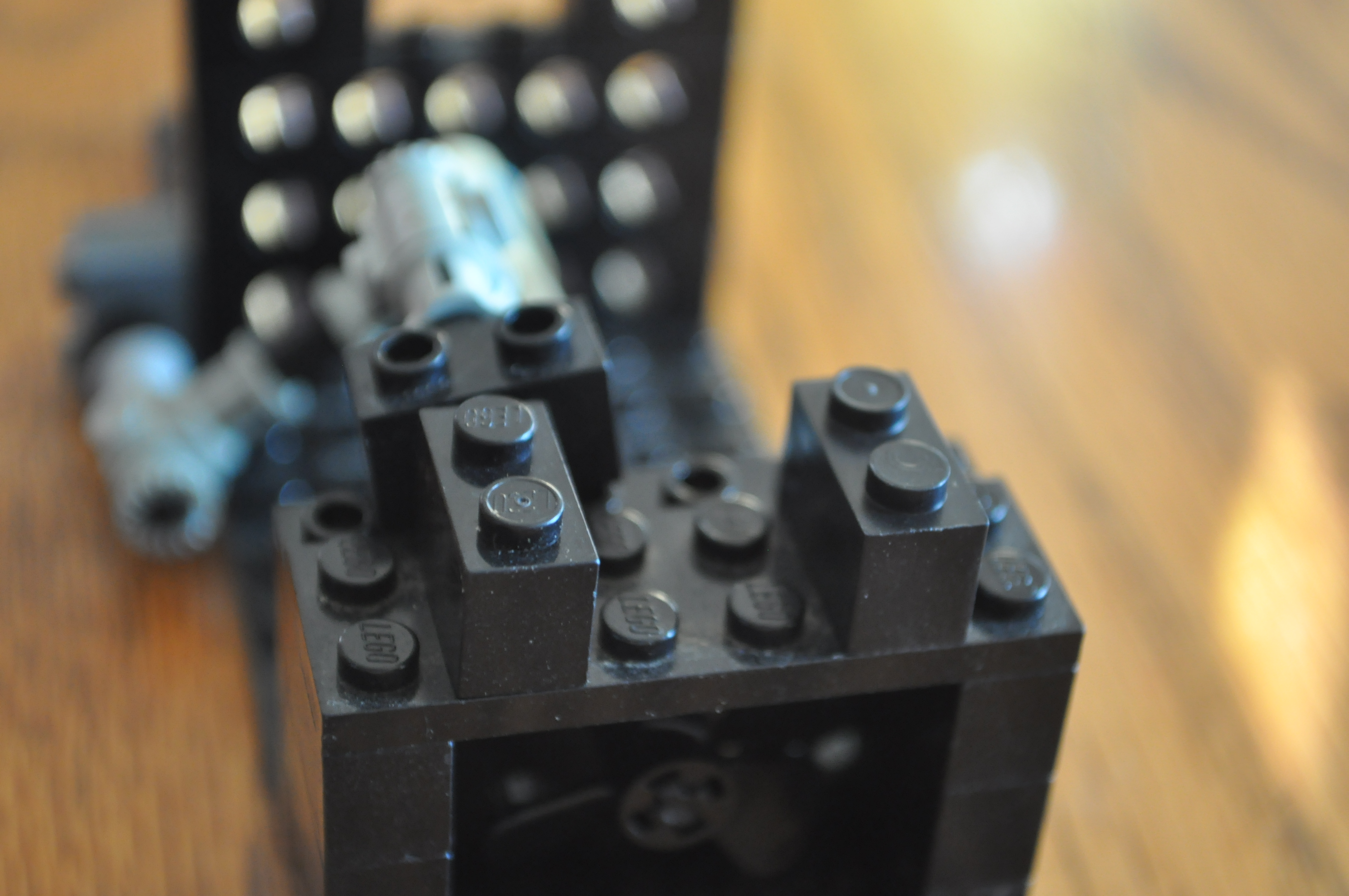

on top of the "radiator" box put 2 tall 2 pieces 2 spaces apart

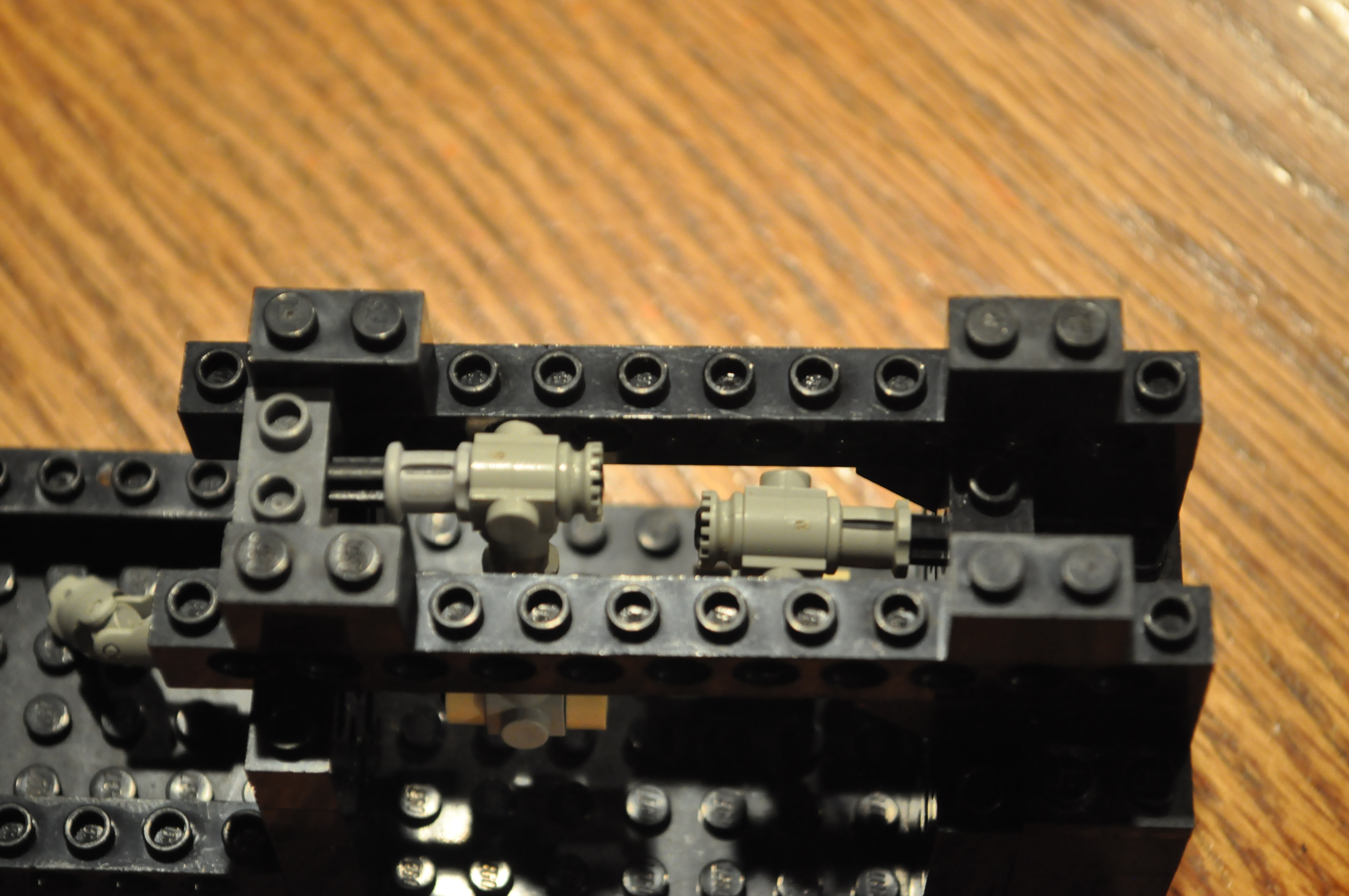

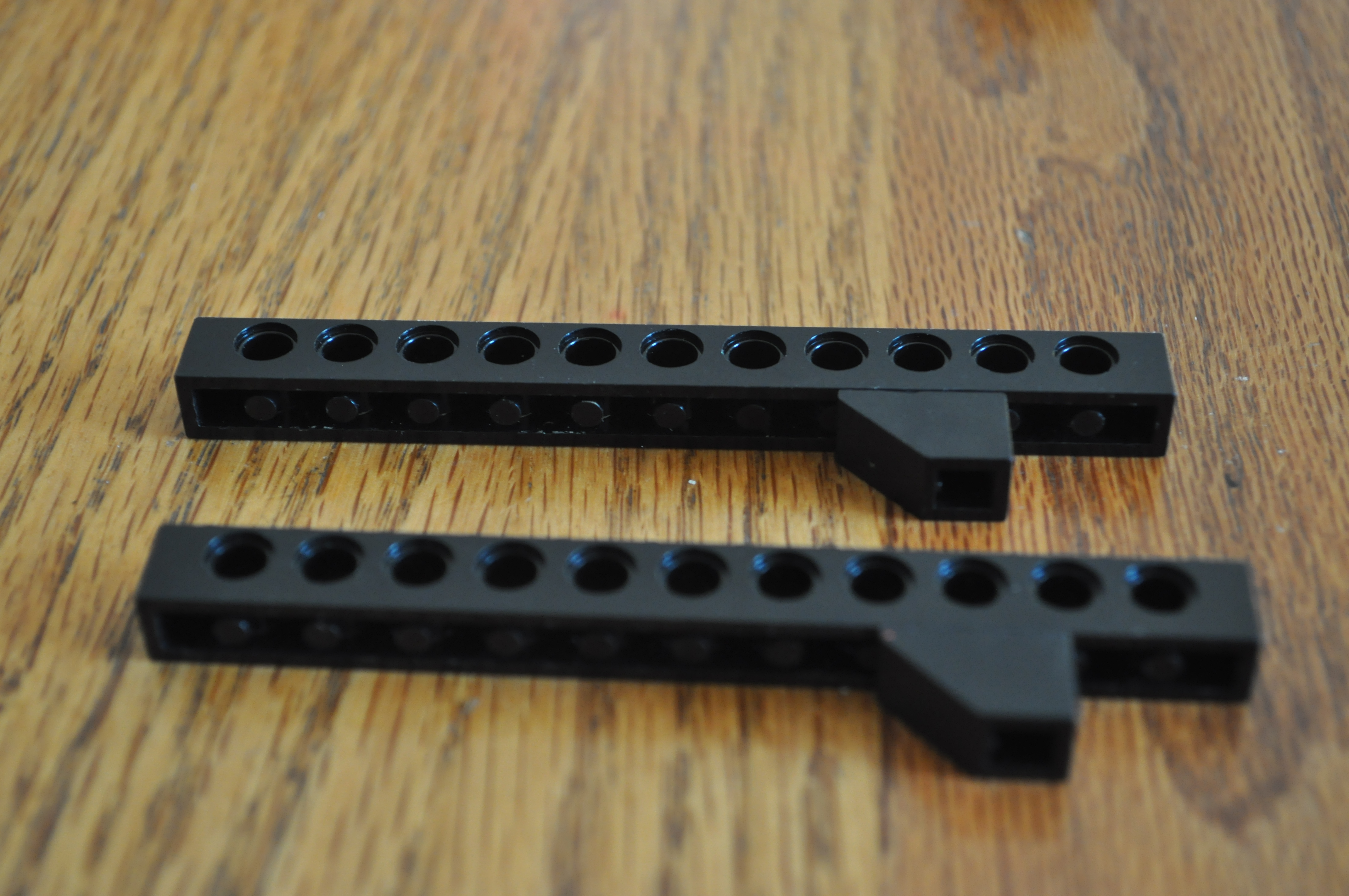

put the slanted pieces on the tall 12 pieces and then put then slanted piece toward the front onto the top. put two tall 2 pieces on to of that one space from the end so when you turn the crossbar from the crank the "pistons" will smoothly go up and down along their track.

that seems pretty self explanatory put it on the opposite end that the fan is

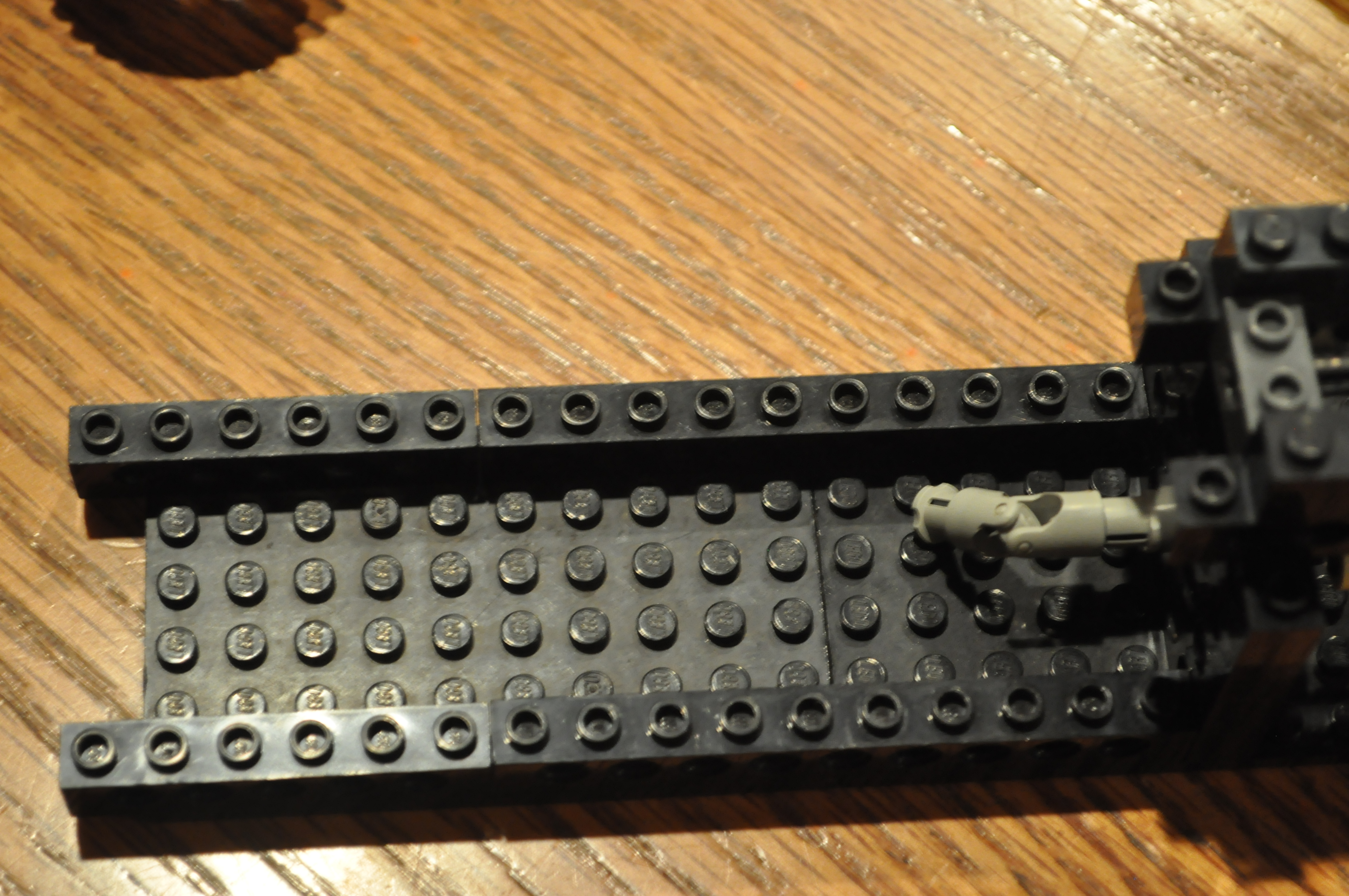

use the tall 8 piece to put the other flat base on the back

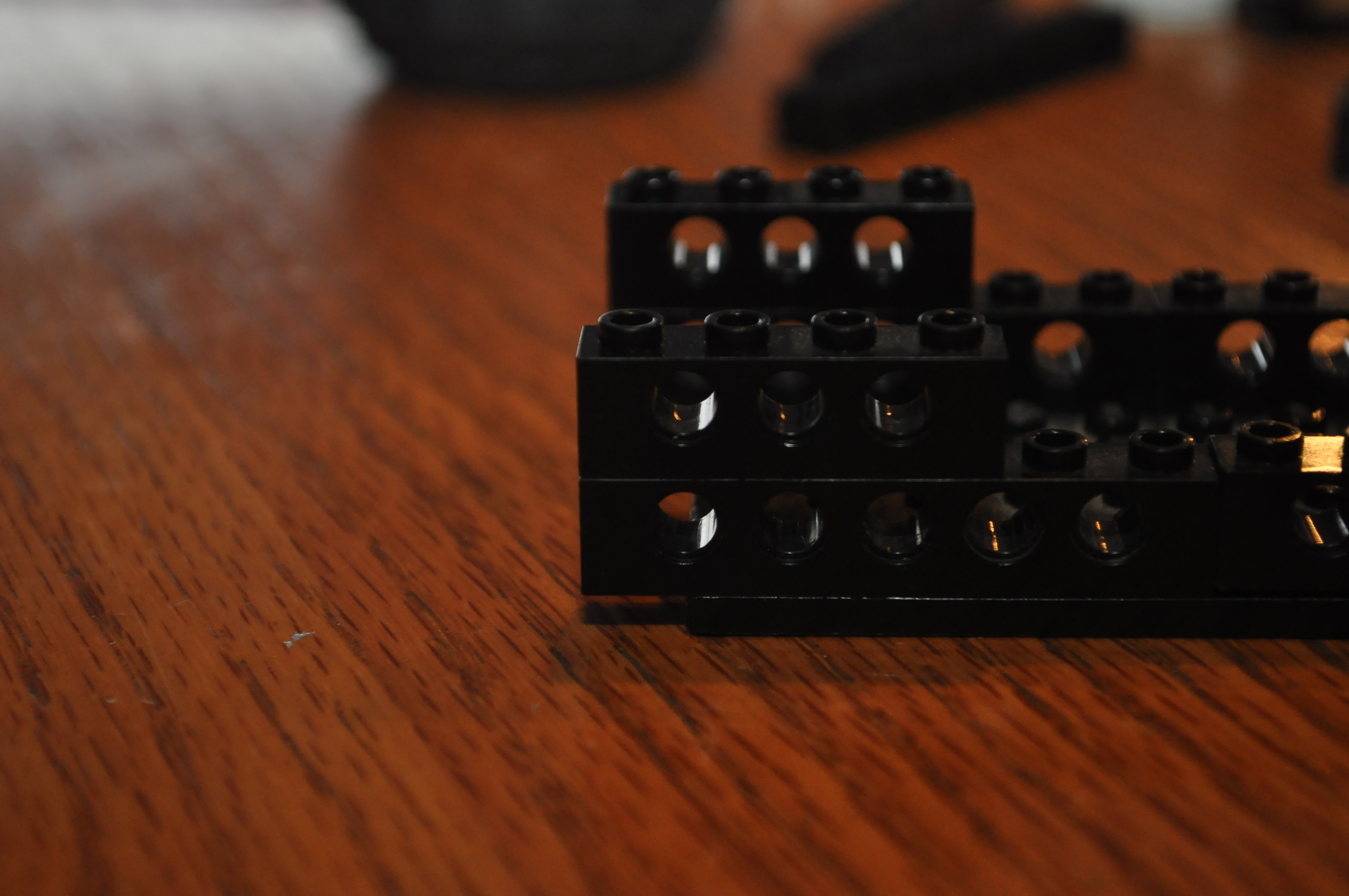

add 1 tall 6 piece with holes on either side of base and then a tall 4 piece with hole on the end.

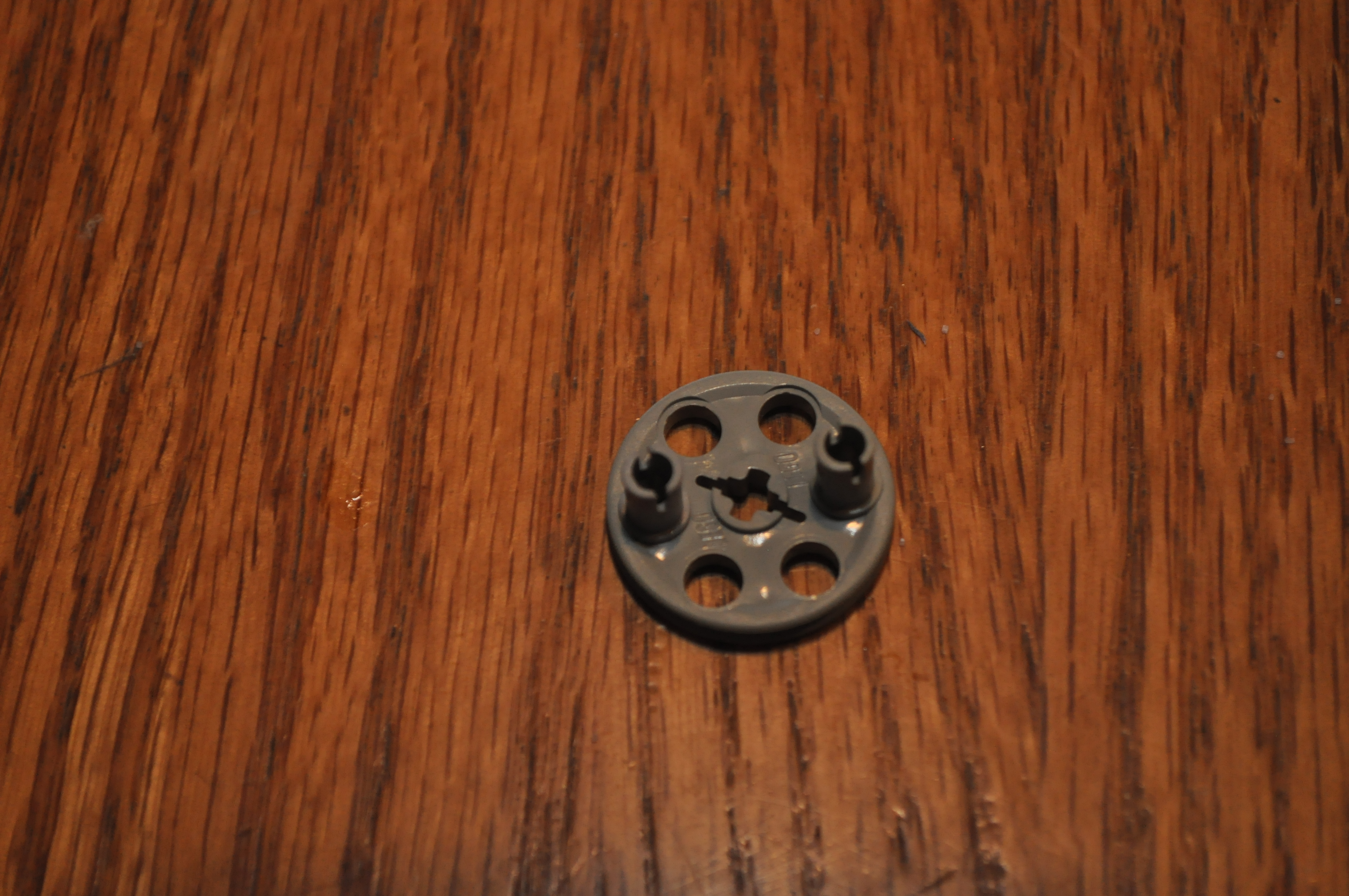

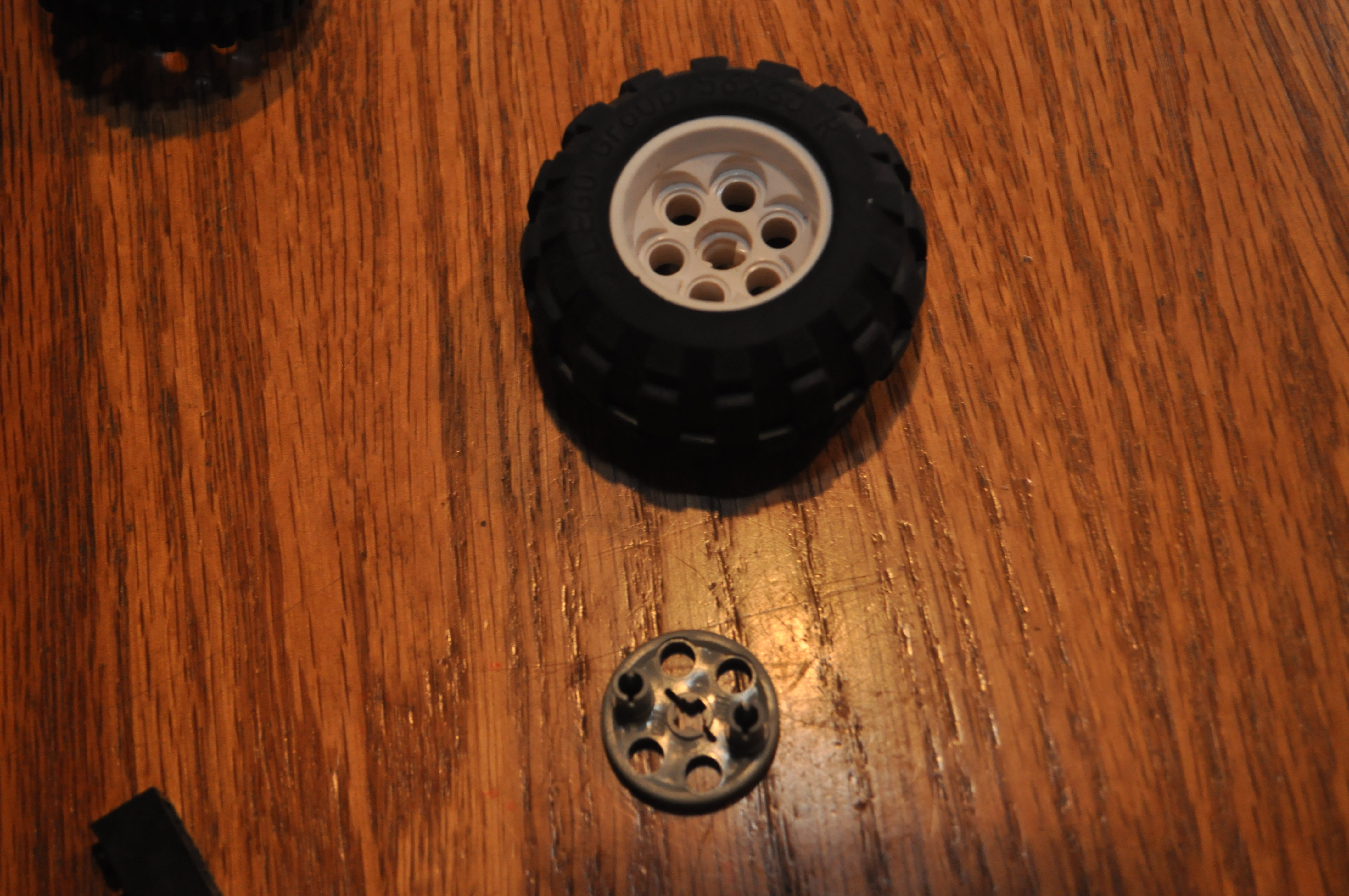

put 3 cut off low friction pins on opposite sides of wheels with hole and insert the onto the other wheels. I did this because my crossbar for rear wheels was not long enough.

the first picture looks pretty self explanatory. put the drive shaft through the 2 hole piece and the push the piece in one line away from end

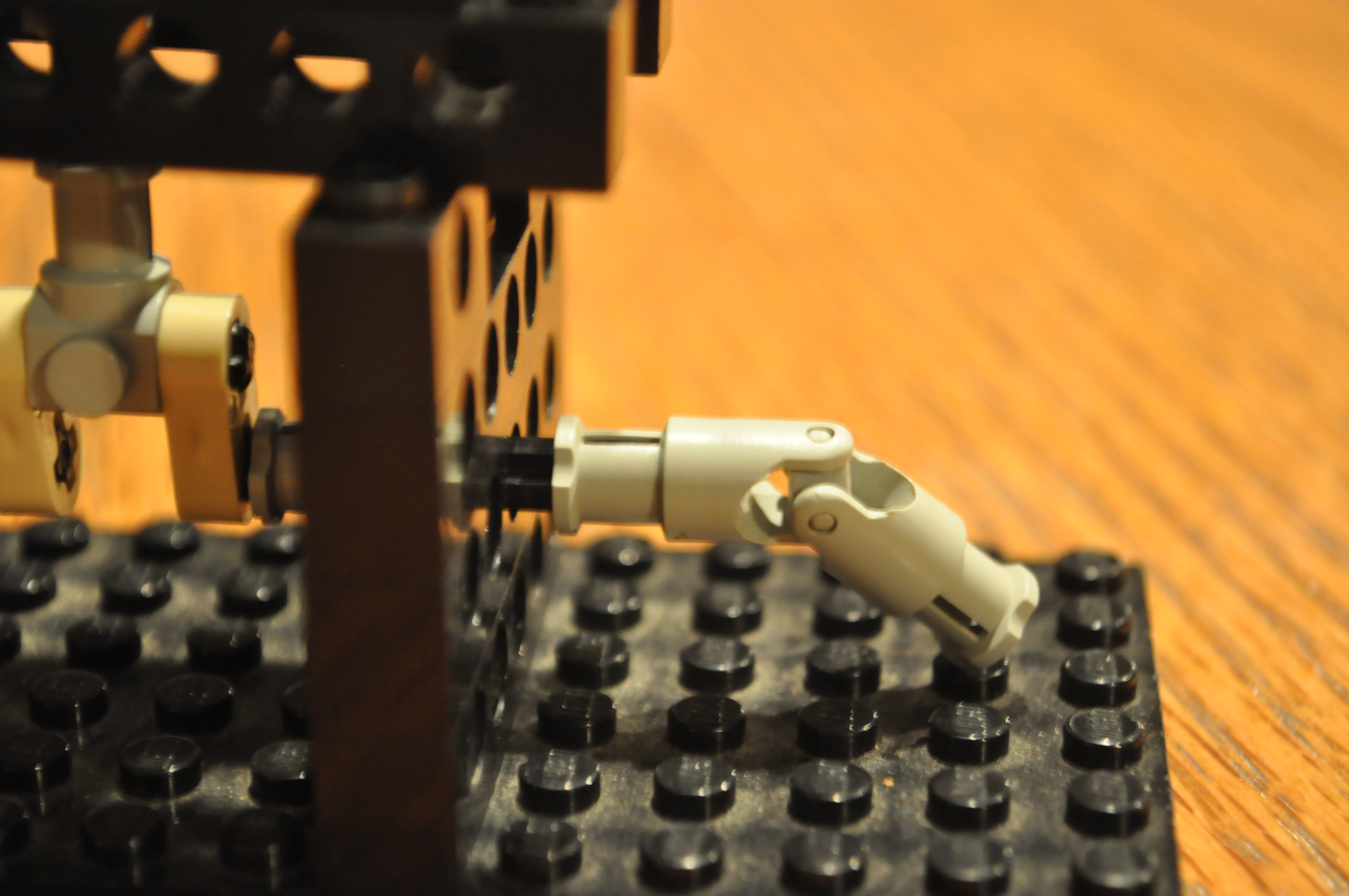

put the gear with bent teeth on the end of the drive shaft. ( you will adjust it later)

again that is pretty self explanatory

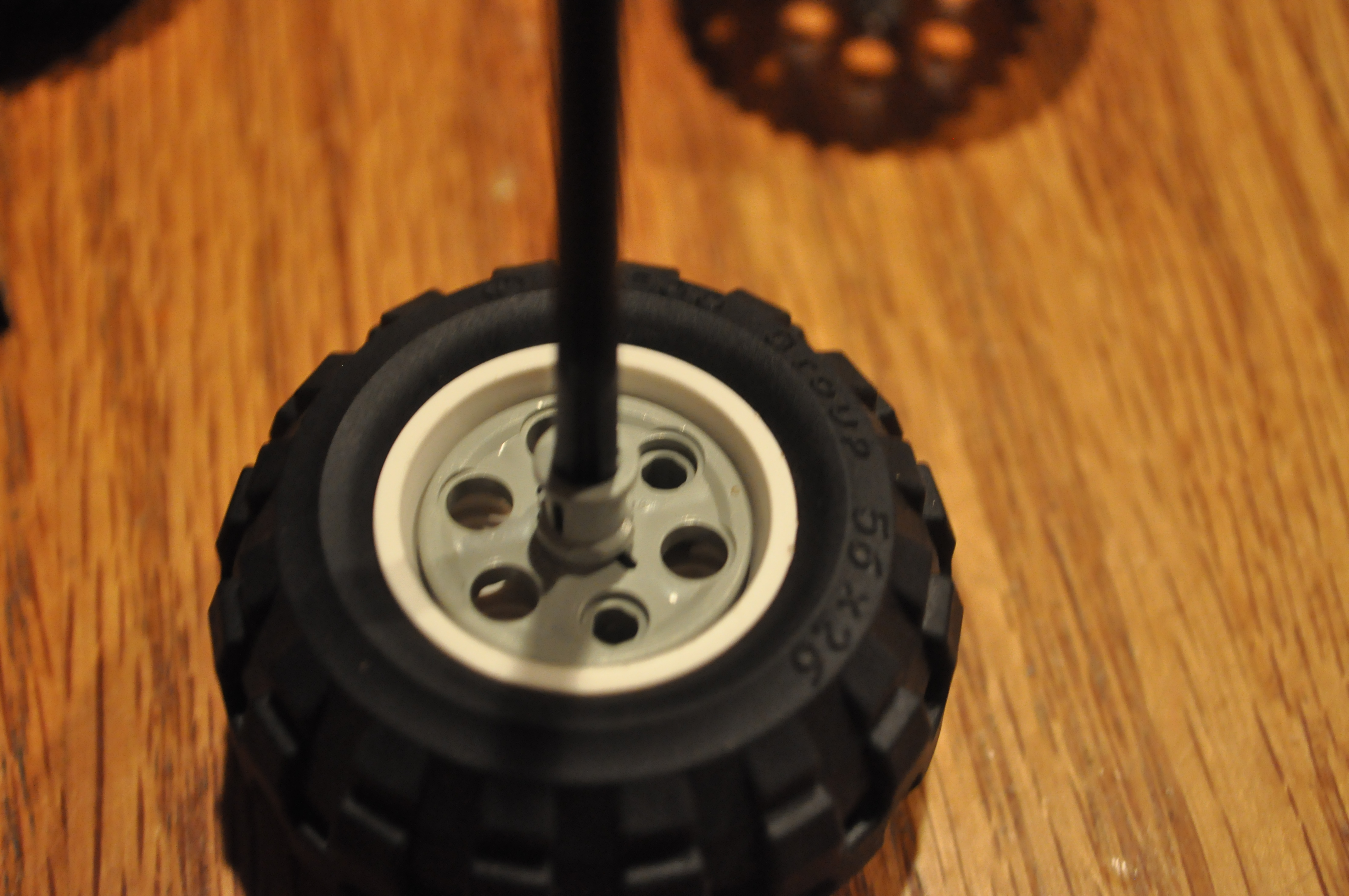

put shaft you just made through the back piece and put the other gear on that and the other wheel on the other side and adjust gears as needed

I added a body and stuff just to look cool but do what you like
