Lego USB Memory Stick
You've seen this a million times before, but I couldn't find it on Instructables
Get Your Stuff
Hello All.
Yes, I know. You've probably seen this before, and your probably saying that this wasn't my idea. So no, its not my idea. I just couldn't find it on instructables, so I decided to post it as a reference for the rest of us.
You will need:
A USB memory stick (the thinner the better, it should be thinner than the lego piece)
Some Legos (either 2x4, 2x8, or whatever size you need to fit the memory stick.

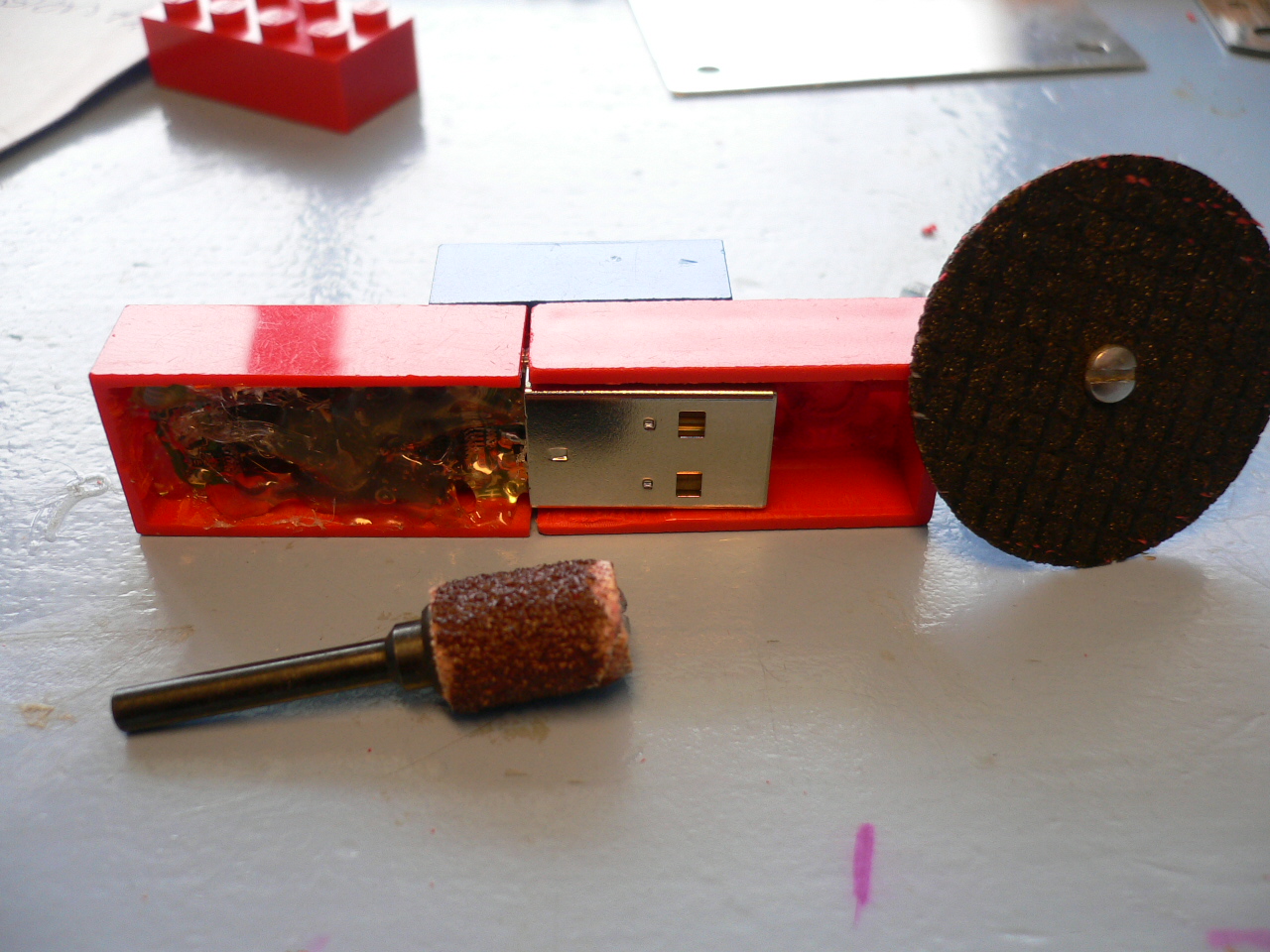

A dremel, with a sanding part and that spinner-disc thingy part (see picture)
Hot glue
Yes, I know. You've probably seen this before, and your probably saying that this wasn't my idea. So no, its not my idea. I just couldn't find it on instructables, so I decided to post it as a reference for the rest of us.
You will need:
A USB memory stick (the thinner the better, it should be thinner than the lego piece)
Some Legos (either 2x4, 2x8, or whatever size you need to fit the memory stick.
A dremel, with a sanding part and that spinner-disc thingy part (see picture)
Hot glue
Get Your USB and Empy Out the Lego
First of all, remove your USB stick from it's case. To do this I simply used a knife to pry the two halves open, but it should vary from case to case.
Next, use the rotary disc to remove the insides of your lego piece. I did this by first cutting the middle out of the end of the lego, and then working my way down to the end. Remember to only open up one end of your lego, and only make it as wide as the USB port.
The disc is the most useful tool, because you can make cuts length-ways into the bottom of the lego, without going through the top. After doing this, tilt the disc at an angle then cut of the extra pieces of plastic.
Next use the rotary sander to flatten out all that you couldn't get using the disc. Also, you may need to thin the walls of the lego, in order to allow the USB drive to fit. The sander is useful for this too.
Next, use the rotary disc to remove the insides of your lego piece. I did this by first cutting the middle out of the end of the lego, and then working my way down to the end. Remember to only open up one end of your lego, and only make it as wide as the USB port.
The disc is the most useful tool, because you can make cuts length-ways into the bottom of the lego, without going through the top. After doing this, tilt the disc at an angle then cut of the extra pieces of plastic.
Next use the rotary sander to flatten out all that you couldn't get using the disc. Also, you may need to thin the walls of the lego, in order to allow the USB drive to fit. The sander is useful for this too.
Fit the USB and Glue It In.
Once you've cleared out the insides of the lego piece, slide in your USB stick. If needed, thin the walls of the Lego from the inside to allow for more room.

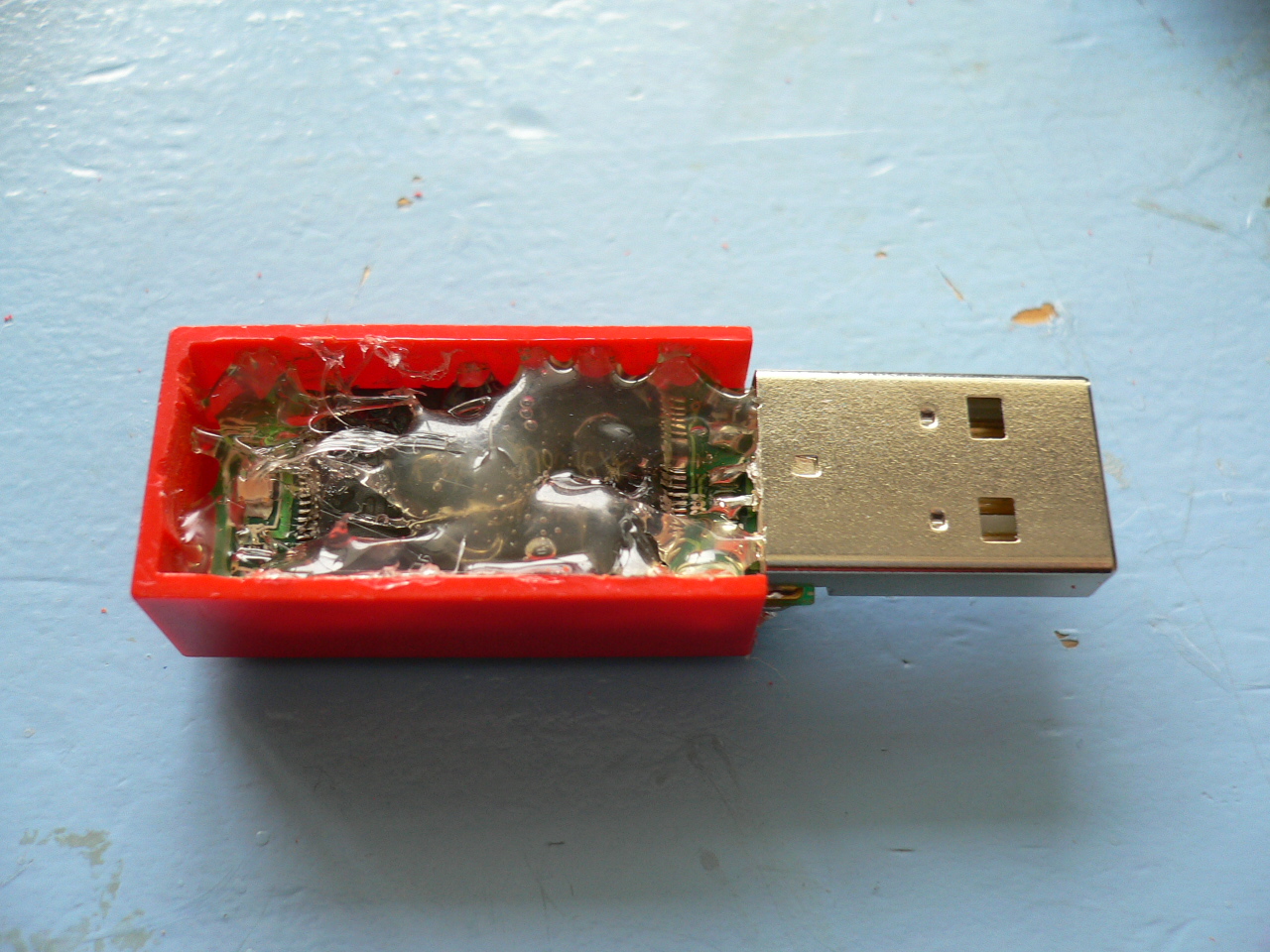

To glue the stick in, first put some dabs of hot glue on the inside of the Lego. Then, carefully position the memory stick on top. Once you feel that you've got the position right, glue the sides of the USB to the walls of the Lego piece. If your memory stick as a small light on it, remember to point it downwards, so the light can shine through the glue.
Now, completely cover all the circuits with glue, as to protect the memory stick from wear and tear etc etc....
To glue the stick in, first put some dabs of hot glue on the inside of the Lego. Then, carefully position the memory stick on top. Once you feel that you've got the position right, glue the sides of the USB to the walls of the Lego piece. If your memory stick as a small light on it, remember to point it downwards, so the light can shine through the glue.
Now, completely cover all the circuits with glue, as to protect the memory stick from wear and tear etc etc....
Test It Out!
Once you make it easthetically decent, and after allowing the glue to dry, test it out! For a cover is simply hollowed out another lego, and connected the cover and the memory stick with another piece of lego.
See ya!
See ya!
