LedCap

This is LedCap.

A cap that reacts on loud sound(music). You can also change the brightness of the leds and change the color of the leds!

For this project you will need:

Supplies:

1x Raspberry PI (model B) + 4GB SD card

1x 8x32 led matrix display

1x Adafruit piTFT

1x Soundsensor

1x Arduino UNO rev.3

1x warmthsensor(DS1820)

1x Pack gorilla tape

1x Snapback cap

1x Breadboard

A couple of jumpwires

Here you have the files on how to build the circuit.

(Breadboard & Elektronic)

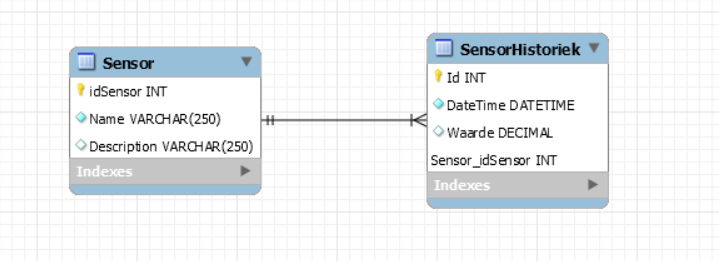

This is the database. Usable to keep track of the sensors.

This is the idea I brainstormed for my website and also the design for the website.

Included the adobe XD file.

Here in this RAR-file you have everything you need to open up your website.

Also a link to my Github.

The frontend is written with HTML&CSS connected with javascript.

Here in this RAR-file you have everything you need to get data from the website to your backend.

Also a link to my Github.

The backend is written in Python 3.5. The frontend is connected to the backend via sockets.

Here in this RAR-file you have everything you need to get data from the backend to your arduino.

Also a link to my Github.

The arduino code is used to take the serial data from python and transform it to something physical on the led matrix!

After everything is connected and programmed it is time to check for the housing.

I took the ledmatrix and i measured how big it was and made a papertemplate of it.

Next up i put the paper template in the cap and marked the edges.

Afterwards i cut the marked edges in the form of the matrix with a pair of scissors.

Then i took some gorilla tape and taped the matrix to the cap.

And there you have it. A led cap!

Run your python script and choose a word to display on the cap!

And there you have it a ready to party ledcap!
