I’m doing a bigger experiment with plants. It will be a long time project.
So first of all I designed a led module witch is stackable
The Idea
![growled2.png](/proxy/?url=https://content.instructables.com/FFM/QLVE/JCAUS49Z/FFMQLVEJCAUS49Z.png&filename=growled2.png)
![schema.PNG](/proxy/?url=https://content.instructables.com/FAG/G3ZF/JCAUS4BS/FAGG3ZFJCAUS4BS.png&filename=schema.PNG)
![layerfront.PNG](/proxy/?url=https://content.instructables.com/FUG/37MV/JCAUS4BP/FUG37MVJCAUS4BP.png&filename=layerfront.PNG)
![brd2.PNG](/proxy/?url=https://content.instructables.com/FZ8/L861/JCAUS49T/FZ8L861JCAUS49T.png&filename=brd2.PNG)
First, I wanted to buy 2 or 3 Led grow lights, but they were too expensive or not what I needed. So I decided to build my own Led light

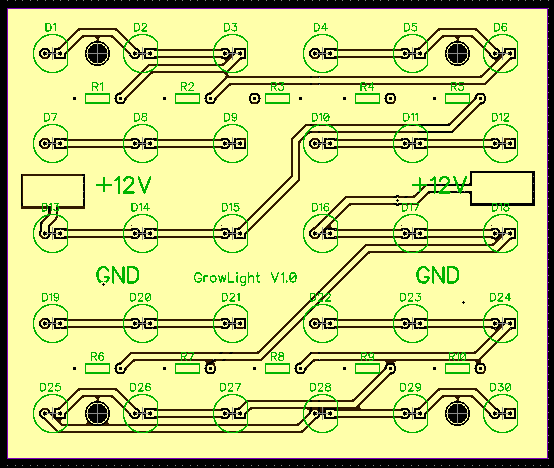

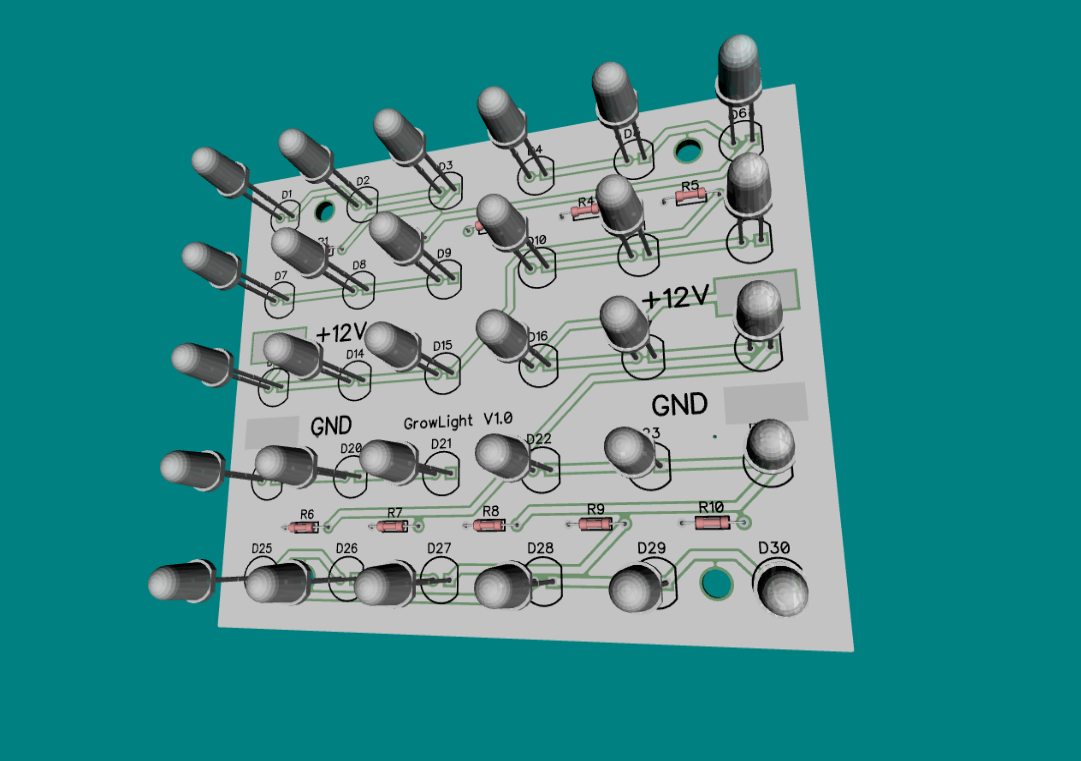

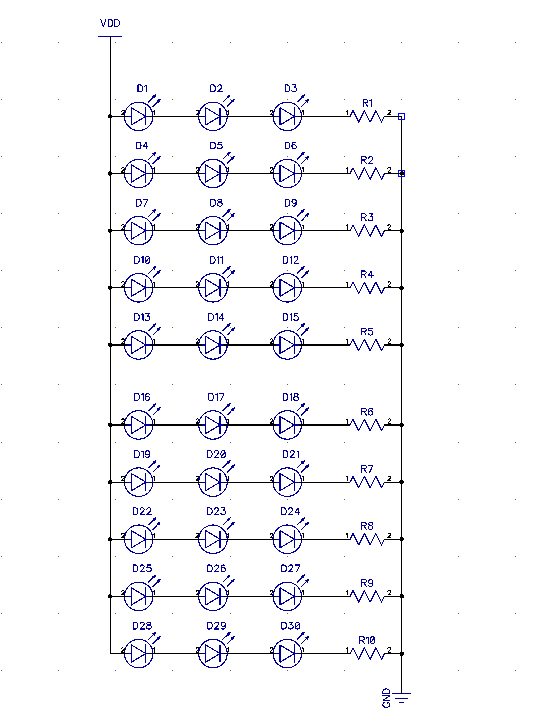

I designed my Idea in Sketchup 8 and with DipTrace I made the shematic and the board design.
It’s not the most complicated circuit, but I took the chance to design a PCB.
The PCB
![DSC_0879.JPG](/proxy/?url=https://content.instructables.com/FGY/K159/JCAUS4FQ/FGYK159JCAUS4FQ.jpg&filename=DSC_0879.JPG)
And here it is. A nice and practical PCB from china.
I added the gerber files, if you want to reproduce the pcb
Downloads
One Finished LED Module
![DSC_0983.JPG](/proxy/?url=https://content.instructables.com/FAB/LZPU/JCAUS47R/FABLZPUJCAUS47R.jpg&filename=DSC_0983.JPG)
![DSC_1011.JPG](/proxy/?url=https://content.instructables.com/FZA/EJ5W/JCAUS47S/FZAEJ5WJCAUS47S.jpg&filename=DSC_1011.JPG)
![DSC_1013.JPG](/proxy/?url=https://content.instructables.com/FJ7/EOOG/JCAUS490/FJ7EOOGJCAUS490.jpg&filename=DSC_1013.JPG)
![DSC_1012.JPG](/proxy/?url=https://content.instructables.com/F7L/KUUC/JCAUS48J/F7LKUUCJCAUS48J.jpg&filename=DSC_1012.JPG)
![DSCPDC_0003_BURST20180106144144376_COVER.JPG](/proxy/?url=https://content.instructables.com/F4Z/BJ4I/JCAUS5DD/F4ZBJ4IJCAUS5DD.jpg&filename=DSCPDC_0003_BURST20180106144144376_COVER.JPG)
![DSC_1056.JPG](/proxy/?url=https://content.instructables.com/FKA/EOT9/JCAUS969/FKAEOT9JCAUS969.jpg&filename=DSC_1056.JPG)

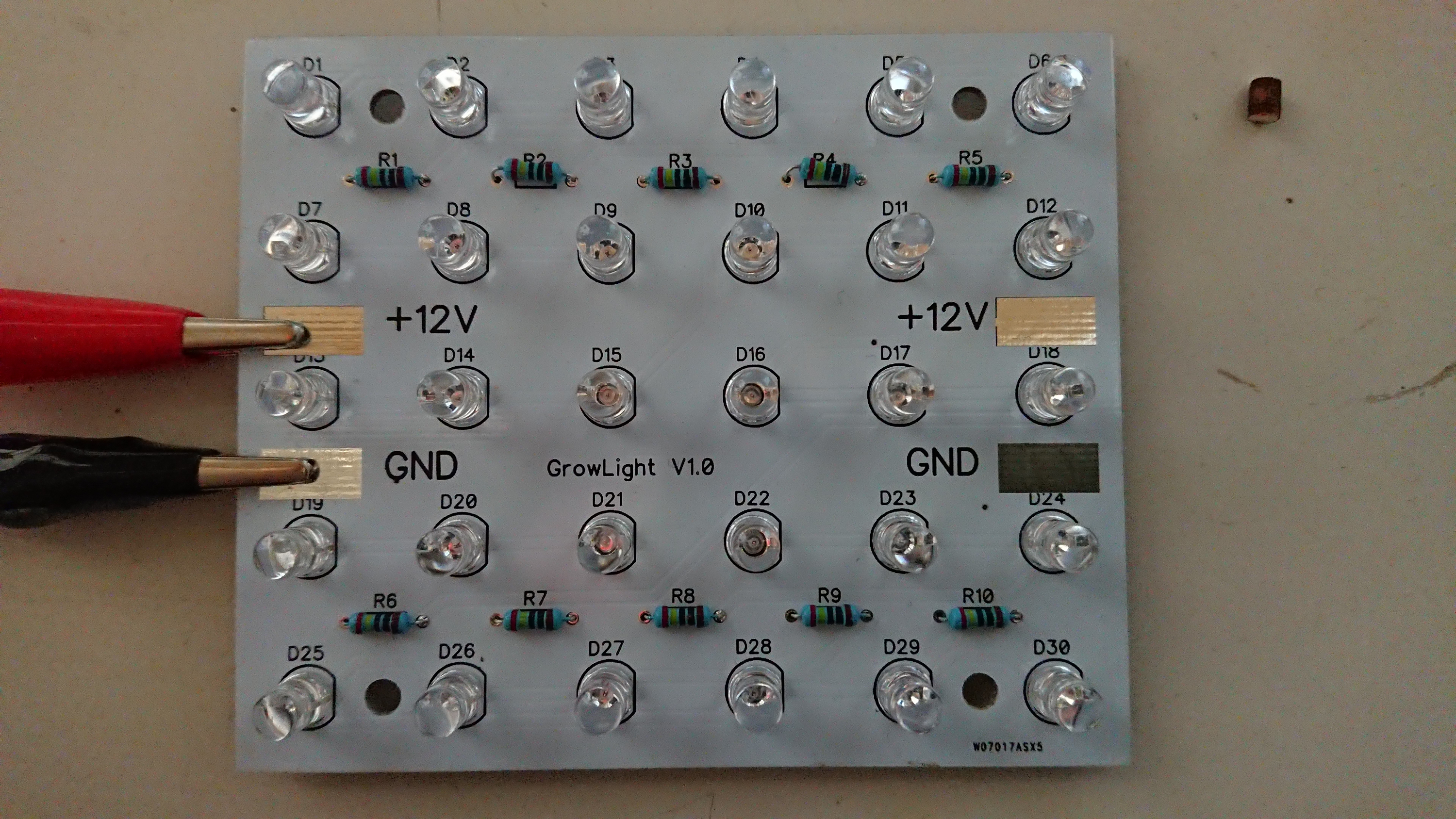

And here it is. One module has:
- 20 red led's
- 10 blue led's
- 10 resistors 240 Ohm
One module cost me about 5$
As calculated it takes at 12V 200mA and look at the nice pink spot :)
On the last picture you can see how easy you can stack the single led modules
The Gardening Work
![DSC_1065.JPG](/proxy/?url=https://content.instructables.com/FZZ/ZIK9/JCAUS46W/FZZZIK9JCAUS46W.jpg&filename=DSC_1065.JPG)
![DSC_1066.JPG](/proxy/?url=https://content.instructables.com/FEW/BYE4/JCAUS470/FEWBYE4JCAUS470.jpg&filename=DSC_1066.JPG)
![DSC_1069.JPG](/proxy/?url=https://content.instructables.com/FI0/L68D/JCAUS477/FI0L68DJCAUS477.jpg&filename=DSC_1069.JPG)
![DSC_1073.JPG](/proxy/?url=https://content.instructables.com/FFV/RQVW/JCAUS47N/FFVRQVWJCAUS47N.jpg&filename=DSC_1073.JPG)
![DSC_1076.JPG](/proxy/?url=https://content.instructables.com/FH6/6S2G/JCAUS47P/FH66S2GJCAUS47P.jpg&filename=DSC_1076.JPG)
![DSC_1084.JPG](/proxy/?url=https://content.instructables.com/F47/MJIC/JCAUS46O/F47MJICJCAUS46O.jpg&filename=DSC_1084.JPG)
Now the gardening work.
This will be my first attempt to check if my growing light works. I use coir pellets witch provide a lot of substrate and as seed I use salad burnet herb. I took these seeds because of there size.
A small plastic Tupperware will work as a peel for my vegetables. With the addition of water, the pellets swell up. I press the earth over the seeds and put the whole thing under the light. Now I have to wait if it works or not. I also added a thermometer to check if it’s not to cold in my workshop.
Crossing fingers.
It Works
![DSC_1165.JPG](/proxy/?url=https://content.instructables.com/F57/BHX9/JCS4QGD1/F57BHX9JCS4QGD1.jpg&filename=DSC_1165.JPG)
After 7 days I had the confirmation that it works
