Led Dice (remote)
![20151118_234502.jpg](/proxy/?url=https://content.instructables.com/FBD/DTVY/IH3TBINN/FBDDTVYIH3TBINN.jpg&filename=20151118_234502.jpg)
![20151109_202458.jpg](/proxy/?url=https://content.instructables.com/FEG/FUAH/IH3TB6W0/FEGFUAHIH3TB6W0.jpg&filename=20151109_202458.jpg)
Hello! friends
Welcome to my another "Led Dice" project. In this project i'm gonna show you how to make your own led dice.
I just download the code and a circuit diagram form http://www.talkingelectronics.com/EM/Dice/Dice.html
So, let's get started.
Circuit Diagram
![20151102_212754.jpg](/proxy/?url=https://content.instructables.com/FYP/Z2ZZ/IH3TB6T4/FYPZ2ZZIH3TB6T4.jpg&filename=20151102_212754.jpg)
We'll be able to make this led dice project with the help of that diagram. You just follow the steps.
Components
![20151102_215325.jpg](/proxy/?url=https://content.instructables.com/FEO/E02X/IH3TB6TE/FEOE02XIH3TB6TE.jpg&filename=20151102_215325.jpg)
![20151102_203202.jpg](/proxy/?url=https://content.instructables.com/FPK/EDUM/IH3TB6PN/FPKEDUMIH3TB6PN.jpg&filename=20151102_203202.jpg)
![20151102_205343.jpg](/proxy/?url=https://content.instructables.com/F27/6PS3/IH3TB6S2/F276PS3IH3TB6S2.jpg&filename=20151102_205343.jpg)
![20151102_234426.jpg](/proxy/?url=https://content.instructables.com/FEM/ADPI/IH3TB6VF/FEMADPIIH3TB6VF.jpg&filename=20151102_234426.jpg)

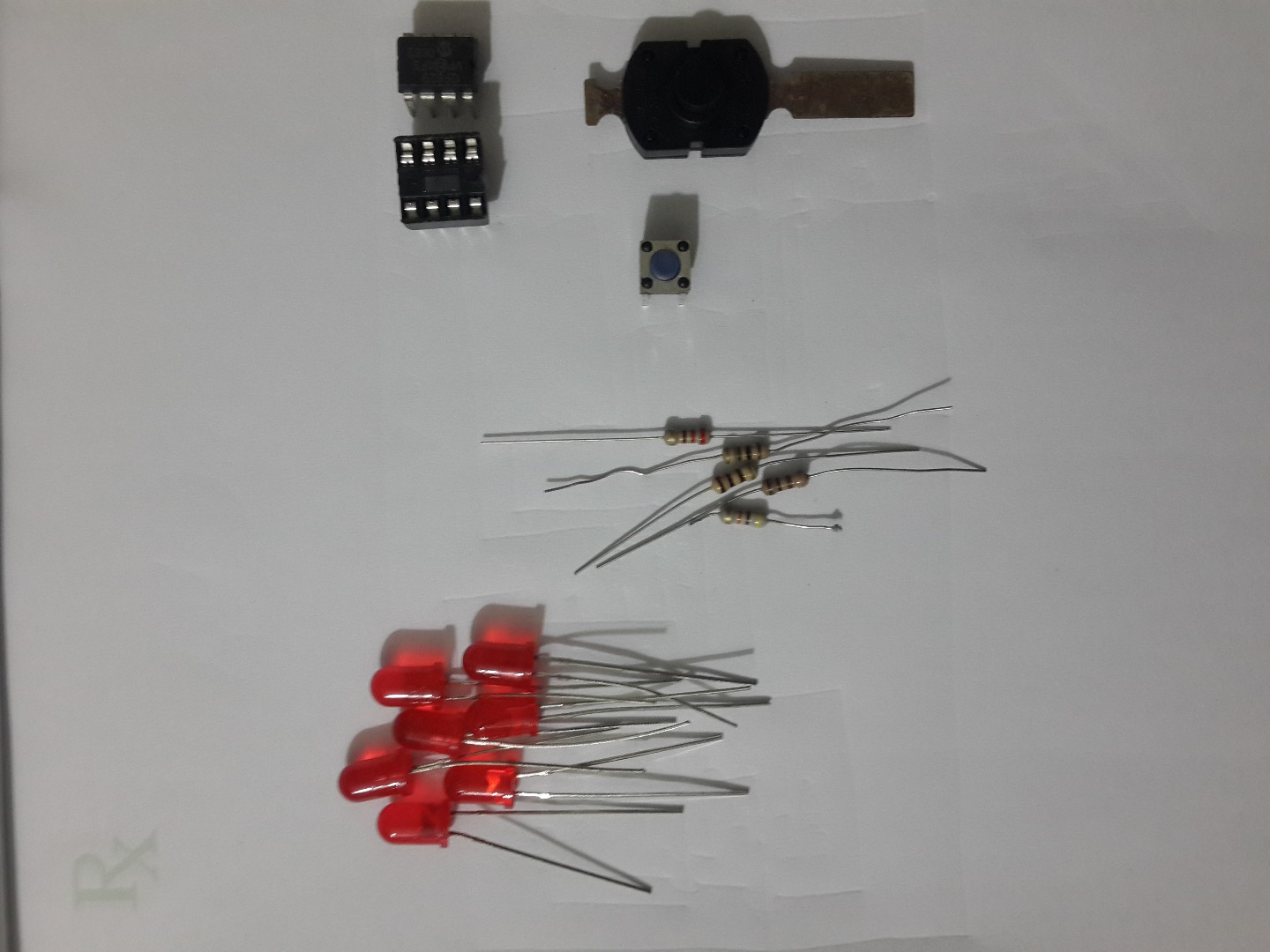

Material you'll need
Red Led x 7
Switches: spst and push button
PIC ic: 12f629 with base
3 volt cell
Resistors: 100 ohms x 3, 220 ohms and 47 k
Mp 3 remote
Vero Board
Mini Drill
Hot glue
Disassemble
![20151102_203321.jpg](/proxy/?url=https://content.instructables.com/FHX/146Q/IH3TB6QB/FHX146QIH3TB6QB.jpg&filename=20151102_203321.jpg)
![20151102_203354.jpg](/proxy/?url=https://content.instructables.com/FQC/AM4Z/IH3TB6QM/FQCAM4ZIH3TB6QM.jpg&filename=20151102_203354.jpg)

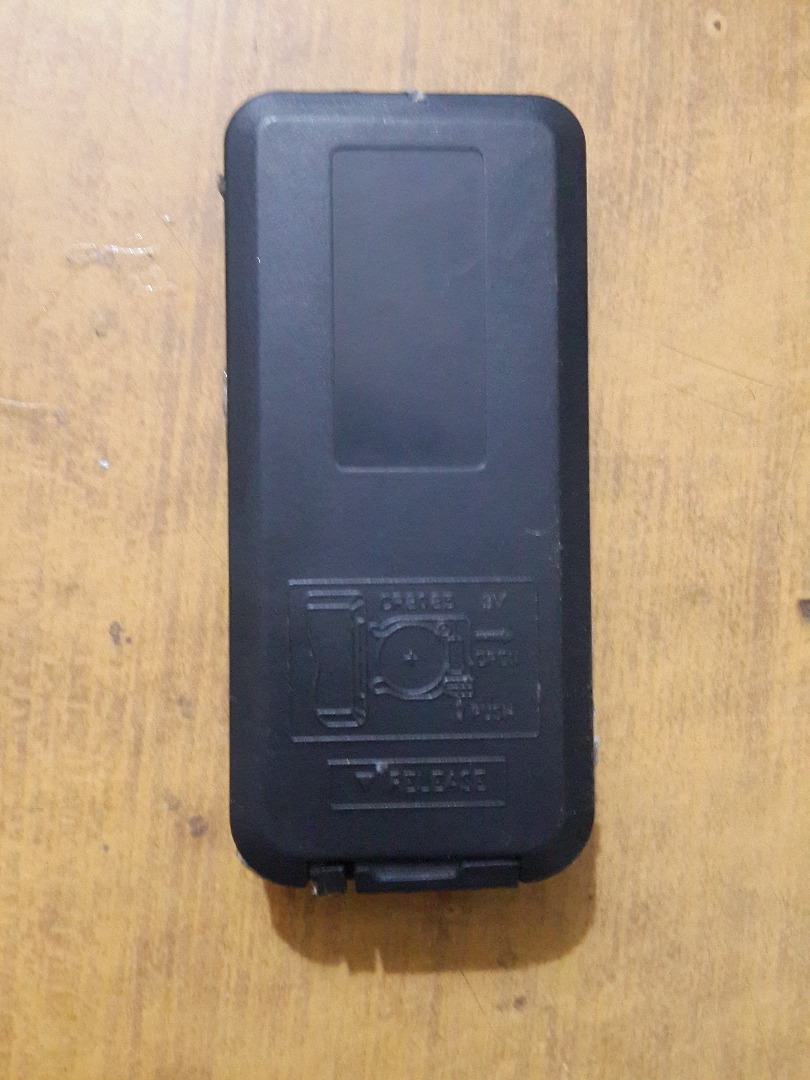

Take your mp3 remote and remove the sticker on it. Mention in a above diagram.
Screw Opening
![20151102_203434.jpg](/proxy/?url=https://content.instructables.com/FM0/5089/IH3TB6QY/FM05089IH3TB6QY.jpg&filename=20151102_203434.jpg)
![20151102_203521.jpg](/proxy/?url=https://content.instructables.com/FEB/ANJP/IH3TB6RH/FEBANJPIH3TB6RH.jpg&filename=20151102_203521.jpg)
After removing the sticker you'll need to remove the screws also.
Removing Jack
![20151102_223104.jpg](/proxy/?url=https://content.instructables.com/FWK/QL13/IH3TB6TG/FWKQL13IH3TB6TG.jpg&filename=20151102_223104.jpg)
![20151102_223202.jpg](/proxy/?url=https://content.instructables.com/FAE/EFTE/IH3TB6TM/FAEEFTEIH3TB6TM.jpg&filename=20151102_223202.jpg)
Take a motherboard of mp3 remote and remove the jack holder of cell. I don't know the exact name. Don't waste the spring or other part you'll need later.
Marking
![20151102_205853.jpg](/proxy/?url=https://content.instructables.com/FLP/4DAN/IH3TB6SP/FLP4DANIH3TB6SP.jpg&filename=20151102_205853.jpg)
![20151102_205358.jpg](/proxy/?url=https://content.instructables.com/F78/O9HH/IH3TB6SF/F78O9HHIH3TB6SF.jpg&filename=20151102_205358.jpg)
Take a vero board and marking on it according to remote size.
Cutting
![20151102_210759.jpg](/proxy/?url=https://content.instructables.com/FMK/686F/IH3TB6T3/FMK686FIH3TB6T3.jpg&filename=20151102_210759.jpg)
Now cutting the vero board according to the marking with the help of mini drill.
Component Placing
![20151102_231122.jpg](/proxy/?url=https://content.instructables.com/FS6/PIXZ/IH3TB6UU/FS6PIXZIH3TB6UU.jpg&filename=20151102_231122.jpg)
Place the components according to circuit diagram and than soldering it.
Soldering and Jumper Wires
![20151102_221345.jpg](/proxy/?url=https://content.instructables.com/FAC/D5MQ/IH3TB6TF/FACD5MQIH3TB6TF.jpg&filename=20151102_221345.jpg)
![20151102_225812.jpg](/proxy/?url=https://content.instructables.com/FBQ/9FNX/IH3TB6US/FBQ9FNXIH3TB6US.jpg&filename=20151102_225812.jpg)
![20151102_231051.jpg](/proxy/?url=https://content.instructables.com/FLC/9IP2/IH3TB6UT/FLC9IP2IH3TB6UT.jpg&filename=20151102_231051.jpg)
Rear view of vero board while soldering.
Jack Placing
![20151102_223852.jpg](/proxy/?url=https://content.instructables.com/FPC/12KO/IH3TB6TZ/FPC12KOIH3TB6TZ.jpg&filename=20151102_223852.jpg)
![20151102_223900.jpg](/proxy/?url=https://content.instructables.com/FRO/MLA3/IH3TB6UD/FROMLA3IH3TB6UD.jpg&filename=20151102_223900.jpg)
![20151102_232230.jpg](/proxy/?url=https://content.instructables.com/FFY/4QH8/IH3TB6V5/FFY4QH8IH3TB6V5.jpg&filename=20151102_232230.jpg)
Now place the jack on vero board and other one is on mp3 remote cover which one i removed in a step 5.
Uploading Code
Here it is the code of led dice for 12f629 PIC IC (asm and hex files). Now upload the code and install the ic on base now your led dice is ready to use.
Finish
![20151109_202458.jpg](/proxy/?url=https://content.instructables.com/FKK/210U/IH3TBDP8/FKK210UIH3TBDP8.jpg&filename=20151109_202458.jpg)
![20151109_202503.jpg](/proxy/?url=https://content.instructables.com/F6R/XS12/IH3TB6WA/F6RXS12IH3TB6WA.jpg&filename=20151109_202503.jpg)
Now your led dice is ready to use
Video
Here it is the small video about led dice.
