Lazy Susan Motorized Robot Style


some things need looking at from multiple angles, with some basic bits and bobs you too can create one of these video of Susan motorizing

i heard some noise in the forum a while ago regarding lazy susans so i made one.

heres a video of a heavy object being susand

Stuff and Things to Combine Said Stuff


some sort of flat board that can be cut into a round shape, i used scrap ply and mdf

3 small wheels to support the edges,i used ones from meccano,ones from lego or a toy car would work.

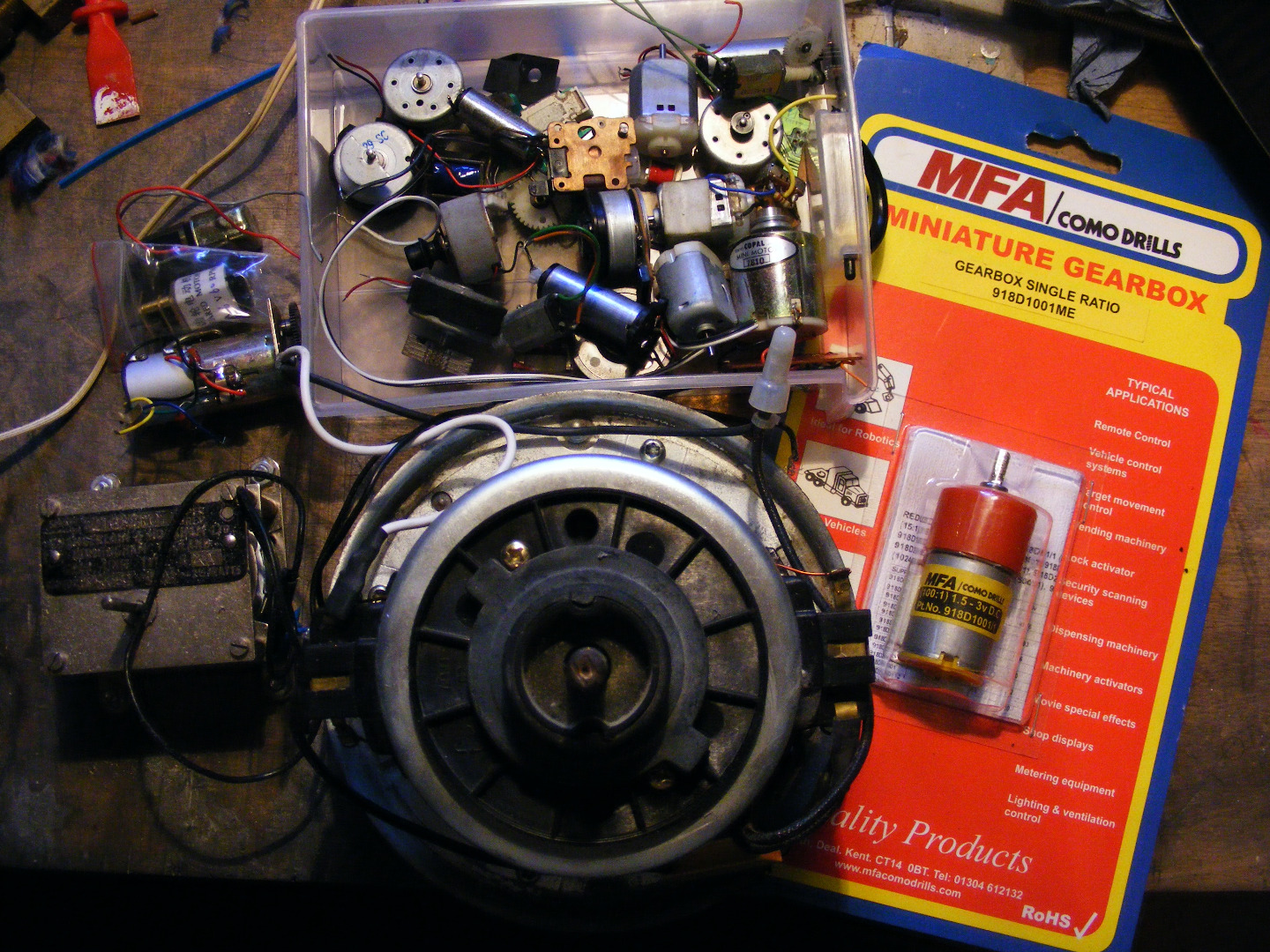

a motor, motors are in lots of things, for this project something small and slow,i used one from a mathmos projector complete with power supply and switch, the best value ones iv found on ebay go 60 rpm on 3 or 4 volts for about £2.50, check out my video on getting the motor out a hoover.

some screws and glue, paint decoration kind of ting

equipment

compass for drawing circle

jigsaw for cutting circle, or any saw if you want a hexagon

drill screwdriver

video of removing the motor from a hoover

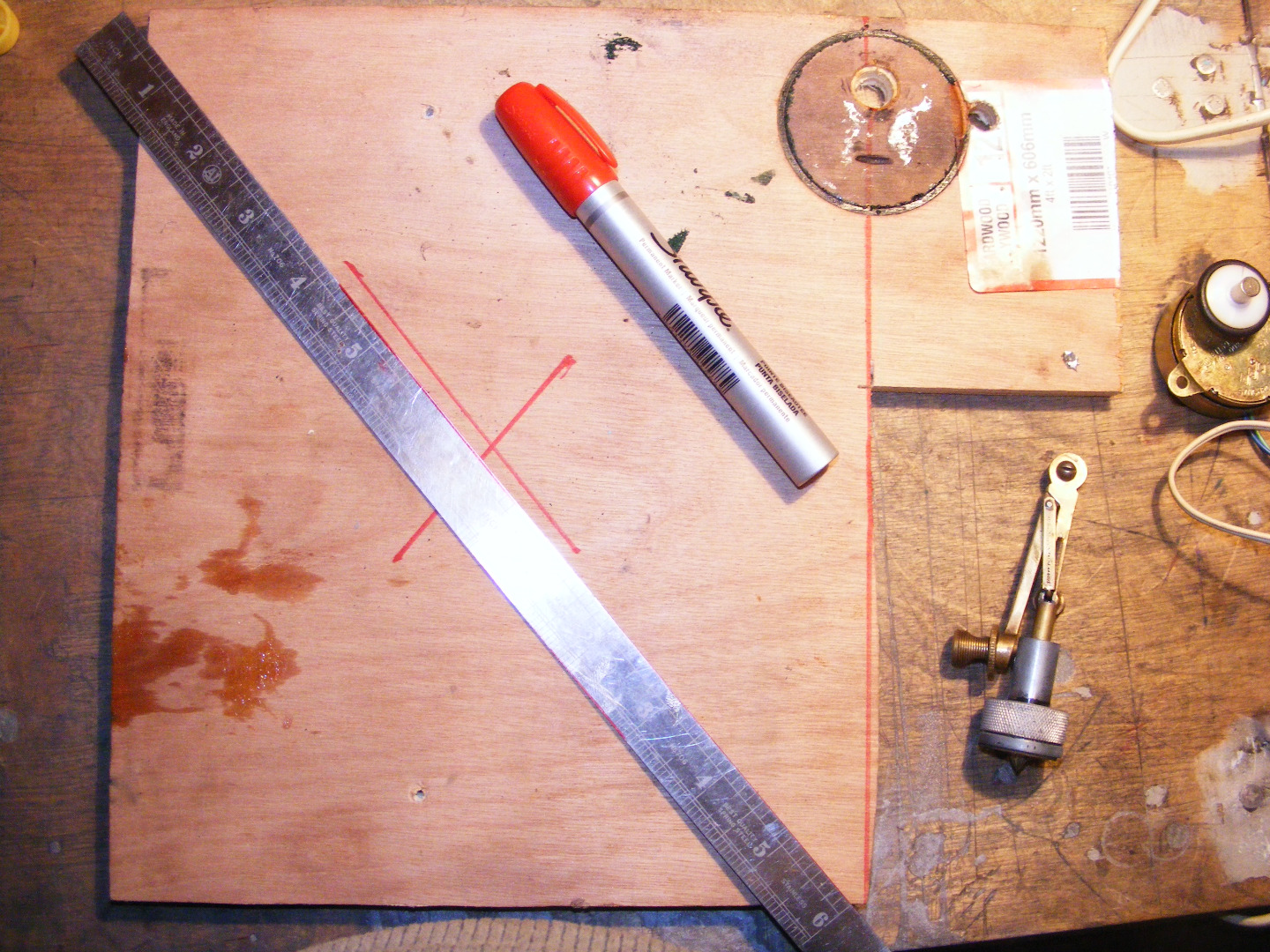

Draw Round Shapes


the mdf is scrap from y screen printing instructable,

the undernieth circle needs to be smaller than te top one, to allow space for your support wheels, i also added 3 flat sides to it and drew a line toward the center, the line acts as a guide for the support wheel axles, and the flatness reduces the amount of wobble in the wheels.

as you could possibly tell from my markingsi was unsure exactly what sort of round shape the top circle would be,

It Was Late

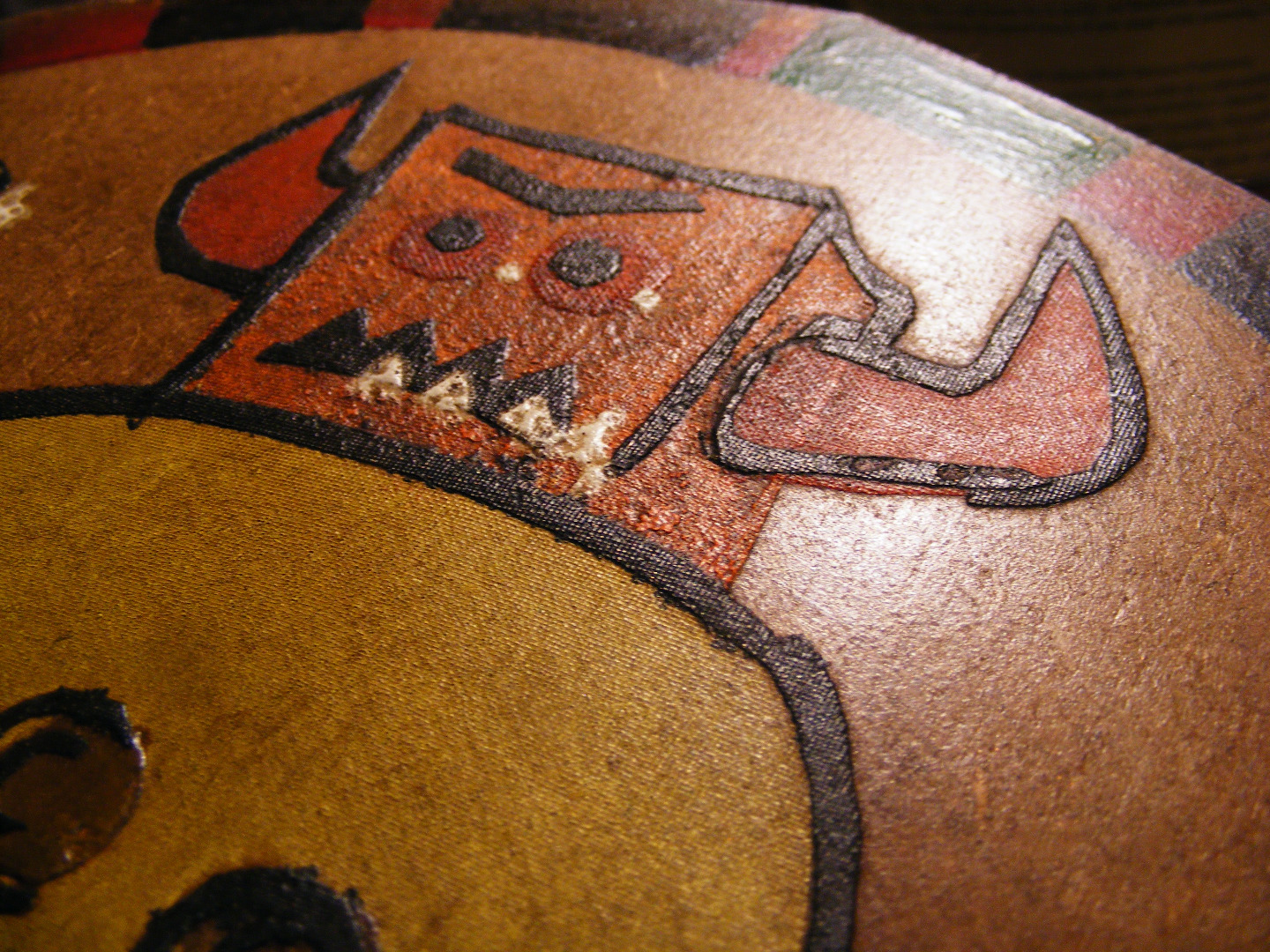

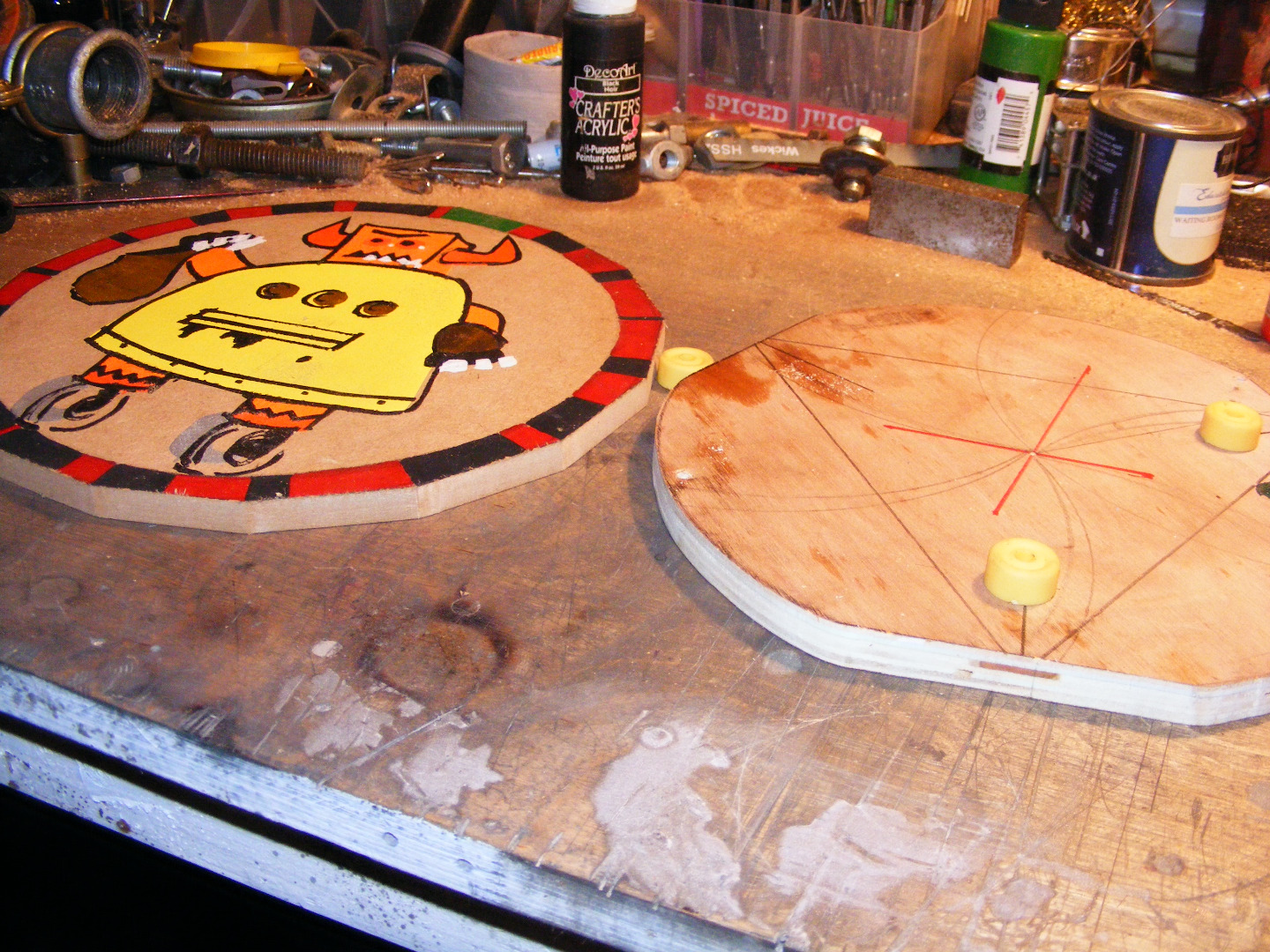

so drilling and noisy things would have been antisocial, so i started decorating the top disk, i made a wonkey roulette type design.

Preparing the Middle Bit

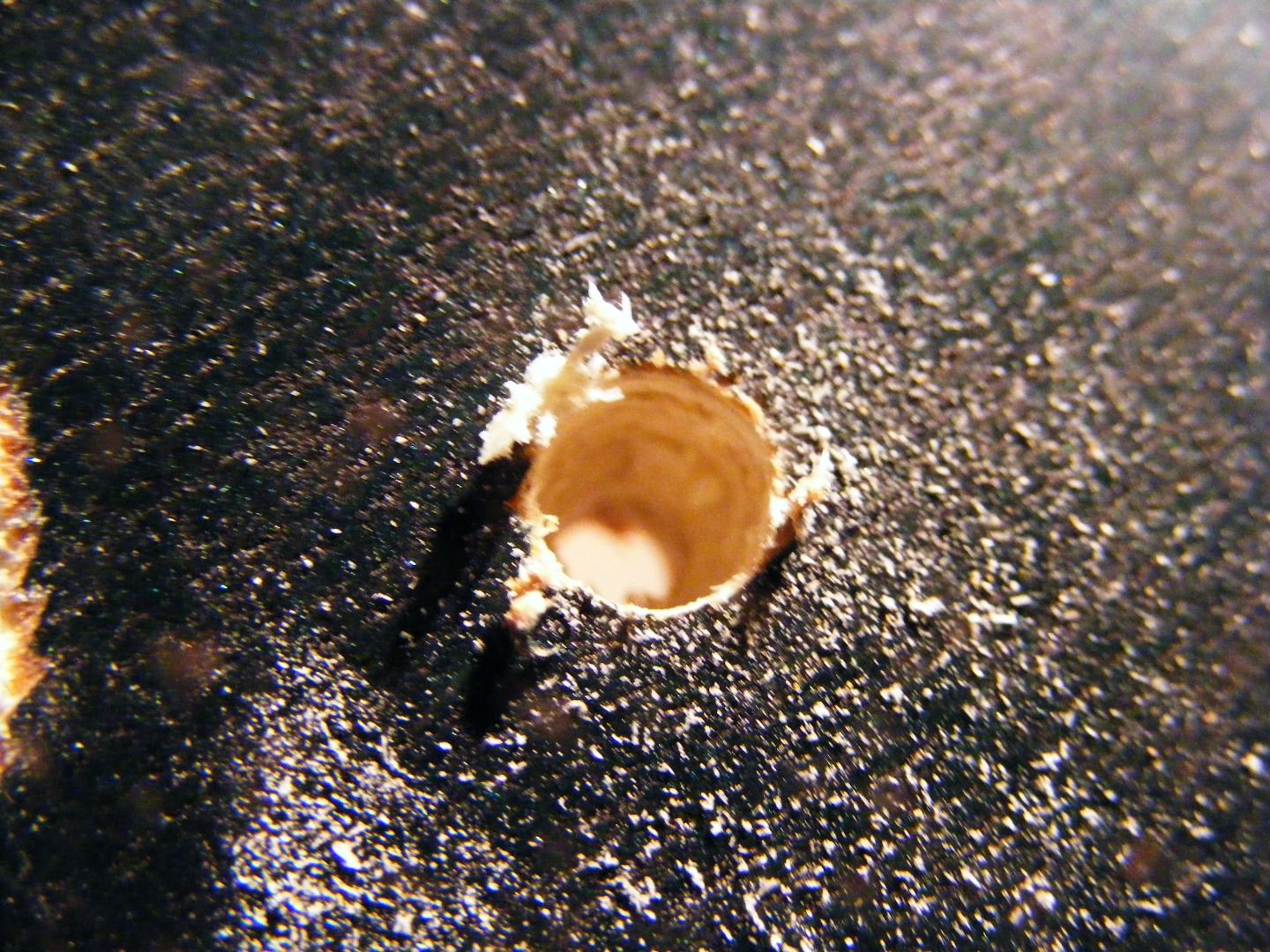

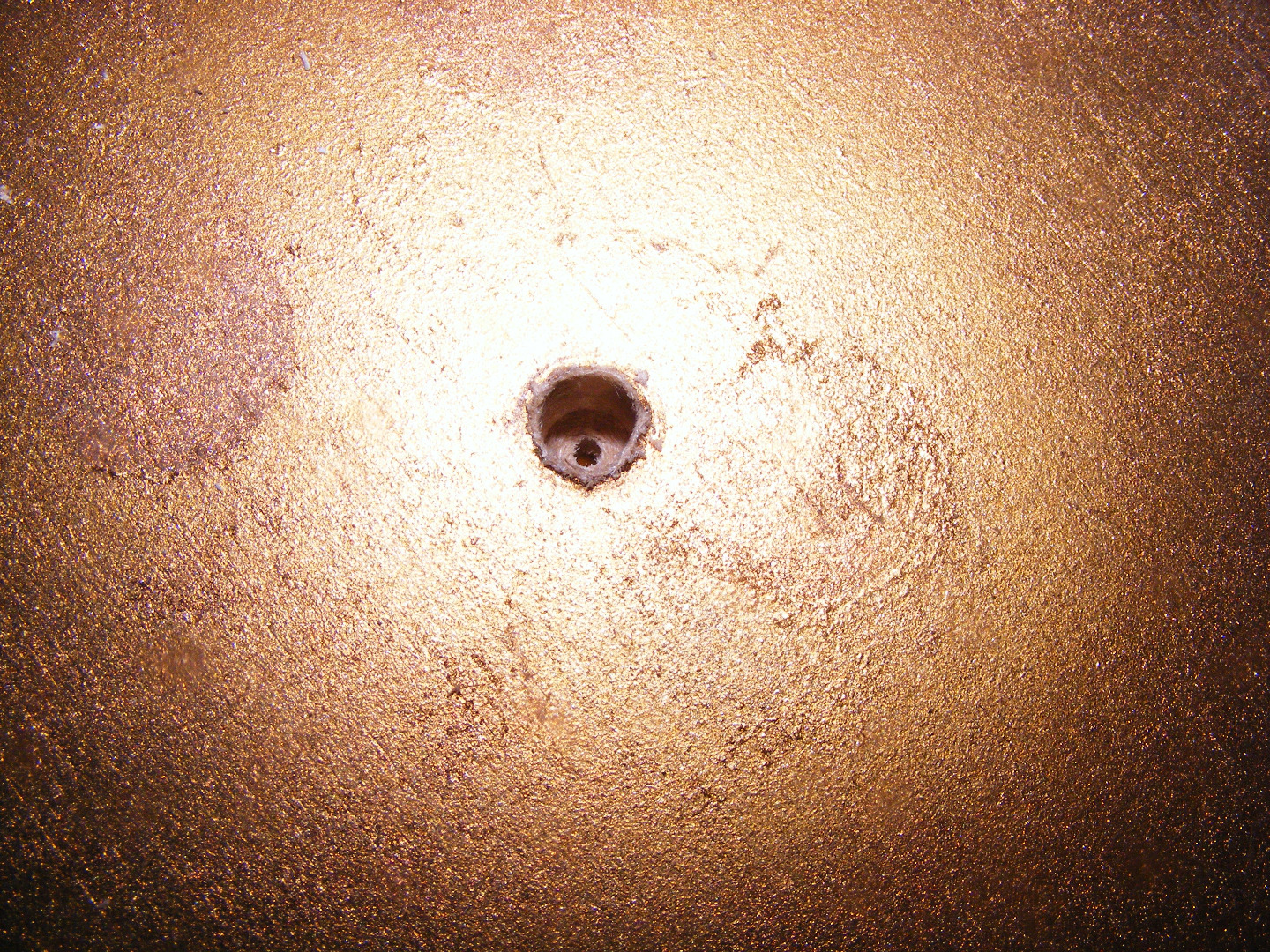

where the compass point went i made a small hole, where that hole came out the other side i made a bigger hole the same size as the motor spindle, but did not go all the way through, i wanted fairly minimal disturbance to the design.

More Spray Paint


i flipsed the top design side down and painted the edge hoping that it would not bleed under too much.

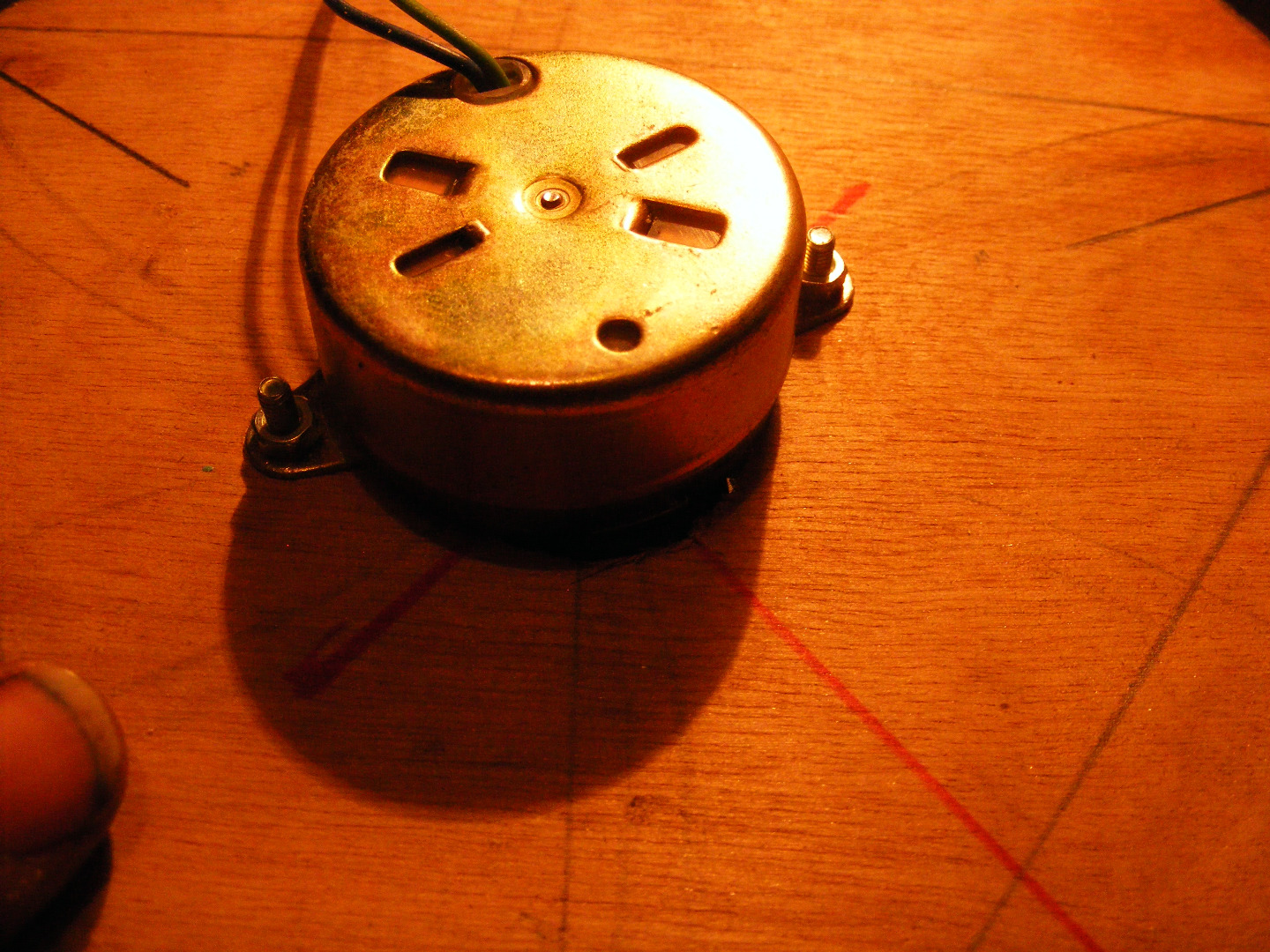

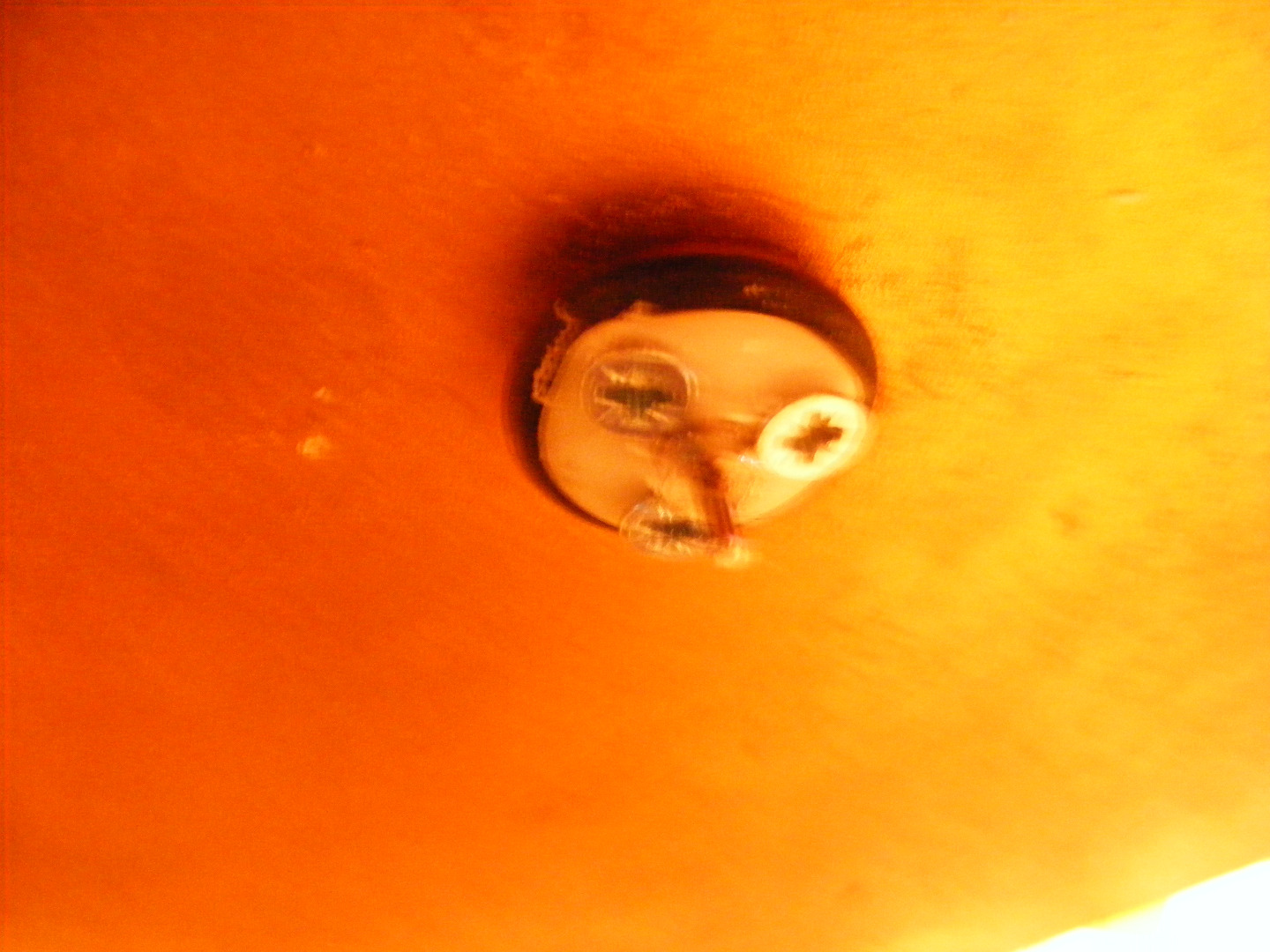

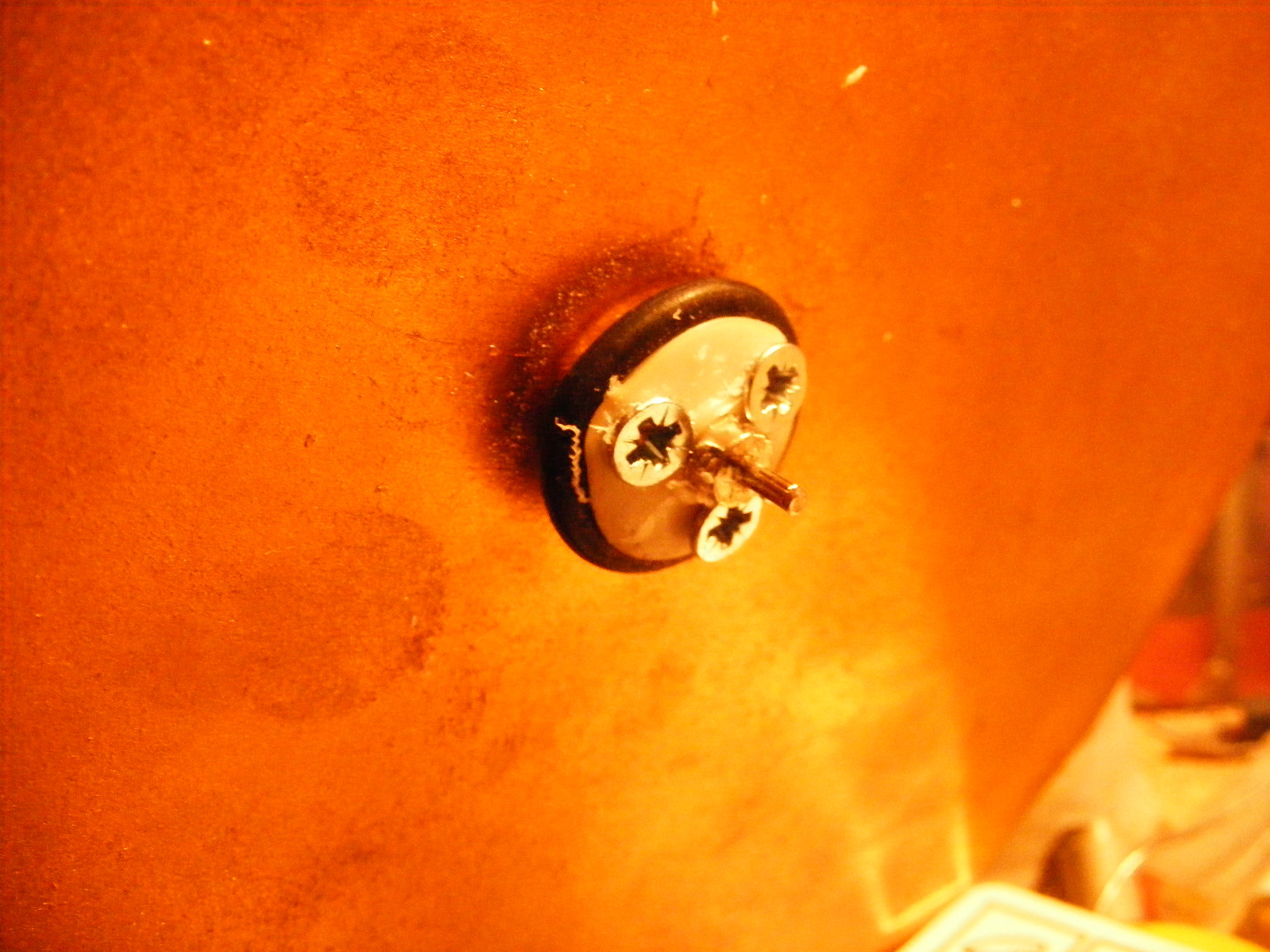

Mounting the Motor to the Base

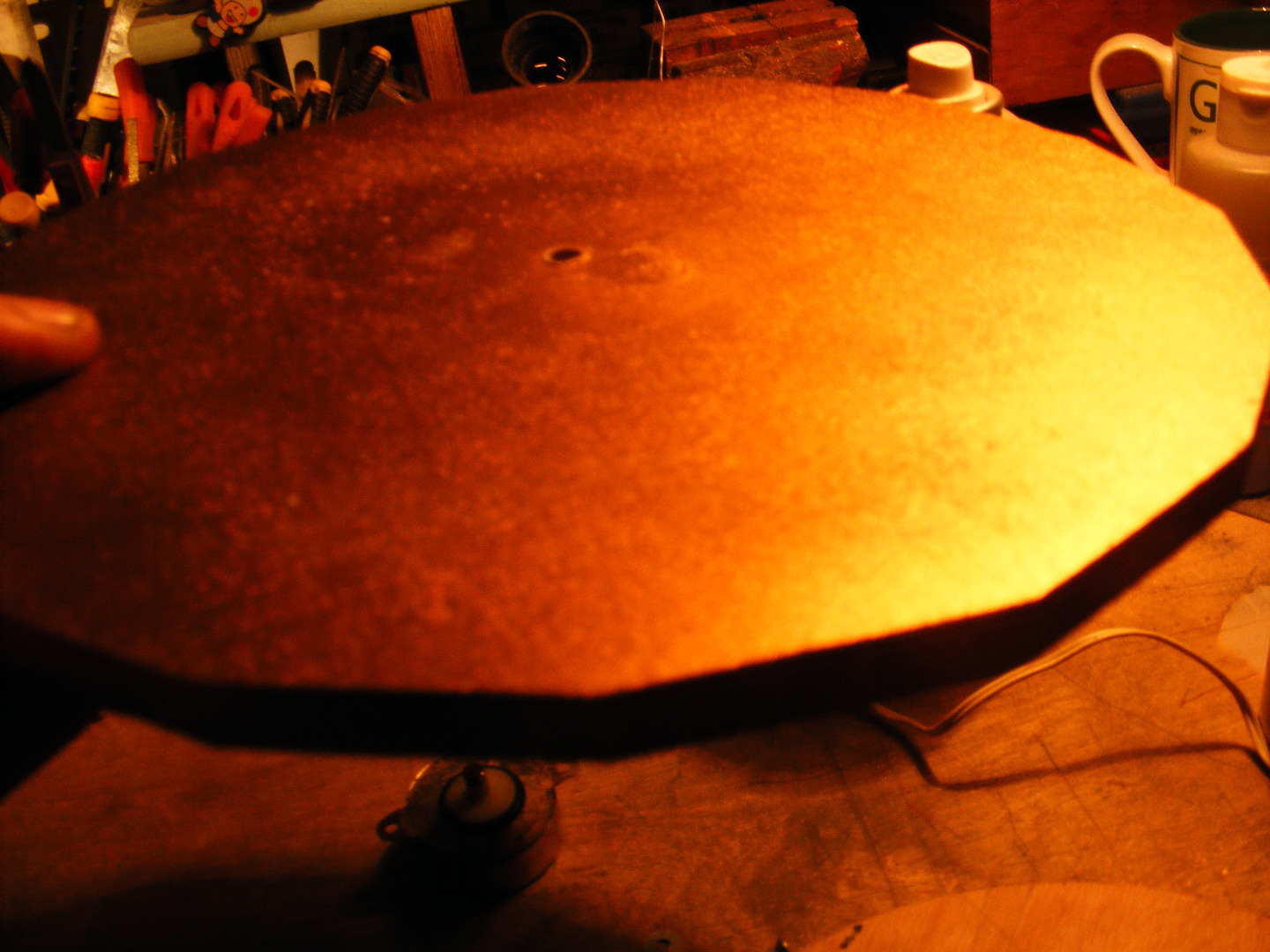

Adding the Support Wheels


their size and mounting hight greatly depend on your motors spindle hight,

and yes i know my hands look like something from a horror movie in that photo.

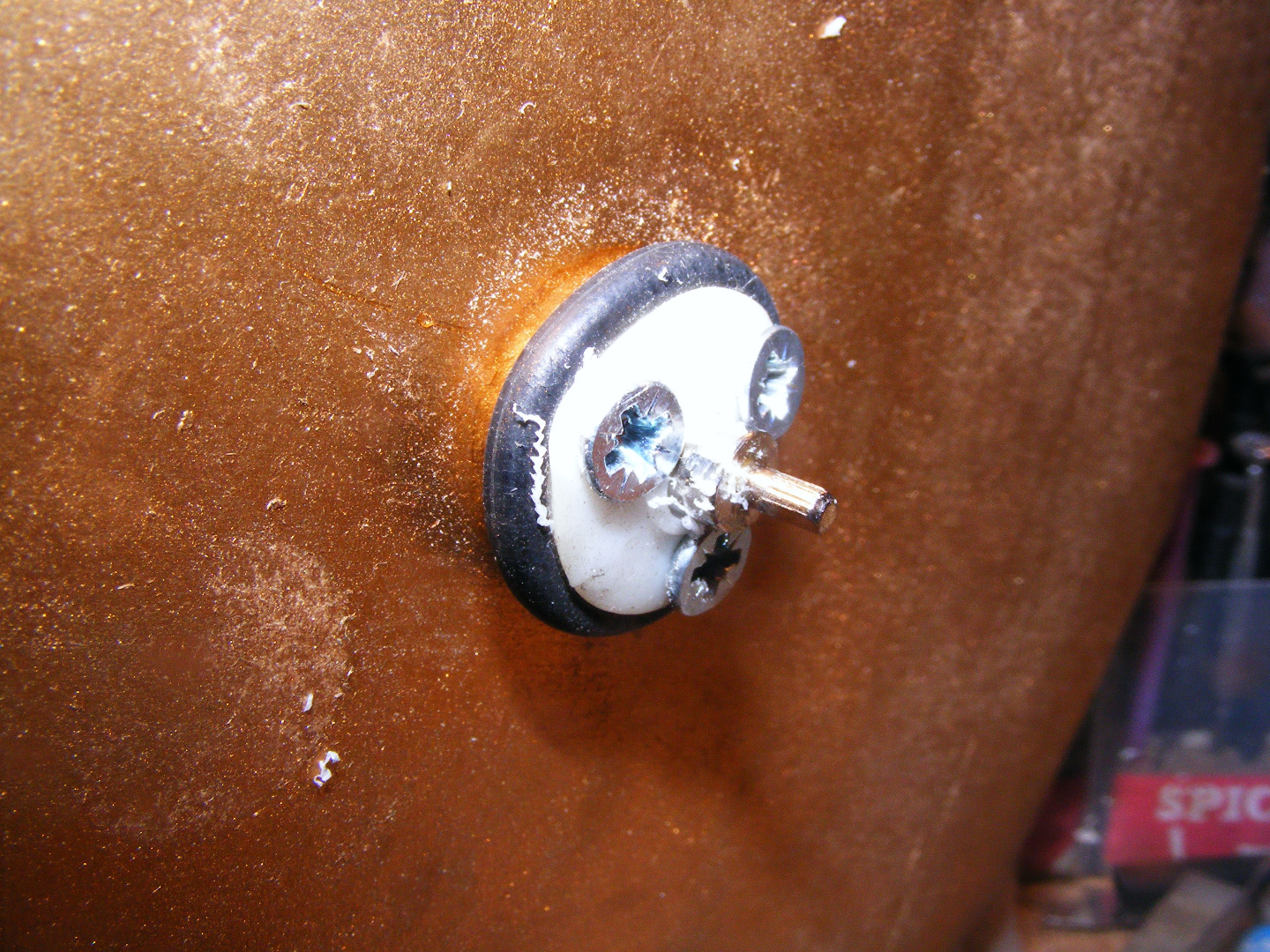

Motor Spindle Final Fix

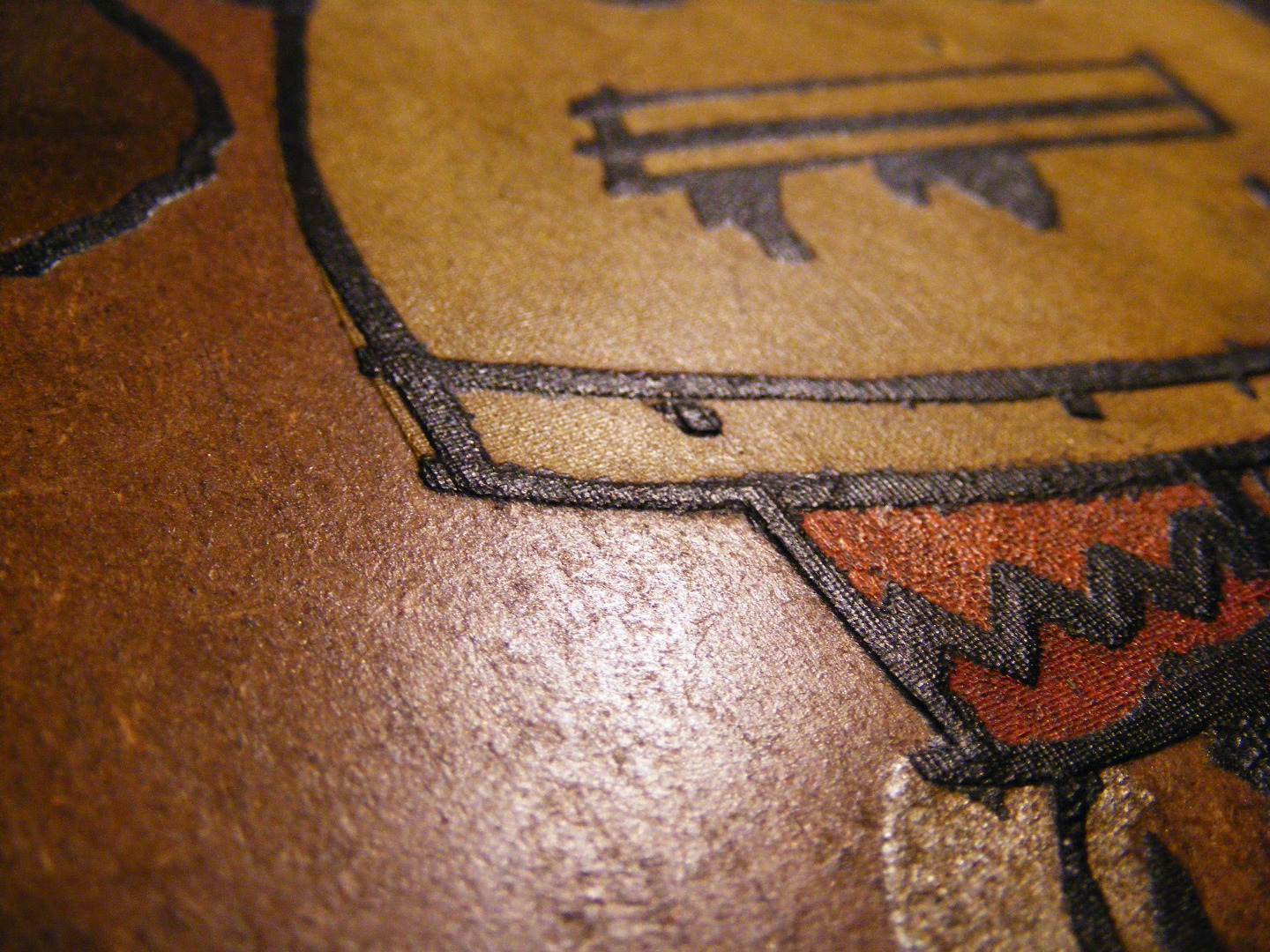

Wax N Rags


to bring out the texture of the print

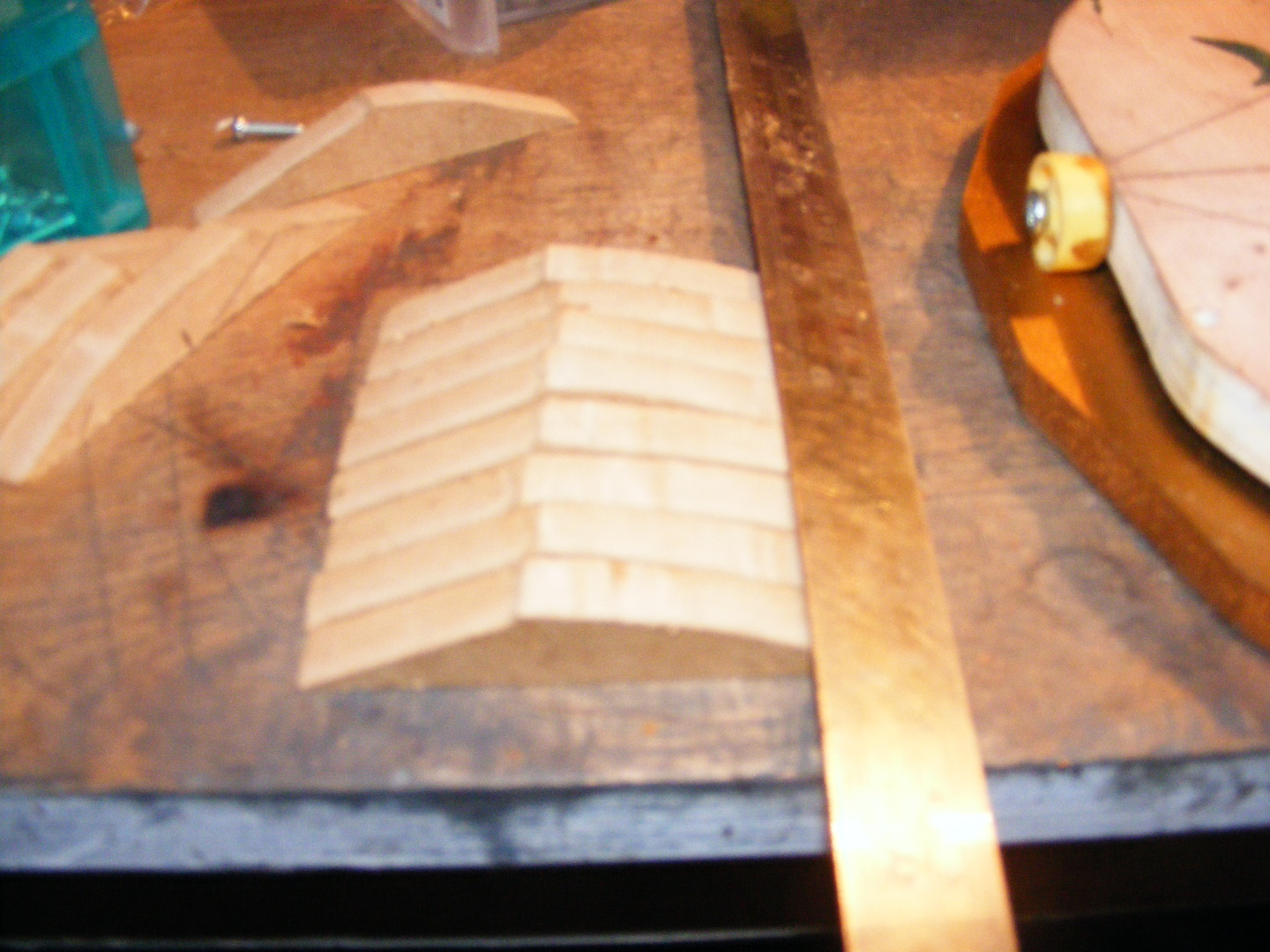

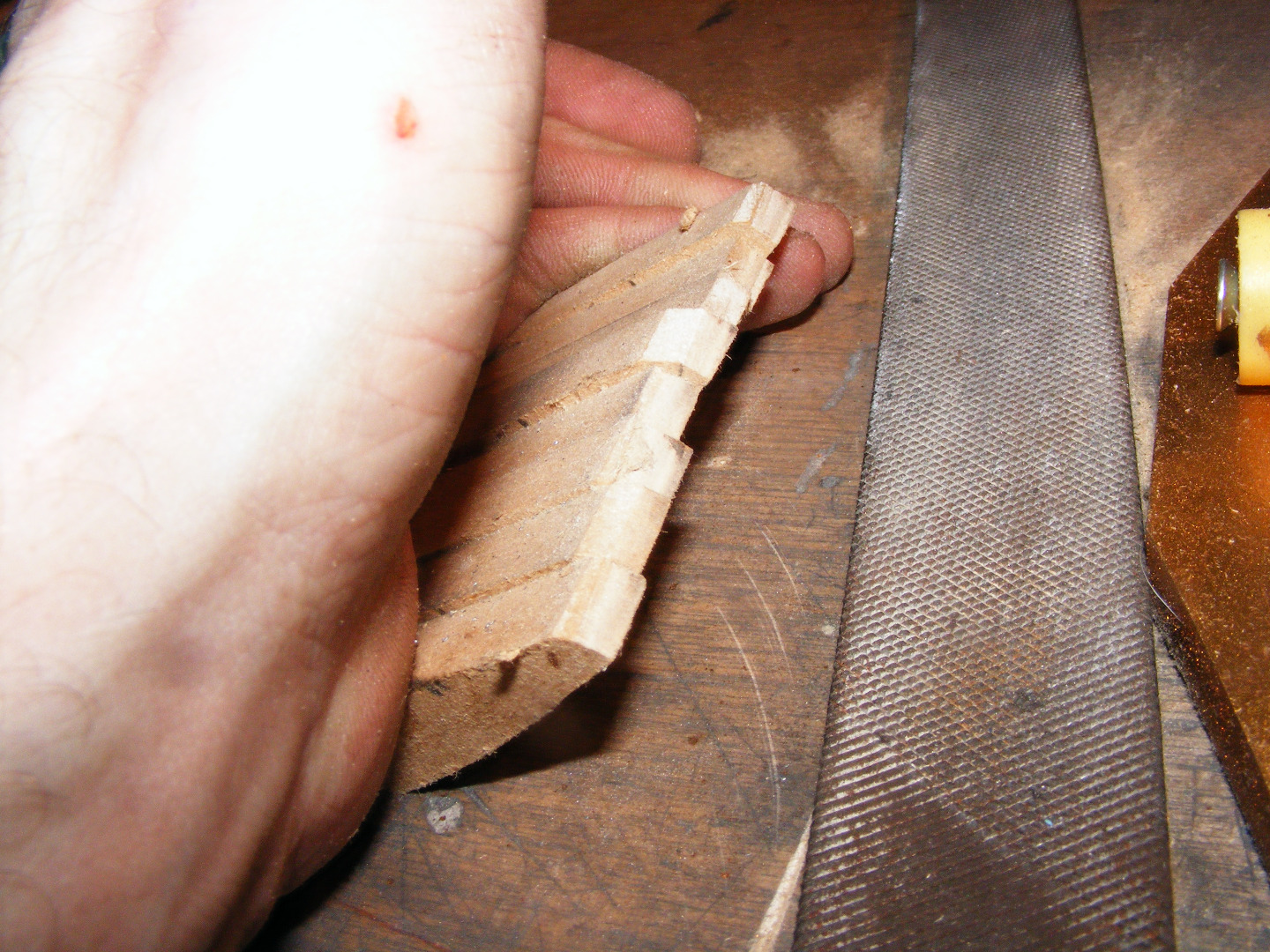

Making Use of Offcuts

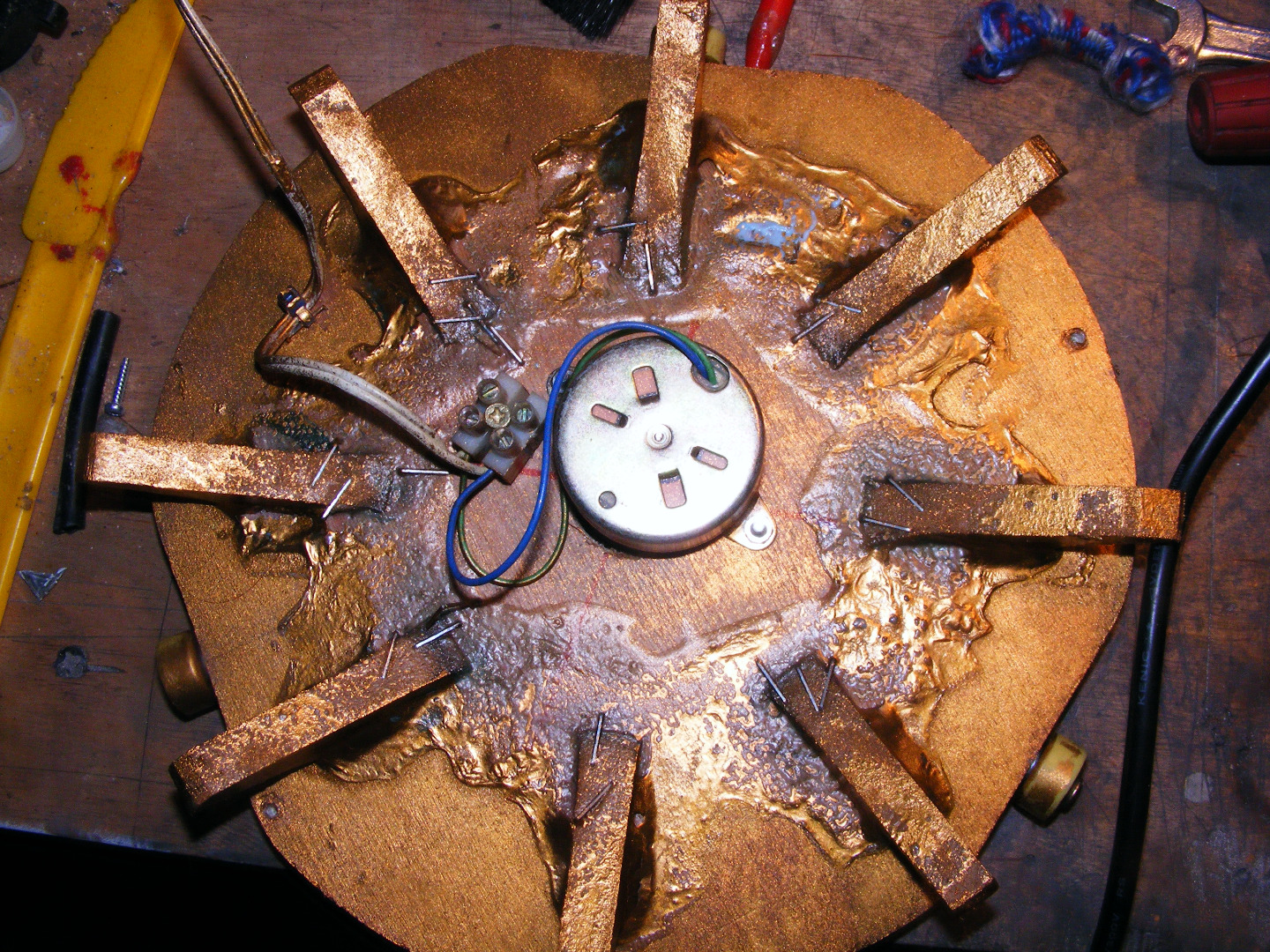

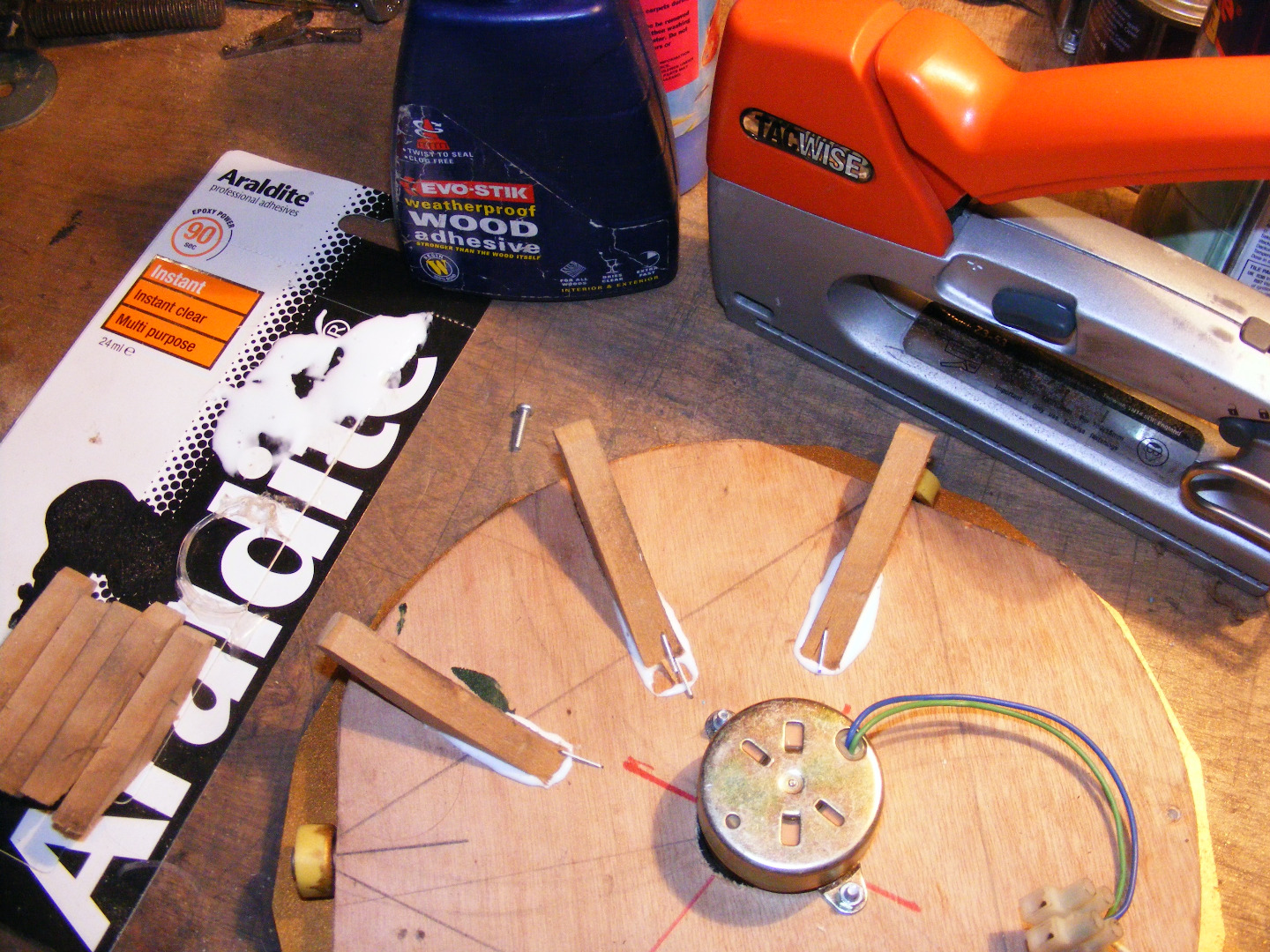

Funny Spider Legs

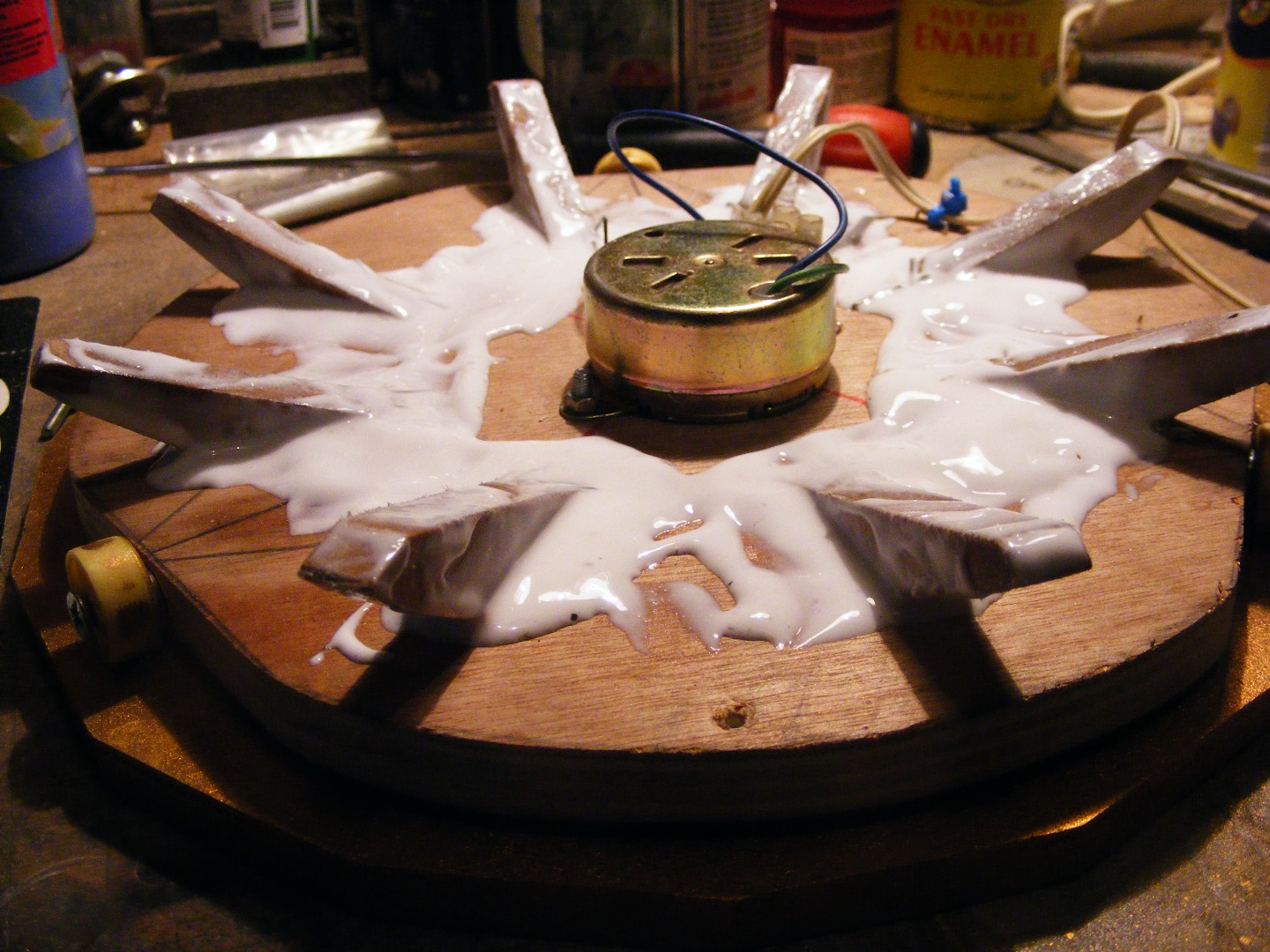

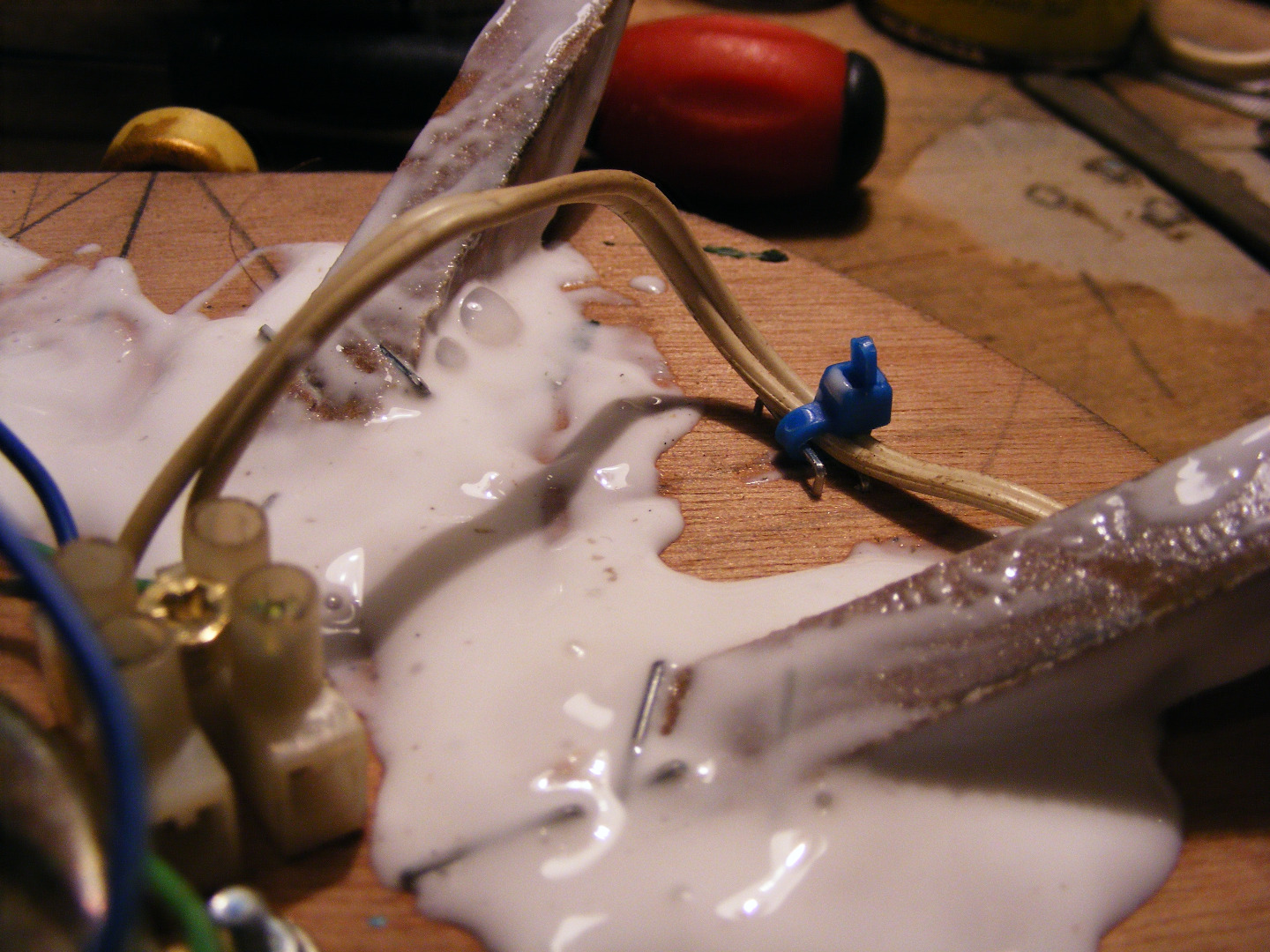

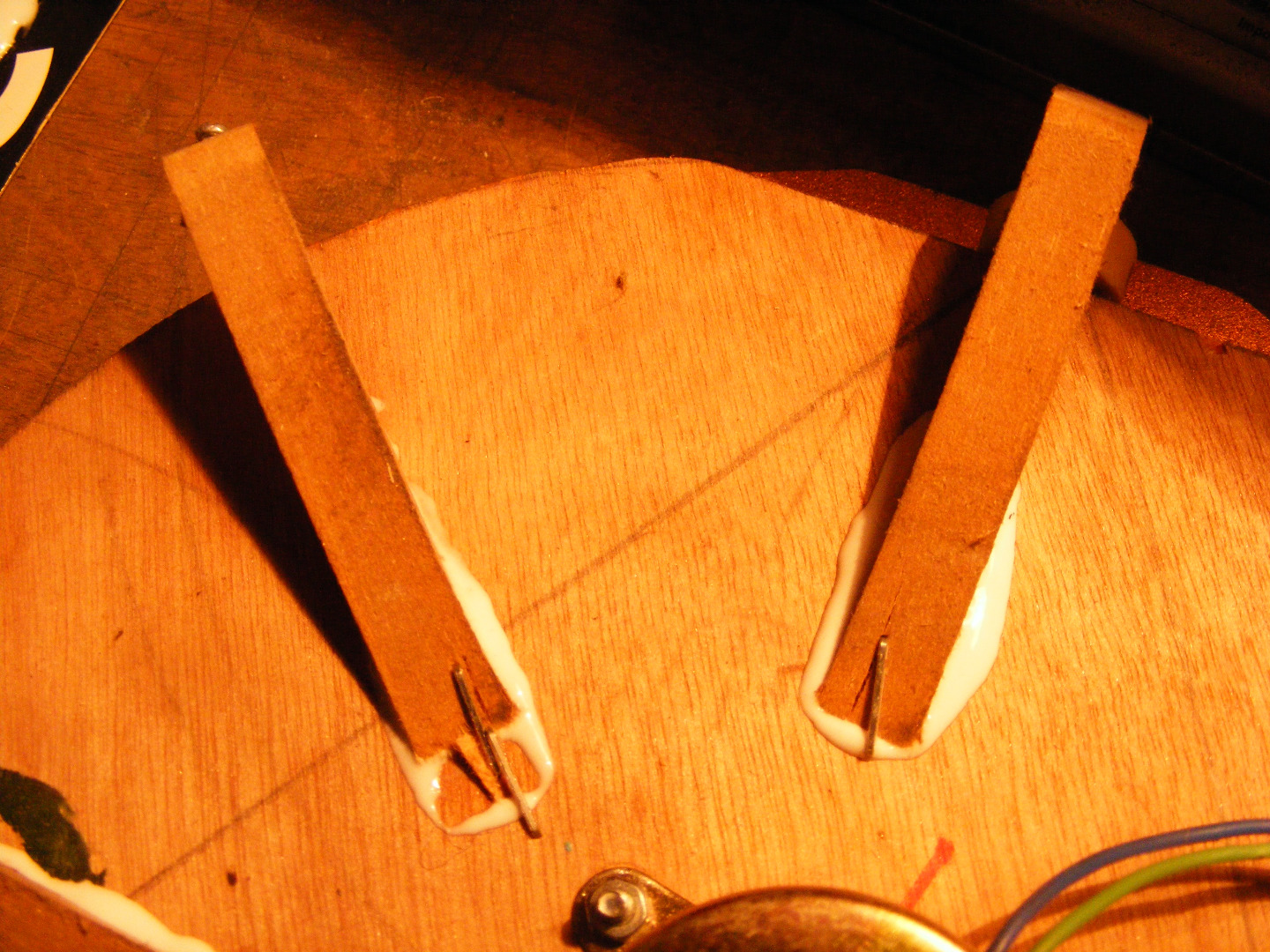

The Glue Is Still Wet


but i painted it anyway

3 Days Later

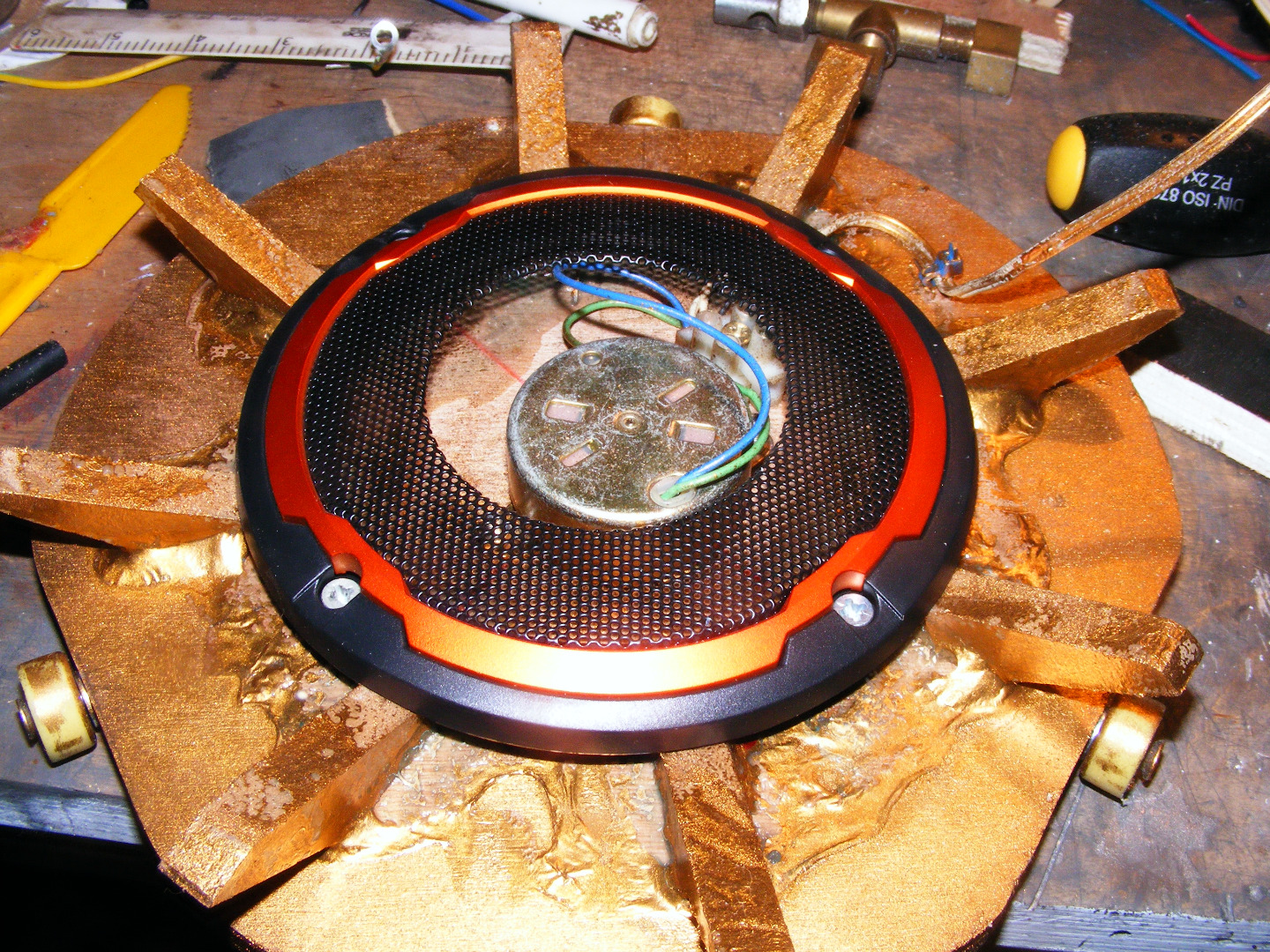

the glue is dry, but i still think te leg design is asking too much of the glue and materials, i found a speafer cover was just the right size to act as a cantilever support.

Adjusting the Feet Hight

by standing it on sandpaper and sliding it about till the longest legs are the same hight as the rest.
