Laser-engraved Illuminated Mirror With Homer!
by MagicManu in Living > Decorating
1282 Views, 12 Favorites, 0 Comments
Laser-engraved Illuminated Mirror With Homer!
![Miroir_1920.jpg](/proxy/?url=https://content.instructables.com/FLO/N1R6/LG54PL75/FLON1R6LG54PL75.jpg&filename=Miroir_1920.jpg)
![Fabriquer un miroir lumineux gravé au laser](/proxy/?url=https://content.instructables.com/FZ5/ICRD/LG54PNVW/FZ5ICRDLG54PNVW.jpg&filename=Fabriquer un miroir lumineux gravé au laser)

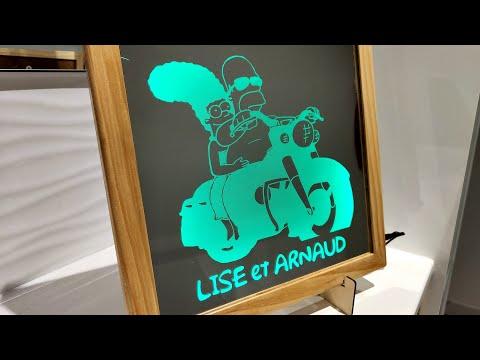

My brother is going to take his motorcycle license for his birthday, he is a fan of the Simpsons, so I gave him a themed gift: a laser-engraved mirror backlit in green.
I also created the wooden frame, as well as an easel type support, laser cut.
Full video: https://youtu.be/7nb0Haf7R2c
Supplies
- 5m 12V DC self-adhesive flexible LED tape strip (Green)
- Square mirror of 30x30 cms
- Pine cleat of 27x27mm section
- 12V power supply
- 3mm plywood board (backing)
As I can't upload the LightBurn files, I put you a link to a zip containing the .lbrn2 files of the mirror, the support, as well as the Simpsons font :
File Preparation
![Moto Homer et Marge.jpg](/proxy/?url=https://content.instructables.com/FS3/8OXL/LG54PLAK/FS38OXLLG54PLAK.jpg&filename=Moto Homer et Marge.jpg)
![Moto Homer et Marge Detoure.jpg](/proxy/?url=https://content.instructables.com/FFS/F0XV/LG54PLAL/FFSF0XVLG54PLAL.jpg&filename=Moto Homer et Marge Detoure.jpg)
I started from an image of The Simpsons found on the Internet and I cropped it to remove the background.
I added the text with the Simpsons font (available in the ZIP) and I mirrored the photo and the text because they will be engraved upside down.
Mirror Engraving
![LightBurn.png](/proxy/?url=https://content.instructables.com/FDA/SDRS/LG54PLGT/FDASDRSLG54PLGT.png&filename=LightBurn.png)
![Moroir Homer (2).jpg](/proxy/?url=https://content.instructables.com/FT9/KGDA/LG54PLA4/FT9KGDALG54PLA4.jpg&filename=Moroir Homer (2).jpg)
![Moroir Homer (3).jpg](/proxy/?url=https://content.instructables.com/FTF/8ST8/LG54PLA5/FTF8ST8LG54PLA5.jpg&filename=Moroir Homer (3).jpg)
![Moroir Homer (4).jpg](/proxy/?url=https://content.instructables.com/FIC/VA49/LG54PLA6/FICVA49LG54PLA6.jpg&filename=Moroir Homer (4).jpg)
![Moroir Homer (5).jpg](/proxy/?url=https://content.instructables.com/FC6/3008/LG54PLA7/FC63008LG54PLA7.jpg&filename=Moroir Homer (5).jpg)
![Moroir Homer (6).jpg](/proxy/?url=https://content.instructables.com/F4H/3HRZ/LG54PLA8/F4H3HRZLG54PLA8.jpg&filename=Moroir Homer (6).jpg)
![Miroir_008.jpg](/proxy/?url=https://content.instructables.com/FYY/TVAU/LG54PLOC/FYYTVAULG54PLOC.jpg&filename=Miroir_008.jpg)
The mirror is placed upside down, and the laser will remove the tin layer to reveal the glass.
For engraving I used a Ortur Laser Marster 3 10W with these settings:
- Speed: 3000mm/min
- Power: 30%
- Number of passes: 1
- Image Mode: Threshold
It took a little over 2 hours to complete the engraving.
Frame Construction
![Moroir Homer (7).jpg](/proxy/?url=https://content.instructables.com/FZK/XT0Q/LG54PLPC/FZKXT0QLG54PLPC.jpg&filename=Moroir Homer (7).jpg)
![Moroir Homer (8).jpg](/proxy/?url=https://content.instructables.com/FS7/YT0D/LG54PLPD/FS7YT0DLG54PLPD.jpg&filename=Moroir Homer (8).jpg)
![Moroir Homer (9).jpg](/proxy/?url=https://content.instructables.com/FAY/2RYI/LG54PLPE/FAY2RYILG54PLPE.jpg&filename=Moroir Homer (9).jpg)
![Moroir Homer (10).jpg](/proxy/?url=https://content.instructables.com/F24/3W8Q/LG54PLPH/F243W8QLG54PLPH.jpg&filename=Moroir Homer (10).jpg)
To create a custom frame, I used a 27x27 mm section pine cleat.

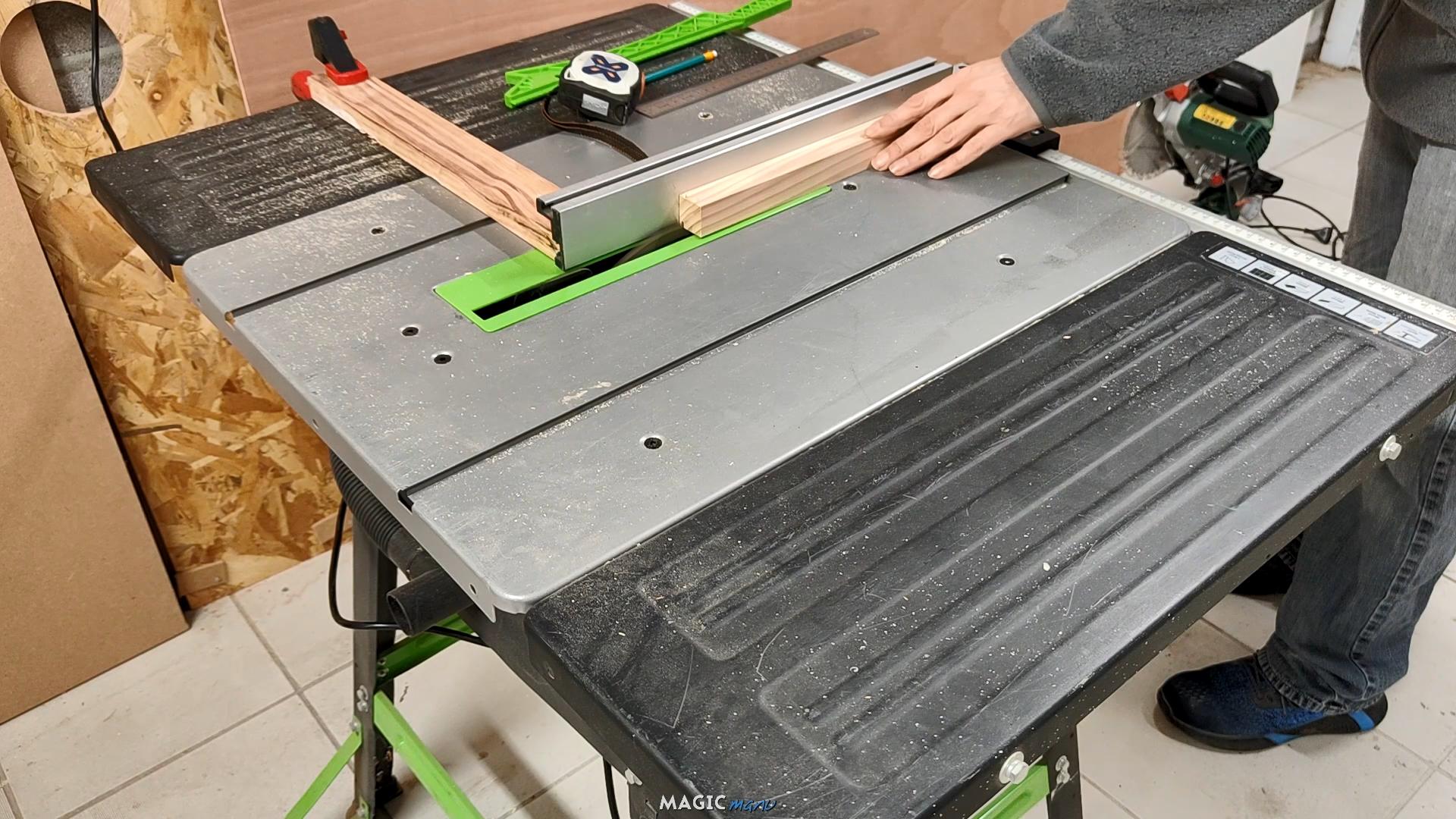

I used the table saw to create 2 grooves, one for the mirror, and one for the bottom board.
Then I cut the 4 pieces at 45° with a miter saw.
I finished with the cut of the bottom board in a hardboard plate.
Frame Assembly
![Moroir Homer (11).jpg](/proxy/?url=https://content.instructables.com/F4L/TJZ0/LG54PLPI/F4LTJZ0LG54PLPI.jpg&filename=Moroir Homer (11).jpg)
![Moroir Homer (12).jpg](/proxy/?url=https://content.instructables.com/FUQ/D14Q/LG54PLPJ/FUQD14QLG54PLPJ.jpg&filename=Moroir Homer (12).jpg)
![Moroir Homer (13).jpg](/proxy/?url=https://content.instructables.com/FX4/XBIO/LG54PLPK/FX4XBIOLG54PLPK.jpg&filename=Moroir Homer (13).jpg)
![Moroir Homer (14).jpg](/proxy/?url=https://content.instructables.com/FTJ/FFON/LG54PLPL/FTJFFONLG54PLPL.jpg&filename=Moroir Homer (14).jpg)
![Moroir Homer (15).jpg](/proxy/?url=https://content.instructables.com/FM0/RO6C/LG54PLPM/FM0RO6CLG54PLPM.jpg&filename=Moroir Homer (15).jpg)
The elements are glued with wood glue, but I'm not gluing the bottom at the moment otherwise I won't be able to add the mirror!
I use a frame press to hold the elements while the glue dries.
I rounded the edges with a router, and drilled the hole for the power cable.
Led Strip
![Moroir Homer (16).jpg](/proxy/?url=https://content.instructables.com/FUD/GQCK/LG54PM3Y/FUDGQCKLG54PM3Y.jpg&filename=Moroir Homer (16).jpg)
![Moroir Homer (17).jpg](/proxy/?url=https://content.instructables.com/FDJ/APAH/LG54PM3Z/FDJAPAHLG54PM3Z.jpg&filename=Moroir Homer (17).jpg)
![Moroir Homer (18).jpg](/proxy/?url=https://content.instructables.com/FR0/N84X/LG54PM40/FR0N84XLG54PM40.jpg&filename=Moroir Homer (18).jpg)
![Moroir Homer (19).jpg](/proxy/?url=https://content.instructables.com/F4C/PI9T/LG54PM41/F4CPI9TLG54PM41.jpg&filename=Moroir Homer (19).jpg)
![Moroir Homer (20).jpg](/proxy/?url=https://content.instructables.com/FQ1/415P/LG54PM42/FQ1415PLG54PM42.jpg&filename=Moroir Homer (20).jpg)
![Miroir_027.jpg](/proxy/?url=https://content.instructables.com/FPU/8O3I/LG54PN1Q/FPU8O3ILG54PN1Q.jpg&filename=Miroir_027.jpg)
I used a self-adhesive green led strip. I make 2 turns so that there is a maximum of light.
I can't glue it on the bottom, otherwise I won't be able to remove it to slide the mirror in, so I added a white plastic profile to be able to glue the leds on it.
Wall Fixation
![Moroir Homer (21).jpg](/proxy/?url=https://content.instructables.com/FIZ/MRKC/LG54PM9C/FIZMRKCLG54PM9C.jpg&filename=Moroir Homer (21).jpg)
I have provided a mounting hook at the back, so the mirror can be hung on a screw or a nail.
Installing the Mirror
![Moroir Homer (22).jpg](/proxy/?url=https://content.instructables.com/FDQ/WA25/LG54PMCS/FDQWA25LG54PMCS.jpg&filename=Moroir Homer (22).jpg)
![Moroir Homer (23).jpg](/proxy/?url=https://content.instructables.com/F2X/G8B6/LG54PMCT/F2XG8B6LG54PMCT.jpg&filename=Moroir Homer (23).jpg)
![Moroir Homer (24).jpg](/proxy/?url=https://content.instructables.com/F2Z/FIJC/LG54PMCU/F2ZFIJCLG54PMCU.jpg&filename=Moroir Homer (24).jpg)
![Moroir Homer (25).jpg](/proxy/?url=https://content.instructables.com/F1N/QHR2/LG54PMCV/F1NQHR2LG54PMCV.jpg&filename=Moroir Homer (25).jpg)
![Miroir_039.jpg](/proxy/?url=https://content.instructables.com/FME/6M0T/LG54PO4S/FME6M0TLG54PO4S.jpg&filename=Miroir_039.jpg)
The mirror slides into the slots, and I can now glue the bottom element to close the frame permanently.
I also added 2 coats of varnish on the wood so that it lasts a long time.
First Try
![Moroir Homer (26).jpg](/proxy/?url=https://content.instructables.com/FVR/IVFW/LG54PMI2/FVRIVFWLG54PMI2.jpg&filename=Moroir Homer (26).jpg)
![Moroir Homer (27).jpg](/proxy/?url=https://content.instructables.com/FY0/RS0P/LG54PMI3/FY0RS0PLG54PMI3.jpg&filename=Moroir Homer (27).jpg)
I have provided a connector for the power supply on the side, and a switch to be able to turn it on and off easily.
Difficult to have a real photo rendering, the green color is more beautiful in real life!
Support
![Miroir_047.jpg](/proxy/?url=https://content.instructables.com/FAF/R007/LG54PMWX/FAFR007LG54PMWX.jpg&filename=Miroir_047.jpg)
![LightBurn2.png](/proxy/?url=https://content.instructables.com/F3F/3Q2P/LG54PMPB/F3F3Q2PLG54PMPB.png&filename=LightBurn2.png)
![Moroir Homer (28).jpg](/proxy/?url=https://content.instructables.com/F7W/PCCO/LG54PN8N/F7WPCCOLG54PN8N.jpg&filename=Moroir Homer (28).jpg)
I also created an easel type support, so that my brother could install his frame on a table or a desk for example.
I used 3mm plywood that I laser cut (200mm/min and 100% power in 2 passes with air assist).
A Surprised and Happy Brother!
![Miroir_049.jpg](/proxy/?url=https://content.instructables.com/FHK/P1H6/LG54PN01/FHKP1H6LG54PN01.jpg&filename=Miroir_049.jpg)
![Miroir_034.jpg](/proxy/?url=https://content.instructables.com/FRG/KQ5N/LG54PN3F/FRGKQ5NLG54PN3F.jpg&filename=Miroir_034.jpg)
![Miroir_036.jpg](/proxy/?url=https://content.instructables.com/F6T/EAGY/LG54PN57/F6TEAGYLG54PN57.jpg&filename=Miroir_036.jpg)
![Moroir Homer (29).jpg](/proxy/?url=https://content.instructables.com/F0L/DPJB/LG54PN6X/F0LDPJBLG54PN6X.jpg&filename=Moroir Homer (29).jpg)

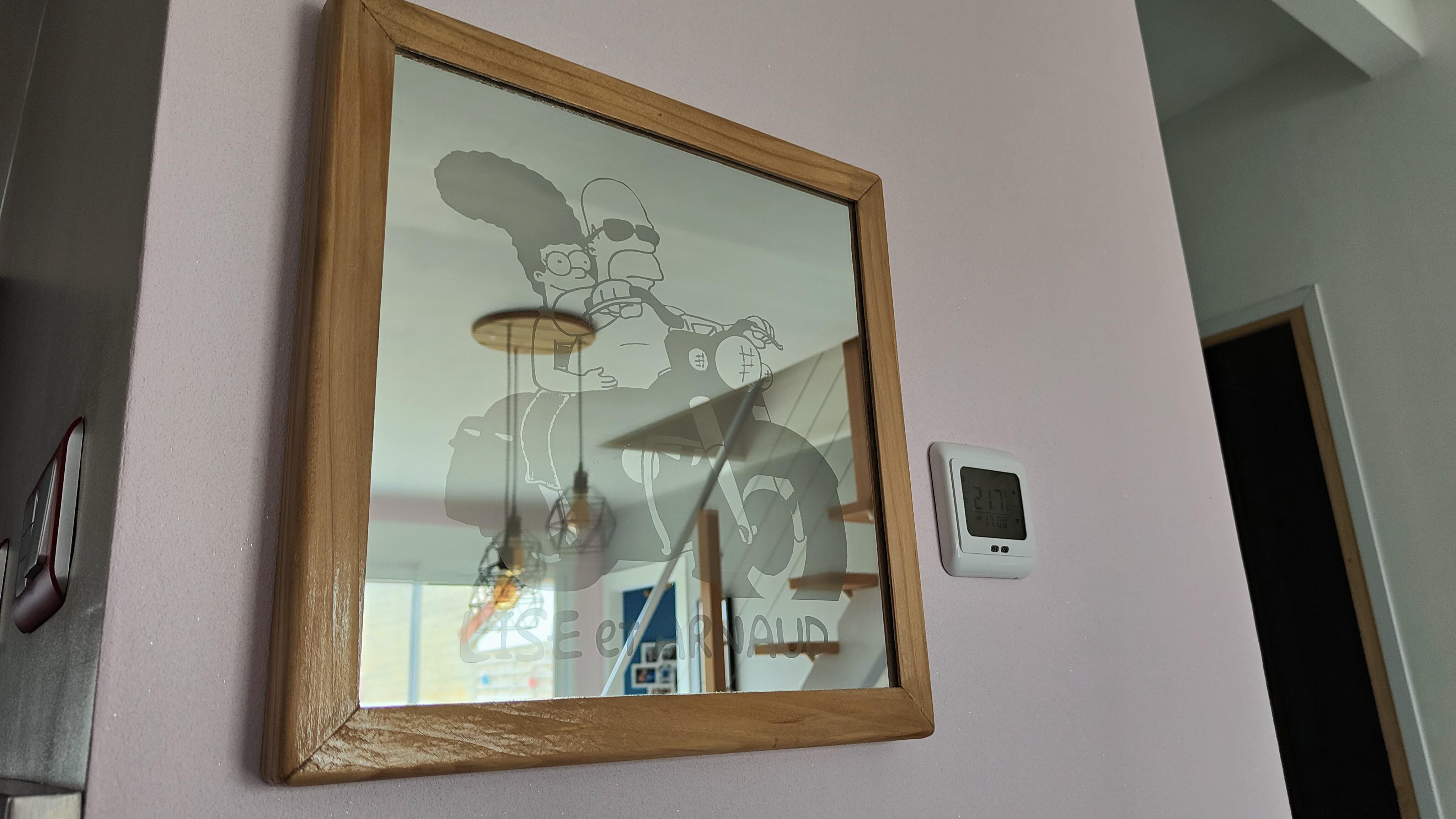

My brother appreciated his gift which had a great effect! The mirror looks great, day and night!
To go further, I had also made him a fake "Traffic Laws For Dummies" 😂
