Laser Shooting Game (Star Wars)

In this article i will share arduino based star wars project that you can make on a budget. This project is a laser shooting game that will suit you as a homemade product. This project consists of 2 sub projects : making the blaster from cardboard and building the target board. I use recording module to use for the blaster sound effect and all target boards have an photoresistors and servo motors.

Arduino Uno + USB Cable :

9v battery:

Button:

Jumper wires:

Male DC Barrel Jack Adapter for Arduino

Micro Servo 9g

9v Battery Clip Connector

Cardboard

Recording Module

Red Dot Laser Pointer

AA Batteries

4 x 1.5 V AA Battery Holder

3 x 1.5 V AA Battery Holder

LCD Module

10k Ohm Resistor

LDR

Male Header Pins

Natural Wood Craft Sticks

Hot Glue Gun

Soldering Iron Kit

The Glie-44 was blaster pistol that was carried many Resistance members in Star Wars movie, including General Leia Organa and the pilot Poe Dameron. I made this blaster using image from google search. Print the image on paper, this will us to trace the main body and details onto cardboard. Cut out the image with scissors. Once done, trace it onto the cardboard.

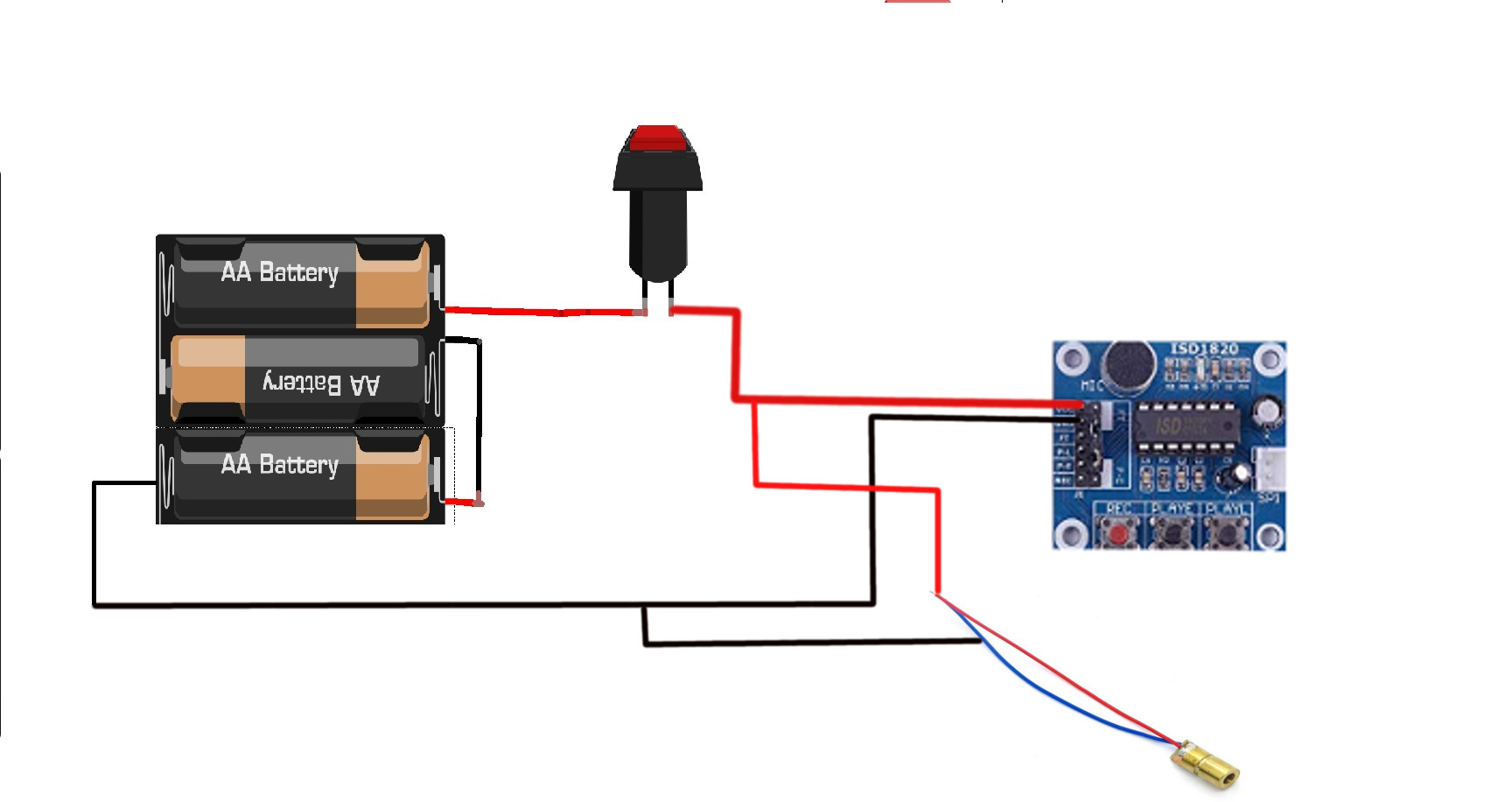

I used recording module for the blaster sound effect. By pressing the record button on the module and play star wars blaster sound effect on my phone at the same time, i was able to load the sound the sound onto module. After that all electronics need to be assembled according to wiring diagram. Put the electronics into the blaster, when the momentary switch is pressed the gun shoots out a pulse of red LED light and a blaster sound is triggered.

I used Palpatine image, and Red stormtroopers images as targets. I got images from google search and then printed the images on piece of paper. You can cut out the images and stick it on carboard by glue. Each target has photoresistor and each of them will need a hole that will allow sensor to be inserted. Targets will need servos to be attached to its side (glue will do just fine). I also added LCD display to display score and timer.

It's time to program the arduino and test it out.

Download the code and transfer it over to the Arduino. Don’t forget to install LCD library and servo library.

Code

Try pointing the blaster at photoresistor, shooting photoresistor triggers servo and target board falls flat. If you shoot Palpatine, you get 5 points. If you shoot Red Stormtroopers, you only get 1 point. You can change things in the arduino program as well. If you are still having issues, let me know in the comments and i might be able to help you. REMEMBER, DON’T POINT LASER IN ANYONE’ EYES!
