Laser Security System

by Technoreview85 in Circuits > Electronics

7391 Views, 92 Favorites, 0 Comments

Laser Security System

Laser security alarm|How to make at home

It is simple laser security system using LDR

Video link

lets start ----

You Need to Make

Snapshot - 35.png
Snapshot - 36.png
Snapshot - 37.png

Bread board or vero board

transistor - cl 100 or bc 548b

LDR

resistor- 1K,10K

LED

Buzzer

Battery ( I use my old mobile phone battery 3.7v)

A laser pointer

Making Circuit

Snapshot - 36.png
Snapshot - 37.png
Snapshot - 40.png
Snapshot - 41.png
Snapshot - 39.png
Snapshot - 42.png
Snapshot - 38.png

make circuit as per diagram

on bread board or vero board

Setting Laser Pointer Alignment

Snapshot - 38.png
Snapshot - 43.png
Snapshot - 34.png

for making model project you can fit circuit on a ply board or install it on door

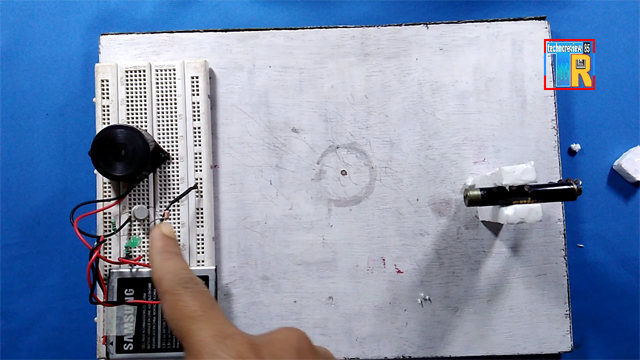

align with LDR & laser pointer.

when laser beam can't goes to LDR then buzzer will ring & led glow
