Laser Processed Paper Wedding Invitation


Add a touch of elegance to any wedding or event with this intricate paper invitation!

Create your own design, or use our free template.

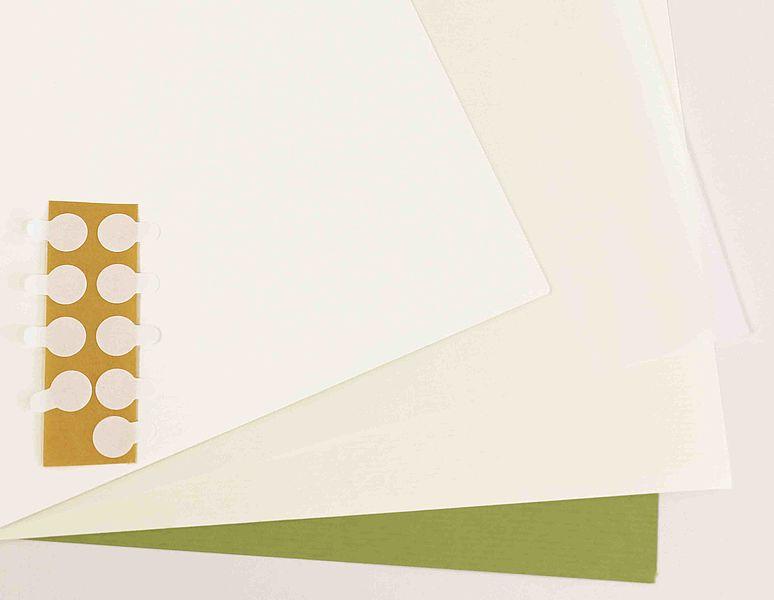

Supplies

  • CO2 laser cutter (We used a Trotec Speedy 400 Flexx 120W with a 2" lens)
  • Honeycomb cutting table
  • Card stock (220 gsm), Color: bamboo No. 287
  • Card stock (220 gsm), Color: beige No. 241
  • Translucent paper (90 gsm)
  • 5 double-sided adhesive dots per card
  • Printed inlays (120 gsm) with information about the event

Note: The template provided below will yield a 5.7" x 5.7" card.

Cardstock from Artoz

Design: Artoz 220gm²


Send the job to the laser with the settings below.

*Print Settings

  • Process mode: Relief
  • Resolution: 500 dpi
  • Cut Line: None
  • Halftone: None
  • Others: Optimized geometries, inner geometries first

Laser Processing: Artoz 220gm²


Adjust the laser parameter settings. Use the parameters below to cut and engrave the beige and bamboo green card stock. We recommend processing each sheet of card stock one at a time to avoid making errors.

*Laser Parameters for Engraving (Black)

  • Process: Engrave CO2
  • Power (%): 60.00
  • Speed (%): 100.00
  • PPI/Hz: 500 ppi
  • Passes: 1
  • Air Assist: On
  • Z-Offset: N/A
  • Direction: Top Down
  • Path Planning: N/A
  • Advanced: Default

*Laser Parameters for Cutting (Red)

  • Process: Cut CO2
  • Power (%): 75.00
  • Speed (%): 9.00
  • PPI/Hz: 1000 Hz
  • Passes: 1
  • Air Assist: On
  • Z-Offset: N/A
  • Direction: N/A
  • Path Planning: Throughput
  • Advanced: Custom

*Laser Parameters for Cutting (Blue)

  • Process: Cut CO2
  • Power (%): 20.00
  • Speed (%): 8.00
  • PPI/Hz: 1000 Hz
  • Passes: 1
  • Air Assist: On
  • Z-Offset: N/A
  • Direction: N/A
  • Path Planning: Throughput
  • Advanced: Default

*Laser Parameters for Cutting (Green)

  • Process: Cut CO2
  • Power (%): 10.00
  • Speed (%): 10.00
  • PPI/Hz: 1000 ppi
  • Passes: 1
  • Air Assist: On
  • Z-Offset: N/A
  • Direction: N/A
  • Path Planning: Throughput
  • Advanced: Default

*Our suggested parameters may vary depending on the laser machine used and the available laser power.

Design: Transparent Paper 90gm²


Send the job to the laser with the settings below.

*Print Settings

  • Process mode: Standard
  • Resolution: 500 dpi
  • Cut Line: None
  • Halftone: Color
  • Others: Optimized geometries

Laser Processing: Transparent Paper 90gm²


Place the translucent paper sheet on your laser's work area. Use the parameters below to cut and engrave the material.

*Laser Parameters for Engraving (Black)

  • Process: Engrave CO2
  • Power (%): 30.00
  • Speed (%): 100.00
  • PPI/Hz: 500 ppi
  • Passes: 1
  • Air Assist: On
  • Z-Offset: N/A
  • Direction: Top Down
  • Path Planning: N/A
  • Advanced: Default

*Laser Parameters for Cutting (Red)

  • Process: Cutting CO2
  • Power (%): 8.00
  • Speed (%): 3.00
  • PPI/Hz: 1000 Hz
  • Passes: 1
  • Air Assist: On
  • Z-Offset: N/A
  • Direction: N/A
  • Path Planning: Throughput
  • Advanced: Custom

*Laser Parameters for Cutting (Blue)

  • Process: Cutting CO2
  • Power (%): 4.00
  • Speed (%): 5.00
  • PPI/Hz: 1000 Hz
  • Passes: 1
  • Air Assist: On
  • Z-Offset: N/A
  • Direction: N/A
  • Path Planning: Throughput
  • Advanced: Default

*Our suggested parameters may vary depending on the laser machine used and the available laser power.

Assembly

  1. Stick 4 adhesive dots inside of the four corners of the engraved square (i.e., on the front of the bamboo green card).
  2. Fold the green card along the centerline.
  3. Remove the protective film from the adhesive dots. Proceed to carefully affix the beige card stock component so that it is centered on the bamboo green card.
  4. Affix the insert containing information about the ceremony to the interior of the card. You may use additional adhesive dots to prevent the insert from sliding out.
  5. Fold the transparent paper tab along the two engraved vertical lines.
  6. Place the transparent tab on the invitation card so that the motifs overlap.
  7. Finally, turn the card over and glue the transparent paper tab to the overlap with an adhesive dot.

Experiment with different sizes, colors, and designs. These invitations are perfect for any wedding, baby shower, or special event!
