Laser Gun

by zposner in Circuits > Lasers

3175 Views, 13 Favorites, 0 Comments

Laser Gun

14, 5:36 PM.jpg
Someone gave me a old paint ball gun that did not work, so I created this. I hope you enjoy it but be careful ad do not aim it at peoples eyes, also, if you hurt someone it is not my fault. But if you take my idea and get rich, be a nice person and give me some money.

Materials+Tools

14, 5:36 PM.jpg
14, 5:36 PM.jpg
14, 5:36 PM.jpg
You will need a :
Laser pointer
Paintball gun handl
Fishing line
Scrap wood
Screw (optional)
For the gun and a/some :
Hot glue gun
Dremel
Drill (and a bit a little bit wider than the width of your laser pointer)
Saw (jigsaw will work, or, but not limited to a hand saw)
Clamp/vise
Glue (super or hot)
To make it.

14, 5:36 PM.jpg
First you need to cut your wood to your desired design. Mine was not to unique.

14, 5:36 PM.jpg
Cut (with a dremel) a groove a little thicker than the fishing string. It should also be slanted up. The groove needs to be cut in the peice of metal that goes DOWN when you pull the trigger.

14, 5:36 PM.jpg
14, 5:36 PM.jpg

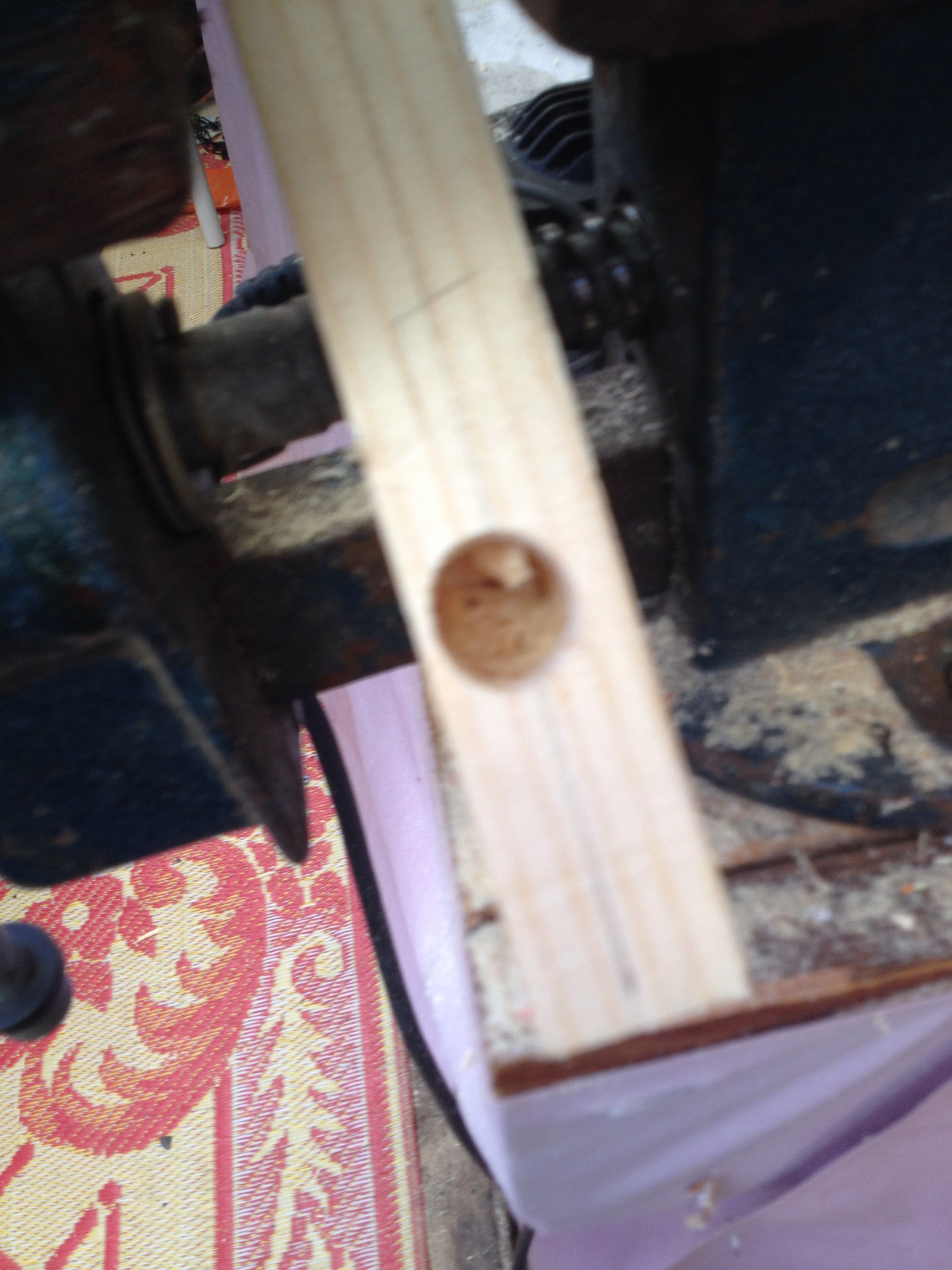

Drill two holes, one to act as a barrel, and the other to act as a "trigger". The trigger hole should be above the groove you cut.

14, 5:36 PM.jpg
Cut out a groove behind and in front of the "trigger" hole.

14, 5:36 PM.jpg
14, 5:36 PM.jpg

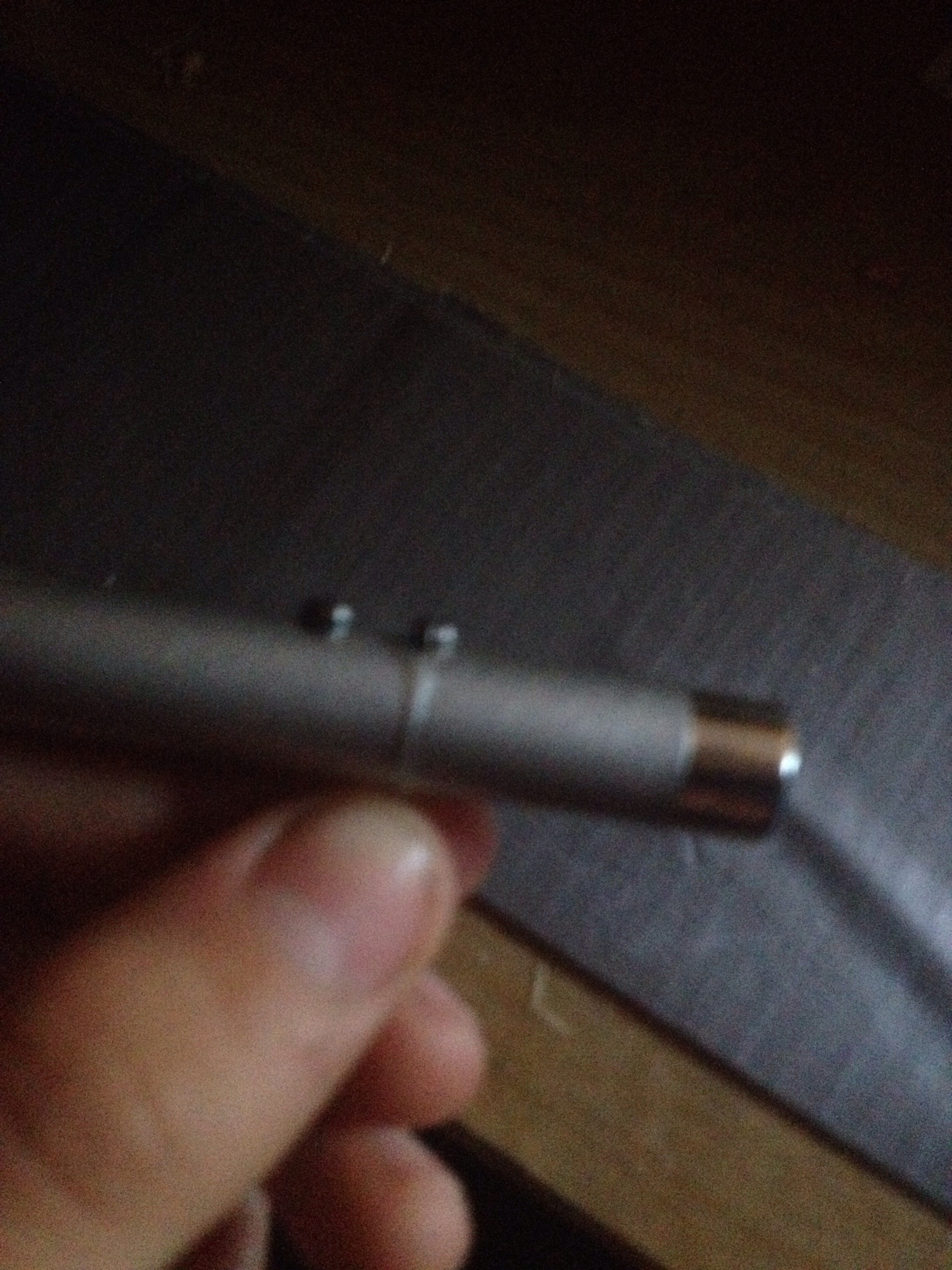

Tie a loop in the string and then glue it to the laser trigger.

14, 5:36 PM.jpg
14, 5:36 PM.jpg

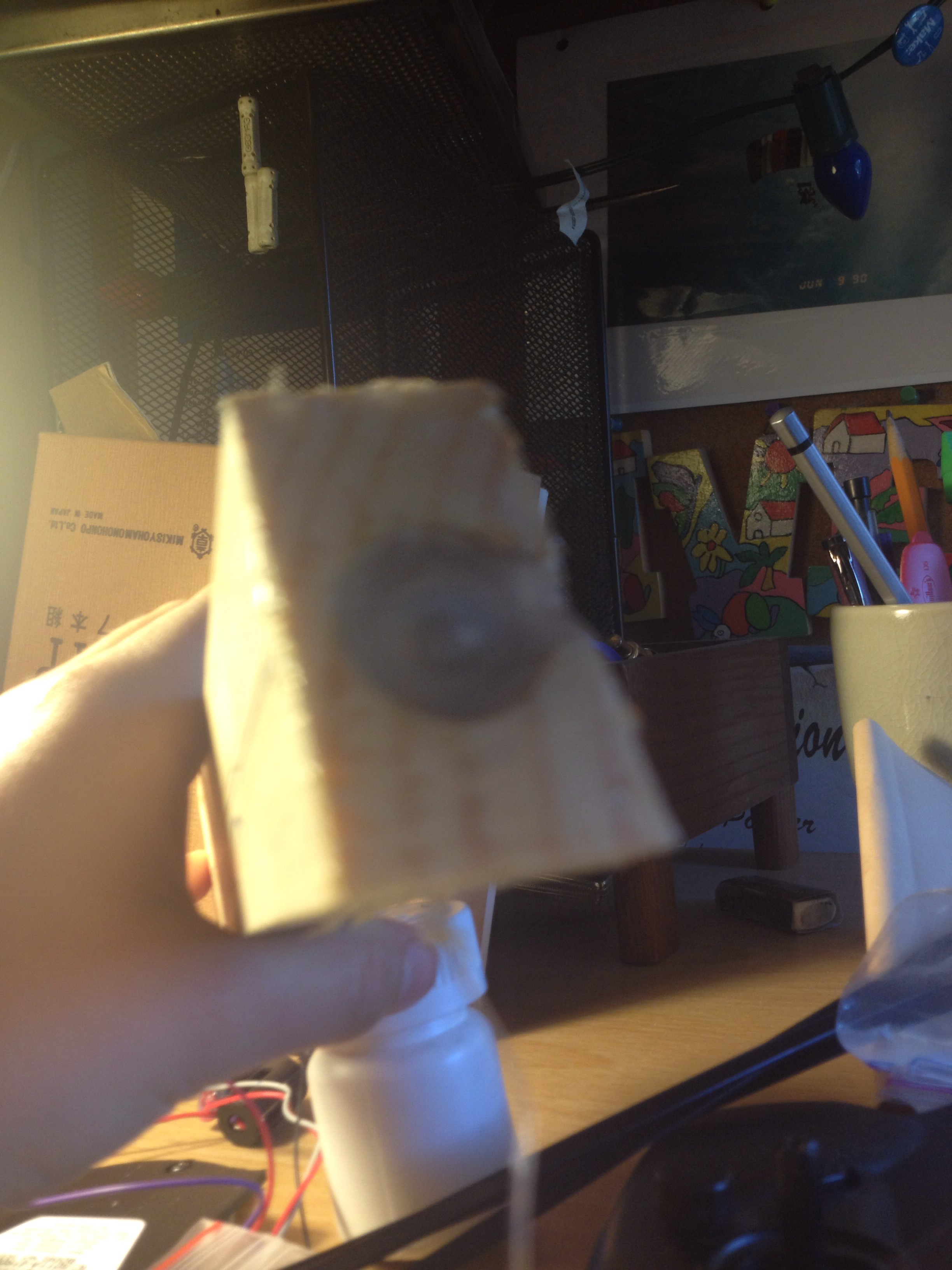

Pull the string through the "trigger" hole and then push the laser into it. Test the laser and if it goes out of the barre, hot glue it down.

14, 5:36 PM.jpg
14, 5:37 PM.jpg
14, 5:37 PM.jpg
Lay the body an inch over the handle. Put the string in the groove. Pull it through top of the handle and push the body down. Then glue it. Then if you want stonger, recomended, screw it in place.
