Laser Cutting Cardboard to Make a Human Skull

Fun project that involves laser cutting cardboard to form a skull and covering with modeling clay.

For this project I’m going do download a 3D model of a skull from Autodesk 123D. You do need to be signed in to download it but the account and the file is free. You will also need to download 123D Make from Autodesk. The app is completely free and it’s what we’ll use to slice up our model.

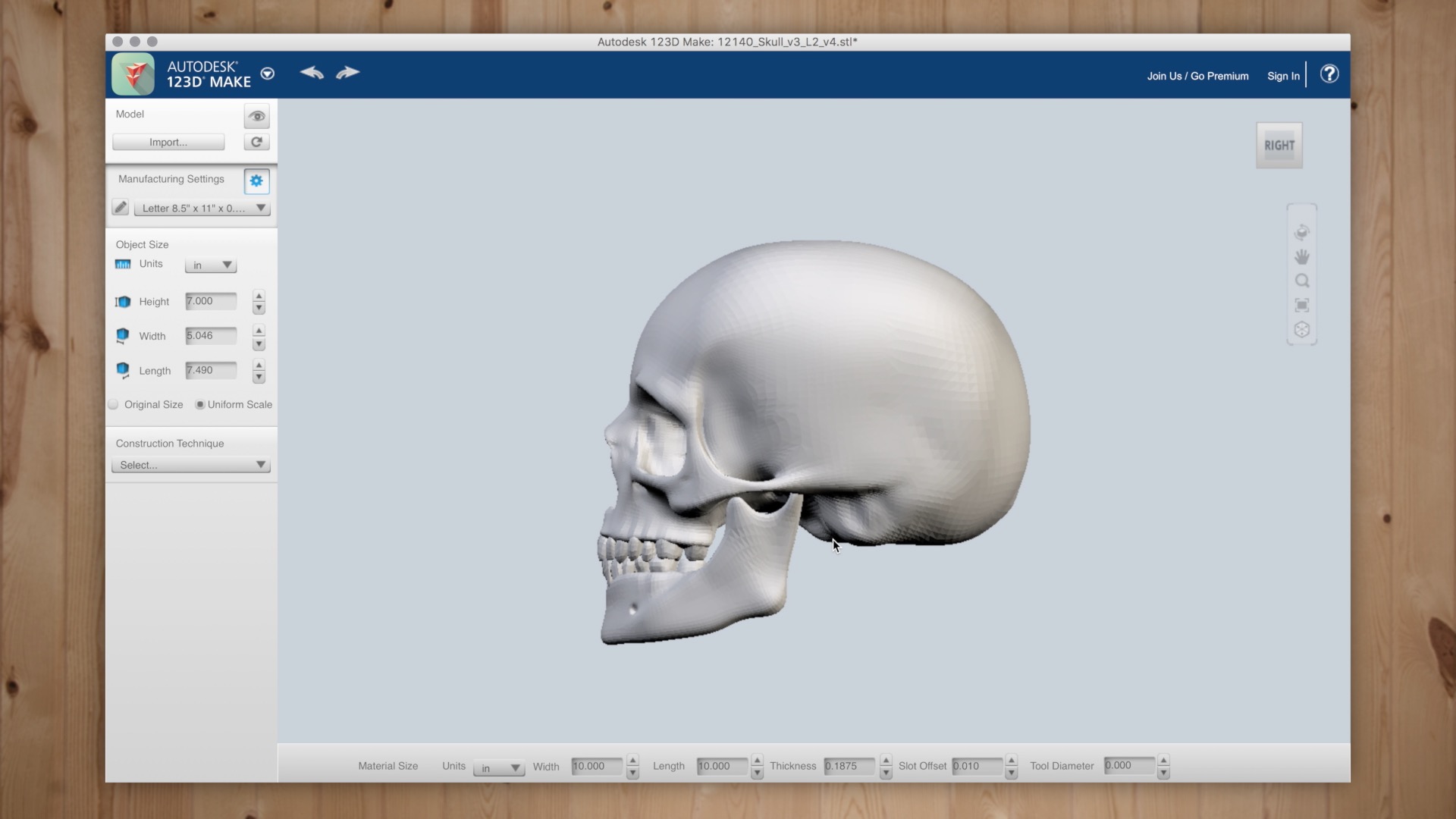

Open up 123D Make and import the STL file we previously downloaded. Here we can move around and examine our model.

Then we’ll jump over to the Manufacturing Settings. I’m going to use 10" x 10" sheets of cardboard so I’ll input that in the bottom dialog box. And the thickness of my cardboard is 3/16".

Next I need to choose my construction technique which is stacked slices. Then I’ll choose my slice direction that’ll give me the best option when it comes time to glue up. You want to avoid tiny pieces if possible. The areas in blue are potential issues which mean they may not have enough surface area to adhere to. So you do want to find that sweet spot that works for your model.

Over in the right column you’ll see I need 17 10"x10" sheets with a total of 80 parts. You can change the layout arrangement to nested which will reduce the amount of sheets needed and nest objects within other objects to save space and pages. I’ll then export my file into a multi-page PDF. The lines in blue will be cut all the way through and the lines in red will be engraved in the cardboard and will assist in the assembly. The tiny blue circles will be used for registration alignment.

To get the file over to my Full Spectrum laser I open the PDF in a compatible program, here I’m using InkScape which is a free vector drawing application. I have a 15 page PDF and I can only send 1 page at a time to the laser cutter. I choose which page to open and hit OK. From Inkscape I choose file/print and choose the Full Spectrum driver which shoots it over to the laser software.

Here in the Retina Engrave laser software I need to choose Vector Cut and I can assign cutting strength to the different colors of the art. The blue lines I want to cut all the way through so I set a speed of 22 and a power of 40. This was determined by a test I ran earlier. For the red lines I use a much lower power and faster speed so the laser doesn’t cut very deep into the cardboard. Hit start job and let the laser do it’s thing.

You will need to open each page of the PDF separately and send to the laser.

Once you have all your pieces cut you can go back to 123D Make and it will give you a guide to each layer of assembly. Some layers will have multiple pieces and will be labeled as so. Layer 10 has three pieces, 10-1, 10-2 and 10-3. As you work through the assembly you can click the next step in the timeline to see how your physical model should look.

Starting with layer 1 I’ll attach it to layer 2 using t-pins in the registration holes for proper alignment. I’m using a bookbinding PVA glue which sets pretty quick allowing me to proceed to the next layer right away. There are 30 layers total which took maybe an hour and a half to assemble.

The completed cardboard assembly.

I then add a layer of air hardening modeling clay over the entire model. I ended up removing the bottom jaw as there wasn’t much detail in it and it wasn’t structurally stable.

Once dried I sanded down the rough spots.

I then added another layer of clay to cover up any remaining traces of cardboard. Dipping it in water helps it spread easer and allows me to smooth it out.
