Laser Cut a Christmas Wine Box

Christmas is the season of giving—and a bottle of wine always feels warmer when it comes in a beautiful box made by hand.

Instead of using ordinary packaging this year, why not create a wooden Christmas wine box with your laser cutter? It’s festive, practical, and instantly makes your gift feel more thoughtful and personal.

In this tutorial, I’ll walk you through the full process step by step. Even if you’re new to laser projects, you can easily follow along and make one yourself.

Machine Used

Thunder Bolt 30W

Material Needed

3mm Plywood

Settings

Engraving

1. Speed:500mm/s
2. Power:20%
3. DPI:300

Cutting

1. Speed:10mm/s
2. Max Power:23%
3. Min Power:10%
4. Number of Passes:1

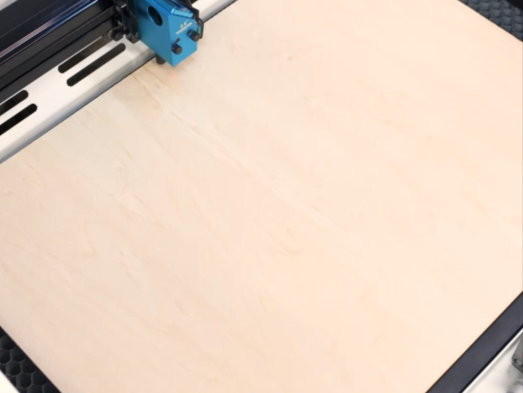

Start by laying your wooden board flat on the laser bed. Make sure the surface is clean and sits evenly without warping. If needed, use magnets or light tape at the edges to keep the board from shifting during cutting.

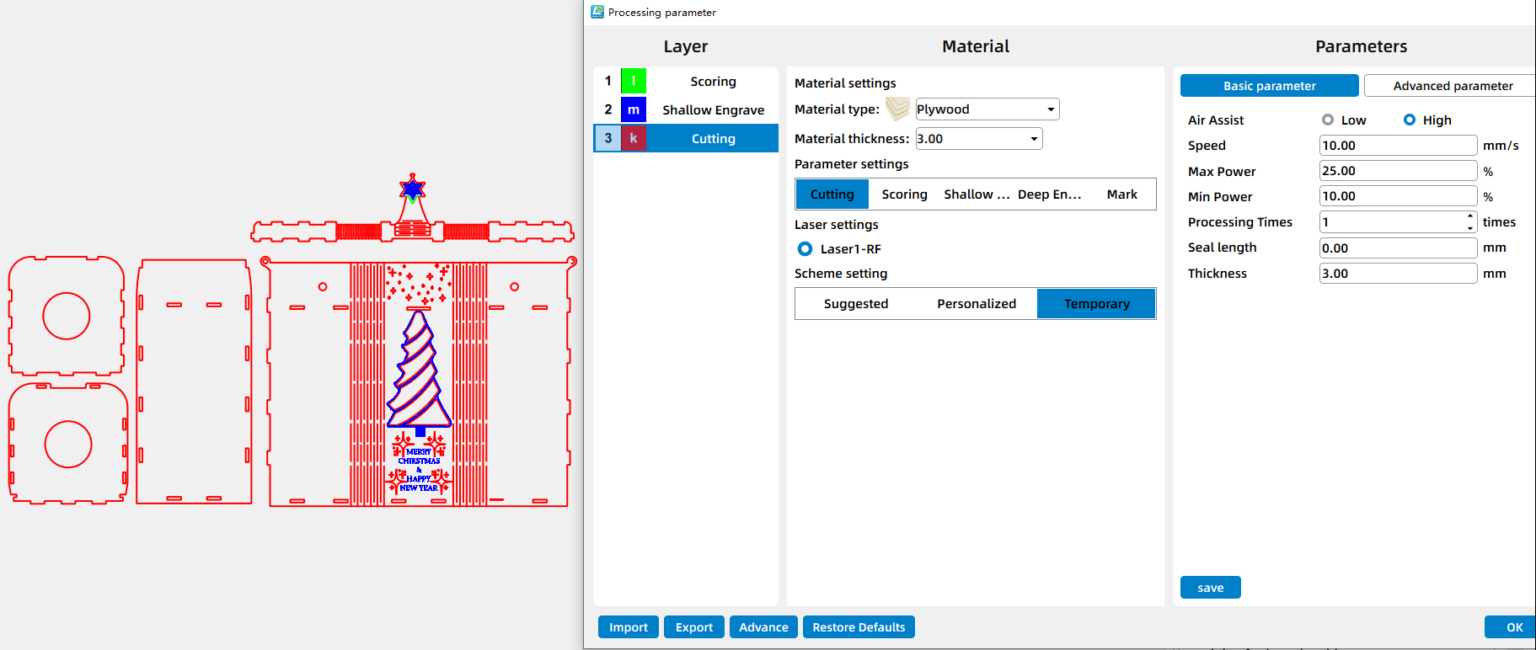

Open your laser software(I use LaserMaker) and import the Christmas wine box design file. Adjust the layout so it fits properly within your material size. Before moving on, double-check your engraving and cutting parameters to match the thickness and type of wood you’re using.

Proper focusing ensures neat, polished edges. If your machine has auto focus, use it for quick setup. For manual focusing, lower the laser head with the focus stick until it touches the wood surface at a perfect angle. Always double-check before cutting.

Then click “Frame” or “Border” to preview your cutting area and make sure the design fits nicely on your board. This confirms your material placement and avoids wasting wood. Adjust as necessary. Once everything is set, start the laser job.

Stay close to the machine while it’s running and watch the cutting and engraving progress. Keep an eye out for excessive smoke, small flame-ups, or any movement of the material that could affect the outcome. Make sure your workspace is well-ventilated, and rely on air assist if available to achieve cleaner edges on the wood.

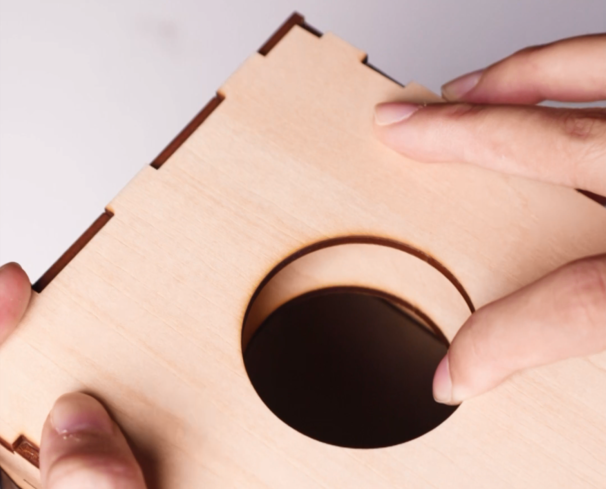

Once all parts are cut, carefully remove them from the laser bed. Align the joints and slots as designed and assemble the box piece by piece. Most wine box designs use an interlocking structure, so the parts should fit together smoothly and firmly.

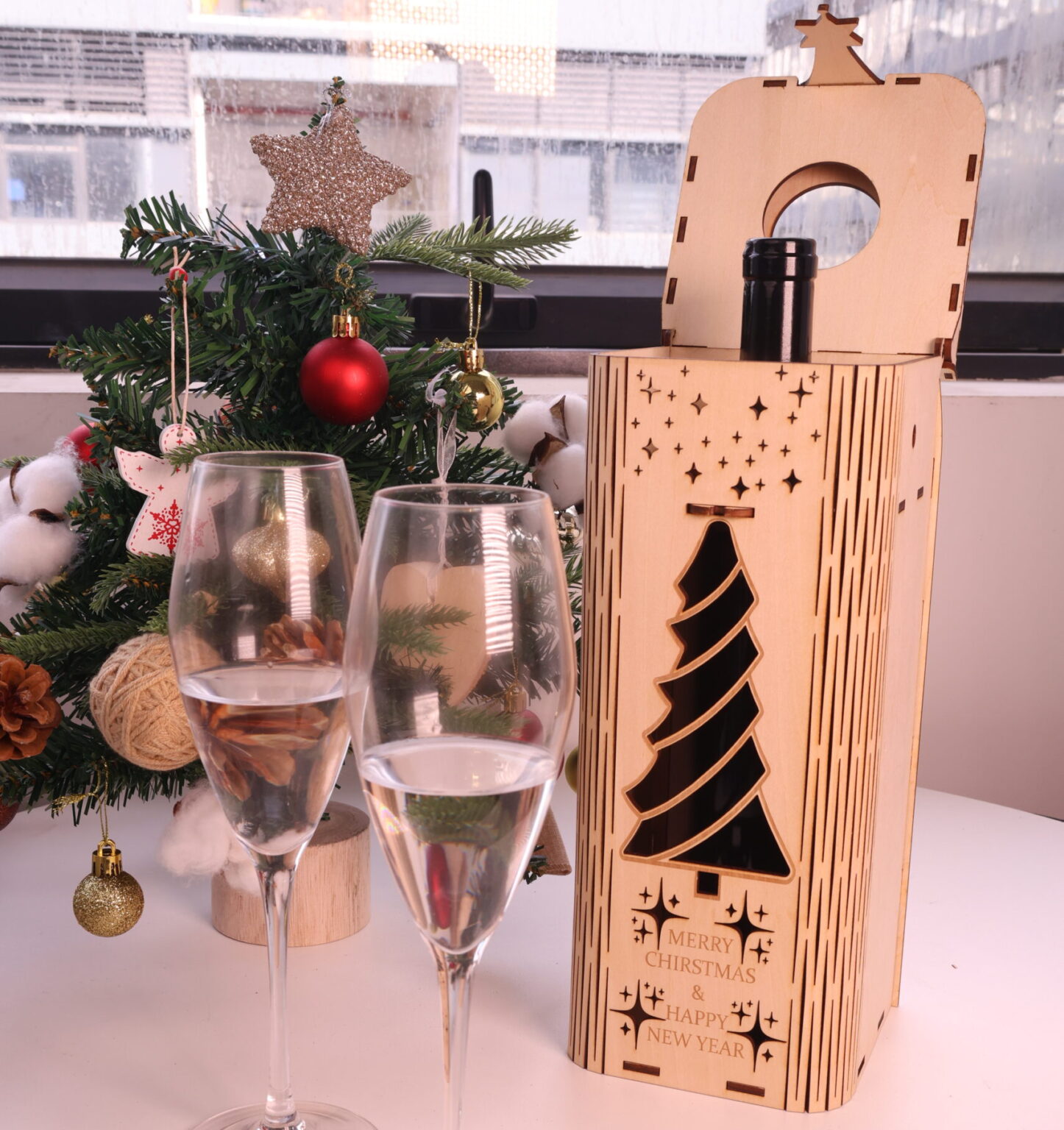

After assembly, your Christmas wine box is complete. You can leave it in its natural wood finish for a classic look, or add paint, stain, or ribbon for extra holiday charm. Place a bottle of wine inside—and your Christmas gift is ready.
