Painting the Biggest Transistor Ever, Using Laser Cut Stencils
by thiagohersan in Craft > Printmaking
2002 Views, 12 Favorites, 0 Comments
Painting the Biggest Transistor Ever, Using Laser Cut Stencils
![00Cover.png](/proxy/?url=https://content.instructables.com/FYQ/F43V/HWRC5SOL/FYQF43VHWRC5SOL.png&filename=00Cover.png)
Picking an Image
![00Transistor.bmp](/proxy/?url=https://content.instructables.com/FFK/YR0M/HWRC4T56/FFKYR0MHWRC4T56.bmp&filename=00Transistor.bmp)
Pick, or make an image with a few colors.
I picked this image. It’s a 32nm transistor that I drew back in 2007 or 2008. It looked so lonely in the middle of a sea of millions of other transistors, that I decided to immortalize it somehow.
Separating Colors
![03CanvasSize.png](/proxy/?url=https://content.instructables.com/FGE/W40I/HWRC4T5W/FGEW40IHWRC4T5W.png&filename=03CanvasSize.png)
![04AddTransparency.png](/proxy/?url=https://content.instructables.com/FNJ/ICLF/HWRC4T6K/FNJICLFHWRC4T6K.png&filename=04AddTransparency.png)
![07Invert.png](/proxy/?url=https://content.instructables.com/FUT/K37T/HWRC4T7B/FUTK37THWRC4T7B.png&filename=07Invert.png)
![08LayerColor0.png](/proxy/?url=https://content.instructables.com/F08/M5RT/HWRC4T7Z/F08M5RTHWRC4T7Z.png&filename=08LayerColor0.png)
![08LayerColor1.png](/proxy/?url=https://content.instructables.com/F9Q/BJ2D/HWRC4T99/F9QBJ2DHWRC4T99.png&filename=08LayerColor1.png)
![08LayerColor02.png](/proxy/?url=https://content.instructables.com/FLW/0W4R/HWRC4TAJ/FLW0W4RHWRC4TAJ.png&filename=08LayerColor02.png)
Anyway. Open up an image using GIMP. If it has more than 3 or 4 color, it’s best to posterize it using the Colors -> Posterize menu option.
I like to have some empty space around the image. Using the Image -> Canvas Size menu option, I add 1 inch on each side, and center the original image (this means adding 2 inches to the width and 2 inches to the height).
And, make sure the layer has an alpha channel (Layer -> Transparency -> Add Alpha Channel).
Now, I make a layer for each color by duplicating the original image layer. In each layer, I select the color I want to keep using the Select by Color tool.
Once I have selected the color I want to keep, I use the Select -> Invert tool to select everything else, and ctrl-x or delete the unwanted colors.
Now I have a layer for each color.
Making Borders
![09Shrink.png](/proxy/?url=https://content.instructables.com/F0E/BM2J/HWRC4TB7/F0EBM2JHWRC4TB7.png&filename=09Shrink.png)
![11PinkBorder.png](/proxy/?url=https://content.instructables.com/F7F/8C66/HWRC4TEG/F7F8C66HWRC4TEG.png&filename=11PinkBorder.png)
I want to add a border for each layer. This will help me align the layers later in Inkscape. The way I do this is to select the entire layer (Select -> All), then the Select -> Shrink option to shrink the selection by 10 pixels.
Then, using Select -> Invert, I select the 10-pixel border area, and paint it using the Bucket Fill Tool (with the Fill whole selection option). It can be any color, but I use something like yellow or pink so it stands out better.
Exporting Paths
![13ToPath.png](/proxy/?url=https://content.instructables.com/F22/7MX7/HWRC4TGG/F227MX7HWRC4TGG.png&filename=13ToPath.png)
![14PathTab.png](/proxy/?url=https://content.instructables.com/FB1/Y11V/HWRC4TGH/FB1Y11VHWRC4TGH.png&filename=14PathTab.png)
![15ExportPath.png](/proxy/?url=https://content.instructables.com/F4L/50NY/HWRC4THR/F4L50NYHWRC4THR.png&filename=15ExportPath.png)
Now for the tricky part. Exporting paths!!

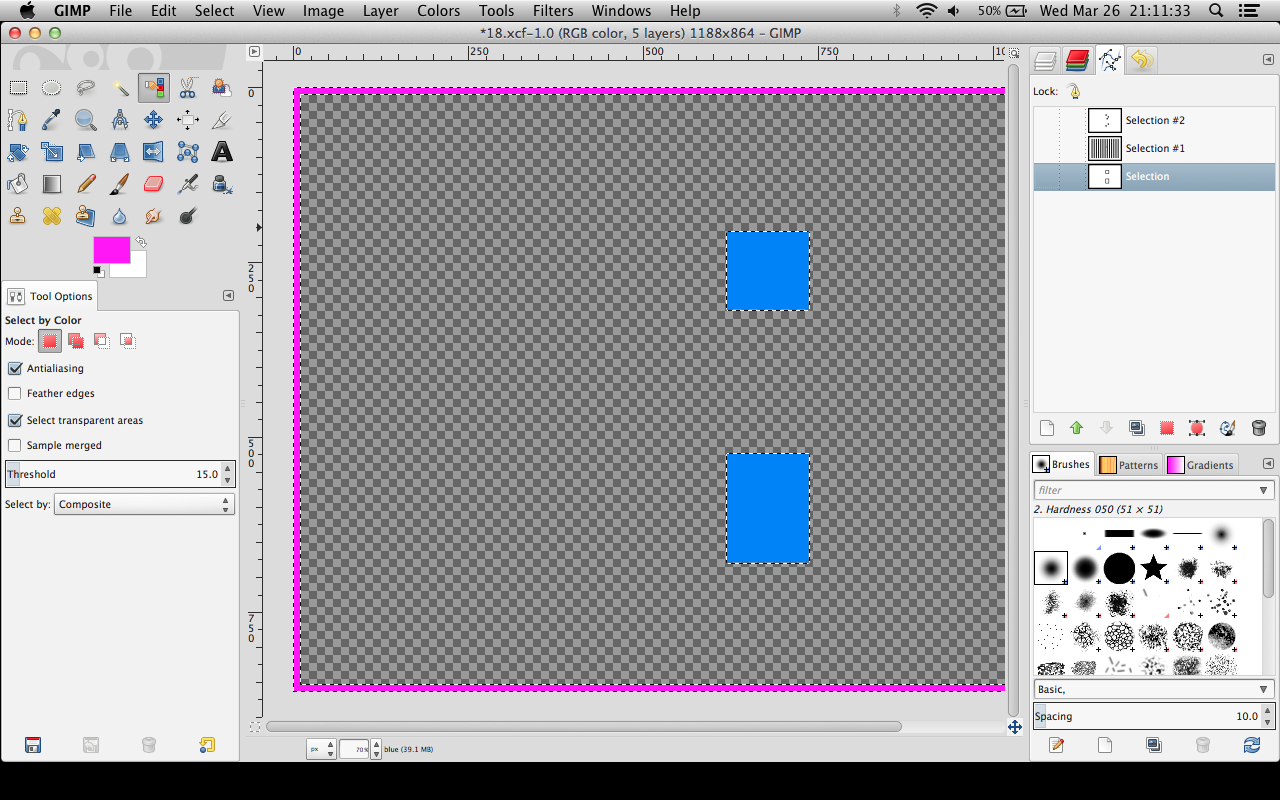

I select the transparent area between my colors using the Select by Color Tool, and use the Select -> To Path menu option to create a path from the selection edges of the transparent area.

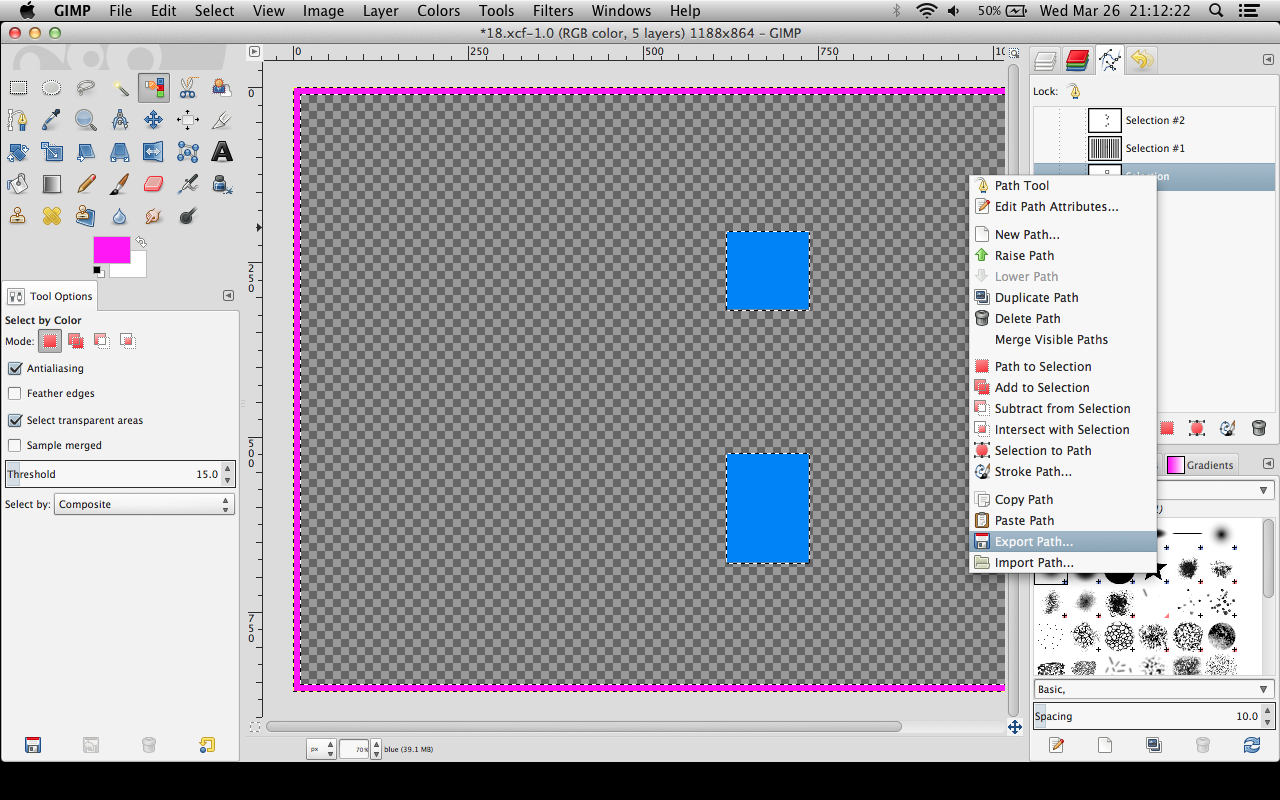

There’s a sneaky Paths tab next to the Layers tab. From here I can export the path as an svg by right-clicking the path and choosing Export Path. . .
Repeat this, and export a path for each layer.
Sweet!
Inkscaping
![17Place00.png](/proxy/?url=https://content.instructables.com/FE2/AKI7/HWRC4TJS/FE2AKI7HWRC4TJS.png&filename=17Place00.png)
![20Holes.png](/proxy/?url=https://content.instructables.com/F5W/L29Y/HWRC4TJW/F5WL29YHWRC4TJW.png&filename=20Holes.png)
![22DeleteBorder.png](/proxy/?url=https://content.instructables.com/FRI/5Z9X/HWRC4TLN/FRI5Z9XHWRC4TLN.png&filename=22DeleteBorder.png)
![25FillStroke001.png](/proxy/?url=https://content.instructables.com/F36/F3U9/HWRC4TO8/F36F3U9HWRC4TO8.png&filename=25FillStroke001.png)
![26SaveCopy.png](/proxy/?url=https://content.instructables.com/FZ3/SAZB/HWRC4TO9/FZ3SAZBHWRC4TO9.png&filename=26SaveCopy.png)
Now that I have 3 svg files, I open Inkscape, and import all of them into a project (File -> Import).
Then, I click on each imported object, and move it to the (0,0) location.
I usually have to resize the document to make everything fit, by clicking on the File -> Document Properties menu option.
With all the layers showing, I pick places around the 4 corners where there are no shapes, and make 4 holes of equal size. I usually make them around 4 or 5mm in diameter, and it’s not very important to make their placement symmetric, as long as they come out in the same place on all layers.
I couldn’t figure out how to disable certain objects, or export separate objects from the same layer, so this next step might not be the most efficient.

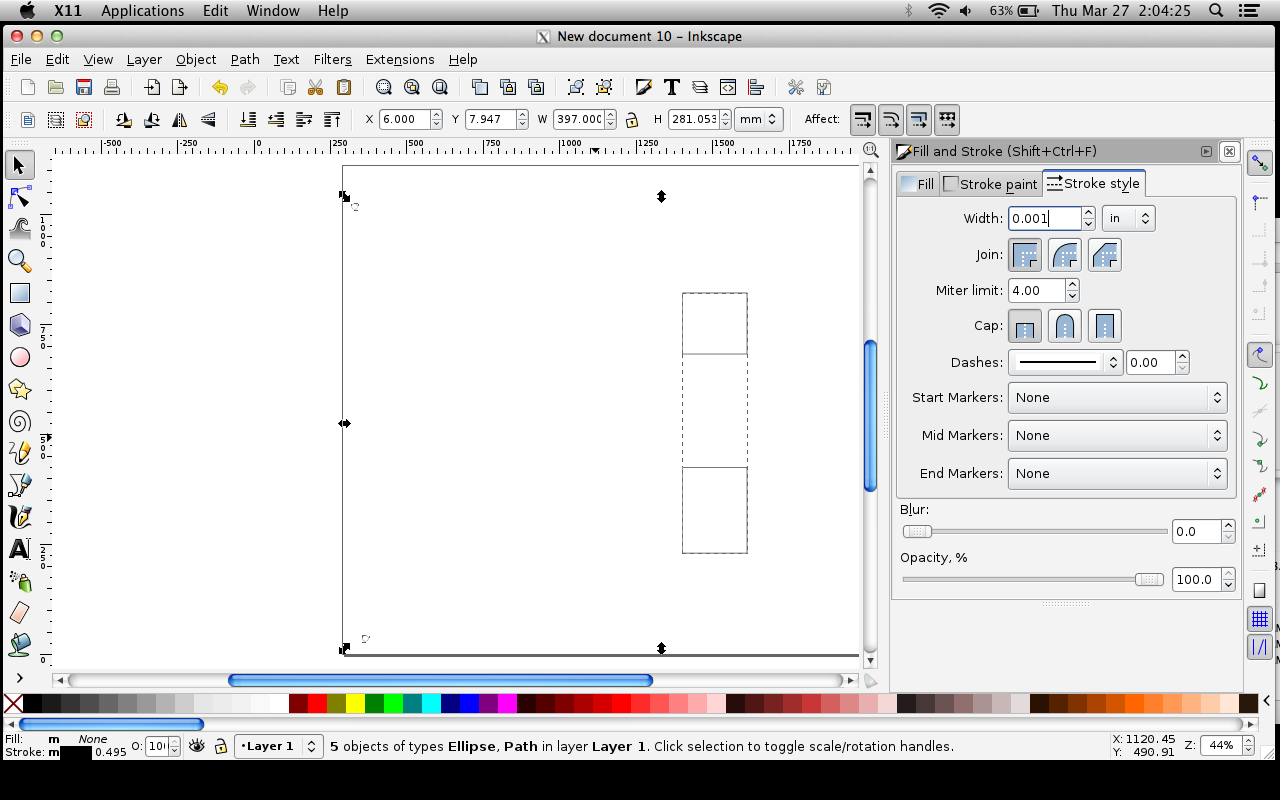

I delete all the paths, except one, and make sure it’s still at 0,0. I select the border path using the Edit Paths by Nodes Tool, and delete it. Then, select all paths (Edit -> Select All), and change their stroke width to 0.001 inches. (Stroke Style tab of the Object -> Fill and Stroke menu)

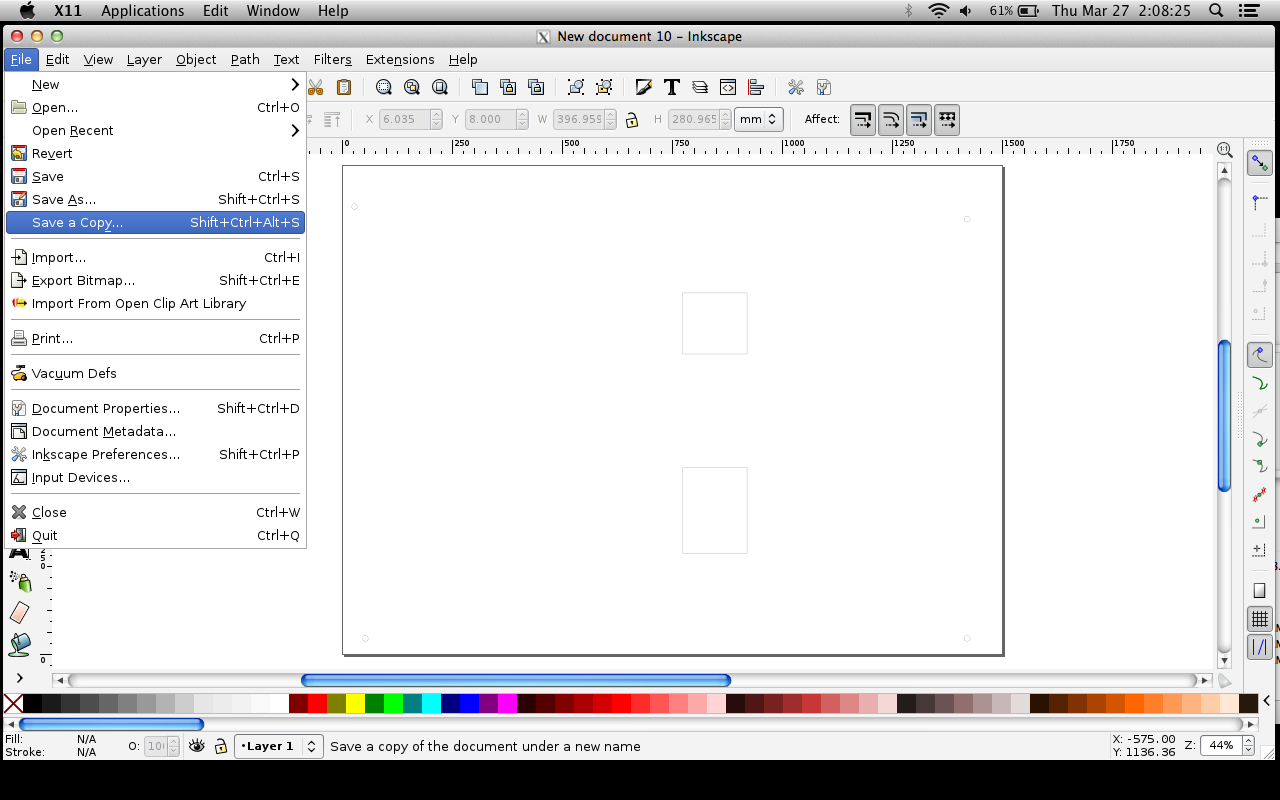

I export the result as an svg (File -> Save a Copy), and repeat the last step for all remaining paths/colors.
The result is a set of svg files, with registering holes, and thin path lines.
I tried to add the registering holes in GIMP, in order to just export the svg paths directly from there, but it wasn’t as simple as I wanted it to be. I can’t ensure that the path strokes are 0.001 inches, and the holes come out kind of pixelated. Maybe I could’ve done some math, and played with the DPI, but. . . alas. . .
Lasering Cardboard
![29IMG_0006.JPG](/proxy/?url=https://content.instructables.com/FZD/DVVT/HWRC4TQY/FZDDVVTHWRC4TQY.jpg&filename=29IMG_0006.JPG)
![27IMG_0003.JPG](/proxy/?url=https://content.instructables.com/FUE/KSKI/HWRC4TOD/FUEKSKIHWRC4TOD.jpg&filename=27IMG_0003.JPG)
![30IMG_0012.JPG](/proxy/?url=https://content.instructables.com/FG6/9L82/HWRC4TS8/FG69L82HWRC4TS8.jpg&filename=30IMG_0012.JPG)

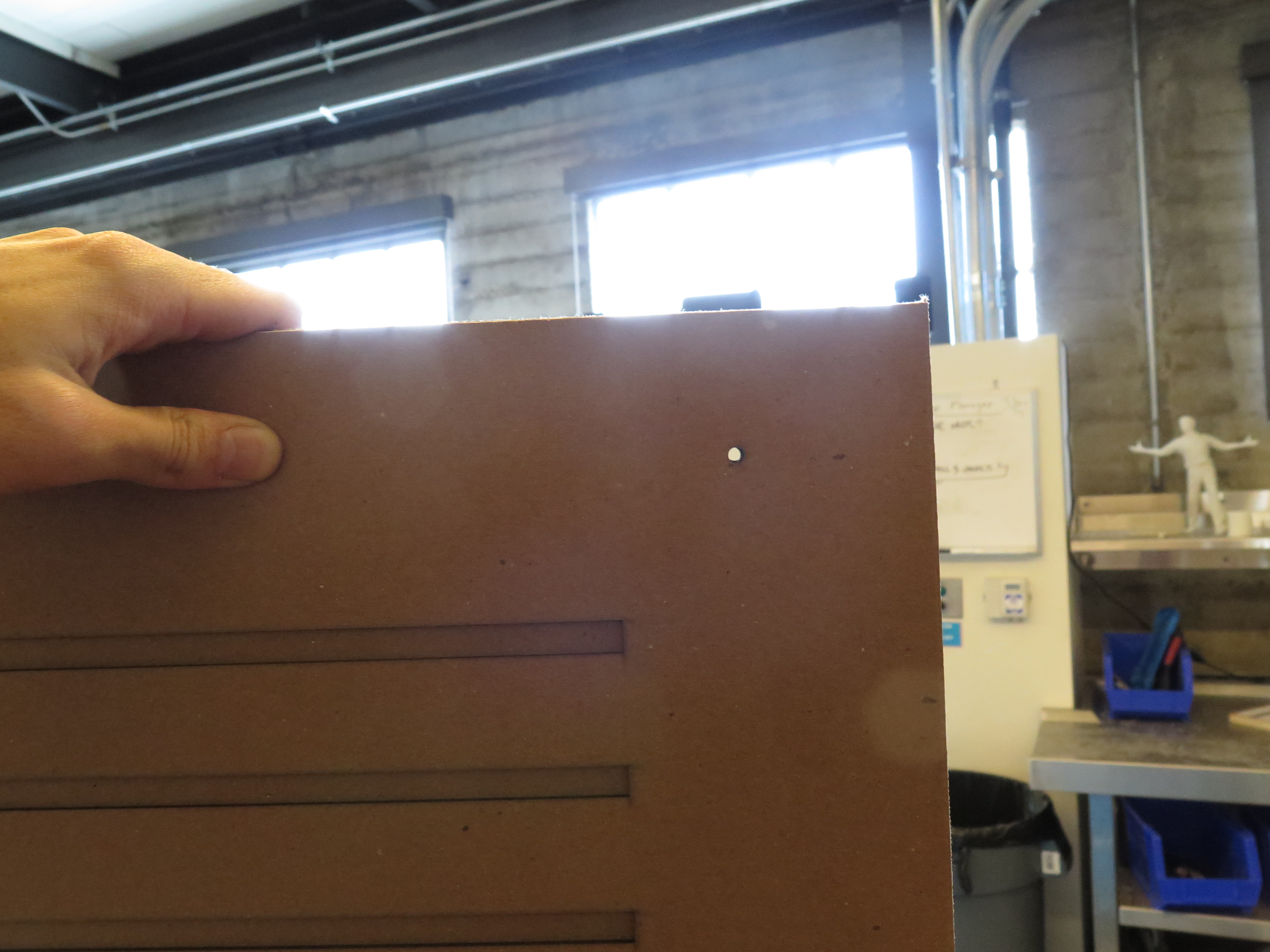

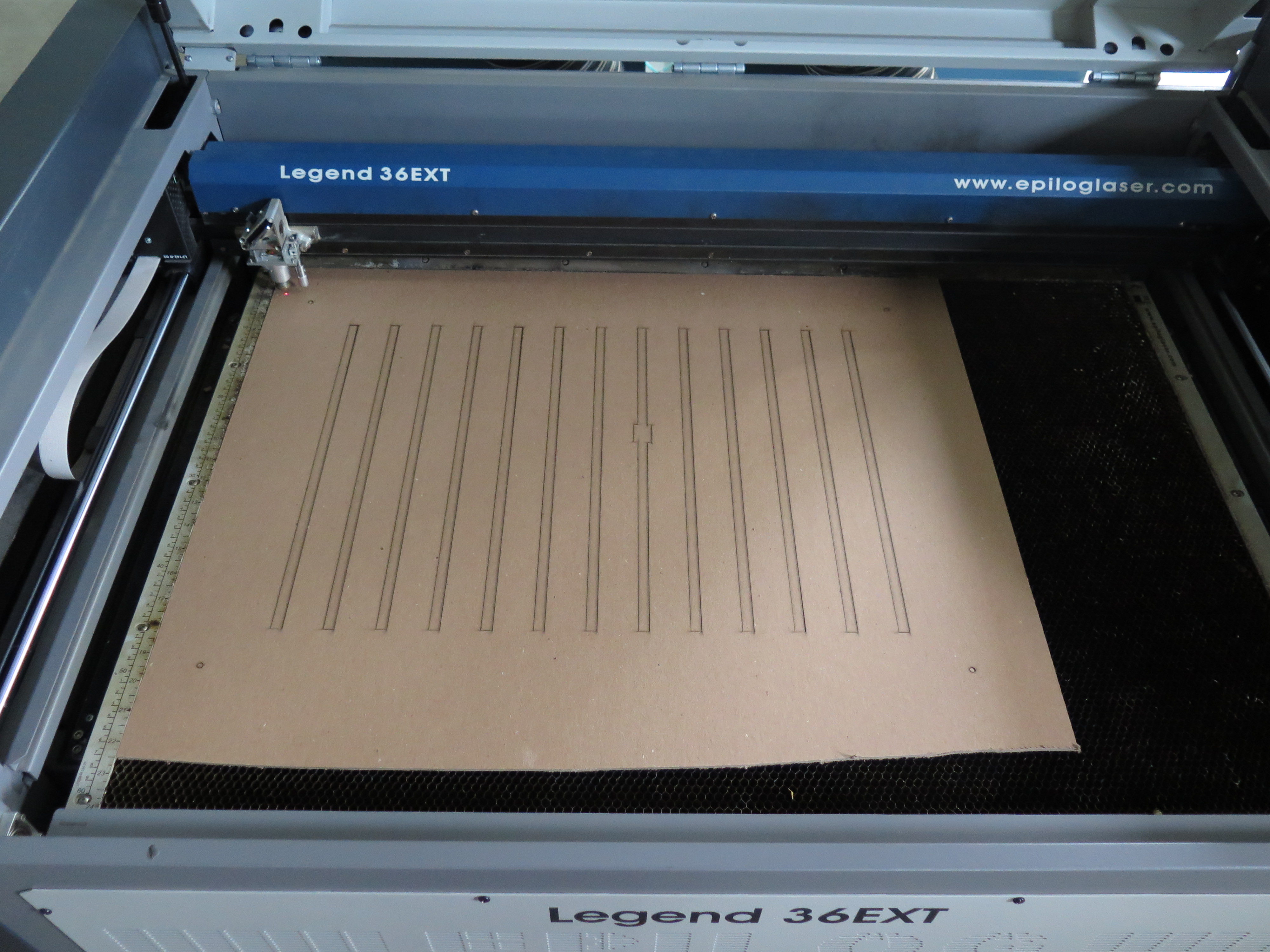

Now, what’s left is the grunt work. Load cardboard onto machine. Hit print, and wait. The registering holes should line up exactly. Thanks lasers!
Making Chips... Making Money...
![31Spray.png](/proxy/?url=https://content.instructables.com/F12/LKKW/HWRC5SOM/F12LKKWHWRC5SOM.png&filename=31Spray.png)
![32Spray.png](/proxy/?url=https://content.instructables.com/F2X/VKRF/HWRC5SOP/F2XVKRFHWRC5SOP.png&filename=32Spray.png)
![33Canvas.png](/proxy/?url=https://content.instructables.com/FOB/3YJR/HWRC5SPA/FOB3YJRHWRC5SPA.png&filename=33Canvas.png)
![34Detail.png](/proxy/?url=https://content.instructables.com/FOI/CZIN/HWRC5SPD/FOICZINHWRC5SPD.png&filename=34Detail.png)
![35Detail.png](/proxy/?url=https://content.instructables.com/F89/1XKZ/HWRC5SPY/F891XKZHWRC5SPY.png&filename=35Detail.png)
I tried to make my painting on canvas with spray paint. I put some m3 screws through the canvas and the corner holes to keep the stencils aligned.
I tried to make 3 different prints, but unfortunately they all came out kind of sloppy, mostly because I didn’t have the patience to wait for the paint to dry before applying the next layer of color, and because I couldn’t control the consistency of the spray paint.
Bummer.
But the stencils are nice, and I think I can use acrylic paint for better control and accuracy, and I just bought a long book to read while waiting for each paint layer to dry.
