Laser Cut Rack and Pinion
by Invention Therapy in Workshop > Laser Cutting
9356 Views, 60 Favorites, 0 Comments
Laser Cut Rack and Pinion
Watch the instructions video HERE

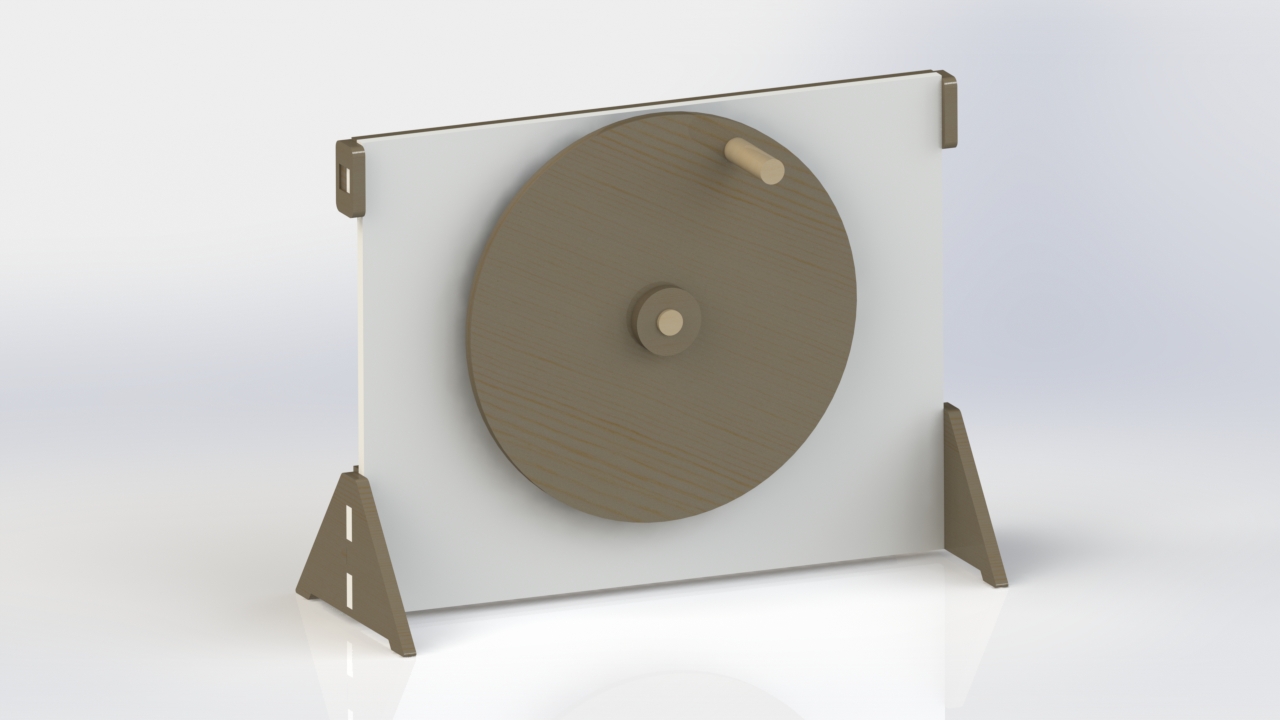

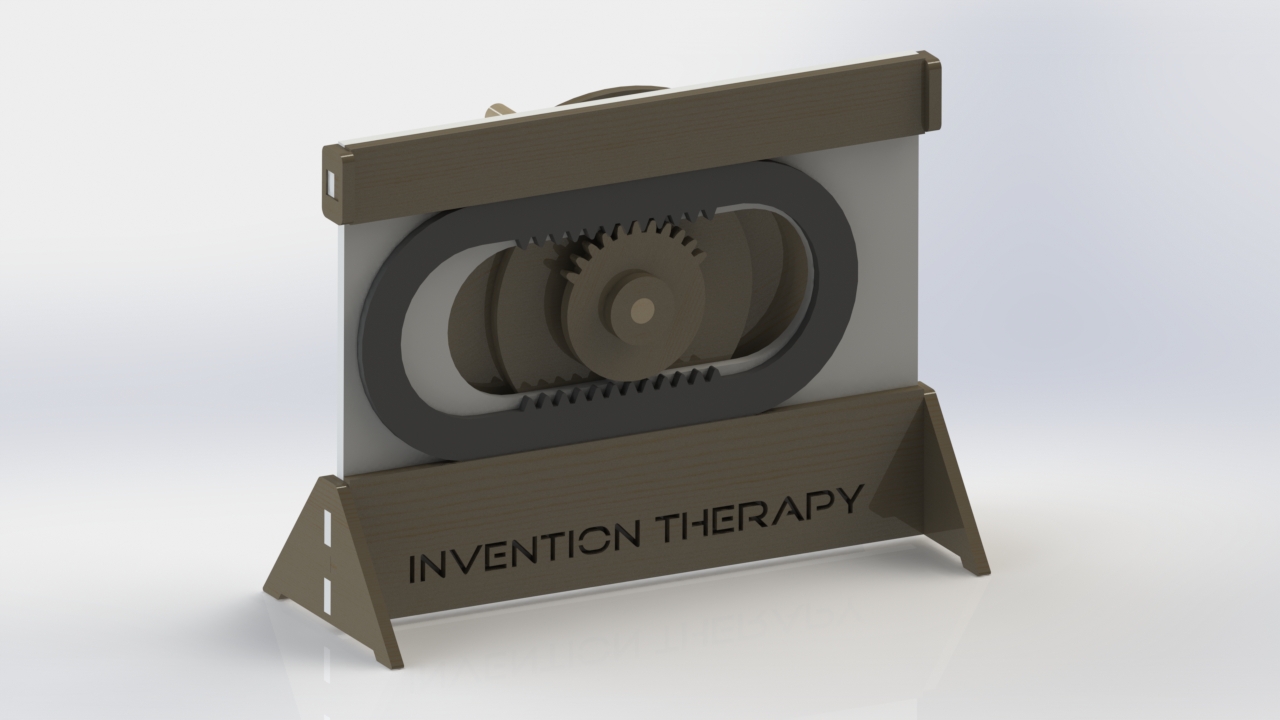

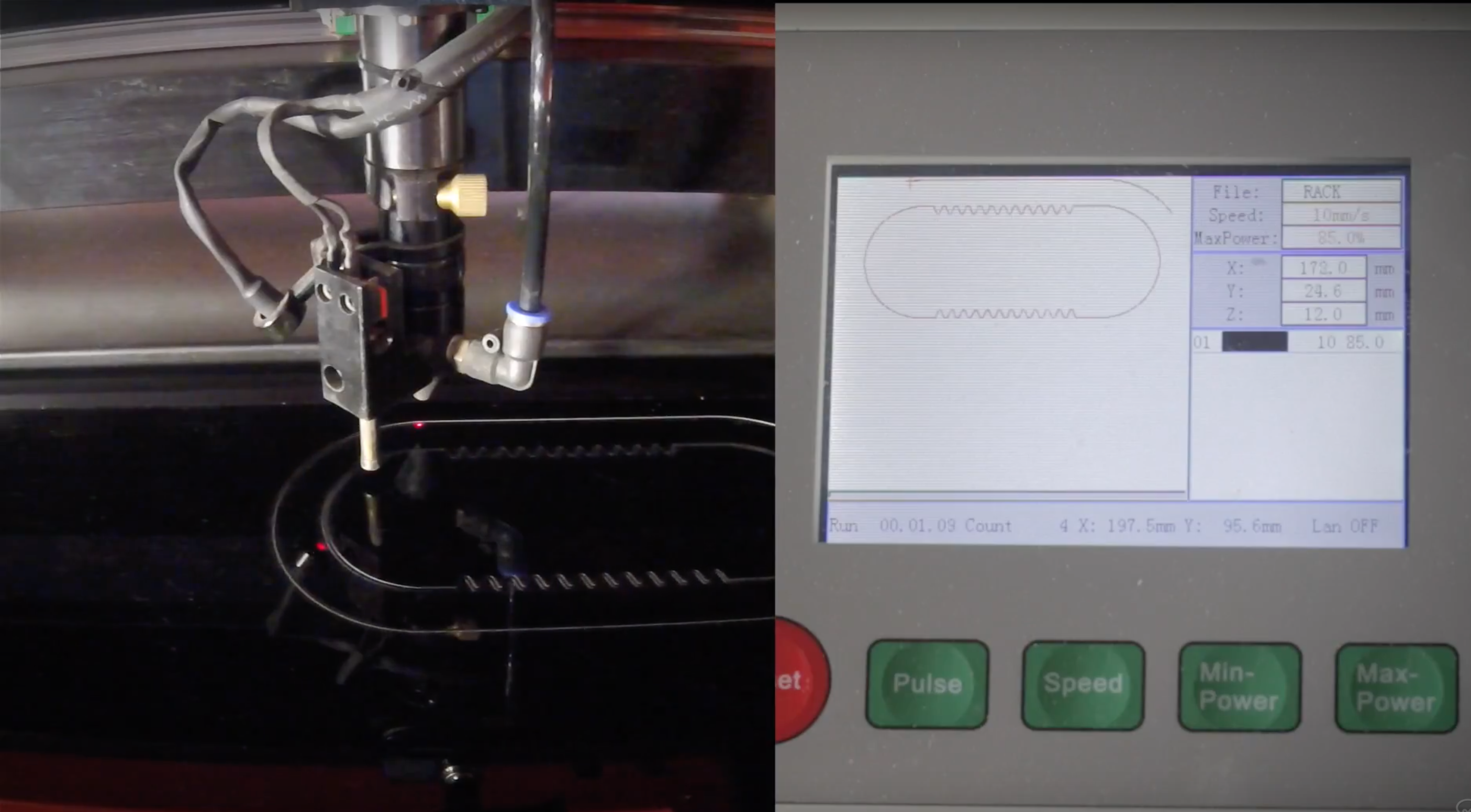

In the video we laser cut a reciprocating rack and pinion gear system using our laser engraver / cutter.
This latest Invention Therapy DIY project, we show you how to build this cool gear system. It is a great DIY project for science fairs, school projects or simply for fun.
Materials Needed
Items needed for this build:
1 piece 2' X 2' .188" (5mm) MDF chalkboard. (available at Home Depot or Lowes)
1 piece 12" X 6" .160" (4mm) acrylic (optional, 5mm MDF can be used for all parts)
1 piece 1.0" (25.4mm) long, 3/8" diameter wood dowel
1 piece 2.5" (64mm) long, 3/8" diameter wood dowel
wood glue
Laser Cut All Parts in the Three DXF Files
Most of the parts should be made of .188" (5mm) MDF
The rack works bests when made of .160" (4mm) acrylic but can also be made from 5mm MDF
Assemble As Shown in Our Video.
All cutting and assembly instructions can be easily viewed in our video.
In the video we laser cut a reciprocating rack and pinion gear system using our laser engraver / cutter.
Be sure to SUBSCRIBE HERE
http://www.inventiontherapy.com
Invention Therapy is the show where we turn your ideas into a reality!
