Laser Cut Puzzle and Cardboard Box

How to make a puzzle and storage box with a laser and a few basic woodworking tools. A super easy and fun project!

I had a couple of 11x14 photos printed at Costco for this project on matte photo paper. I also picked up some art board from my local Michaels craft store. Using spray adhesive, glue the photo down to the art board and trim away any excess.

Use masking or painters tape and cover the surface of the photo. This will protect it from burning as the laser makes the cuts.

I found a free vector file of a puzzle online. Unfortunately each puzzle piece was a separate object which meant that there would be overlap and the laser cutting the same area twice as well as greatly increasing the cutting time. I used the vector file as a guide and redrew the art making a series of wavy horizontal and vertical lines with a bounding box.

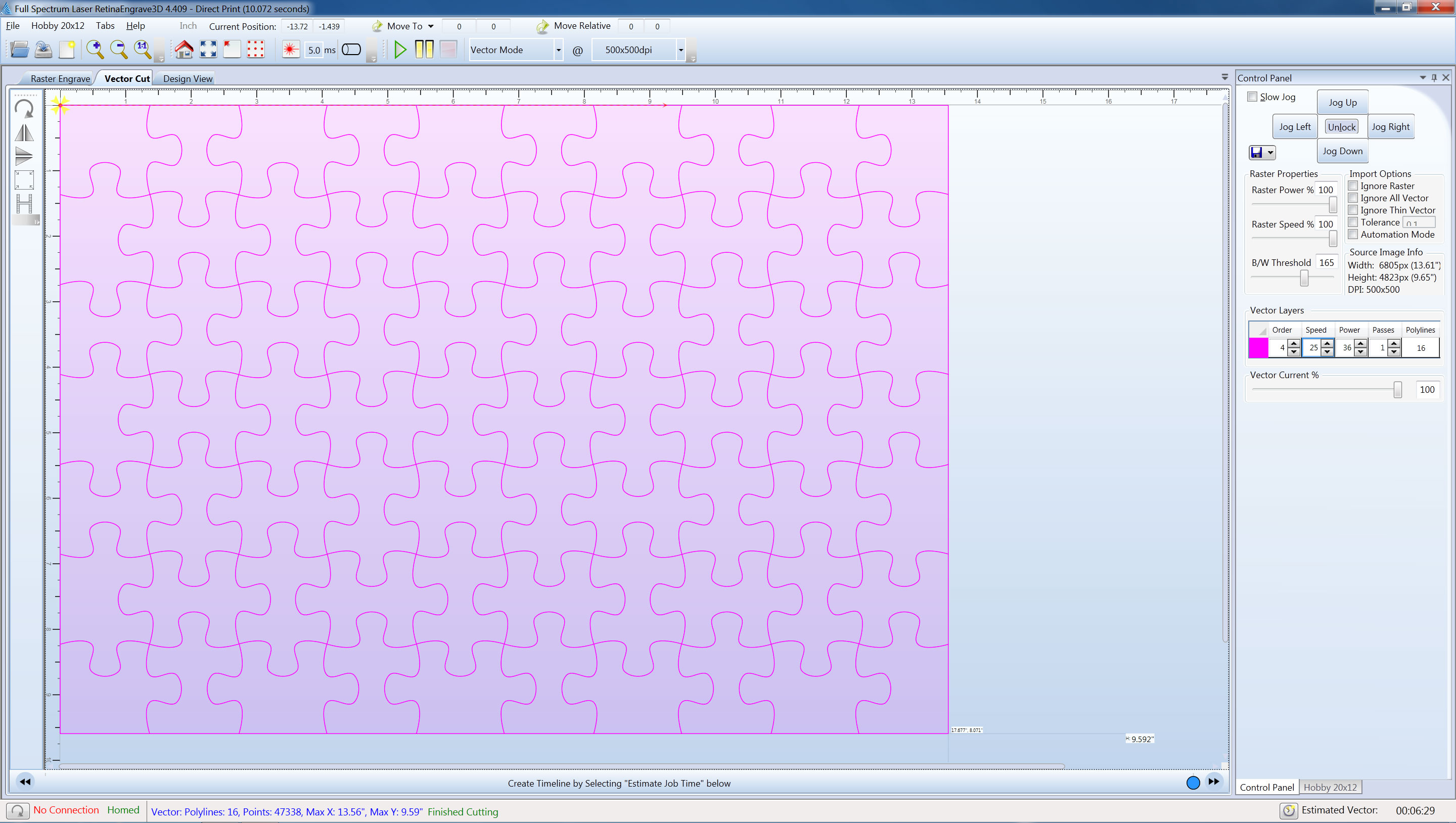

I then sent the file over to RetinaEngrave, my laser cutter software for my Full Spectrum laser. After doing a series of tests (with tape, without tape, photo side up, photo side down) I found that a speed of 25 and a power of 36 gave me the best results with minimal burning.

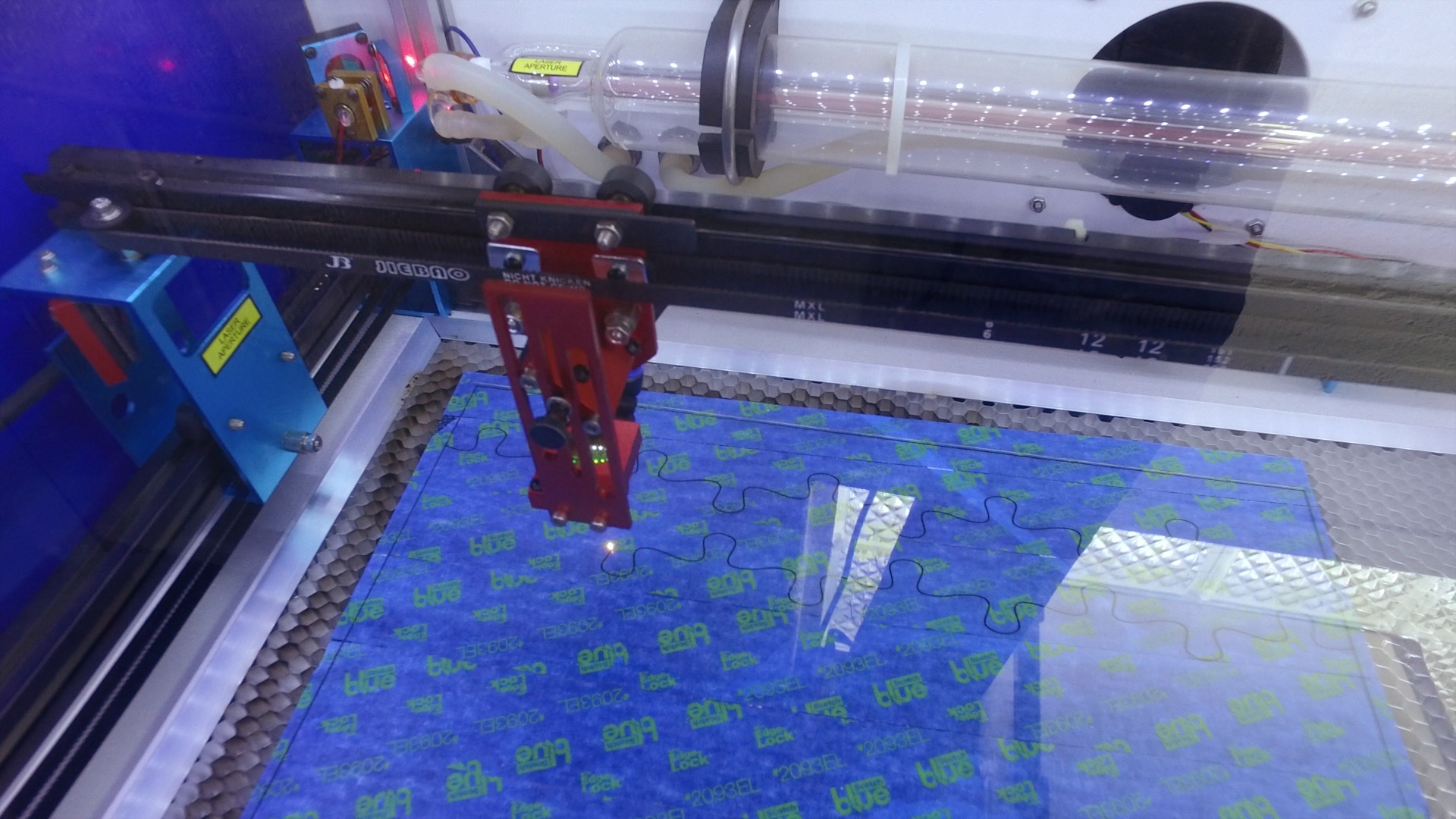

Next I let the laser do it's things and start cutting. The whole piece took around 7-8 minutes to cut. Make sure you have proper ventilation.

I then had the tedious task of removing the masking tape from 70 puzzle pieces.

Now onto making the box for the puzzle. I took the other 11x14 print and glued it on some poster board with spray adhesive.

I then folded up the edges, made a few knife cuts and glued up the corners with CA glue (super glue).

The base of the box was cut on the table saw using 1/8" plywood.

I then glued all the pieces together with CA glue (super glue) and sanded it smooth.

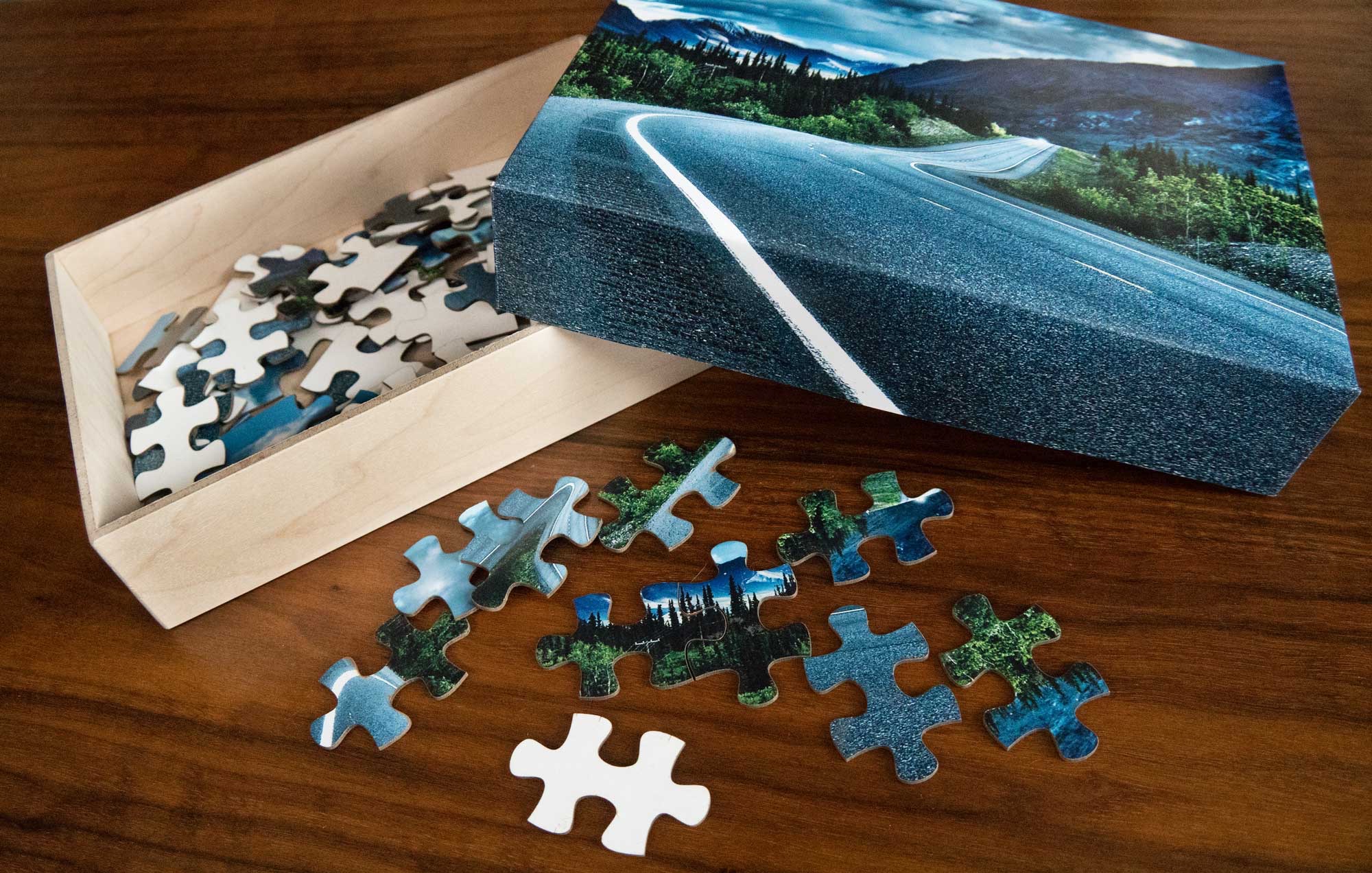

And that's it!! Here you can see the photo used for the project. It was a photo I took while visiting Alaska a few years back. Check out the video for the project on how this image came to be. Let me know if you make one yourself! I'd love to see what you come up with! Make Something!!
