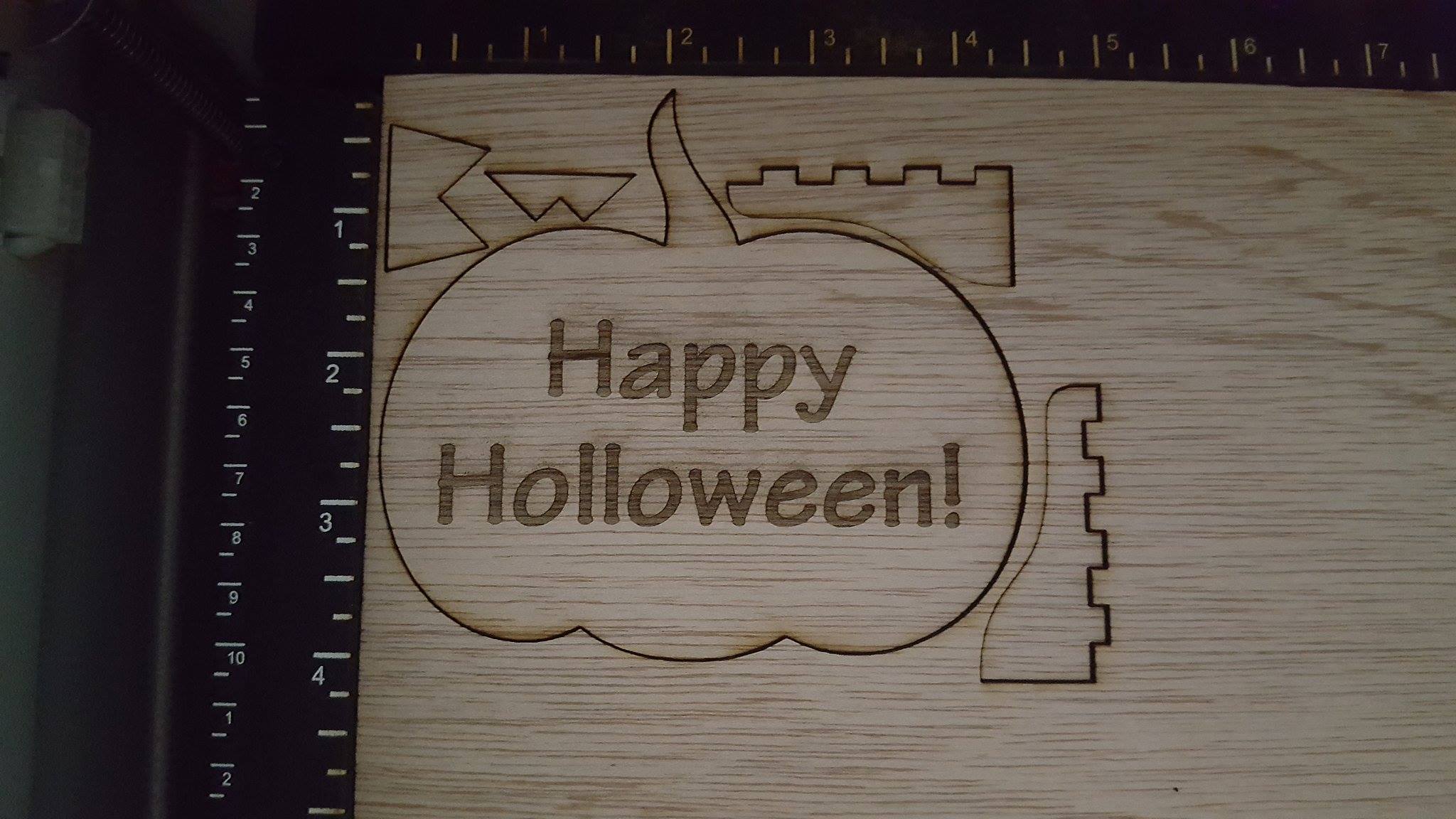

front of cut.PNG

To make laser cut pumpkins, I used Rhino 5 and and Epilog Zing 24 laser cutter. For materials I used and a 0.11" thick doorskin. I hope that you enjoy this instructable and post your creations to the comment section below!

I know how it goes sometimes when you don't have enough time to make something that is why I am going to leave you the cut file here. Be careful to scale up or down the the file to the correct thickness of material that you will be using.

Downloads

Finding Your Image

Pic of Pumpkin.PNG
Tracing Pumpkin.PNG

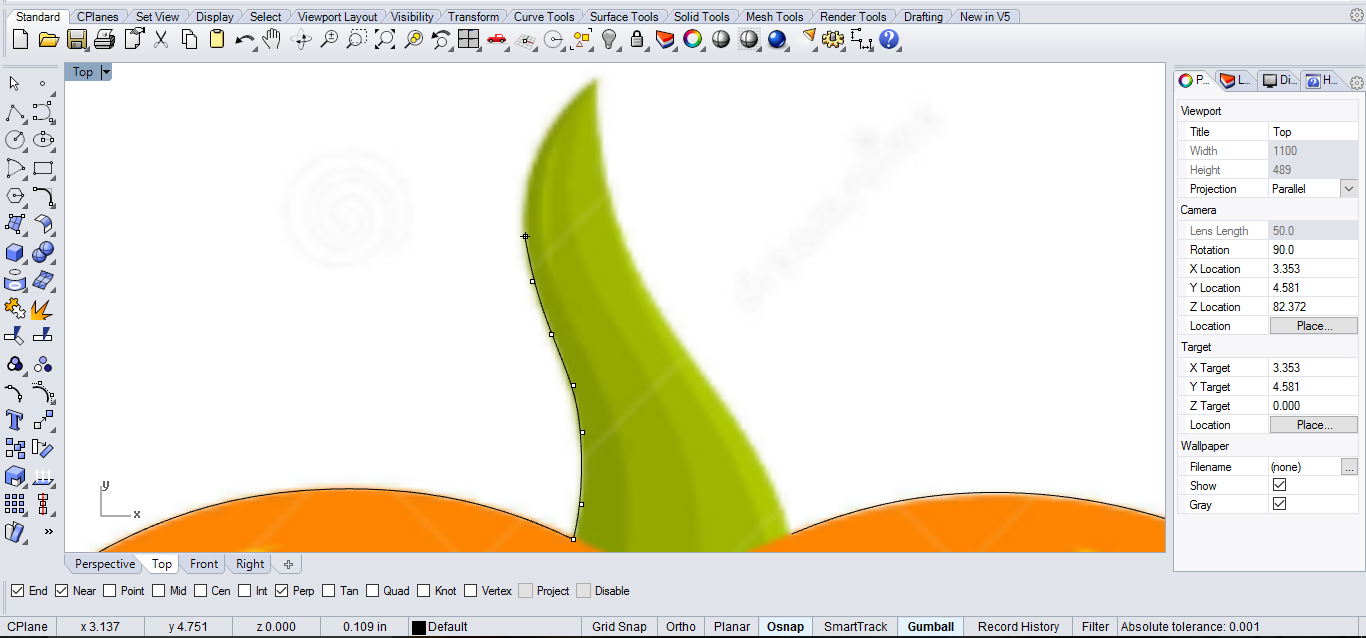

I started by finding an image of a pumpkin that I would like to trace and saving it to my computer. After this I would open up Rhino and use the picture frame command to open the image. After this I traced the outer edge of the pumpkin with control point curve.

The Graphics

Vector + words.PNG

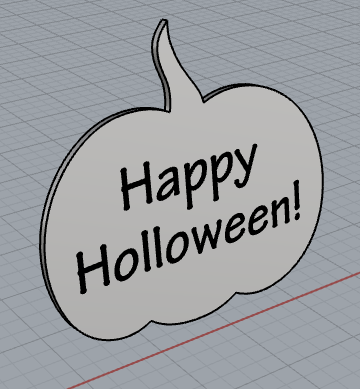

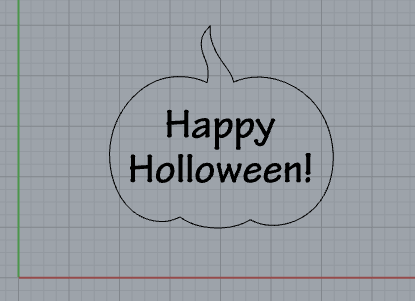

I deleted the image from the previous step, to be left with an outline of the pumpkin. I then added text to the center of the curves and hatched it. I then grouped the curves with the hatching.

Making the Stand

stand on back.PNG
stand peices.PNG

To make a stand for the pumpkin, I made a 1" by 2" stand "thing" that interlaces with an almost identical stand. After this I made a small and a large attachment that will hold the pumpkin at an upward angle.

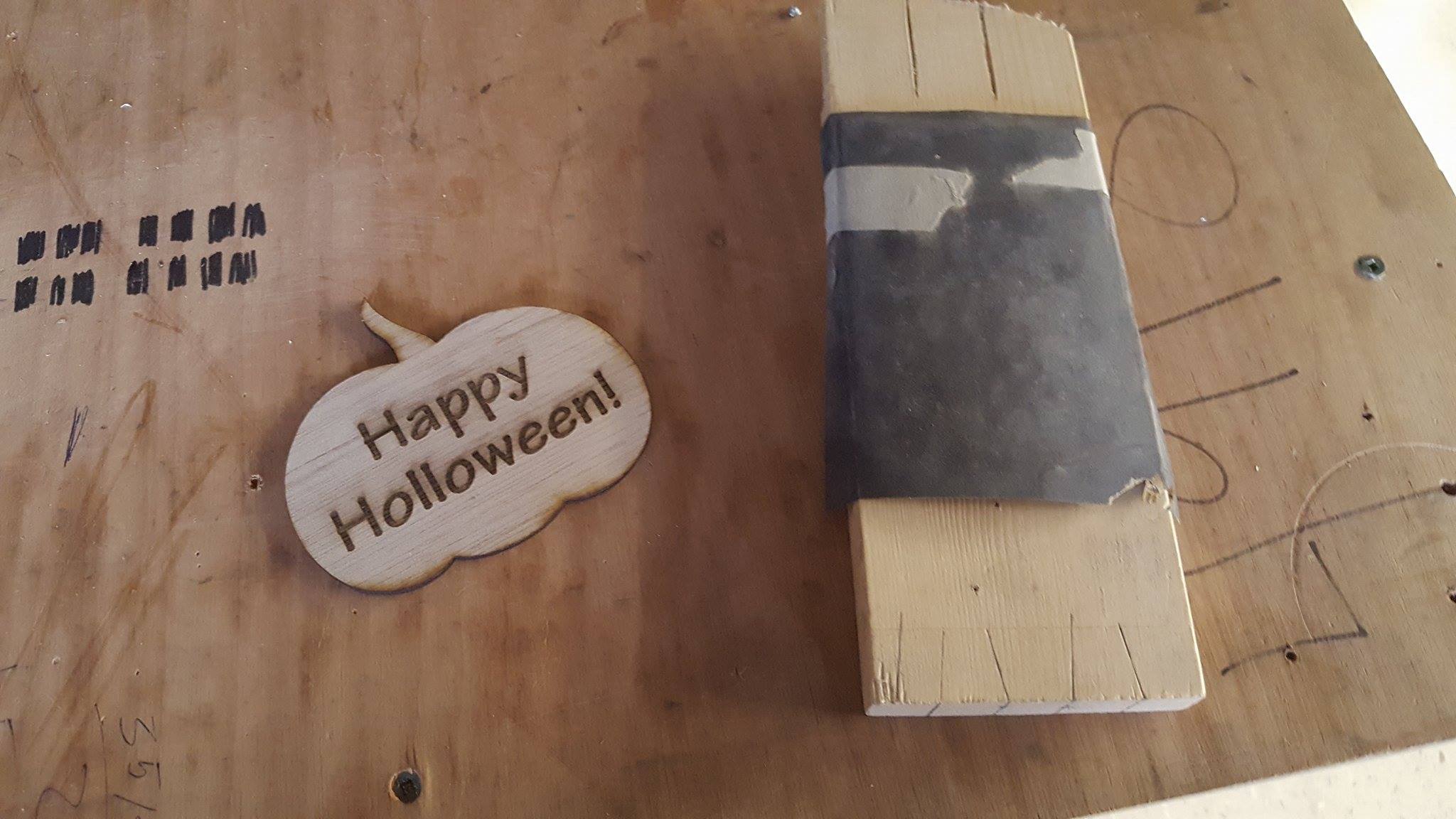

Cut and Assemble


This bit is a bit self explanatory so I am going to let you guys have at it.
