Welcome to The Interlace Project!
Our mission is to make weaving more accessible by designing open-source weaving looms
The Mini Frame Loom, has been designed to teach the basics of weaving and it's small size makes it ideal for little hands.
Follow our video tutorial or our step-by-step photo instructions to learn how to use the Mini Frame Loom to create your own weaving!
What is Weaving?
Weaving is a method of creating cloth from two sets of yarns or threads interlaced at right angles. The lengthwise threads are called the warp and the sideways threads are called the weft . Cloth is usually woven on a loom , a device that holds the warp threads taut and in parallel to each other while weft threads are woven through them.
Materials for the Loom
- 3mm MDF 15x20cm (6x8")
Materials for Weaving
- Wool
- Scissors
- Large eye wool needle
Video Tutorial

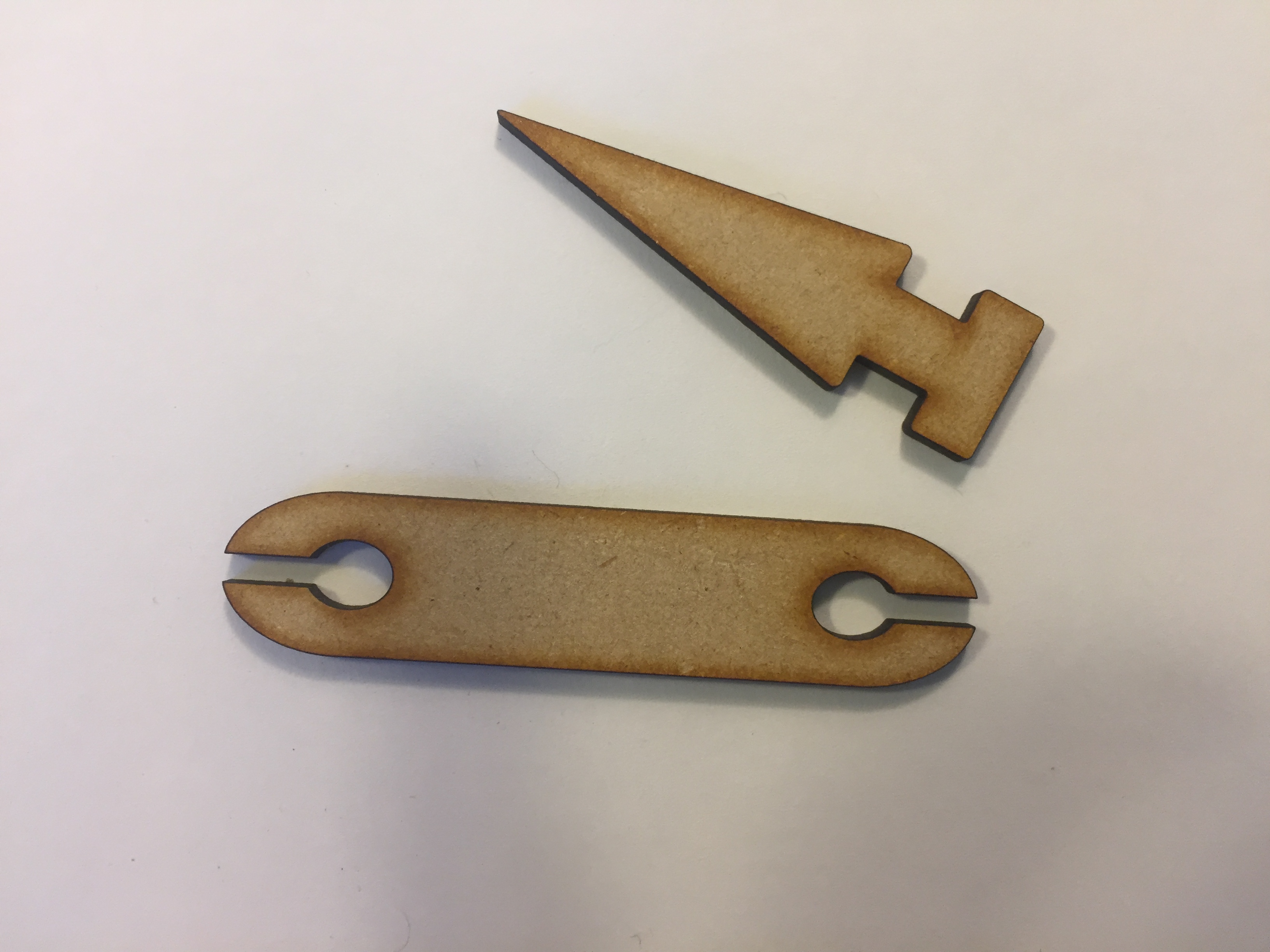

The Mini Frame Loom can be cut from a single piece of 15x20cm (6x8") 3mm MDF.
Make a Slip Knot

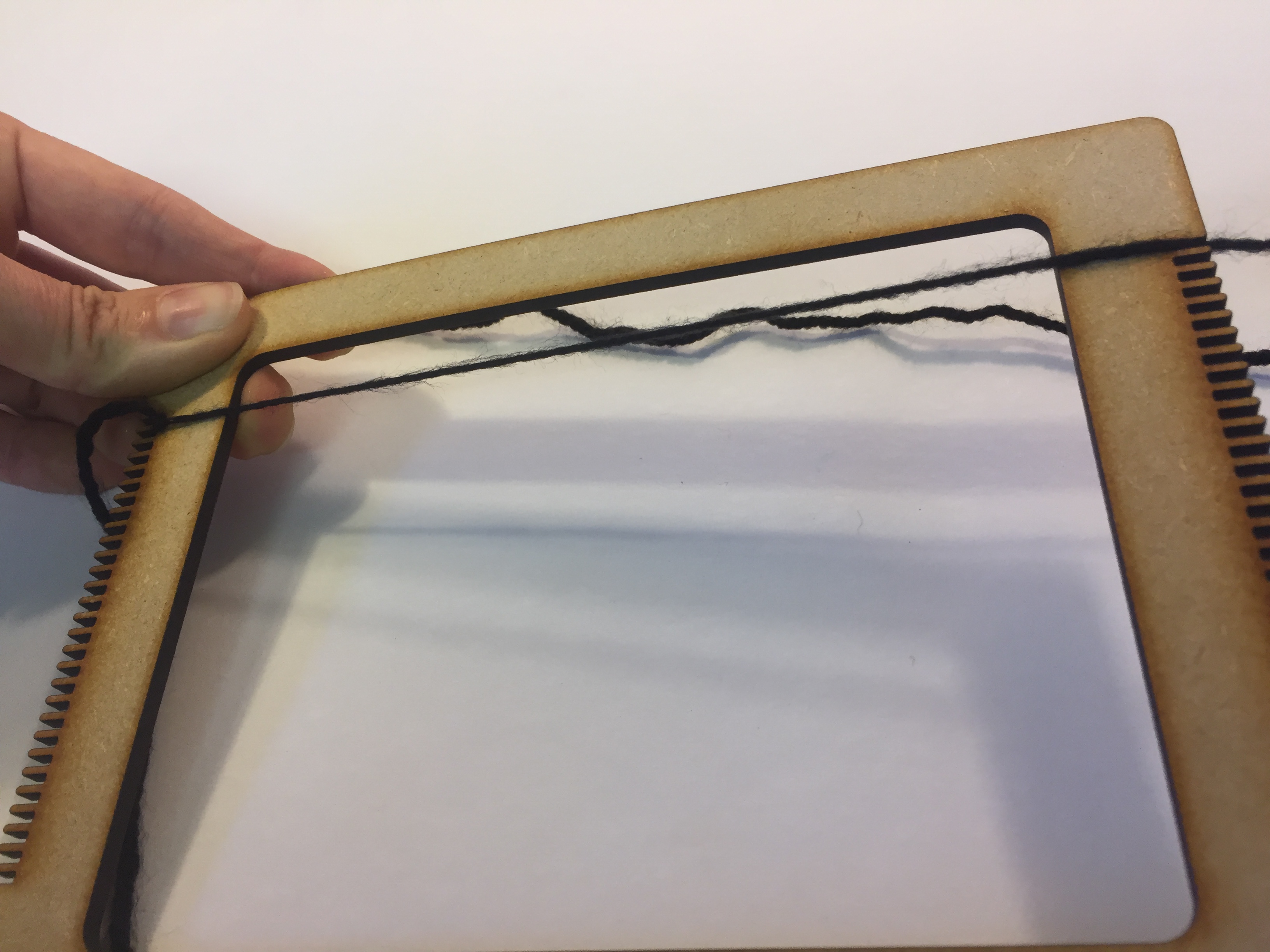

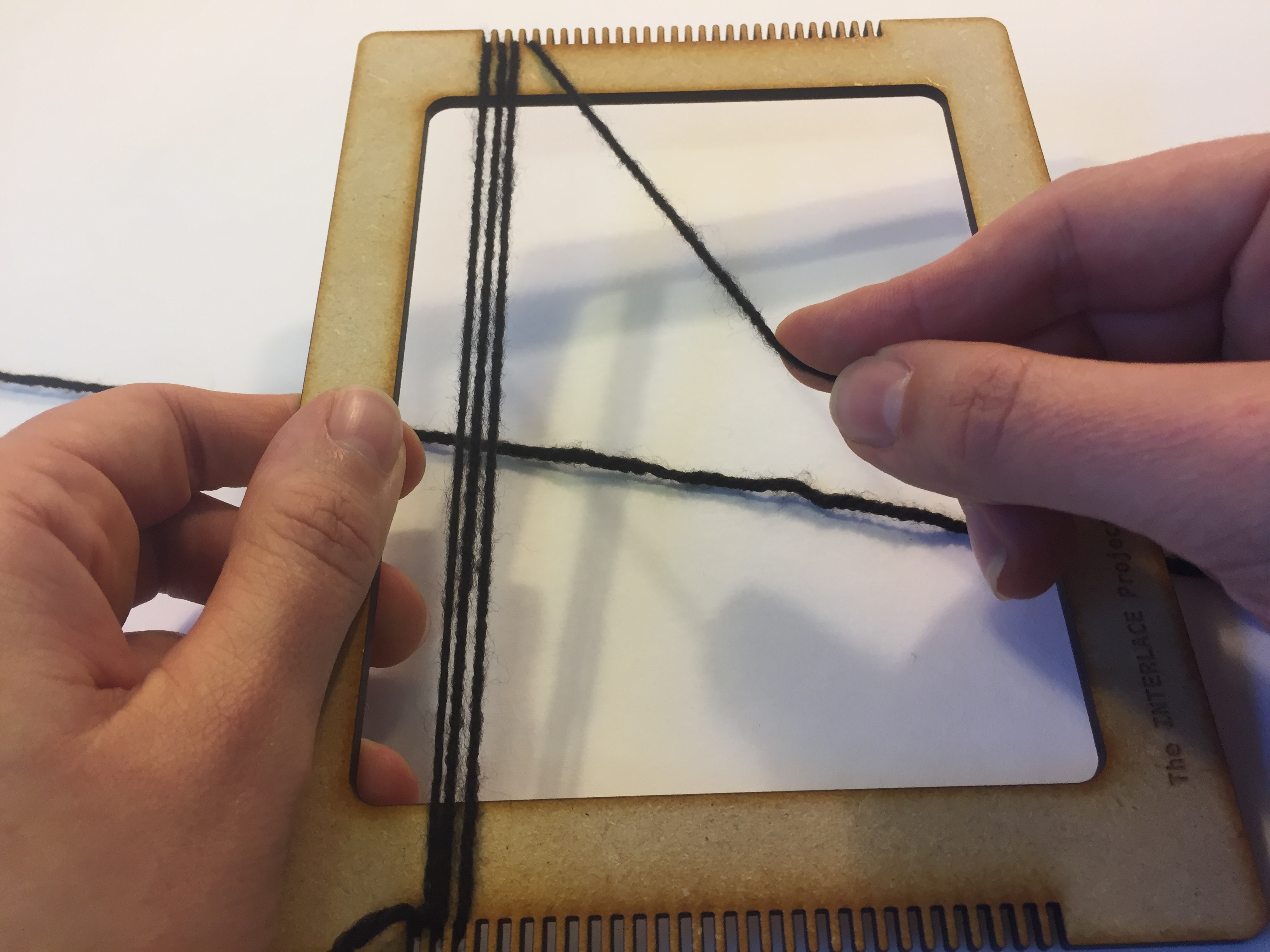

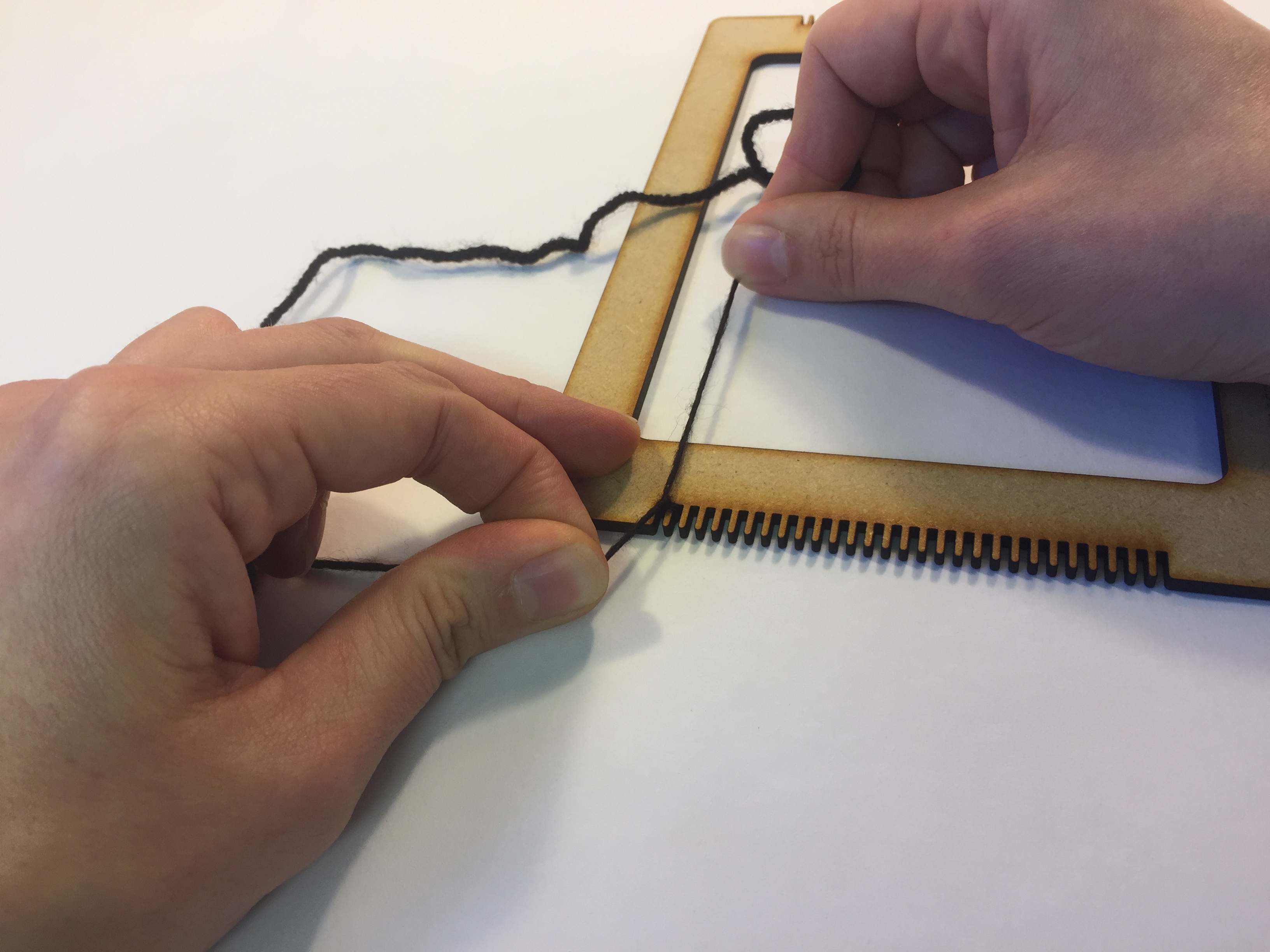

Secure the Beginning of the Warp

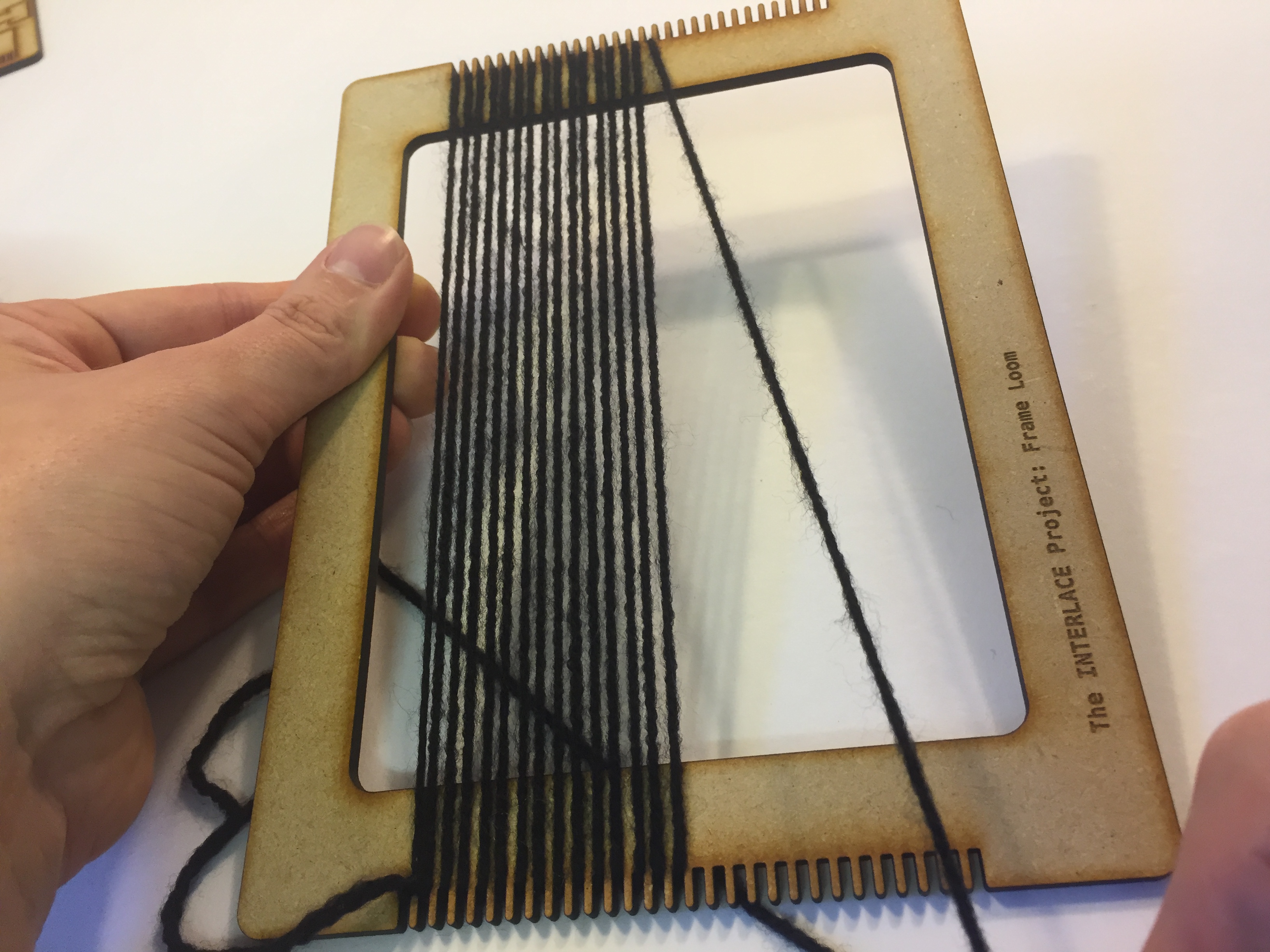

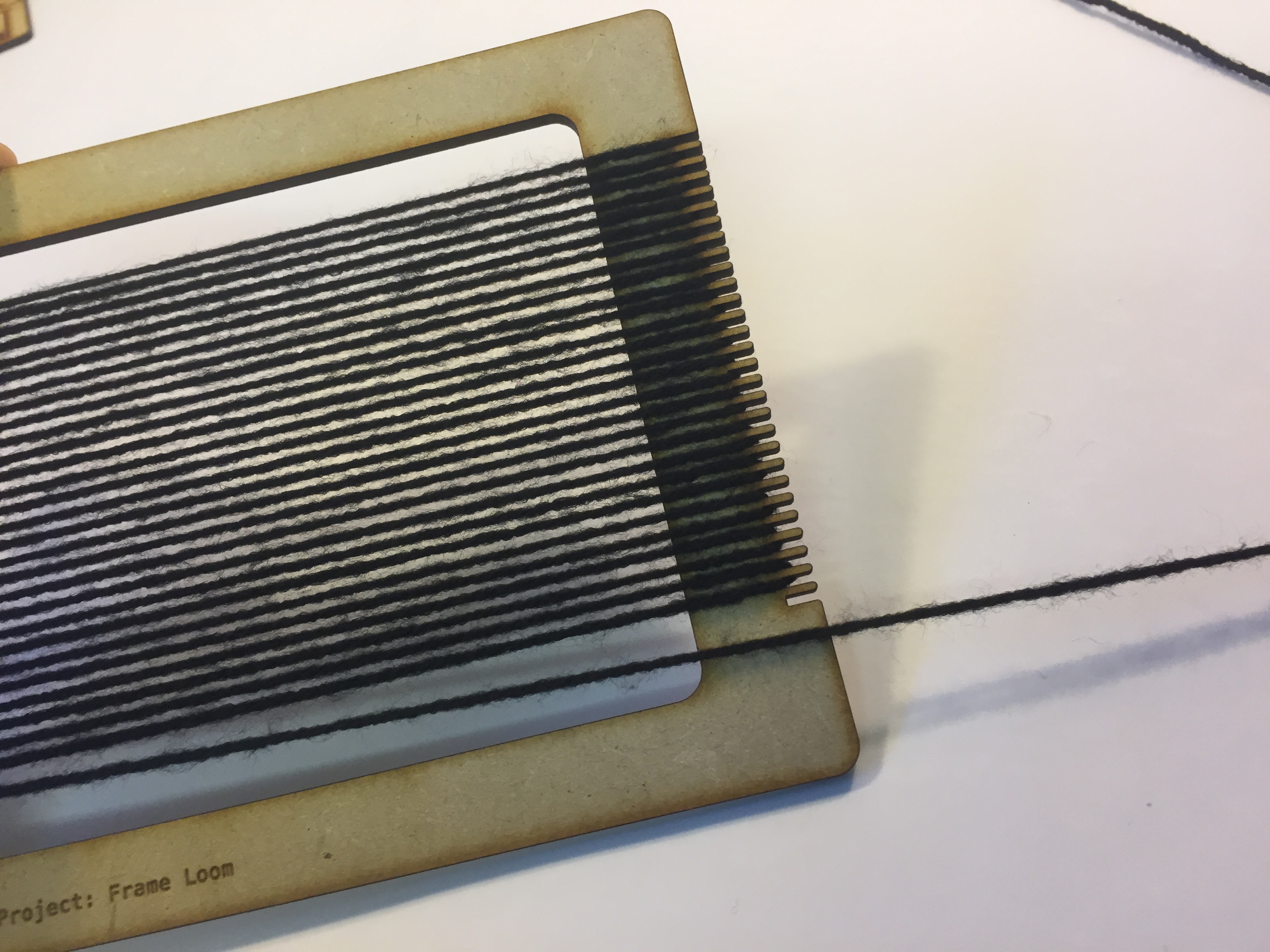

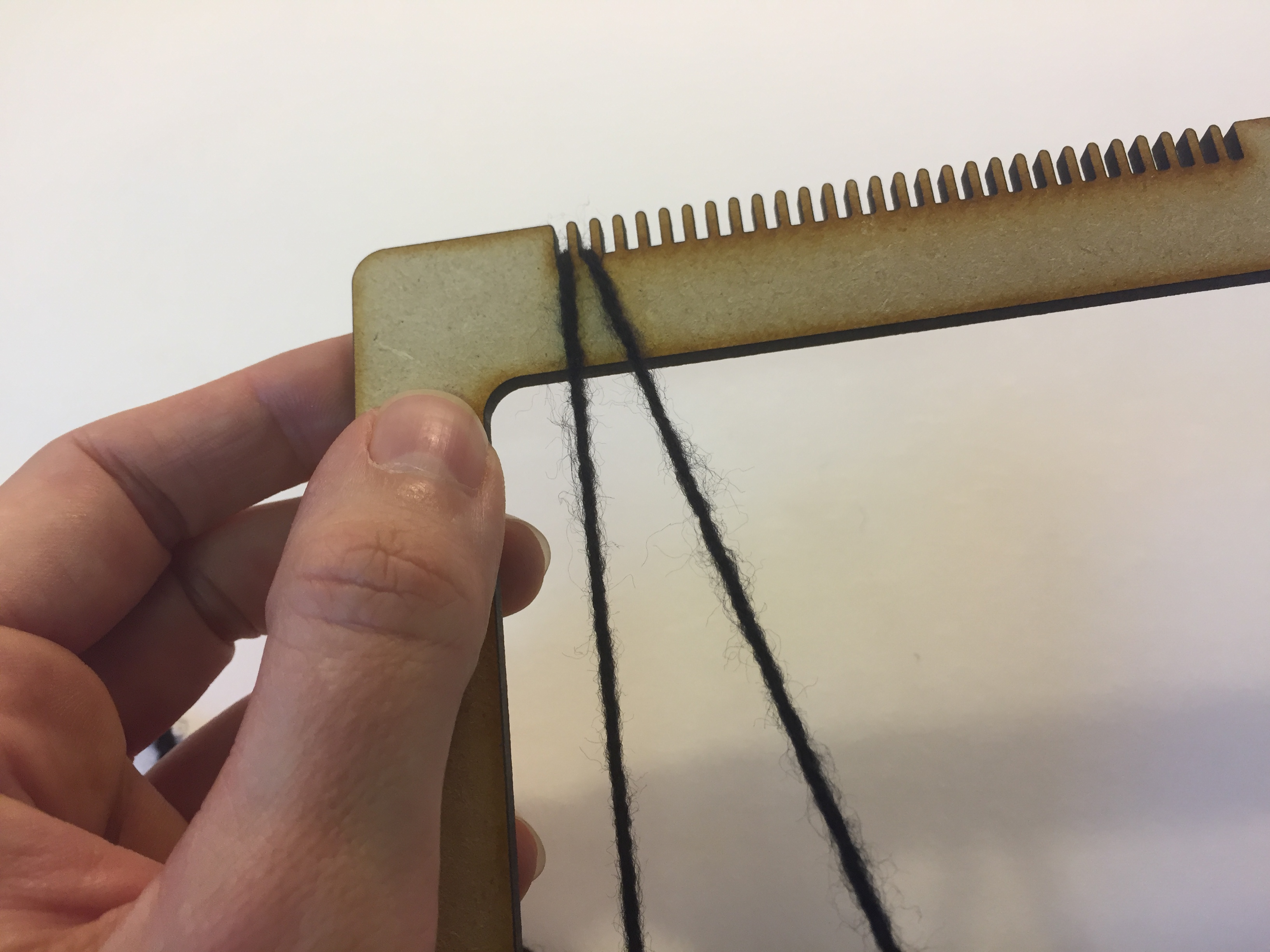

Warp Up the Loom

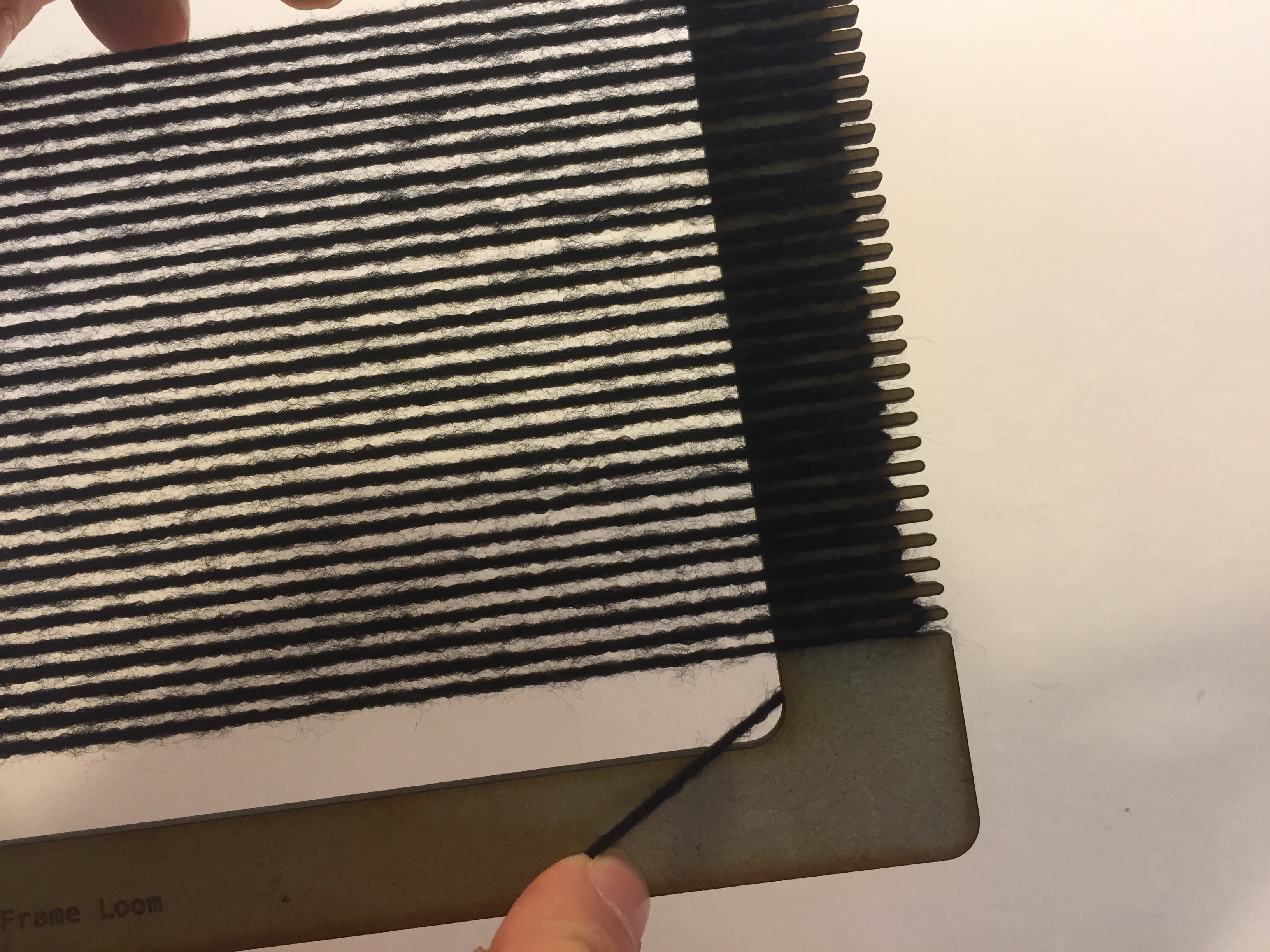

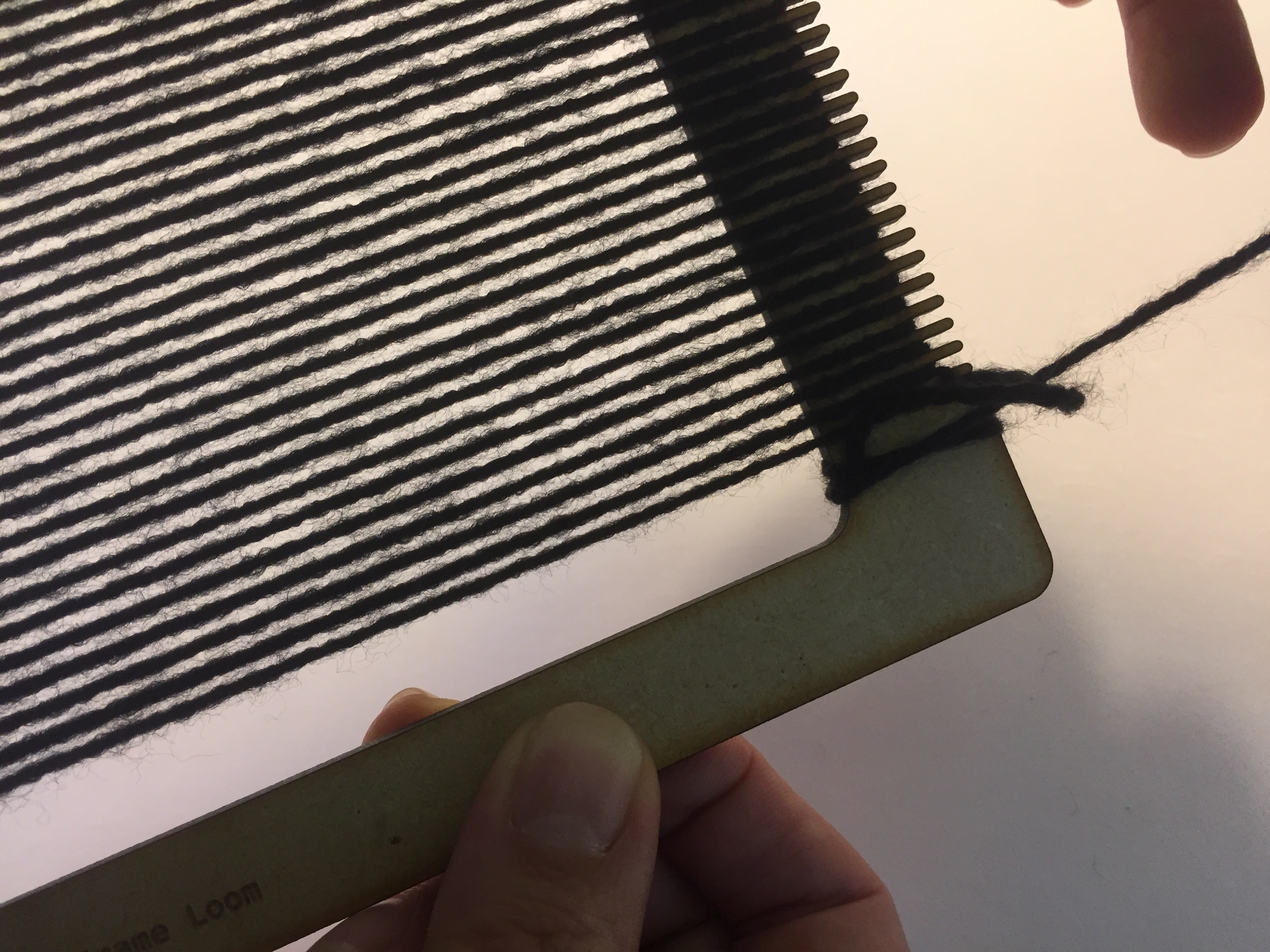

Secure the End of the Warp
Weave the First Heddle Stick - Alternate Each Warp Thread Under or Over the Stick

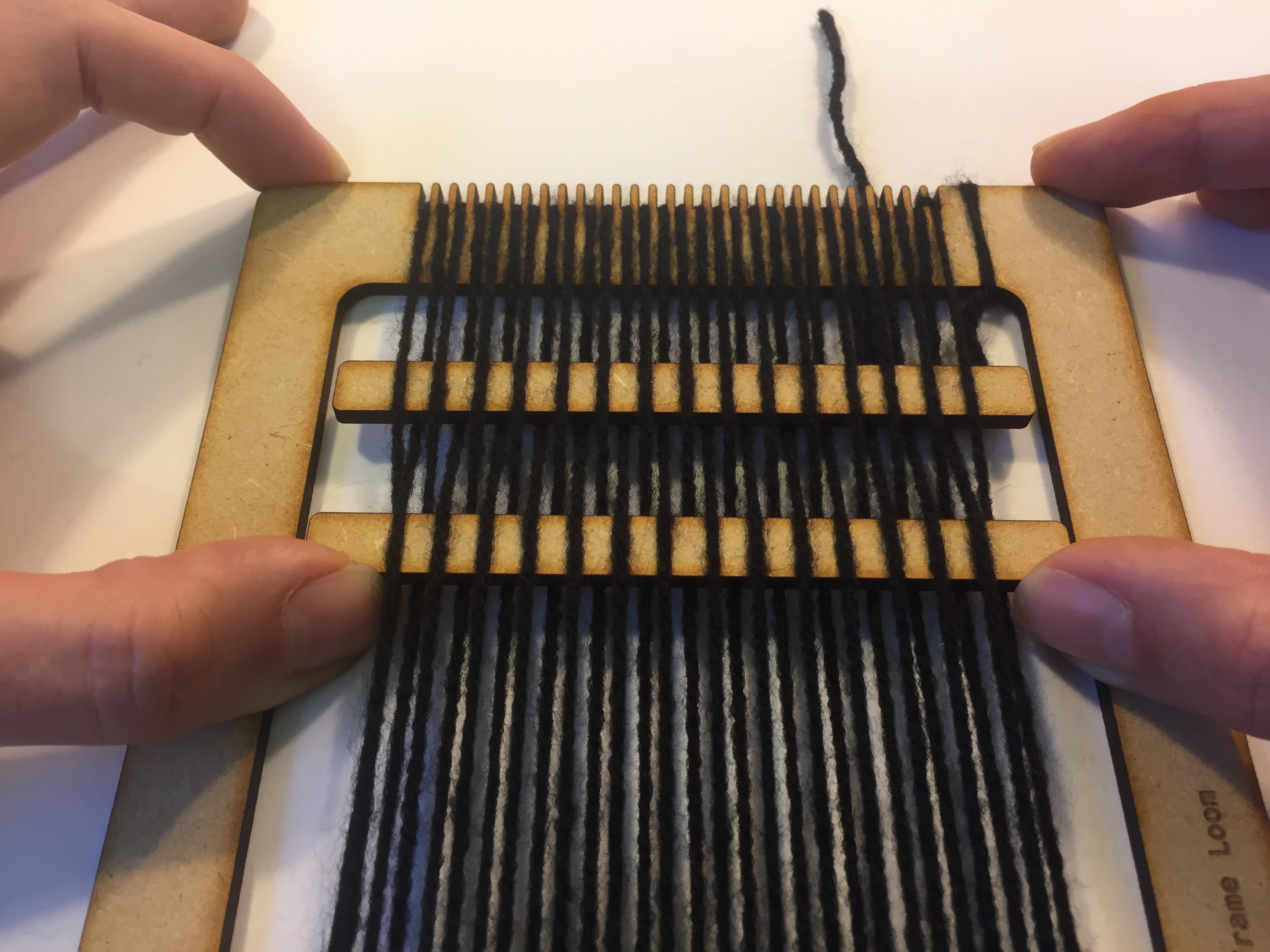

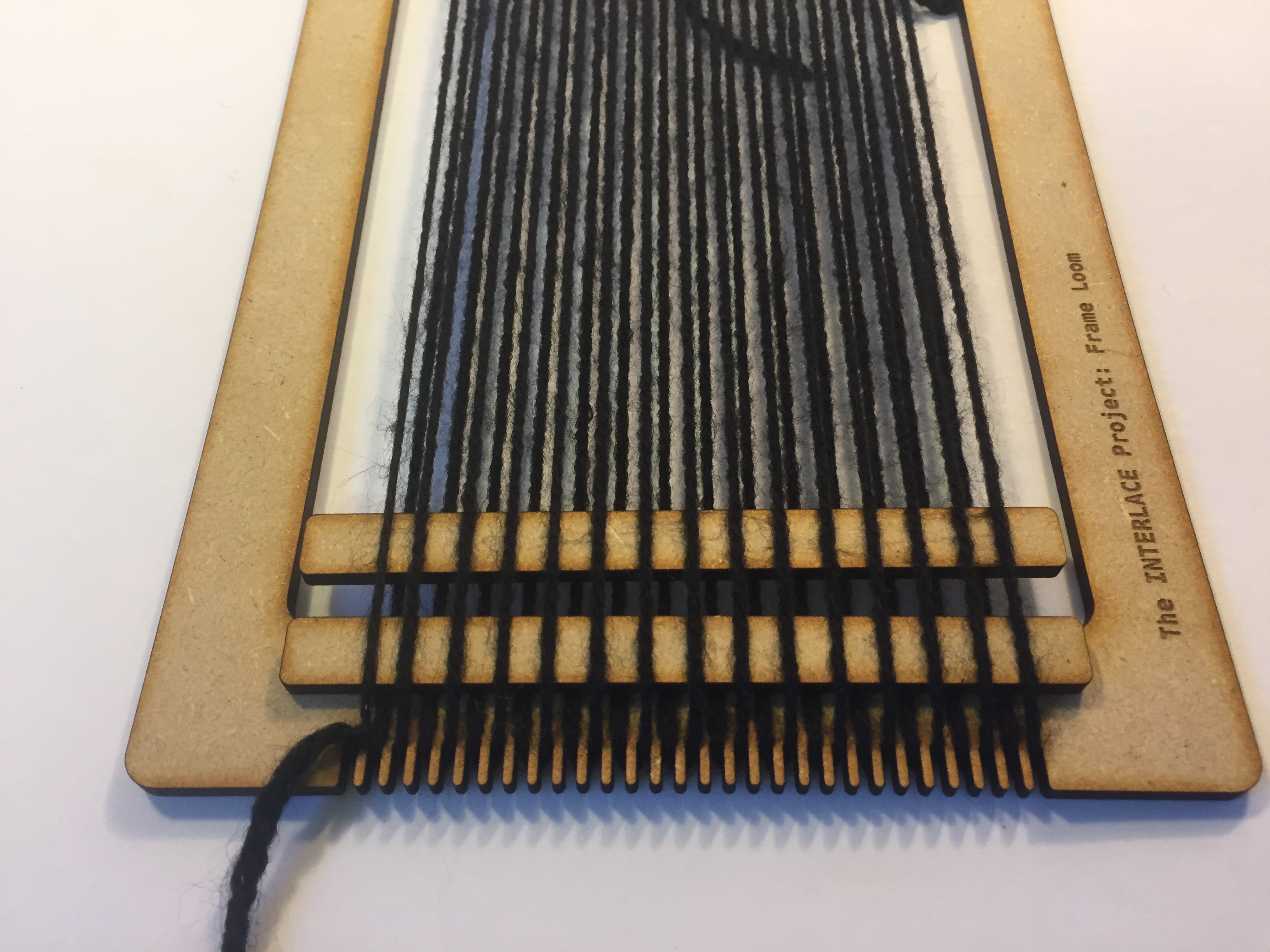

Push the First Heddle Stick to the Bottom of the Frame to Tension the Warp Threads

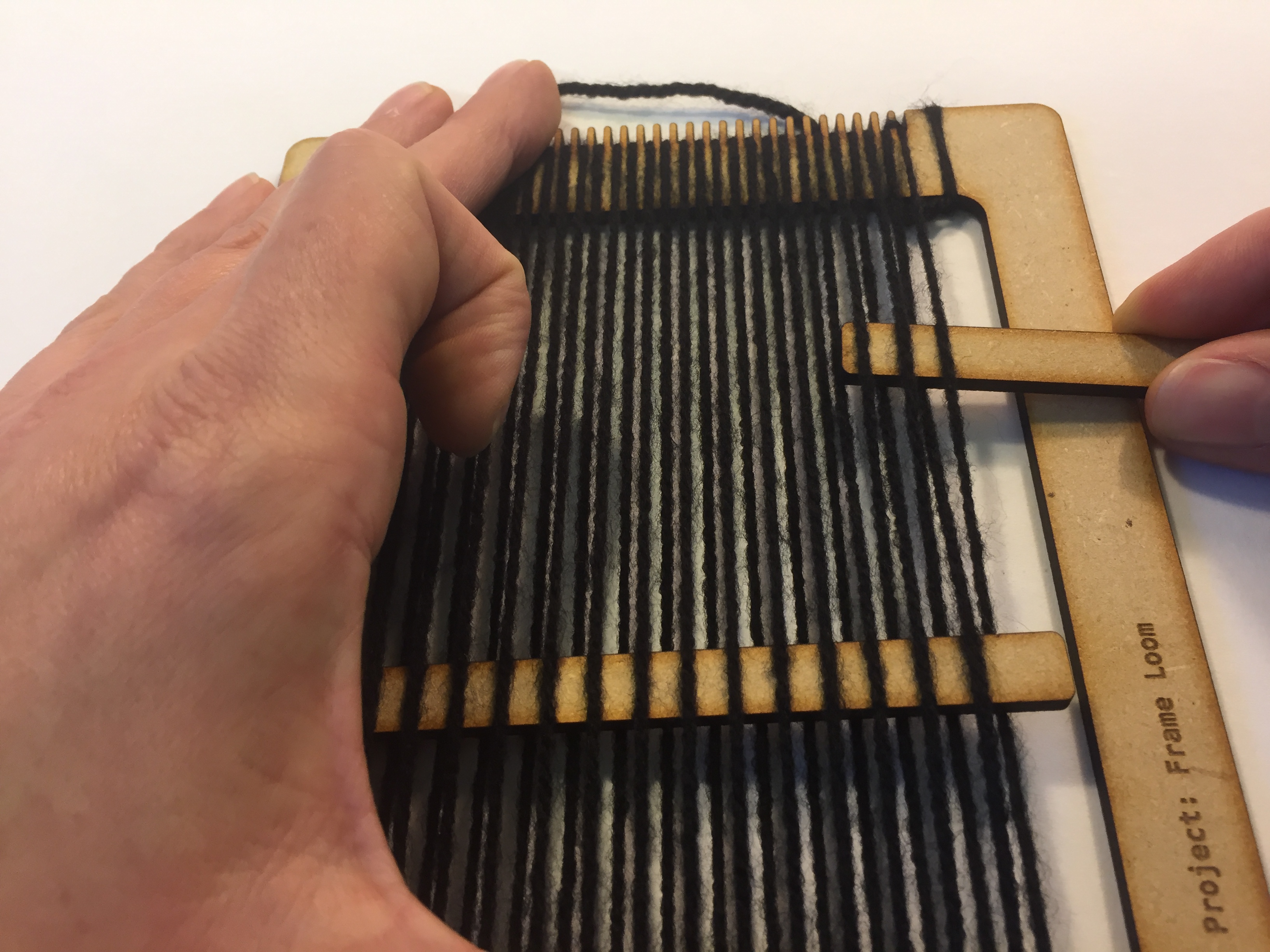

Slide the Second Heddle Stick Into the Gap Created by the First Stick

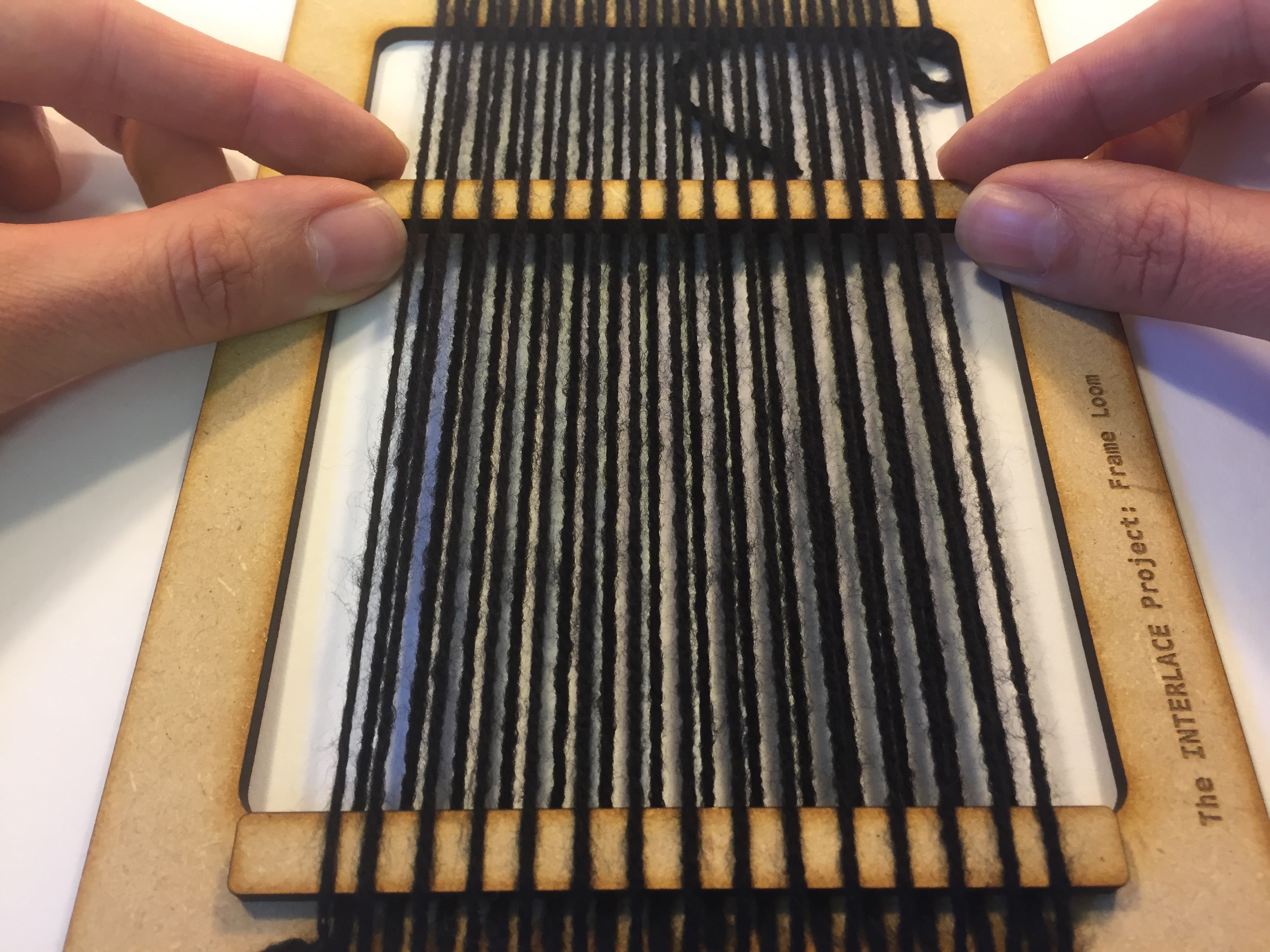

Push Second Heddle Stick Towards the Top of the Frame
Weave the Third Stick Alternating the Position of the Warp Threads - the Upper Warp Threads Should Be Placed Under the Stick and the Lower Threads Placed Over the Stick

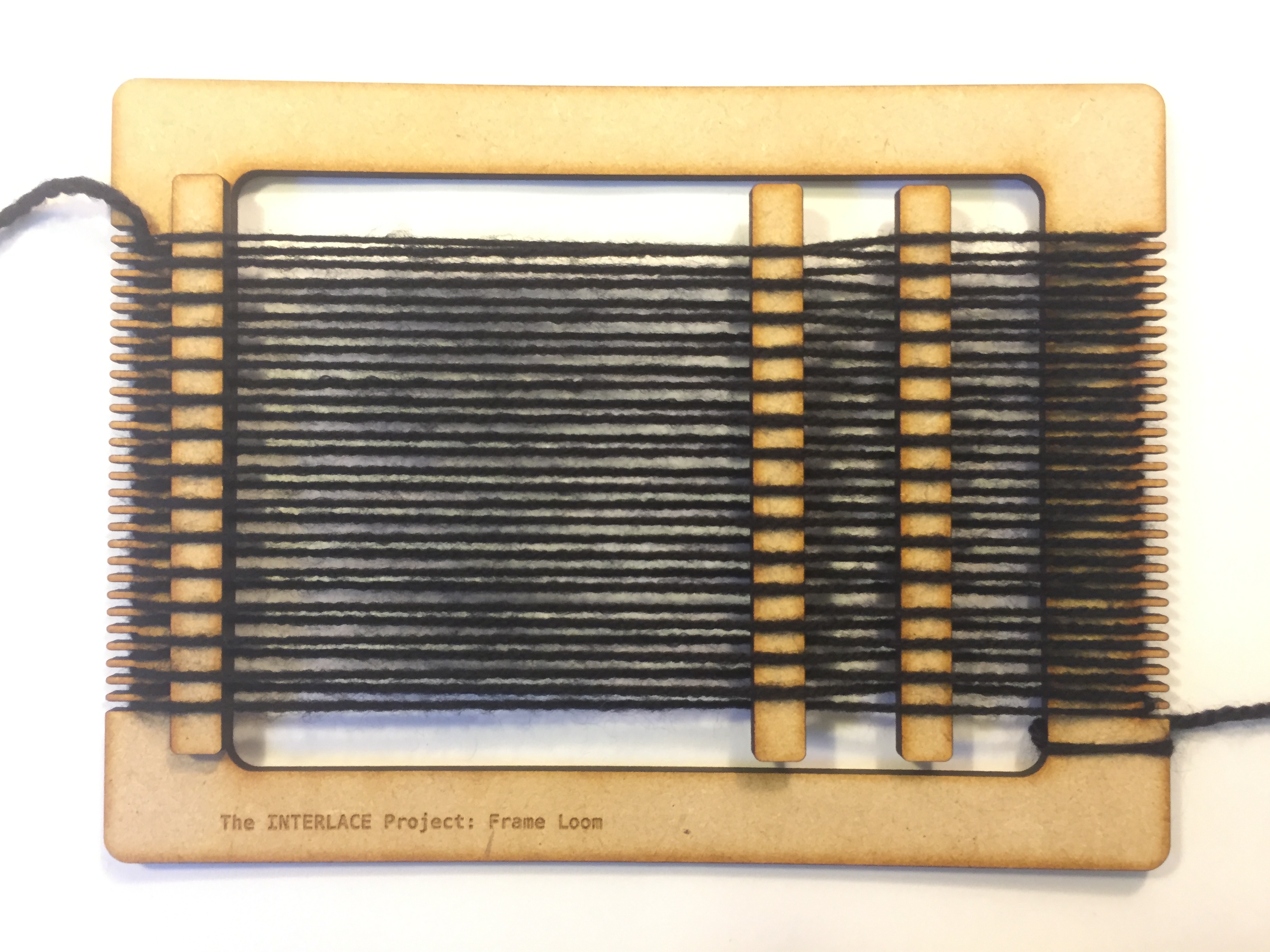

Push the Third Heddle Stick Towards the Top of the Frame

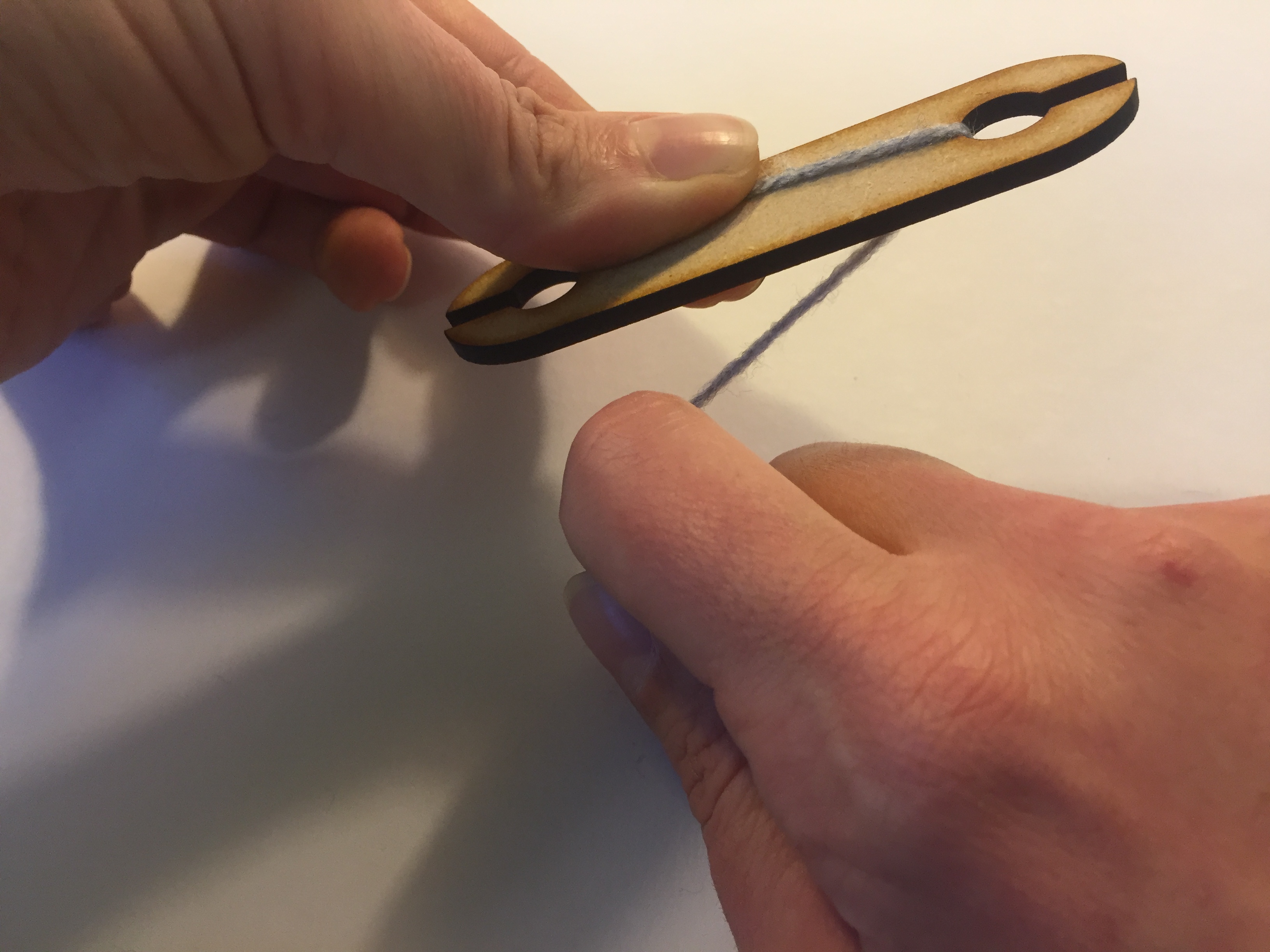

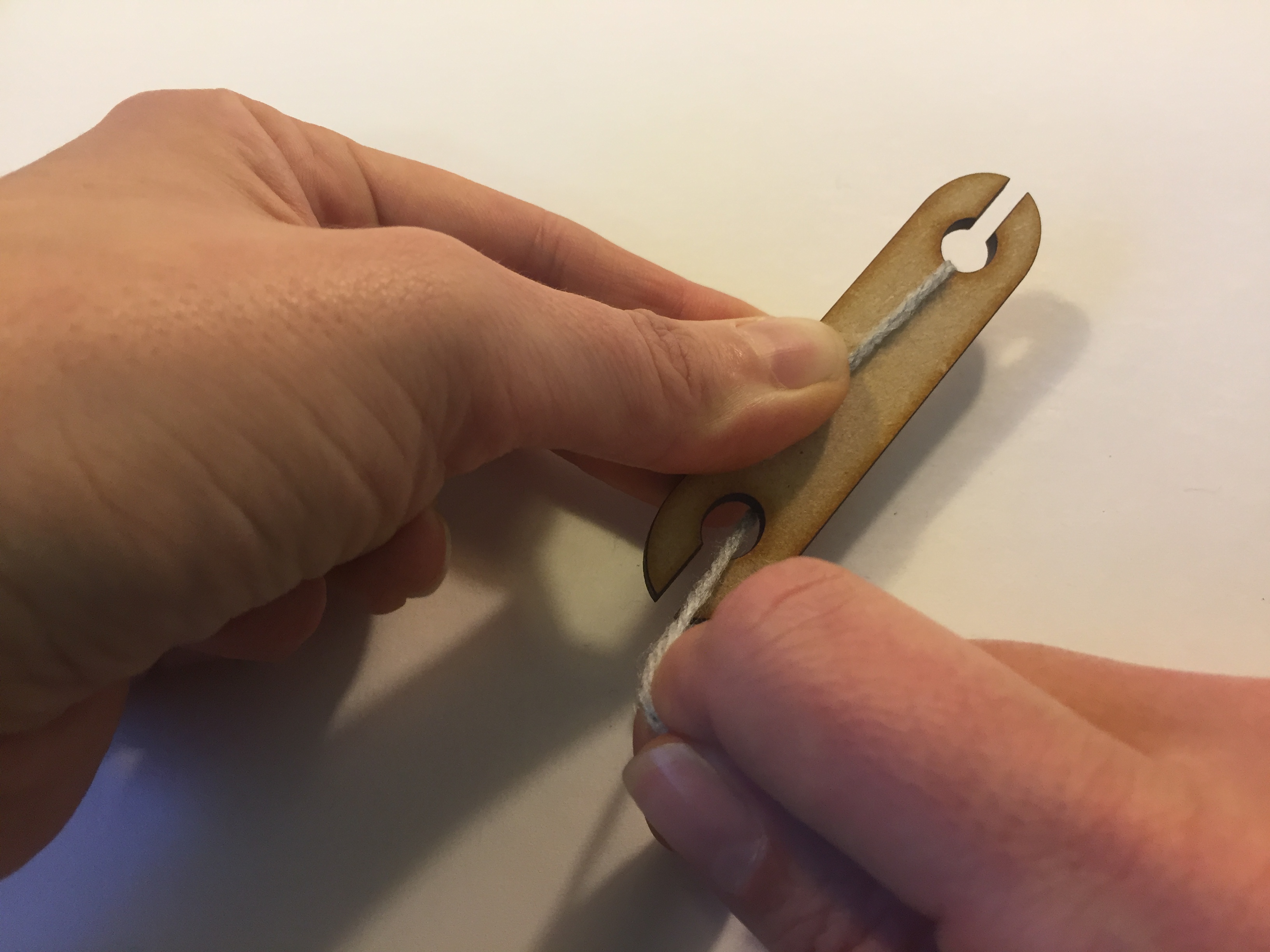

Wind the Weft Thread Onto the Shuttle

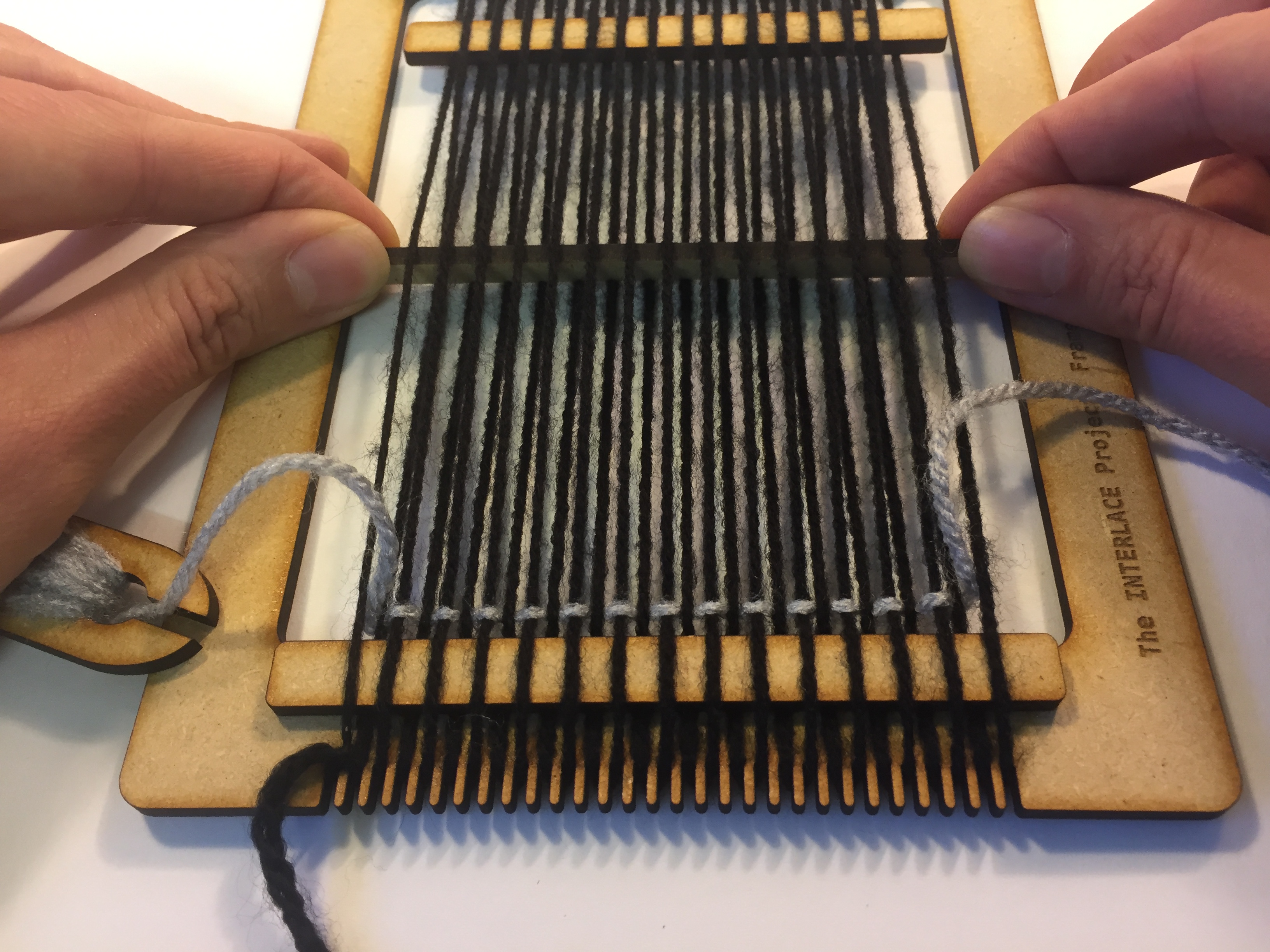

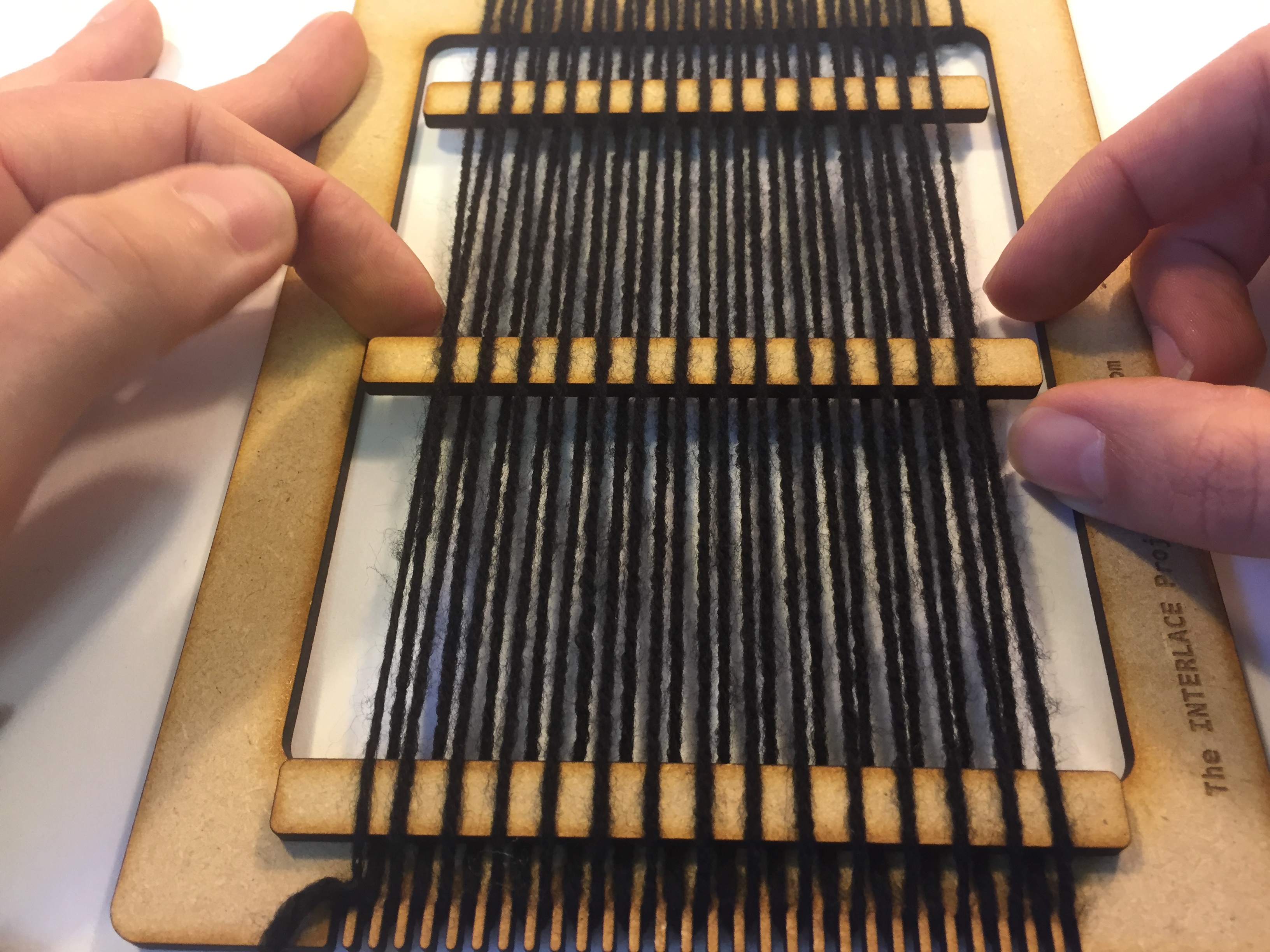

Pull the Middle Stick Towards the Centre of the Frame and Turn on Its Side - This Creates the Gap (or "shed") Through Which to Weave the Weft

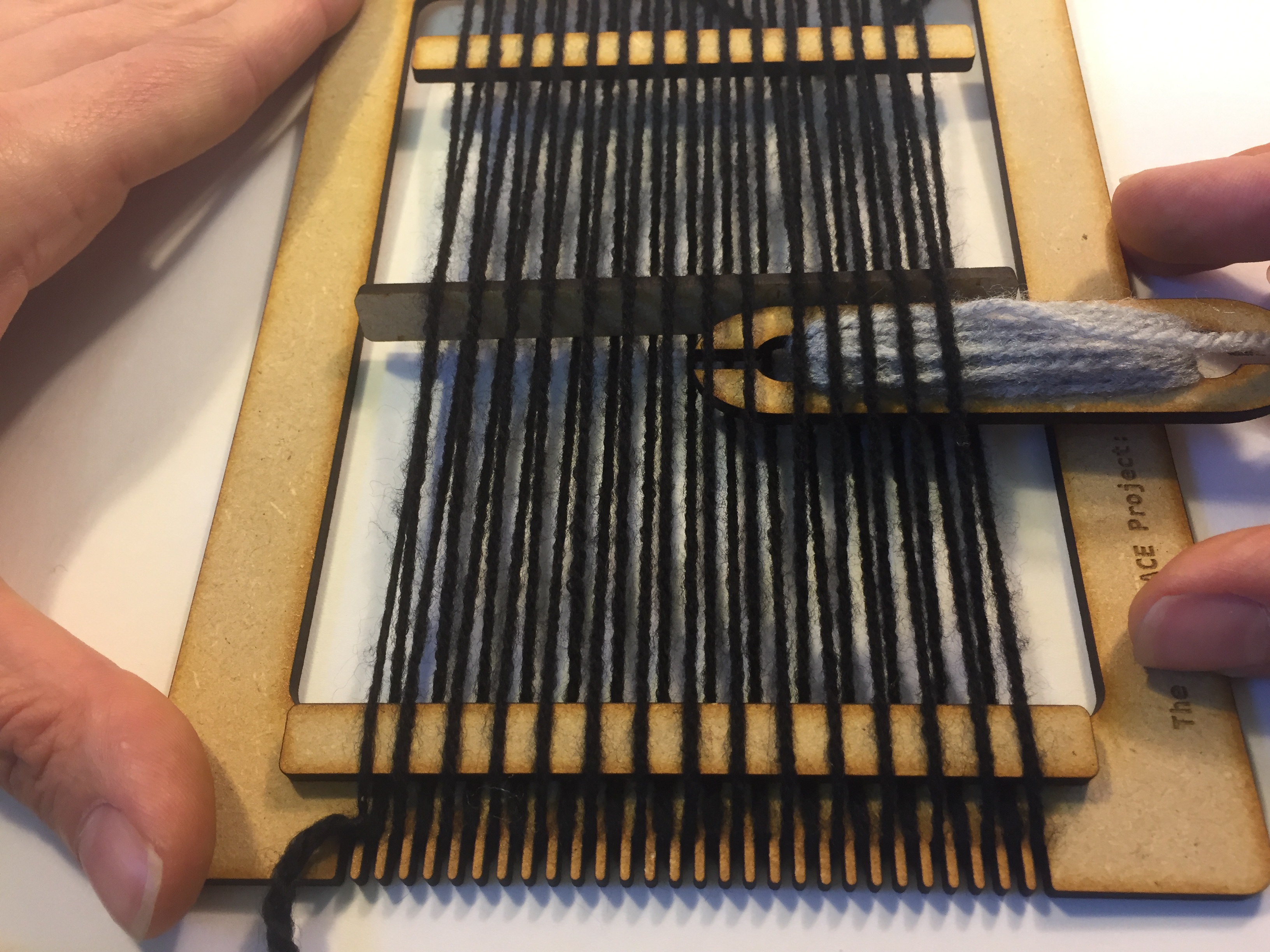

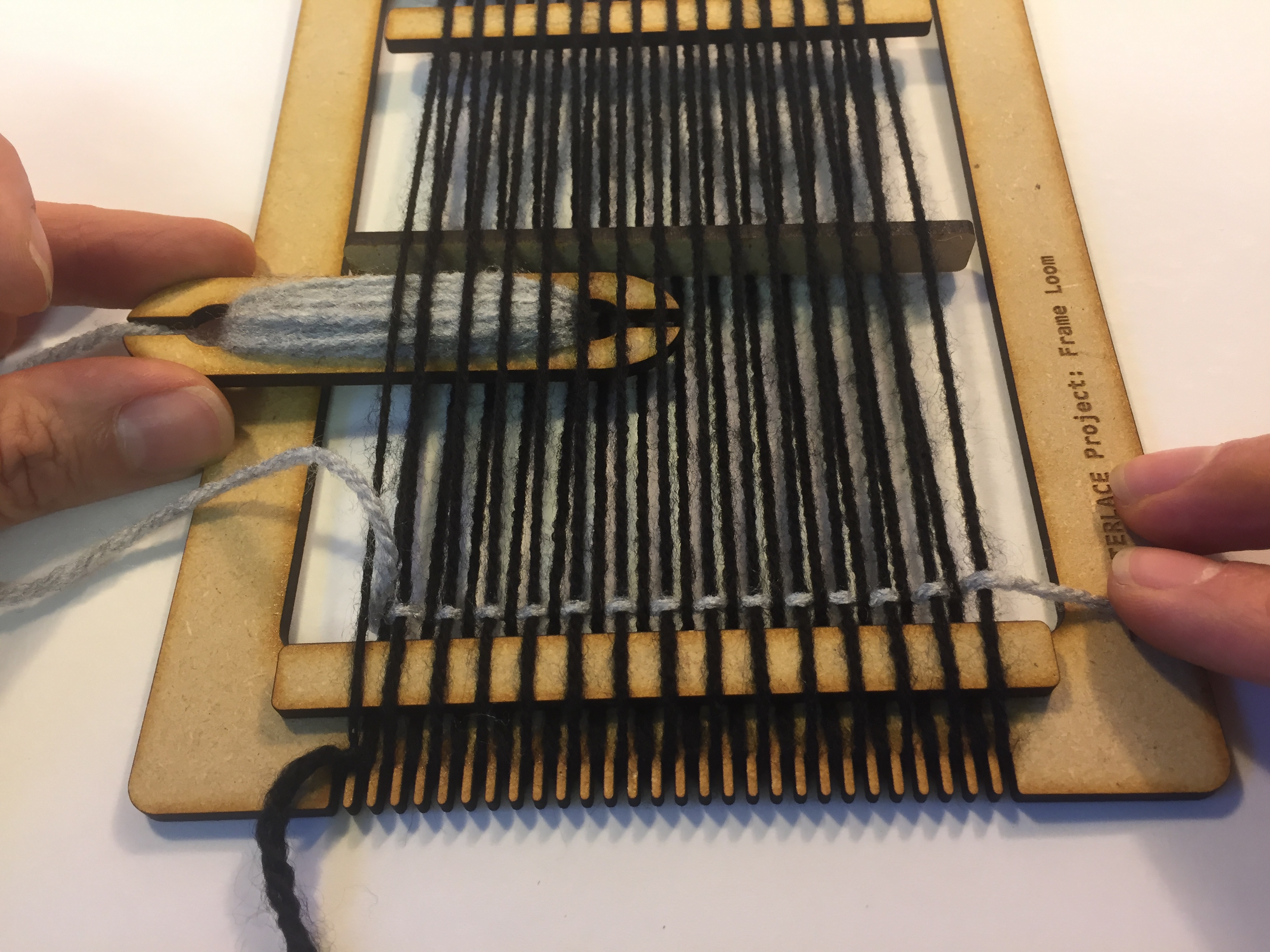

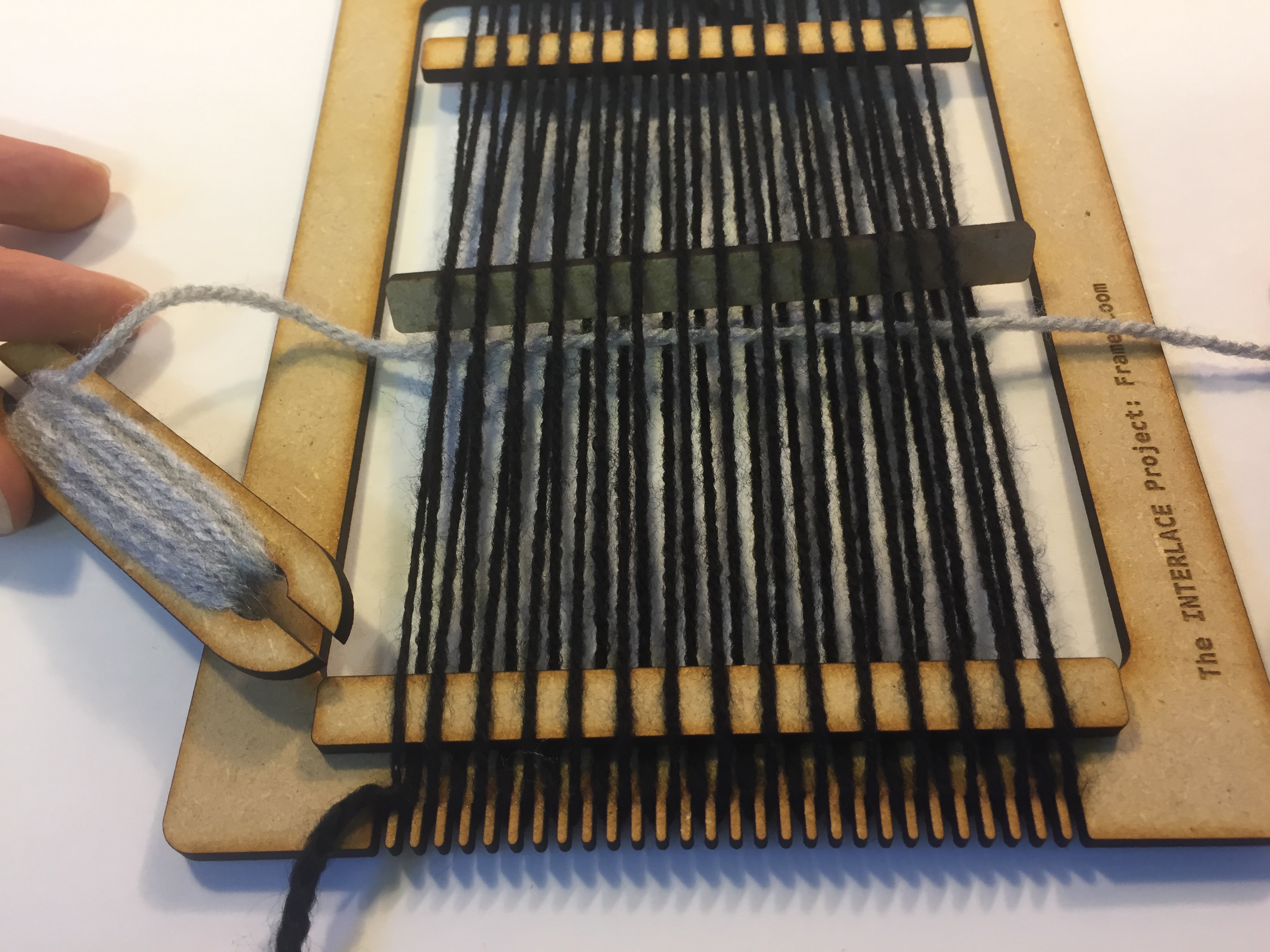

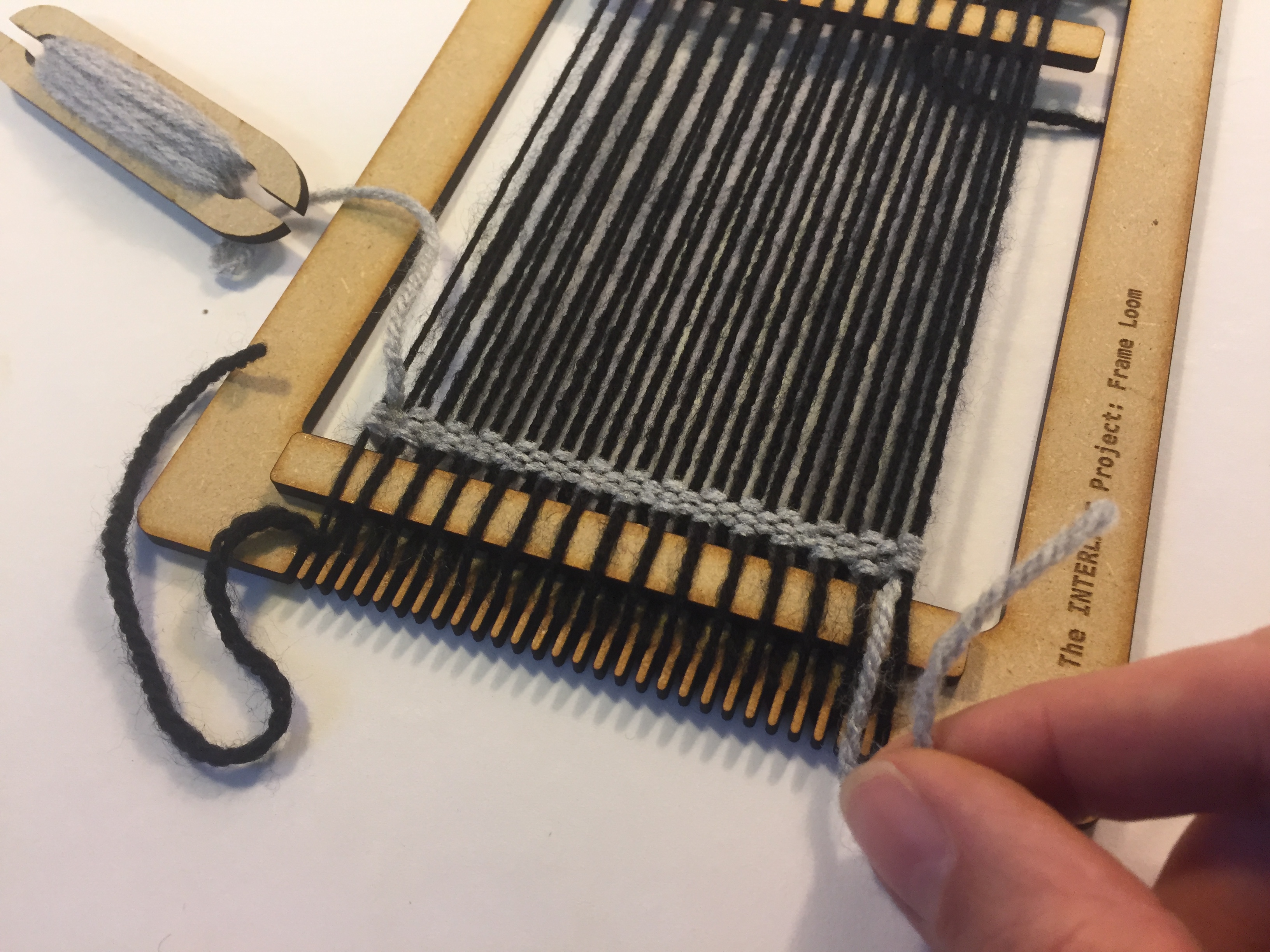

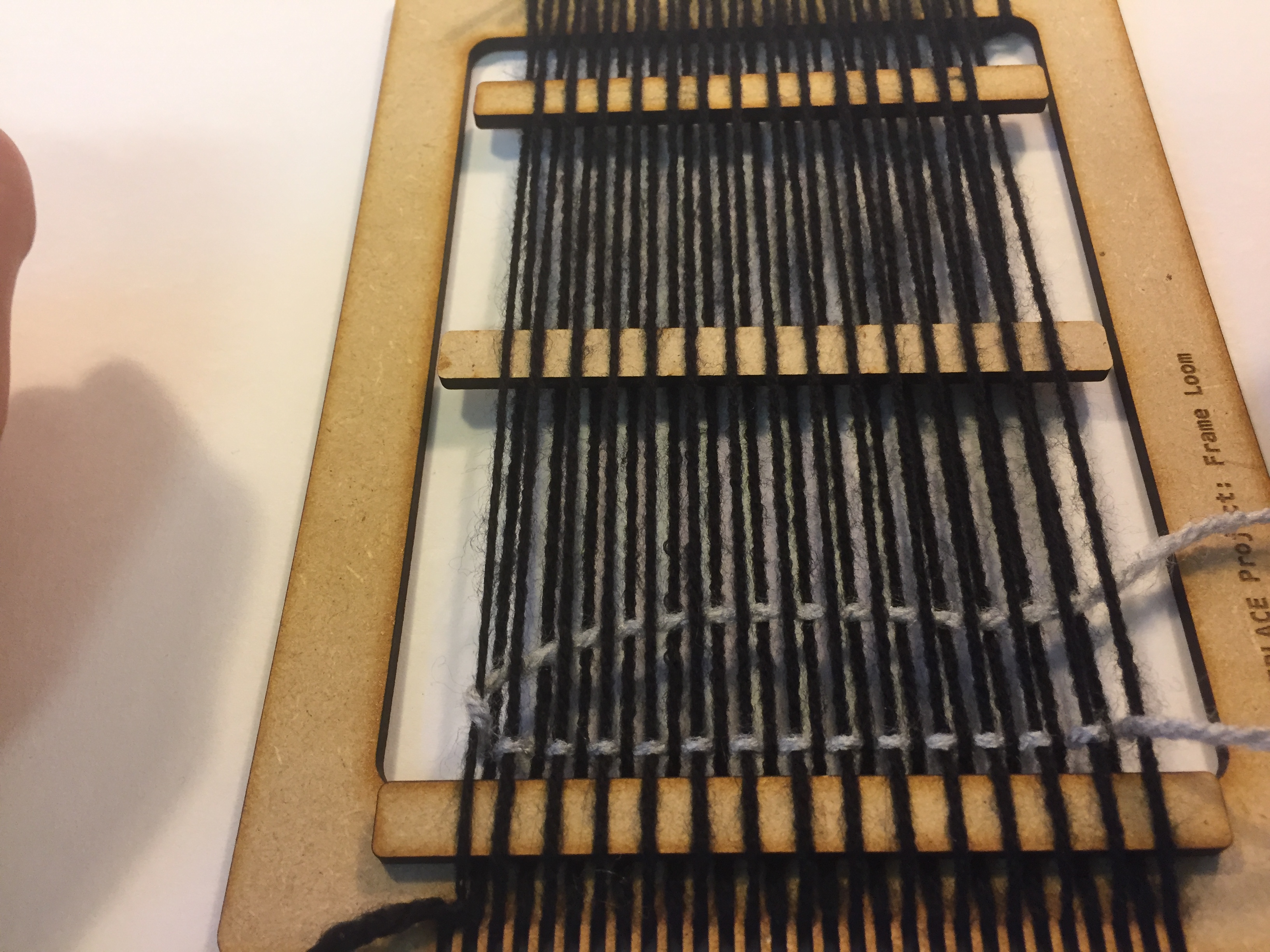

Push the Shuttle Through the Shed - Make Sure to Leave Enough Weft to Allow a Needle to Be Threaded When You Come to Secure the Ends
Remove the Middle Heddle Stick

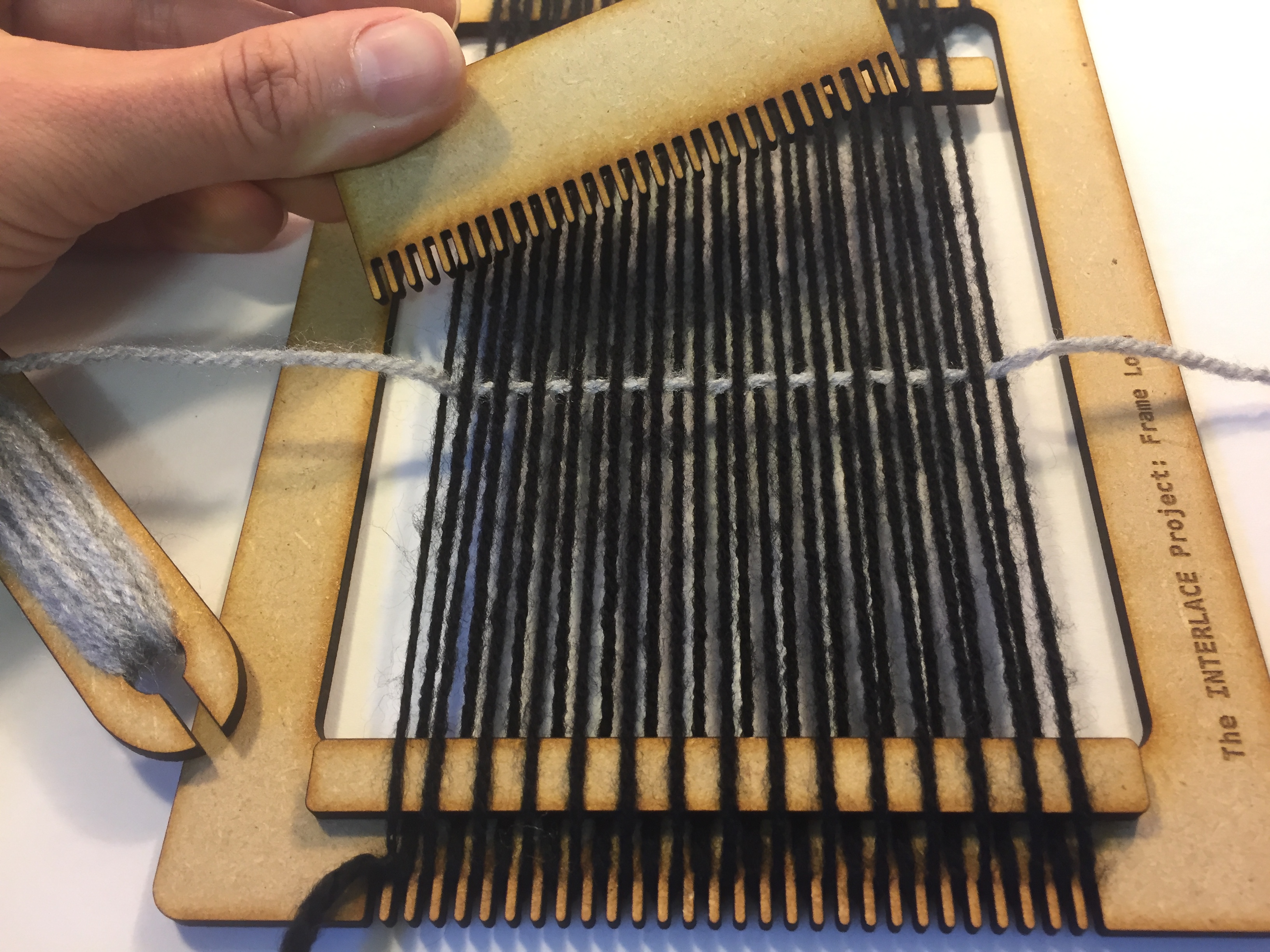

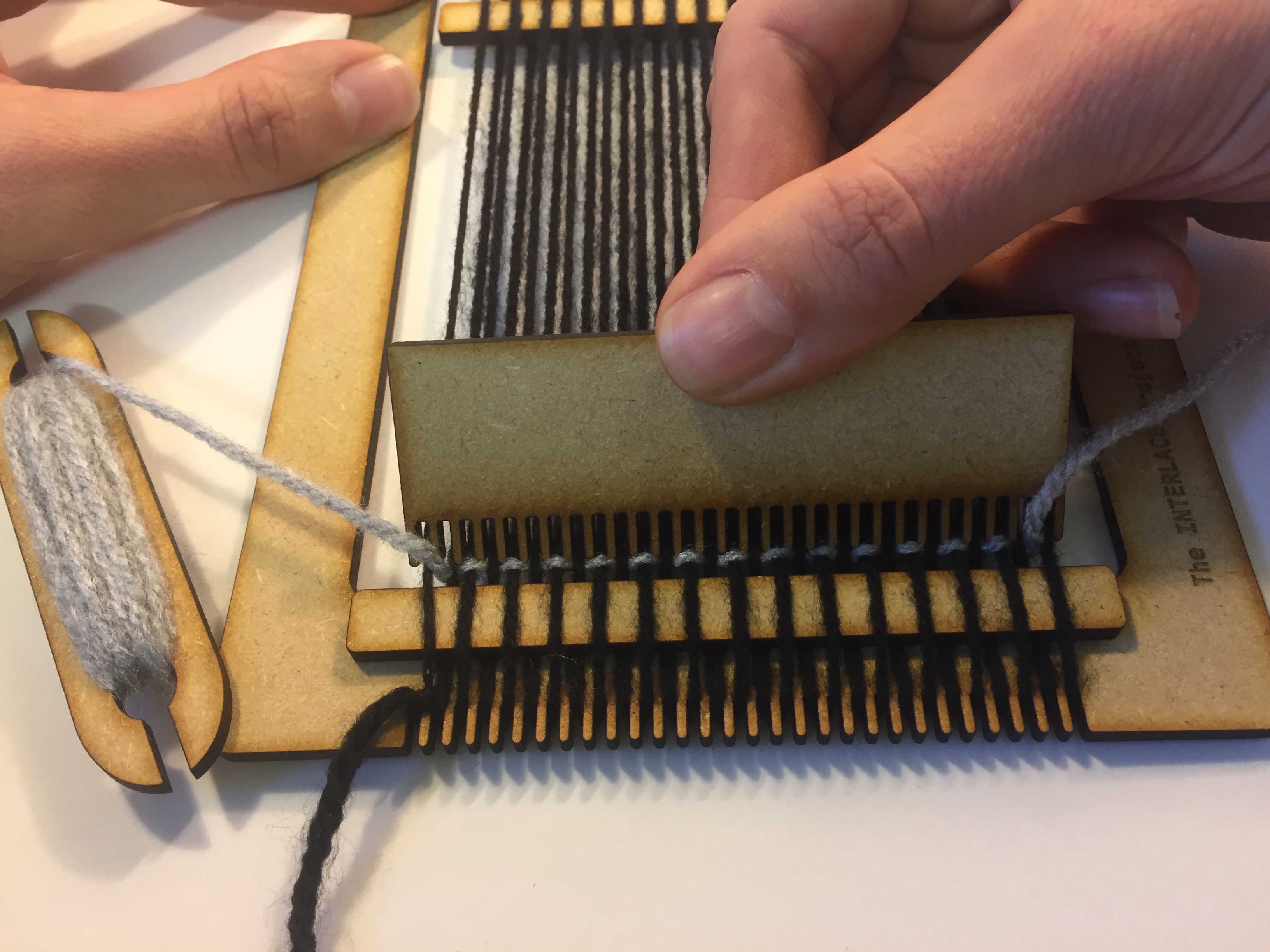

Use the Reed (looks Like a Comb) to Push the Weft Yarn Securely Into Place

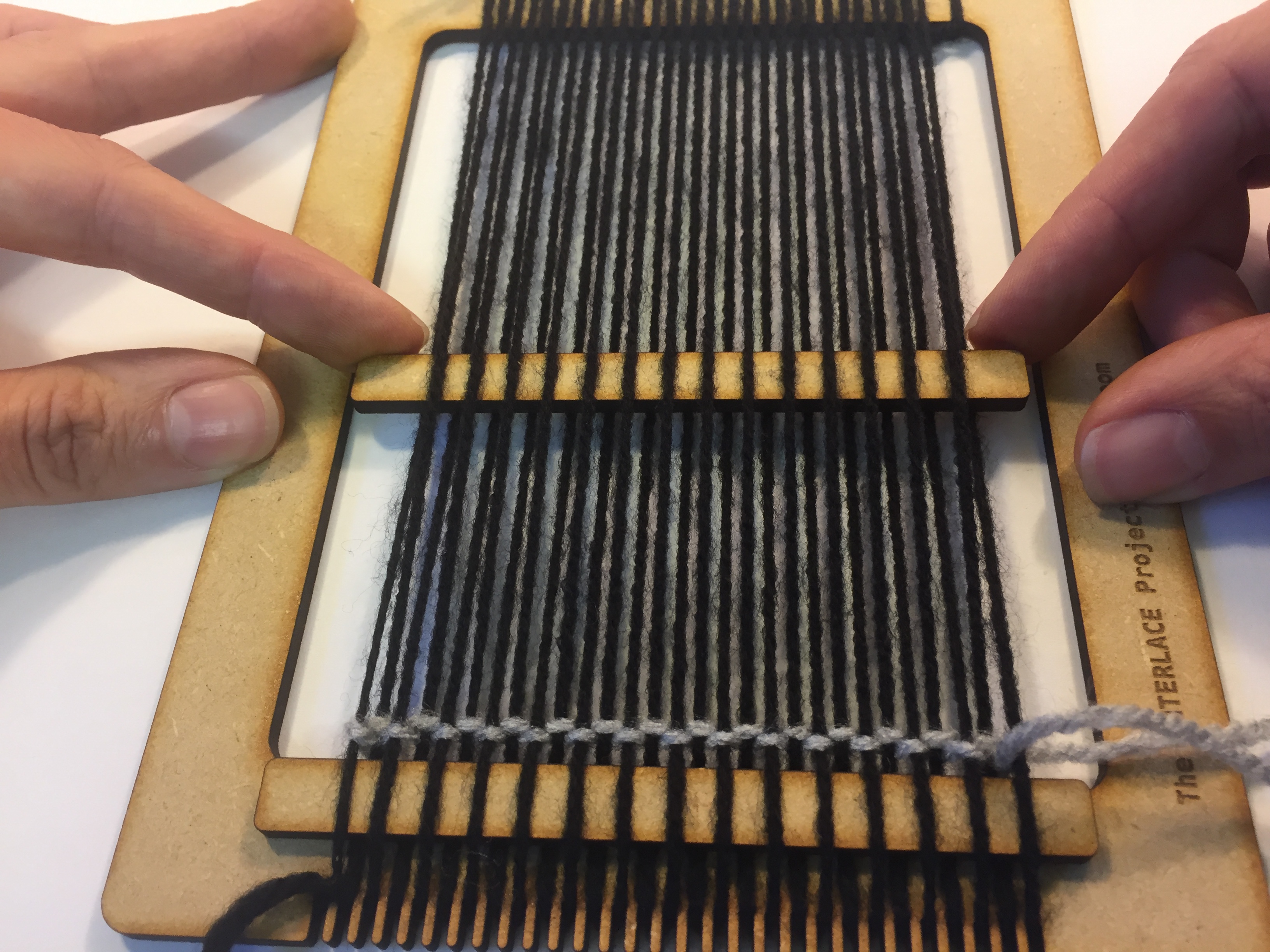

Pull the Top Stick to the Centre of the Frame
Above the Middle Stick Weave the Stick You Have Just Removed, Alternating the Position of the Warp Threads - the Upper Warp Threads Should Be Placed Under the Stick and the Lower Threads Placed Over the Stick
Turn the Middle Stick to Create the Shed and Push the Shuttle Through
Remove the Middle Stick and Use the Reed to Push the Weft Yarn Securely Into Place
Pull the Top Stick to the Middle and Weave the Spare Stick Above, Alternating the Warp Thread Positions

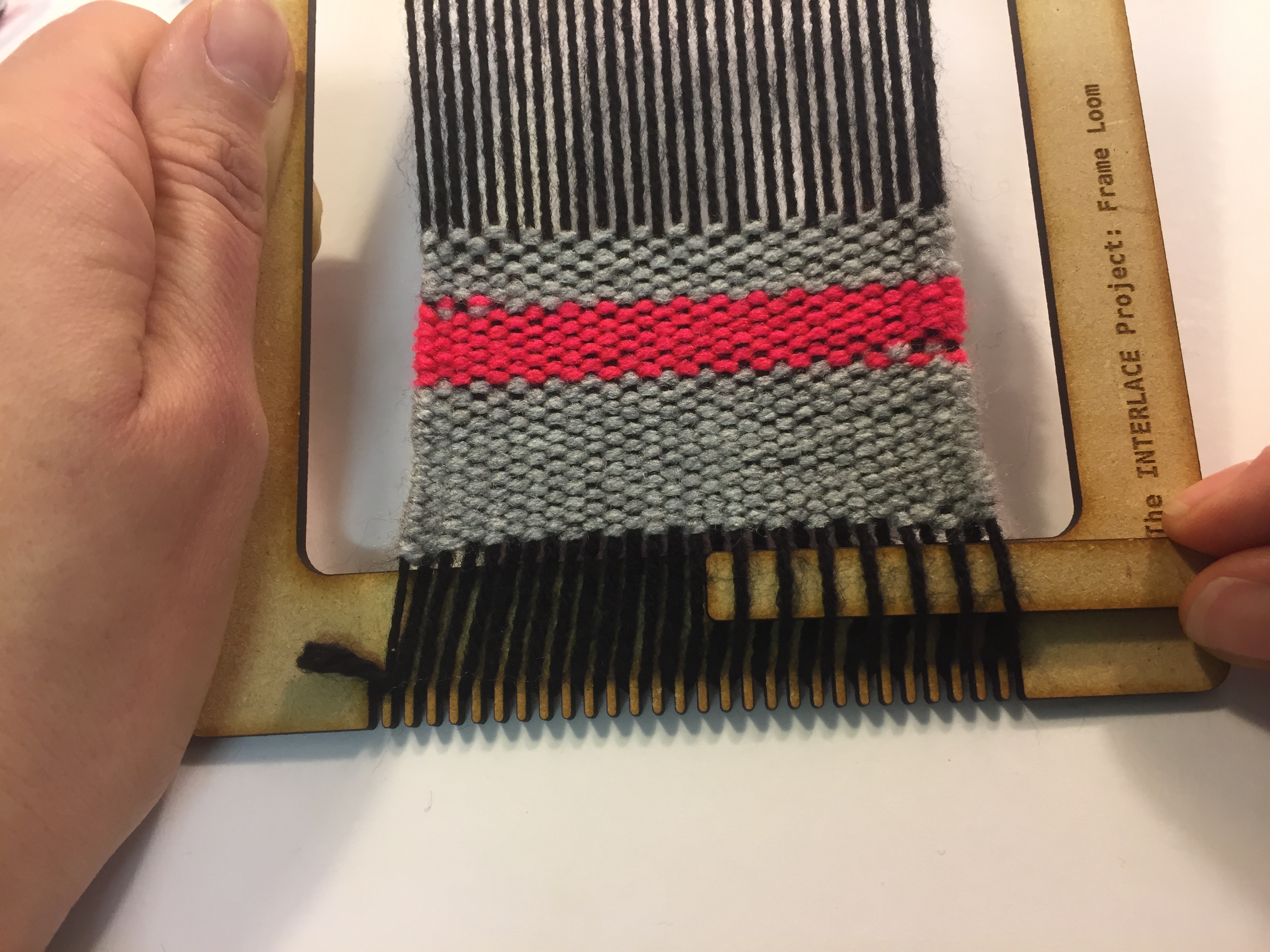

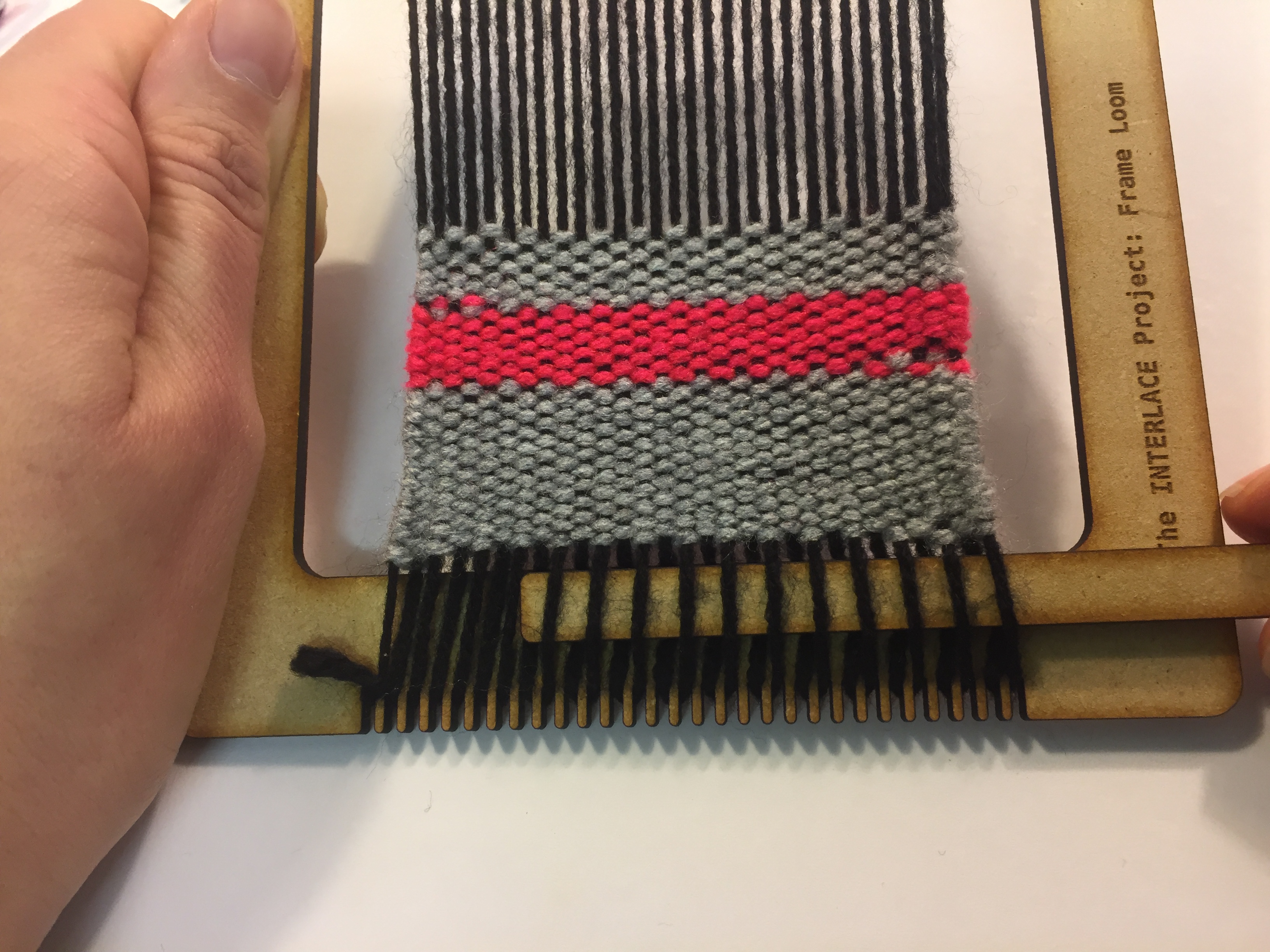

Repeat the Process!

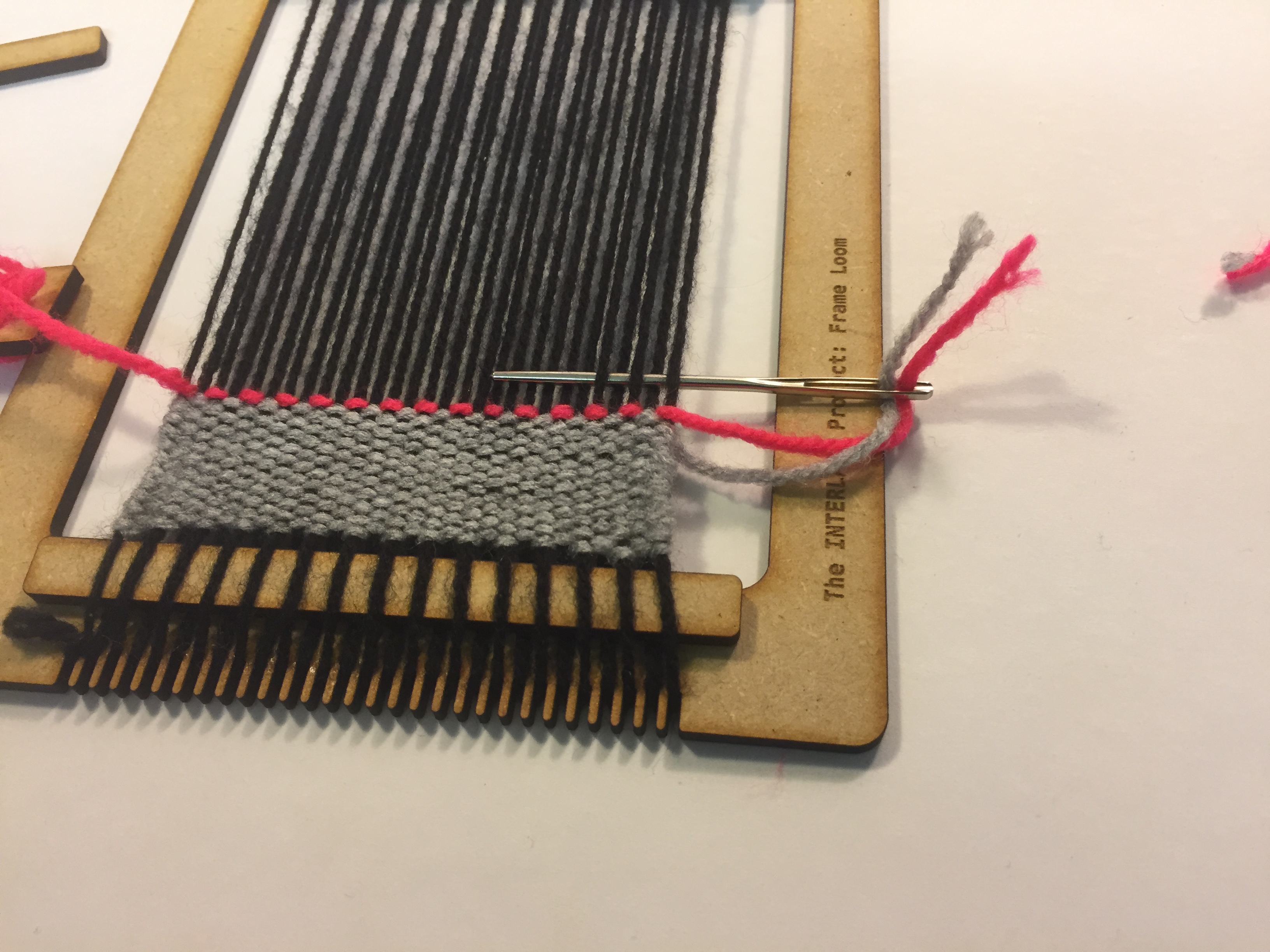

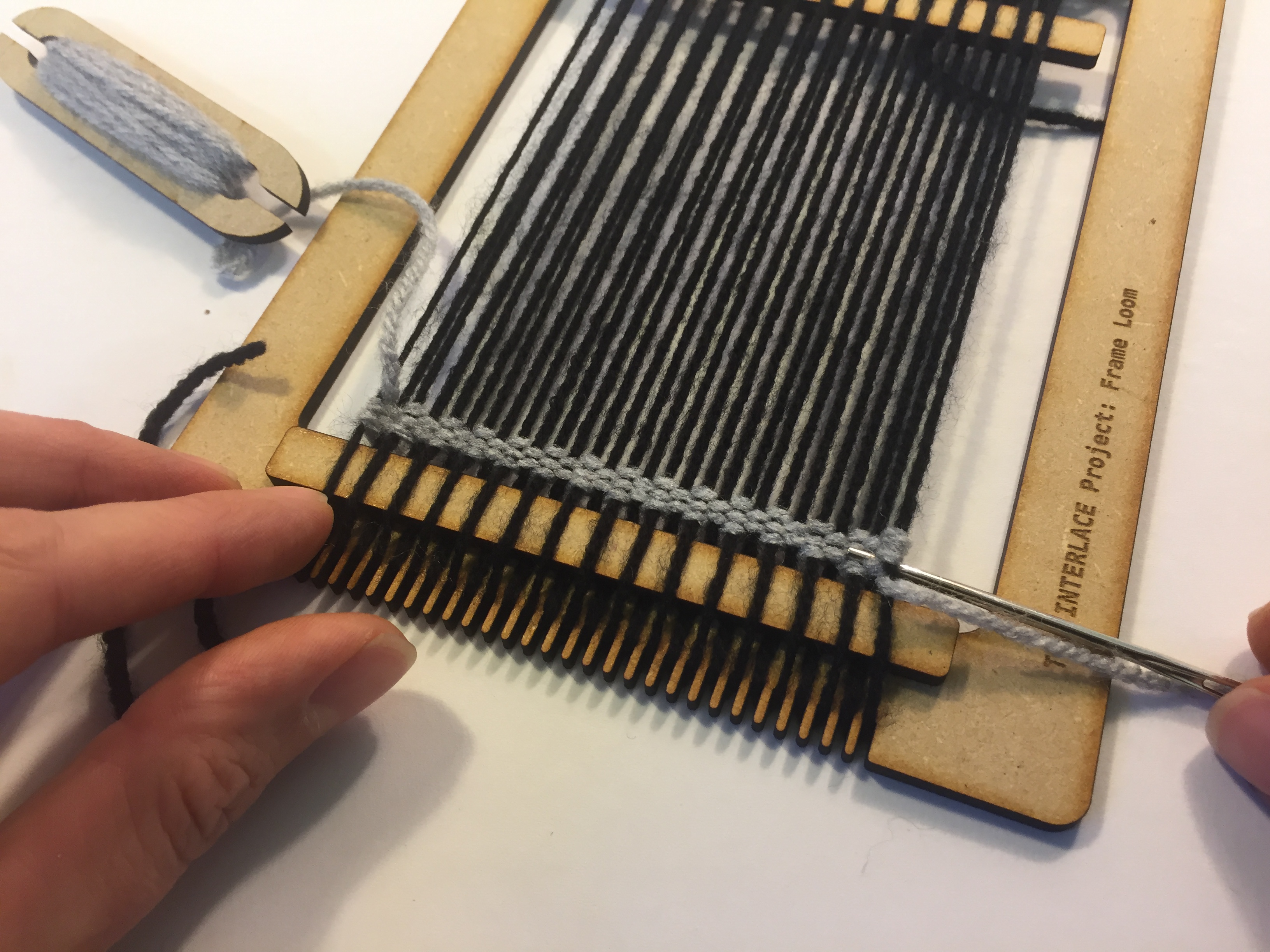

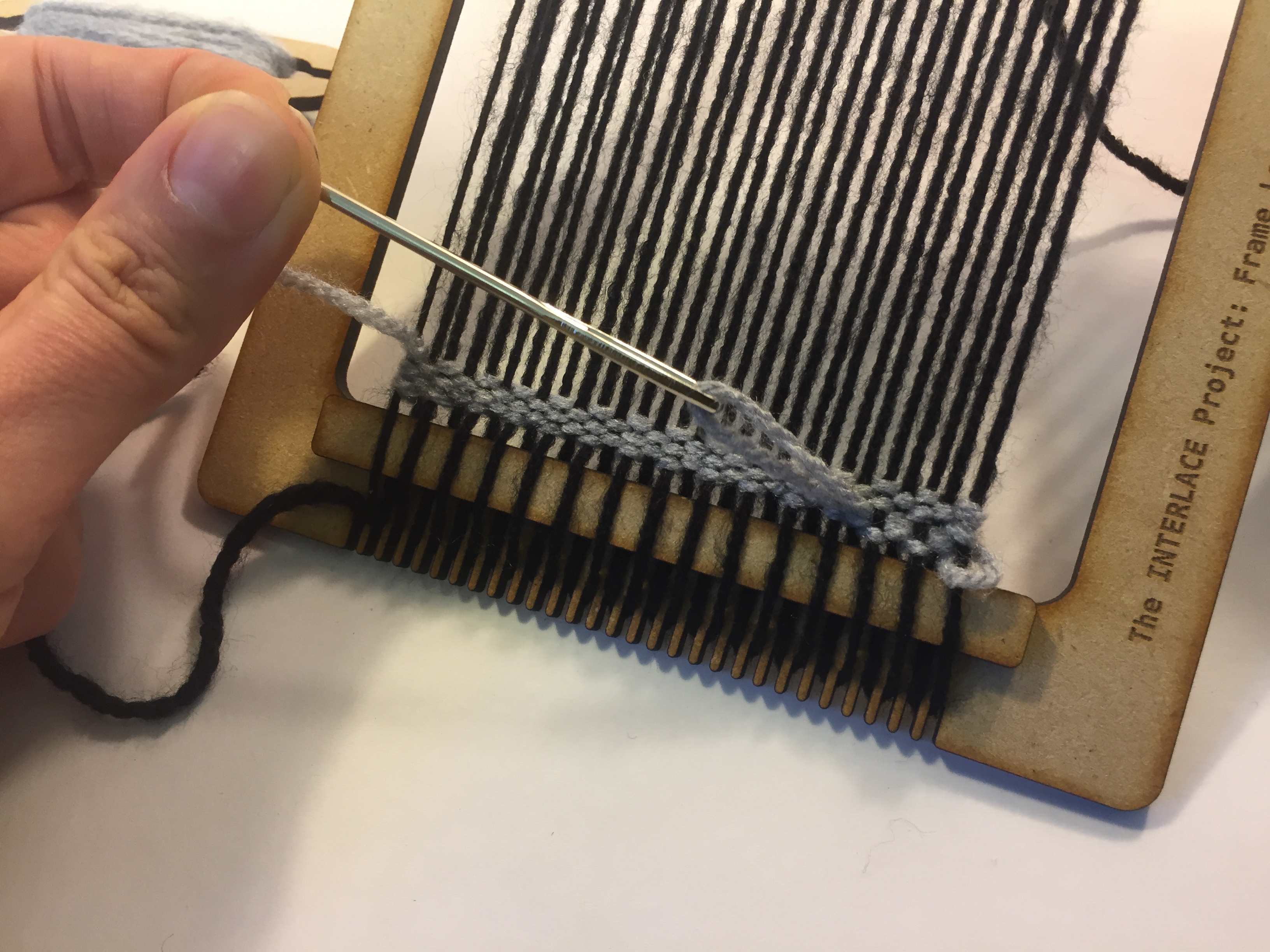

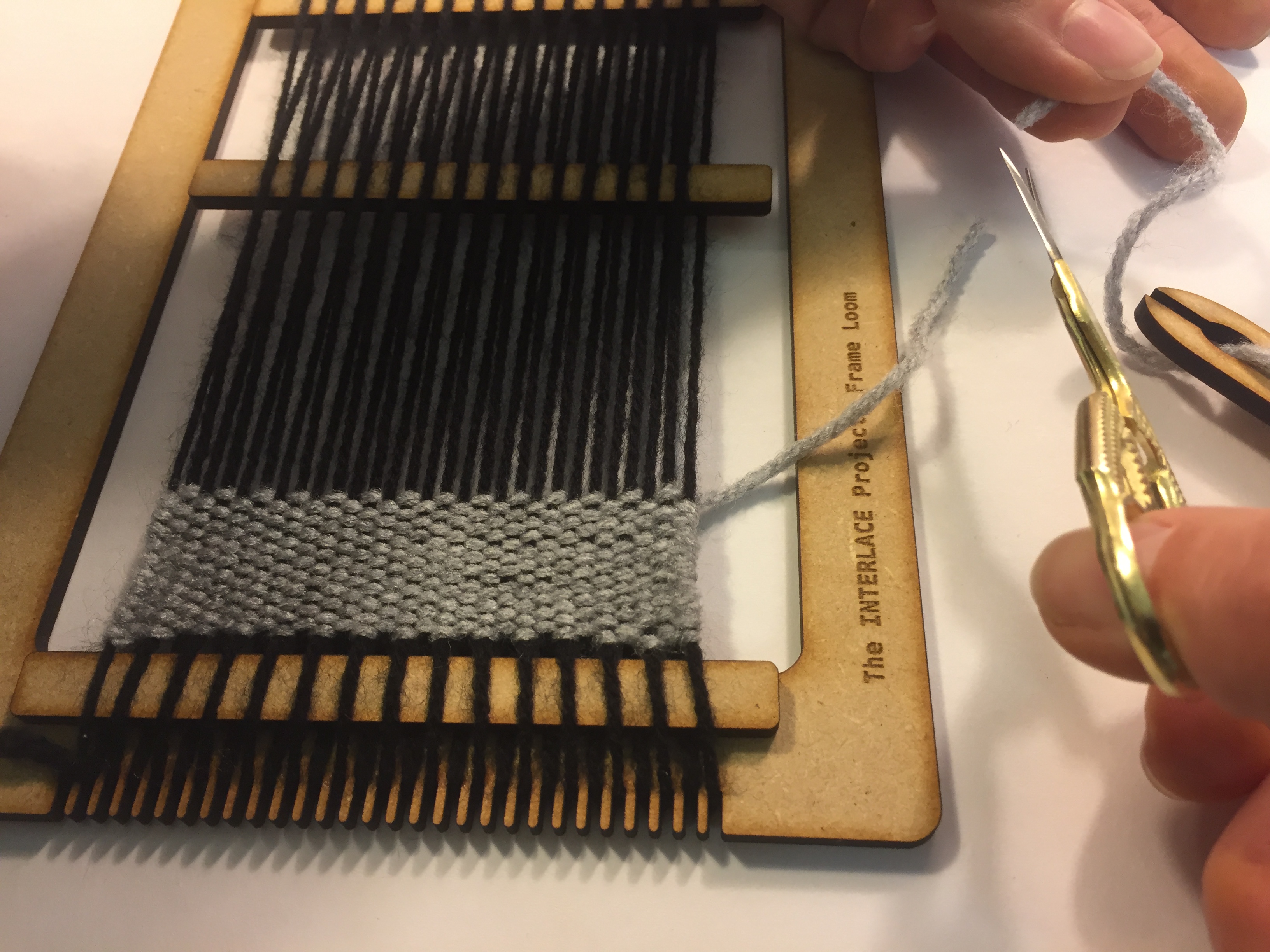

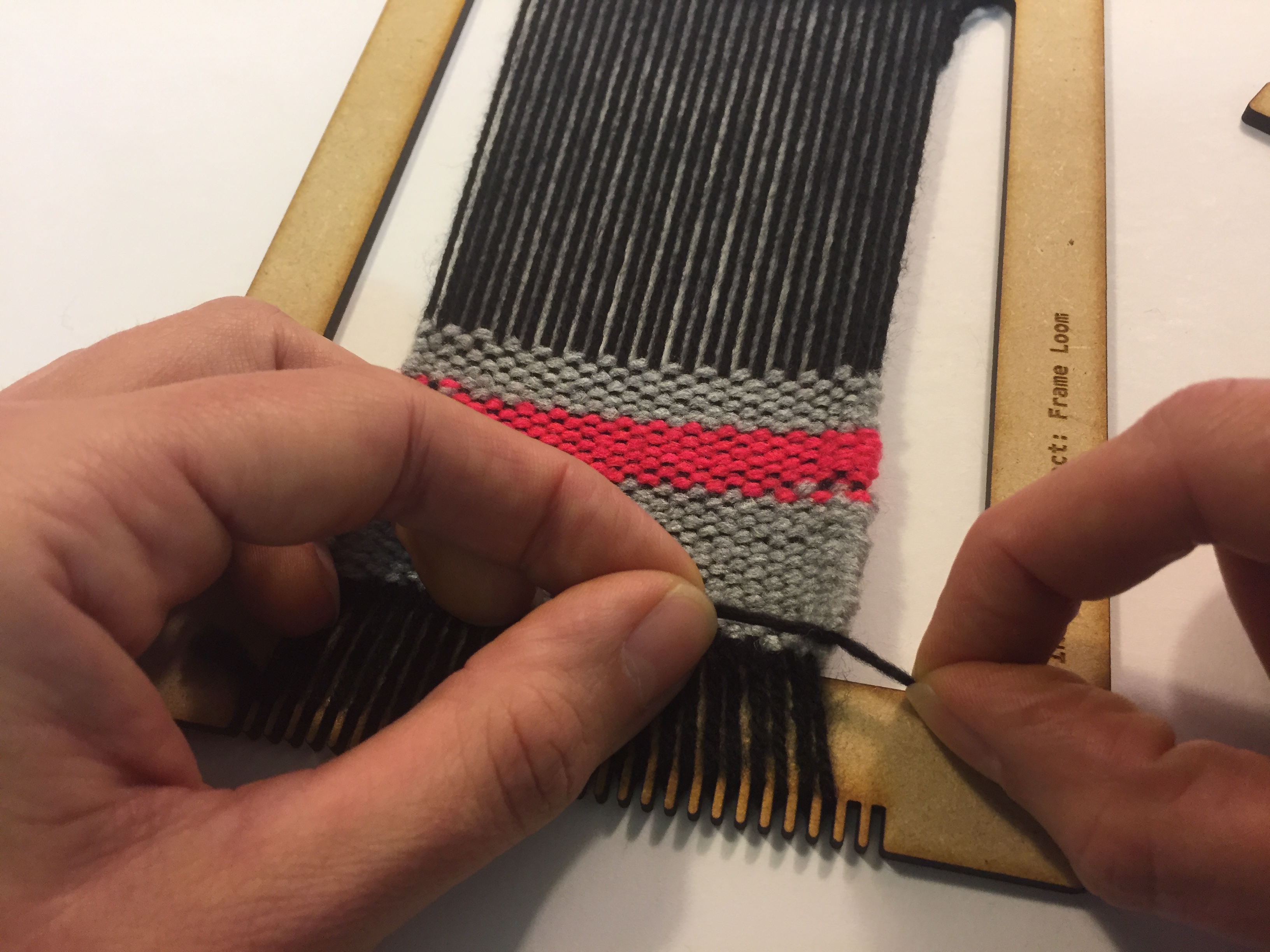

To Secure the Loose Weft Ends - Thread Onto a Large Wool Needle and Weave Back Into the Cloth

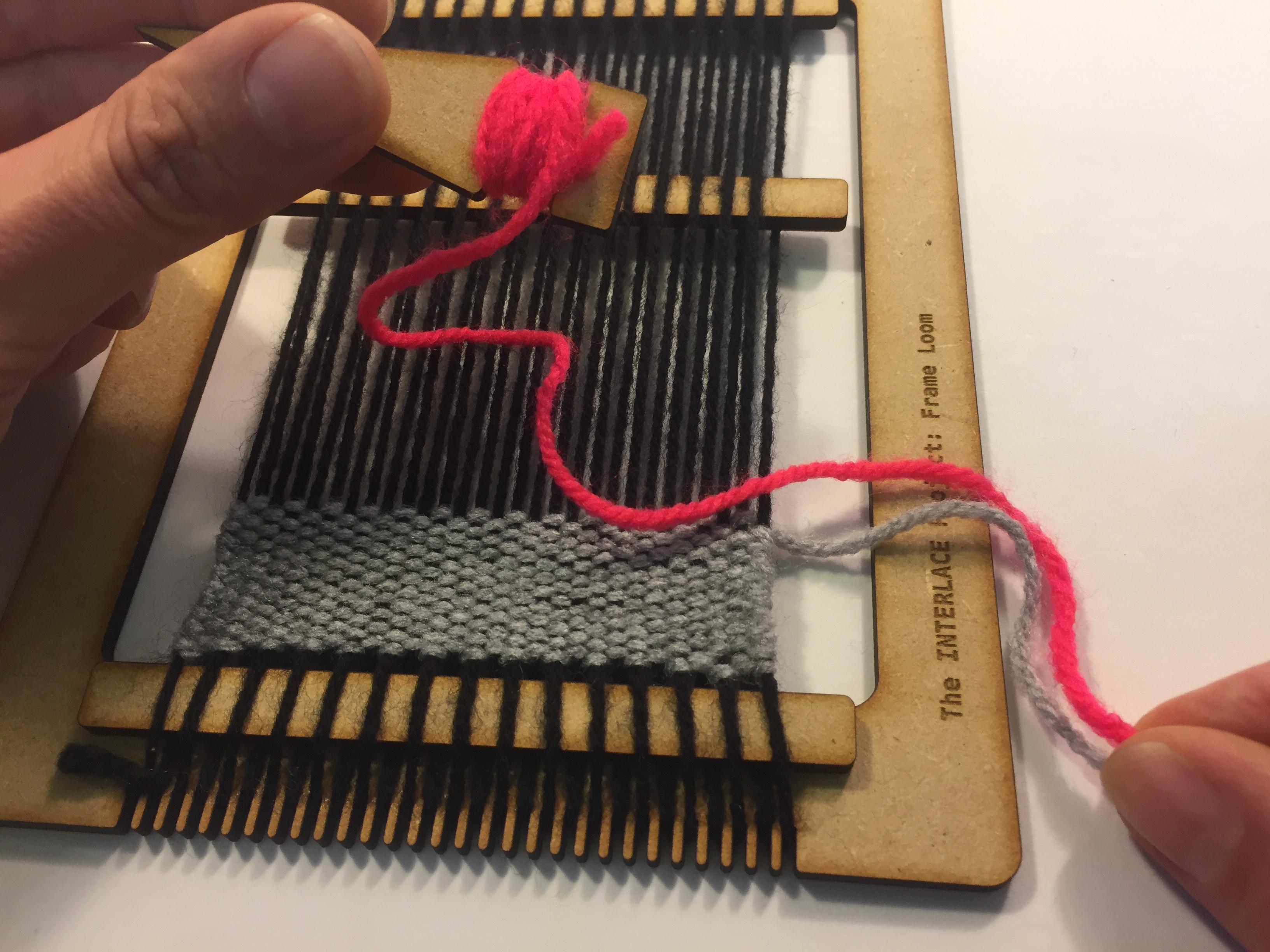

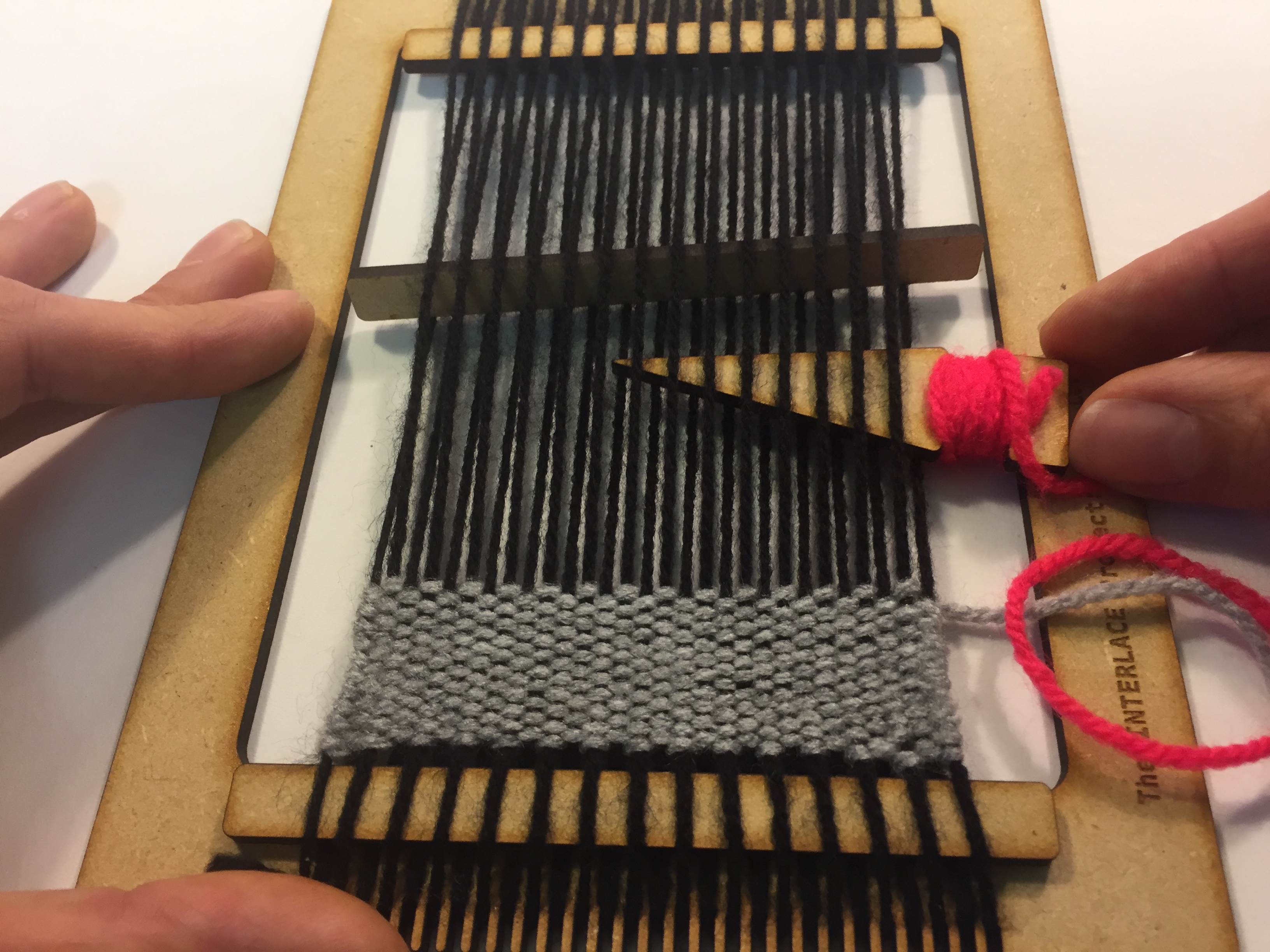

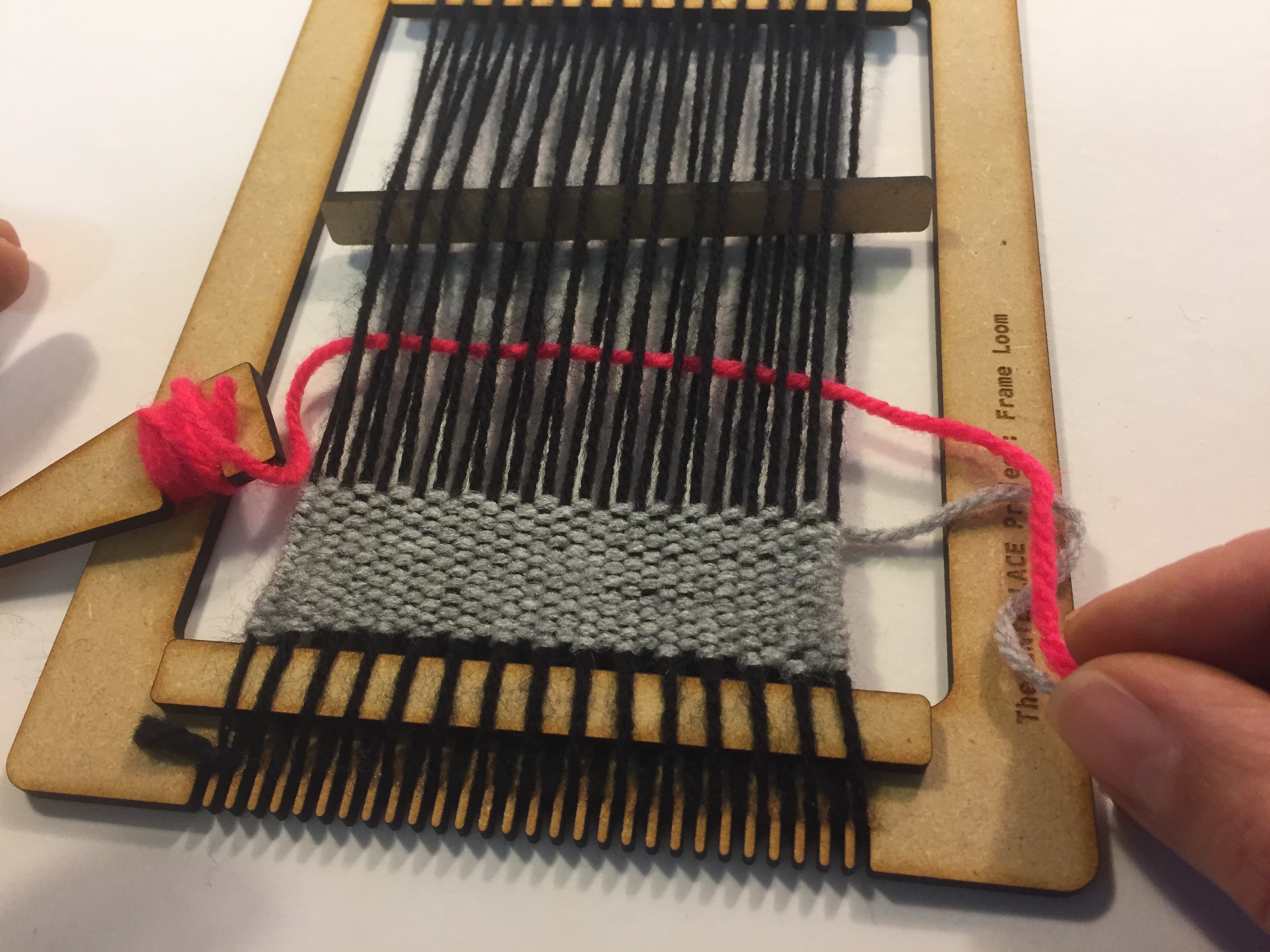

If You Run Out of Wool or Want to Change Colour You Can Weave the Loose Weft Ends Back Into the Cloth Using a Needle

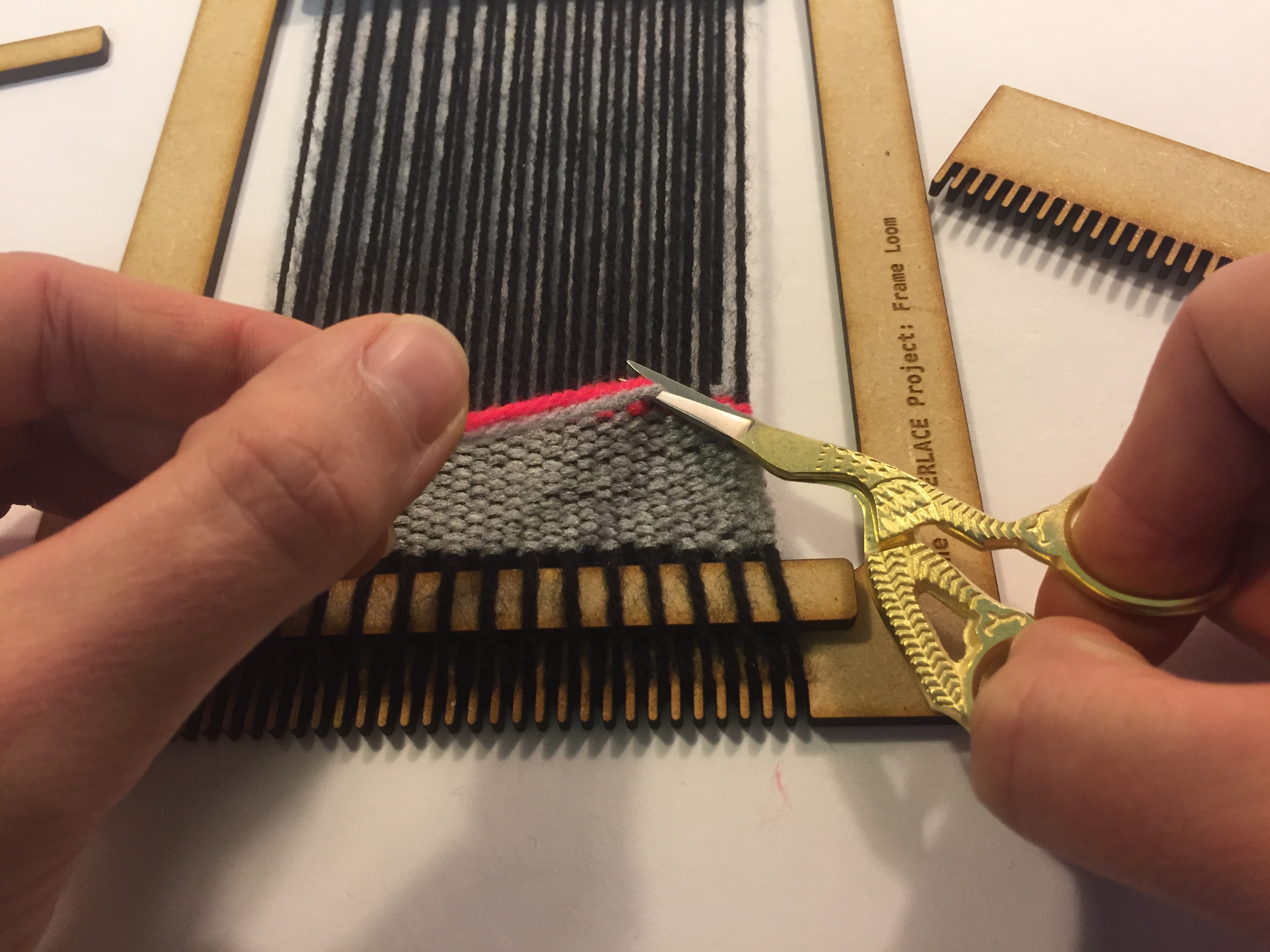

When You Have Finished Weaving Remove All the Sticks and Tie the Warp Ends Together - You Can Slide or Cut These Off the Frame
