Laser Cut Game Card Box With Internal Hinges


15 years ago I designed a box to hold CD's and makes it easy to flip through them. Now someones project to make a game card box inspired me to use that mechanism on a laser cut box for game cards.

We are kind of addicted to playing "werewolf" and created our own deck for it. This would be a great box to hold that deck. (that explains the wolf theme)

You Will Need


Materials:

  • 4 mm plywood (25 x 50 cm)

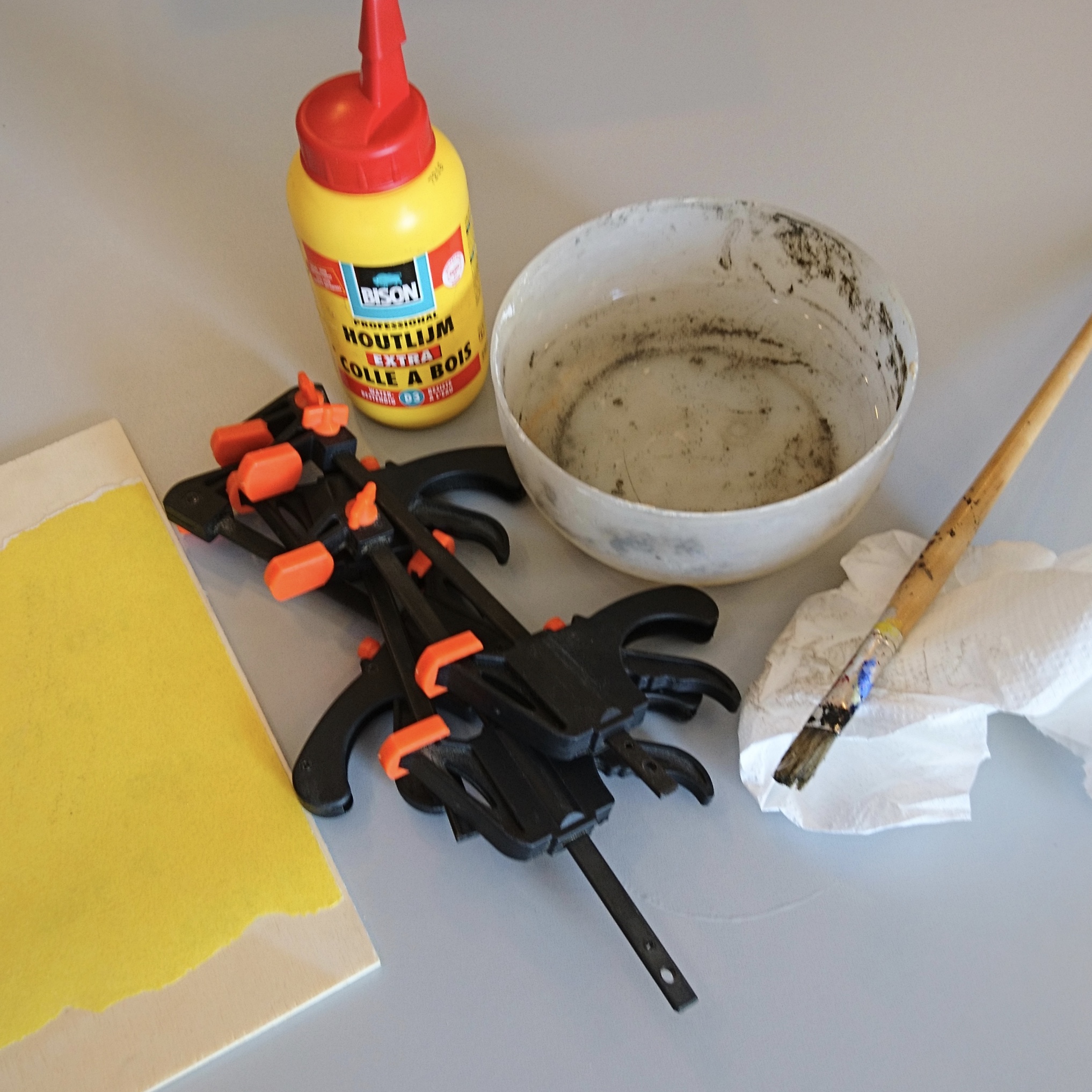

Tools:

  • lasercutter
  • sand paper
  • glue
  • brush or cloth
  • clamps
  • optional: paint, wax or oil

The Design


The most work was designing the box. I was amazed that the hinge mechanism actually works.

I used 'Gravit Designer' to draw the box, so I added both the original Gravit file and a PDF.

The red-lines are cutting lines and everything black is for engraving.

Lasercutting


  • Lasercut the parts.
  • Sand smooth the sides of the moving parts.

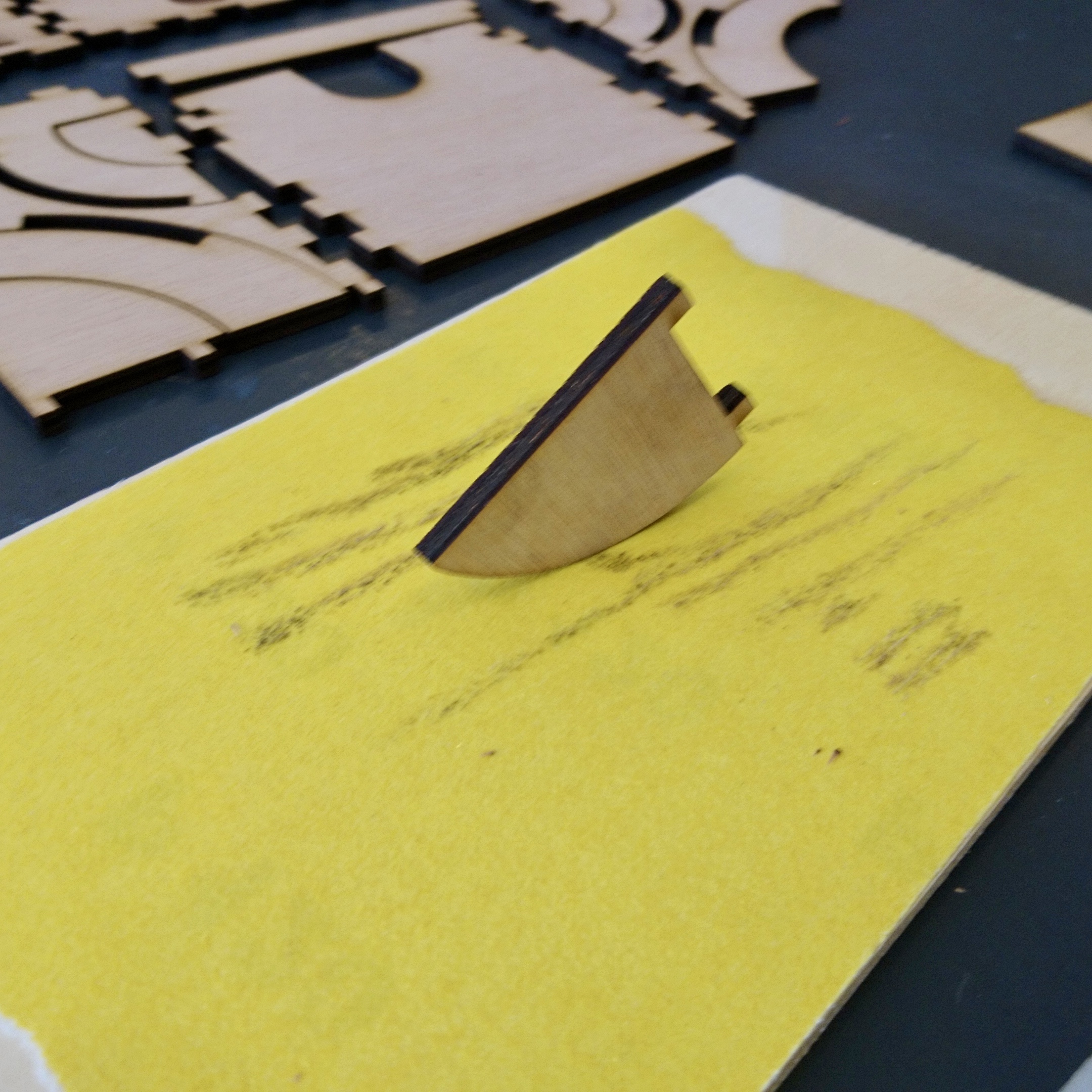

  • The four curved parts also need to be sanded slightly thinner for easy sliding.

The Inner Parts

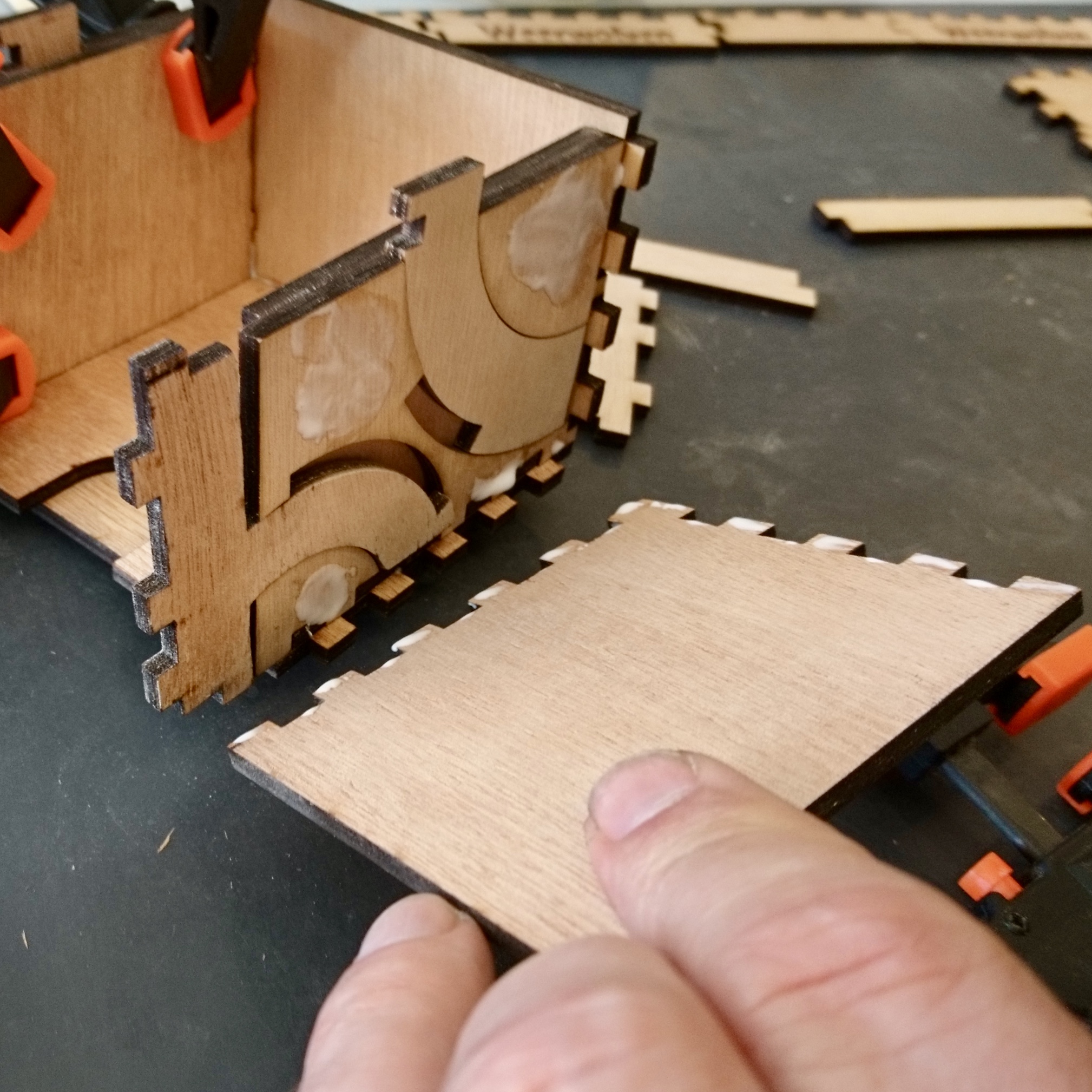

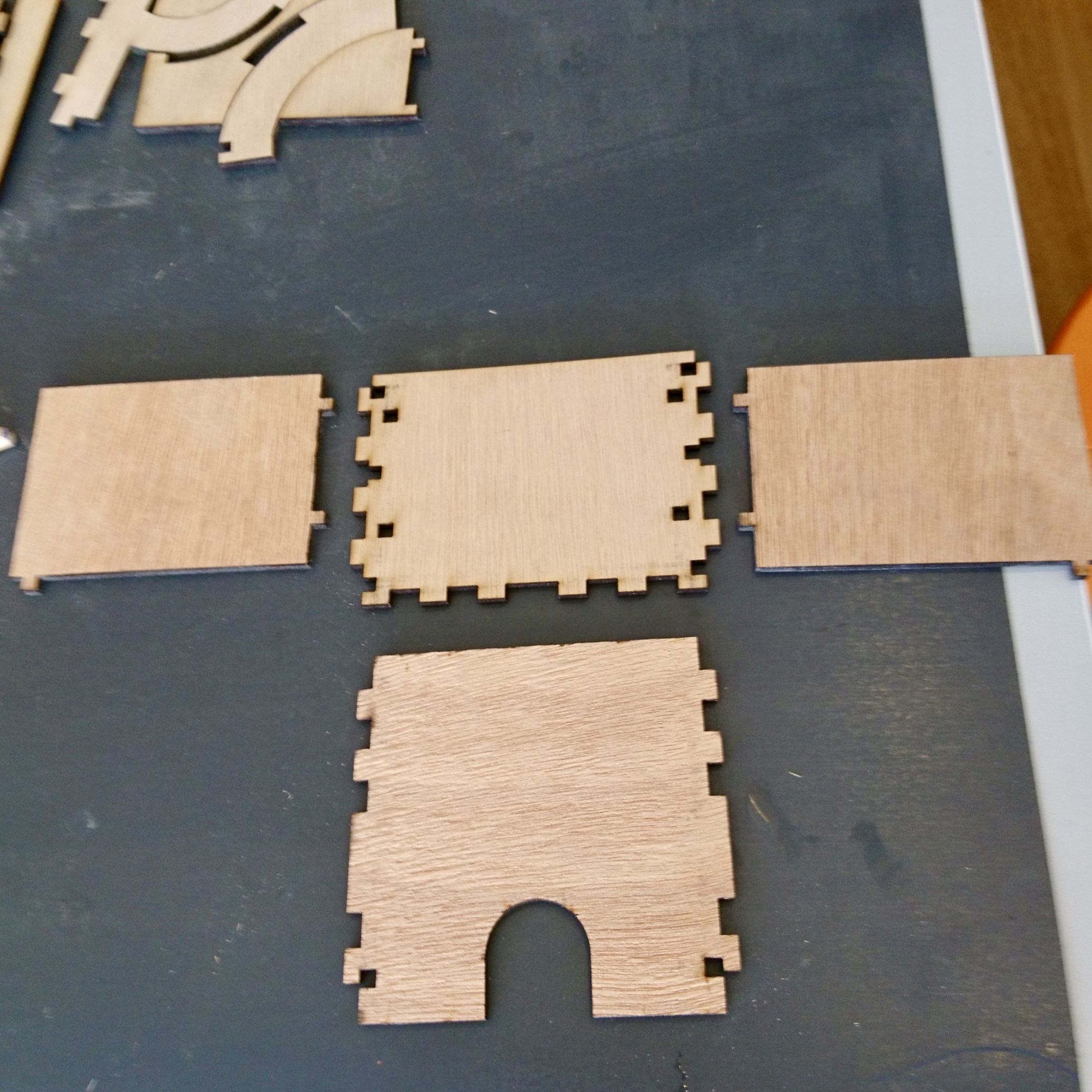

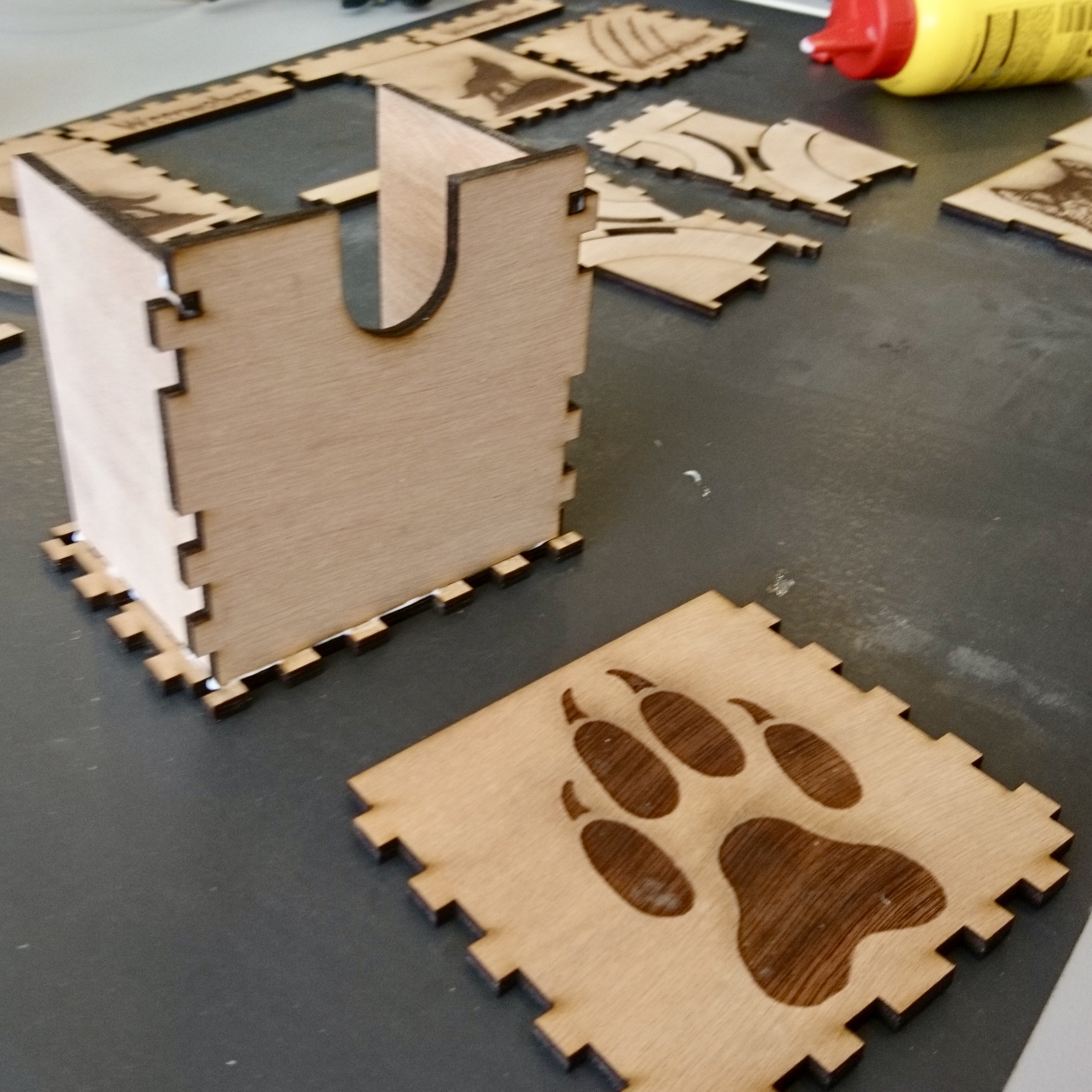

  • Start with the bottom.
  • Glue the two inner sides in.
  • Add the inner back.
  • Glue on the outer back.

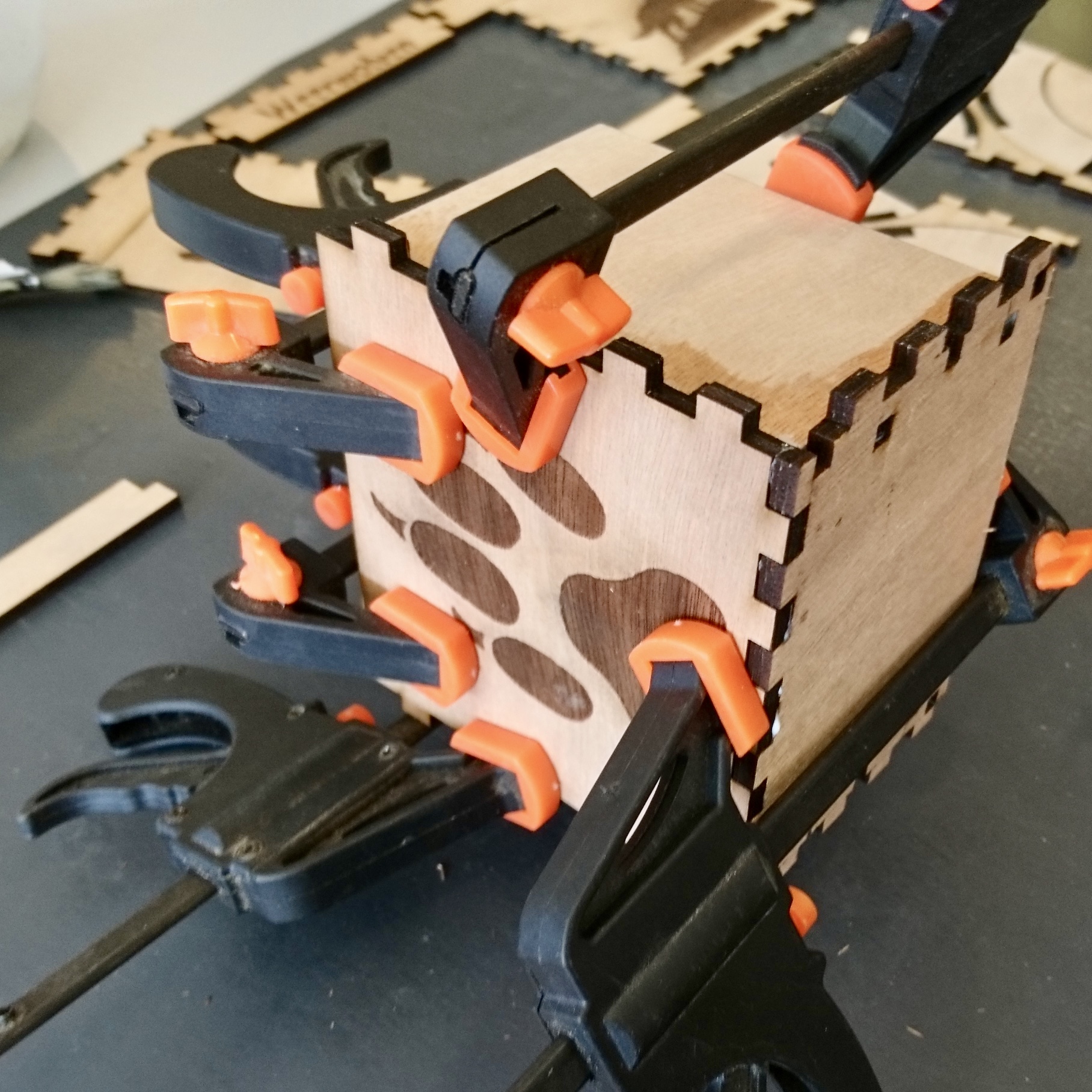

  • Clamp everything together.
  • Use a wet brush or cloth to remove excessive glue.

The Mechanism

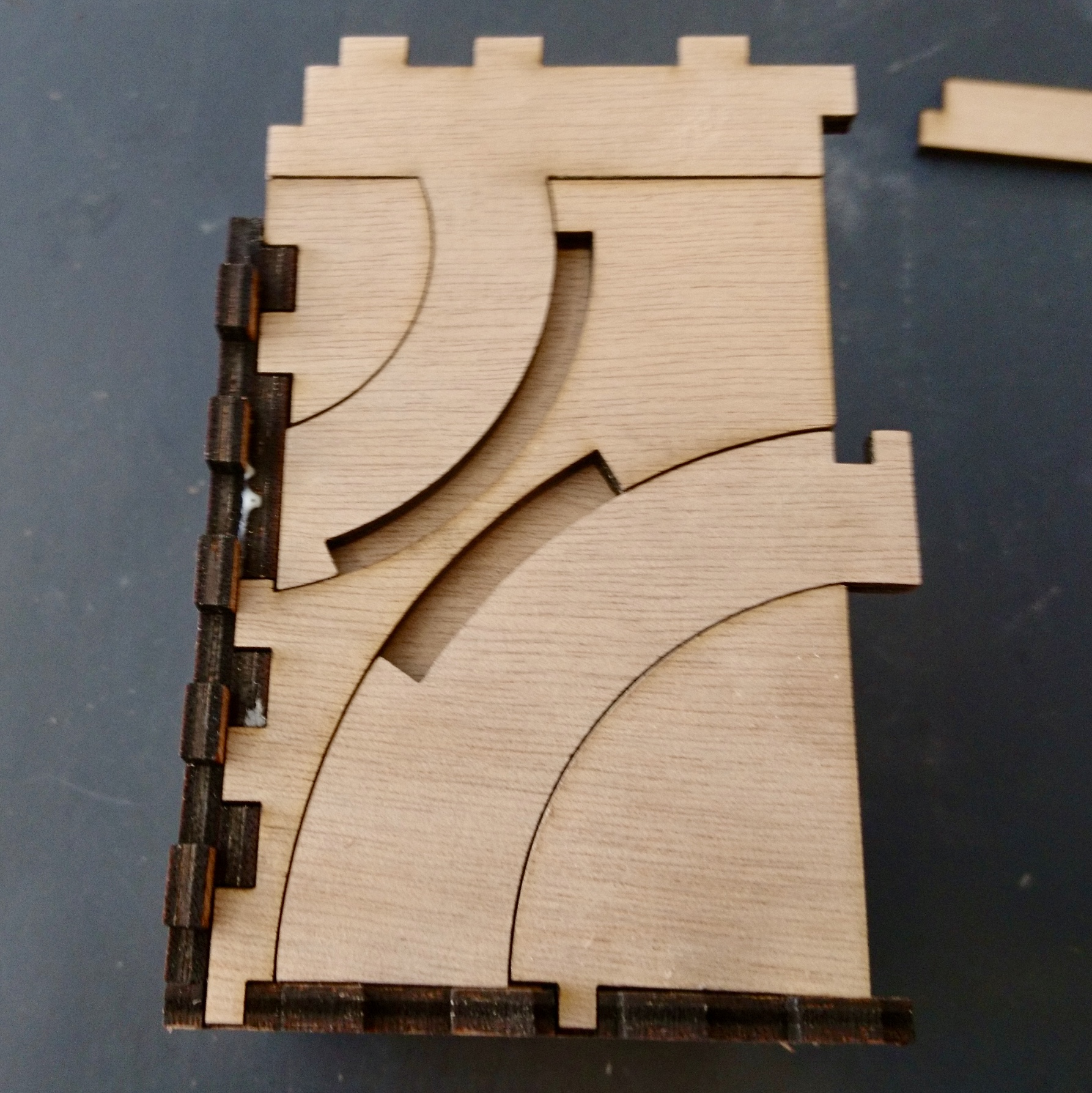

  • Glue the 3 non moving parts on the side.
  • Put the 2 moving parts in between for accurate spacing.
  • Clamp the not moving glued parts.
  • Repeat for the other side.
  • Glue in the outer sides. (make sure that the moving parts are in before glueing the outer sides)
  • Clamp.

The Front Door

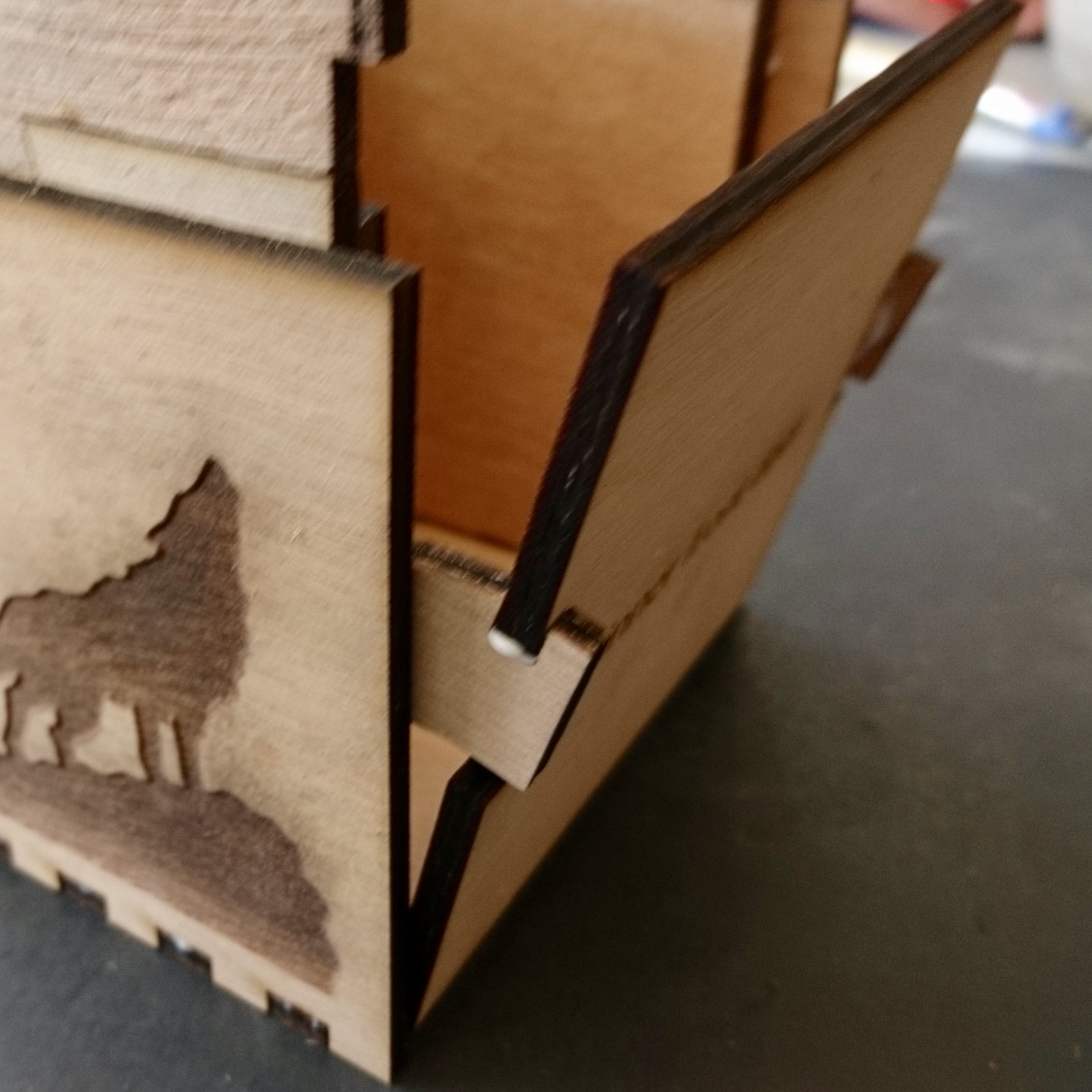

  • Glue the inner front door in the nick on the hinges.
  • Make sure that it is all the way down.
  • Glue the outer front door on top.
  • Clamp together.
  • Remove excess glue.
  • Close the front door while drying for correct alignment.

The Top Lid


  • Glue the two inner pieces of the lid to the hinges.
  • Glue the four outer sides around the inner part. (the front and back are the same, but the sides can be put on backwards.)
  • Glue the top on.
  • Clamp everything together.

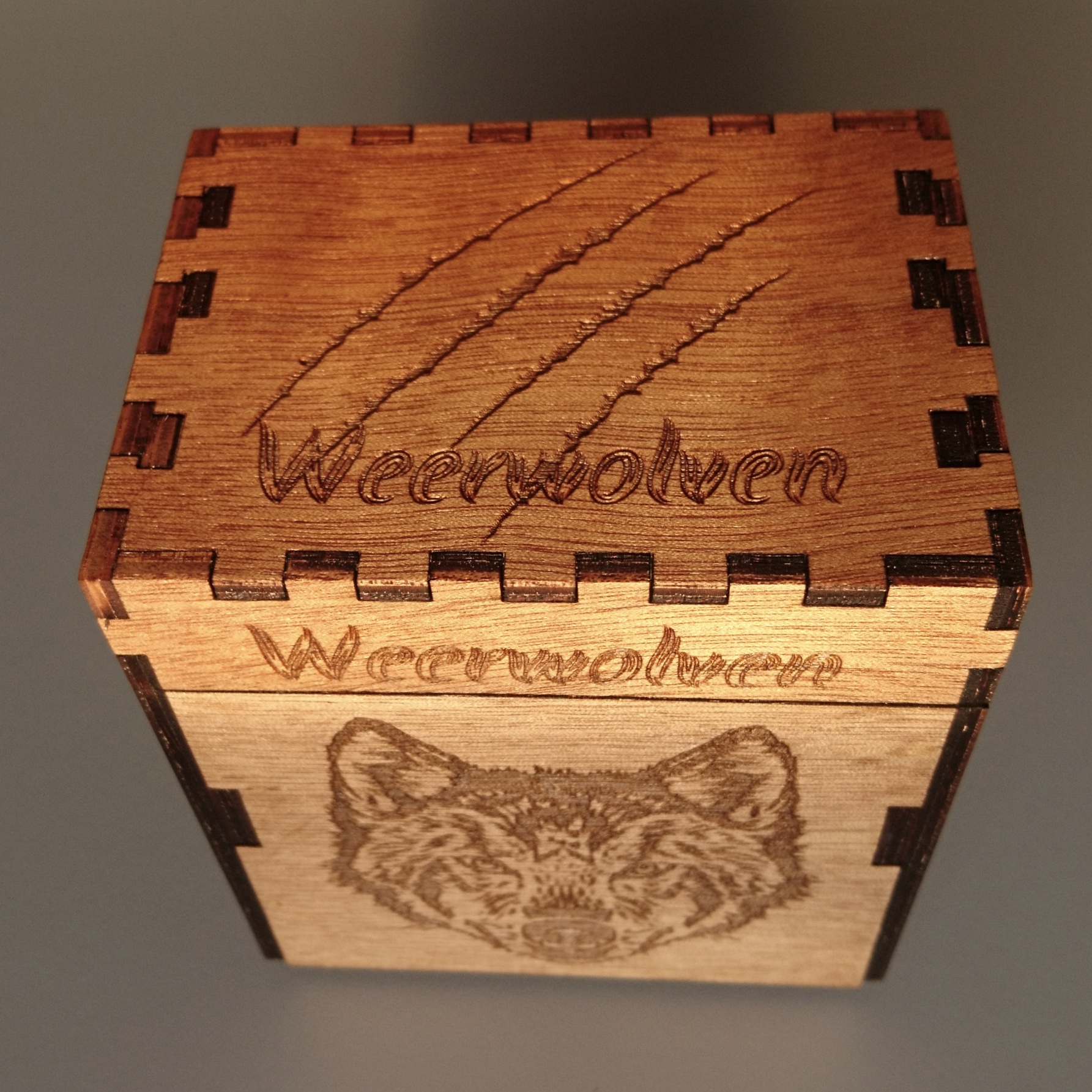

Finish the Box


I had to sand a bevel to the inner lip on the front door to make it easier to close the lid. I also sanded the laser marks from all sides.

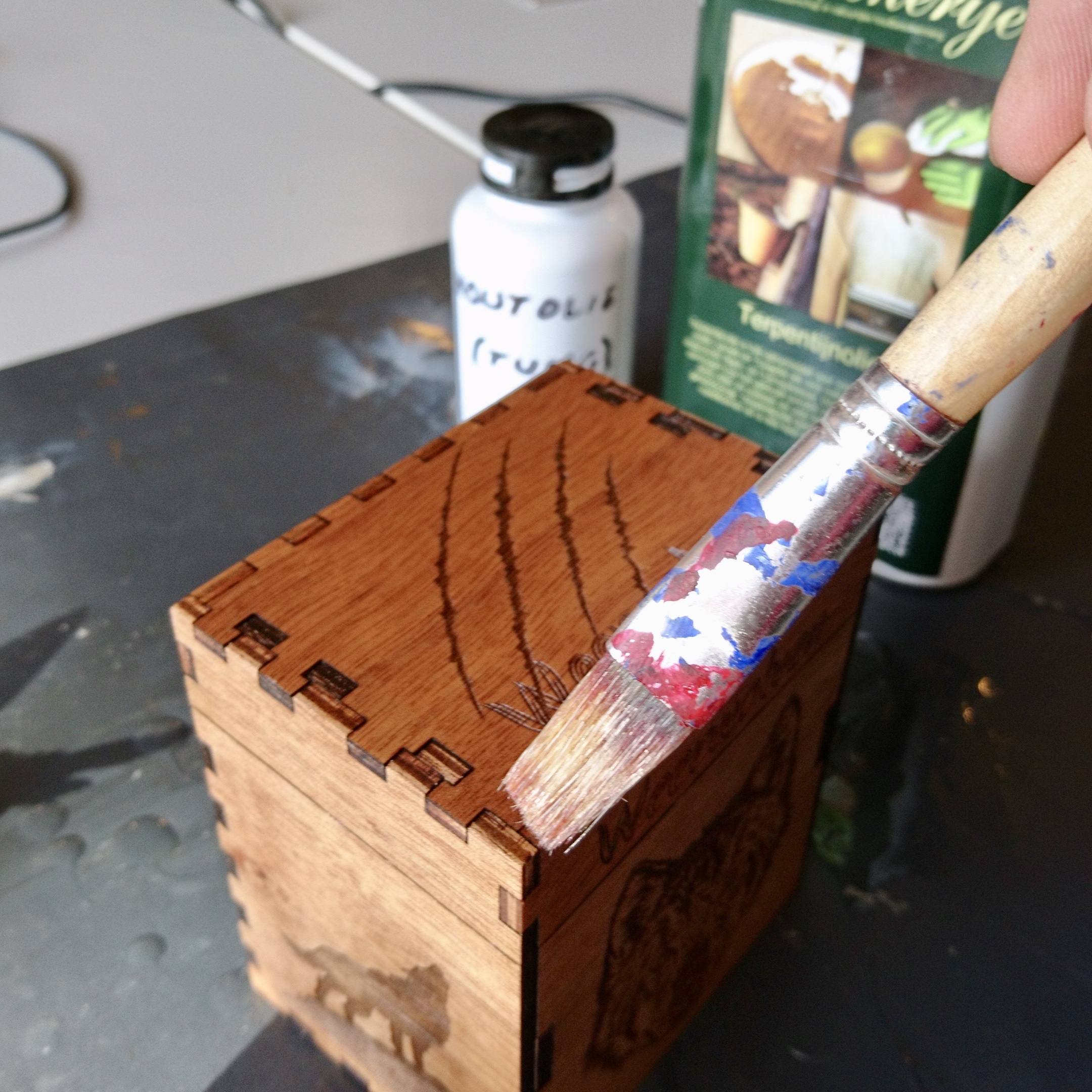

If you want you can wax, oil, paint or lacquer the box.

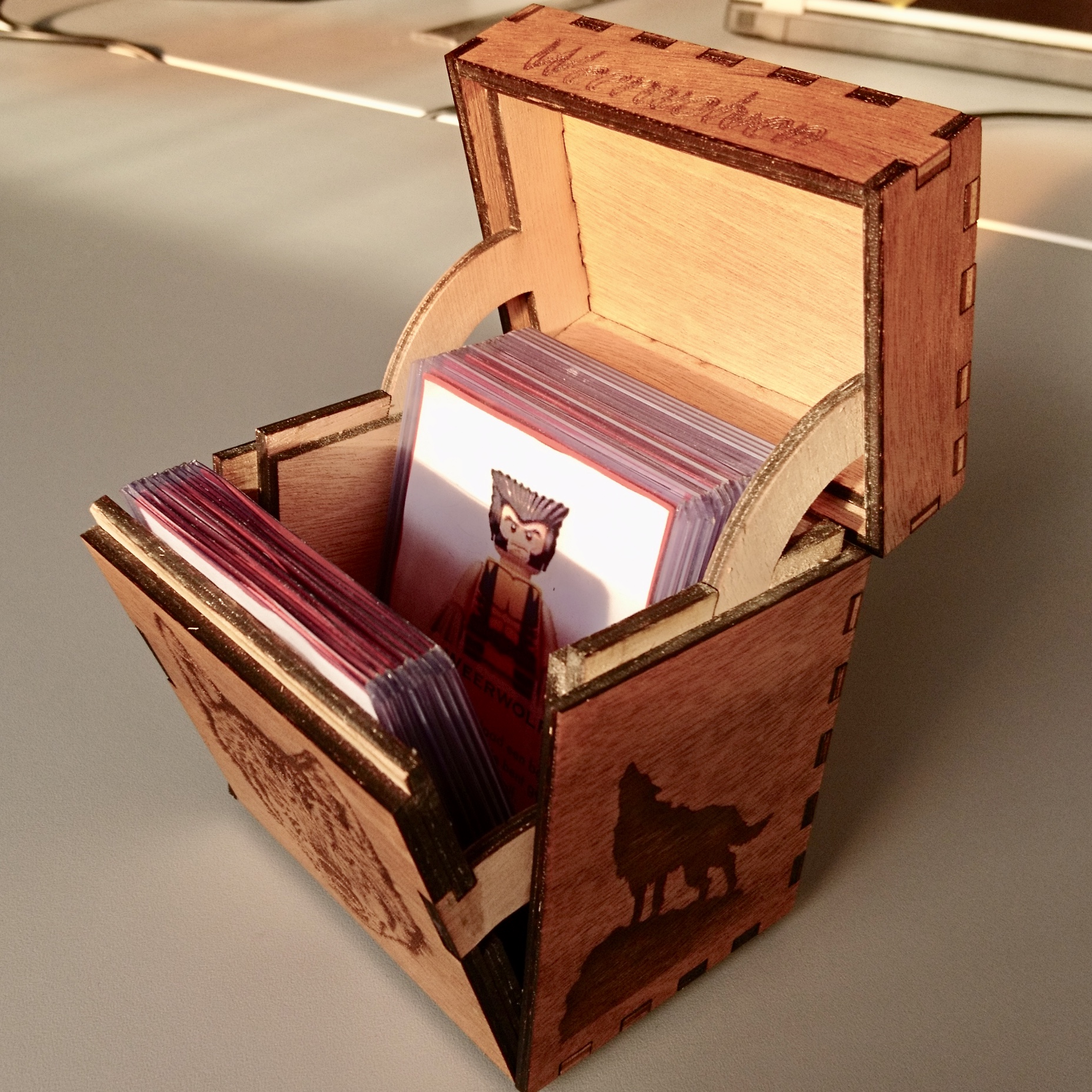

Just Add Cards


Now just add the cards.

(there is a notch for a coin in the back, because we sometimes flip a coin while playing werewolf)

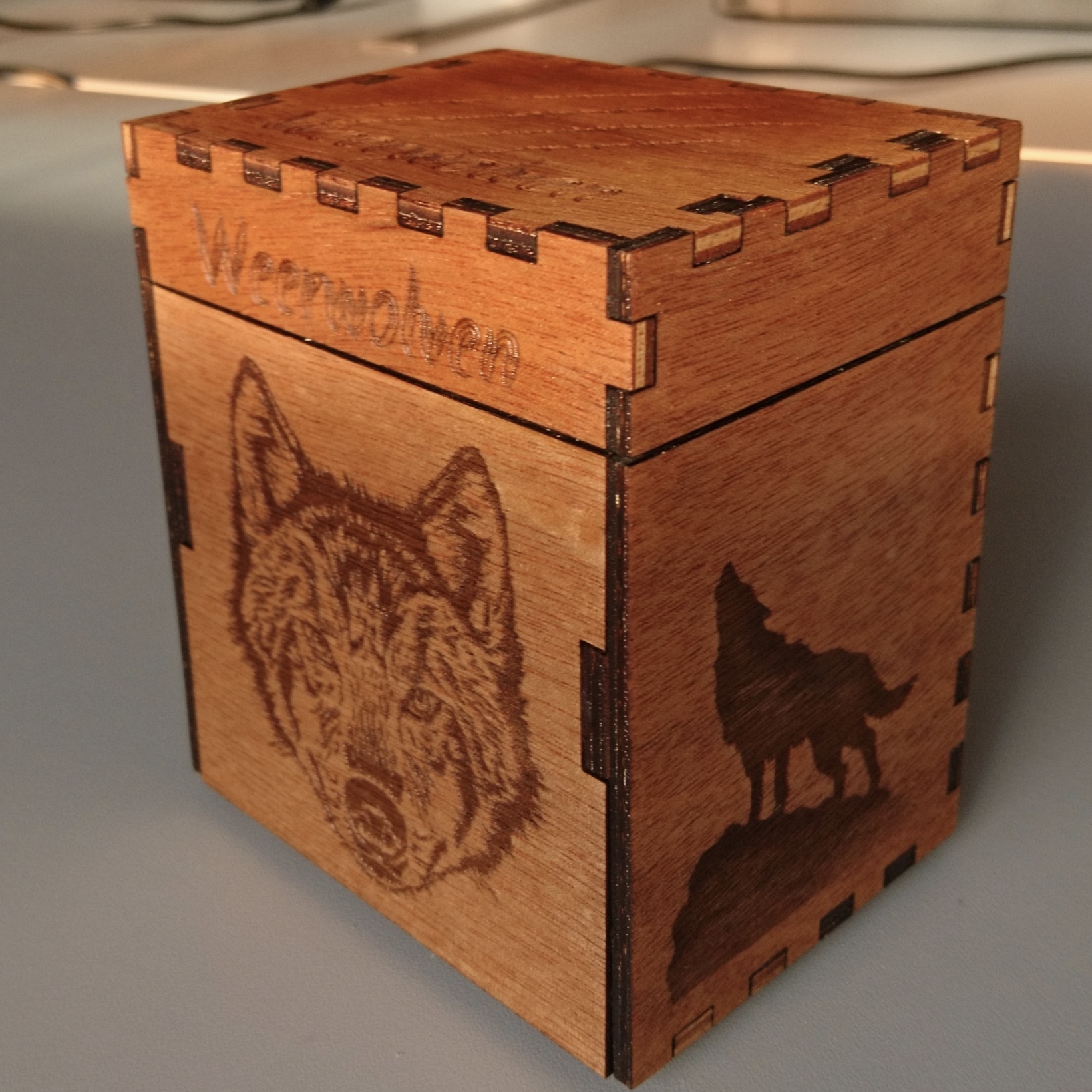

I think it came out great.
