Large 3D Printer DIY

The 3d printer is homemade ,the printing are 400x400x250 mm

All the parts are buy from here https://www.gearbest.com/3d-printers-c_11340/?lkid=13702258

What do you need :

Timing Belt for 3D Printer

E3D - V6 Long Distance 0.4mm 3D Printer Extruder

Flexible Helical Coupling 3D Printer Part

20 Teeth 3D Printer Stepper Motor Timing Pulley

MK7 MK8 i3 Extruder Aluminum

Anet LM8UU 2pcs 24mm Linear Ball Bearing Socket Parts

T8 - 2 - D8 300mm Stainless Steel + Chrome Steel Lead Screw

Optical Endstop Light Control Limit Switch for 3D Printer

A4988 High Quality Arduino 3D Printer Reprap Stepper Motor

RAMPS 1.4 3D Control Board Kit

2004 LCD Smart Display Controller Module

I wish you success with building!!!!

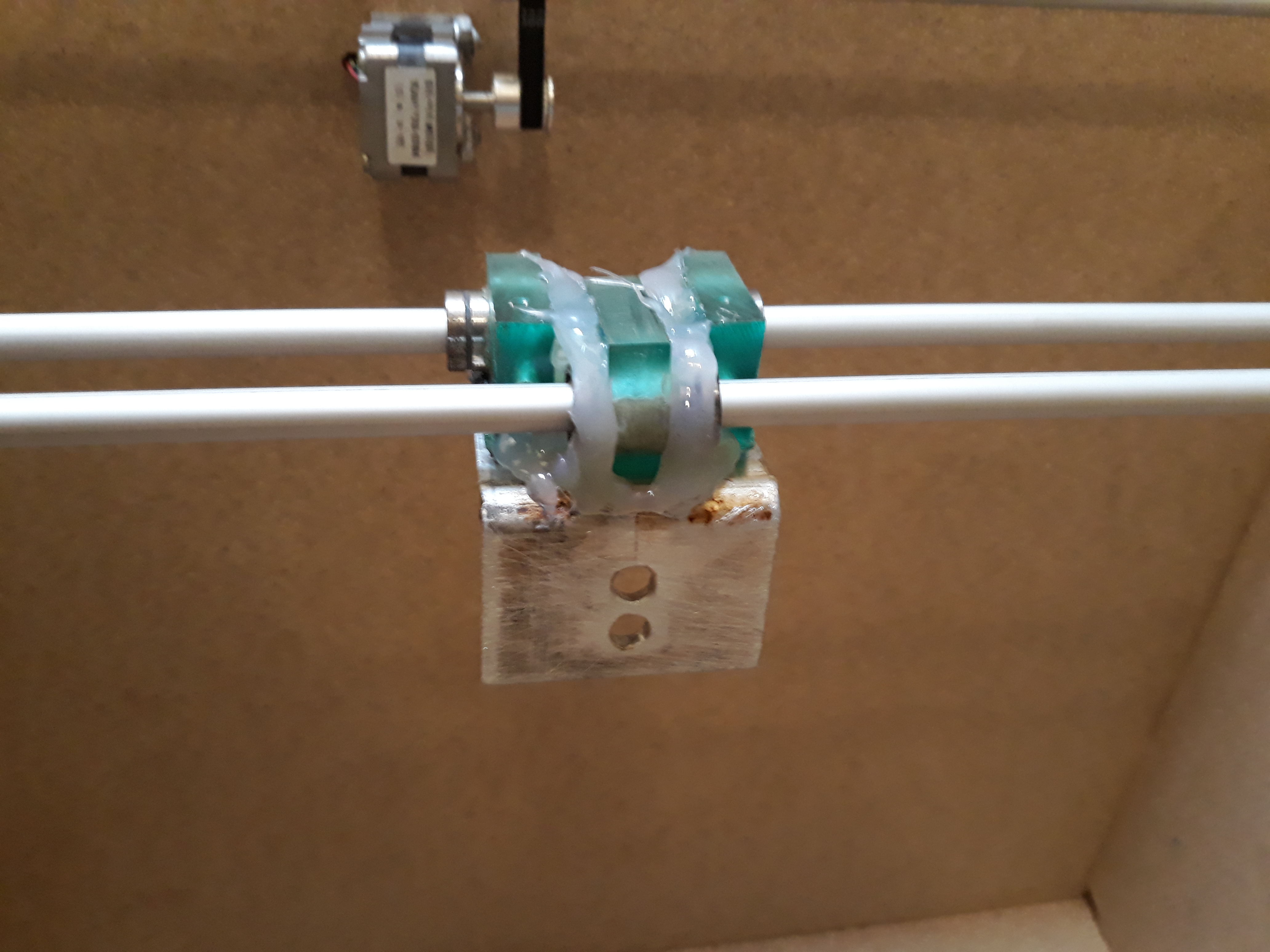

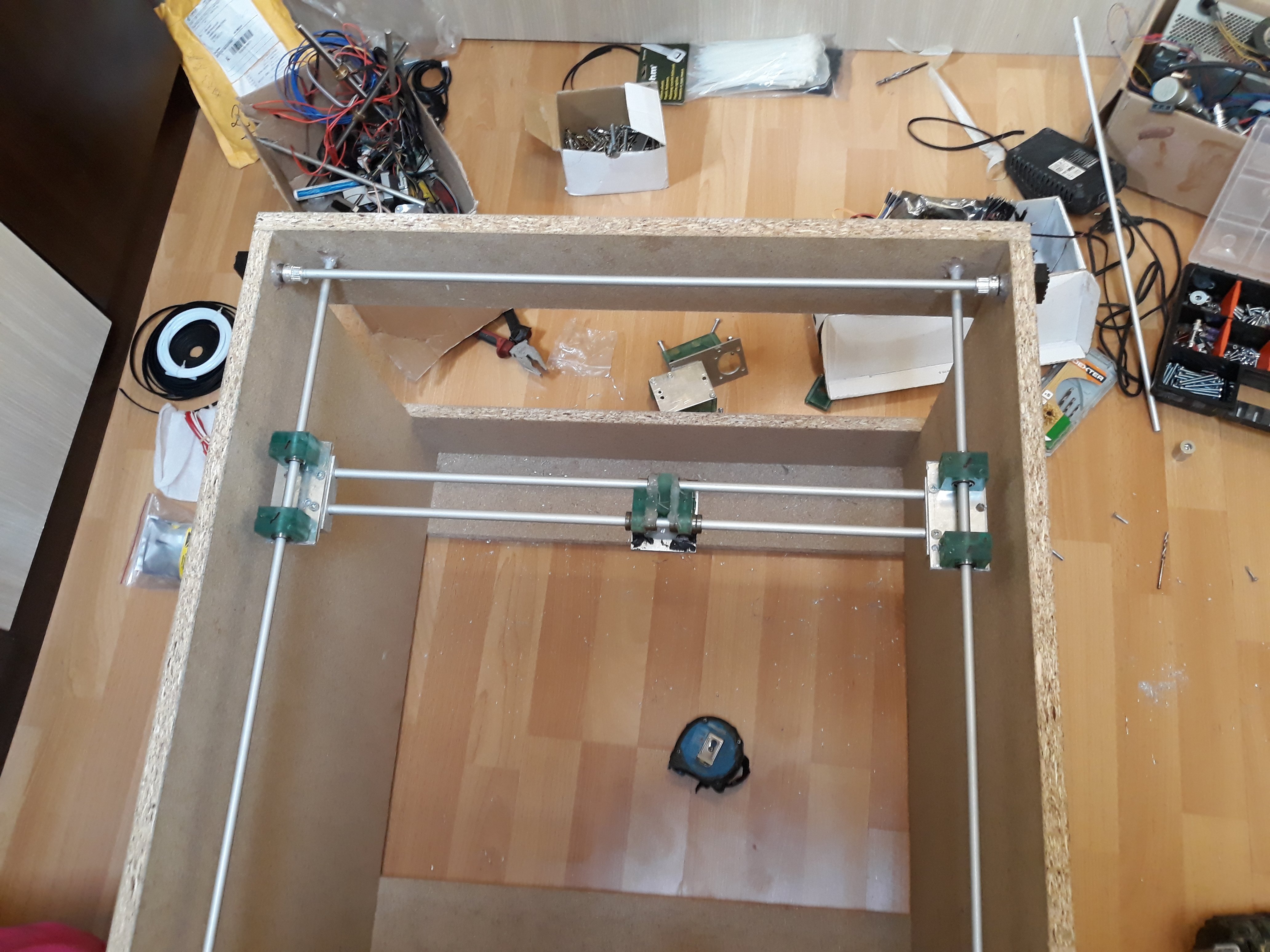

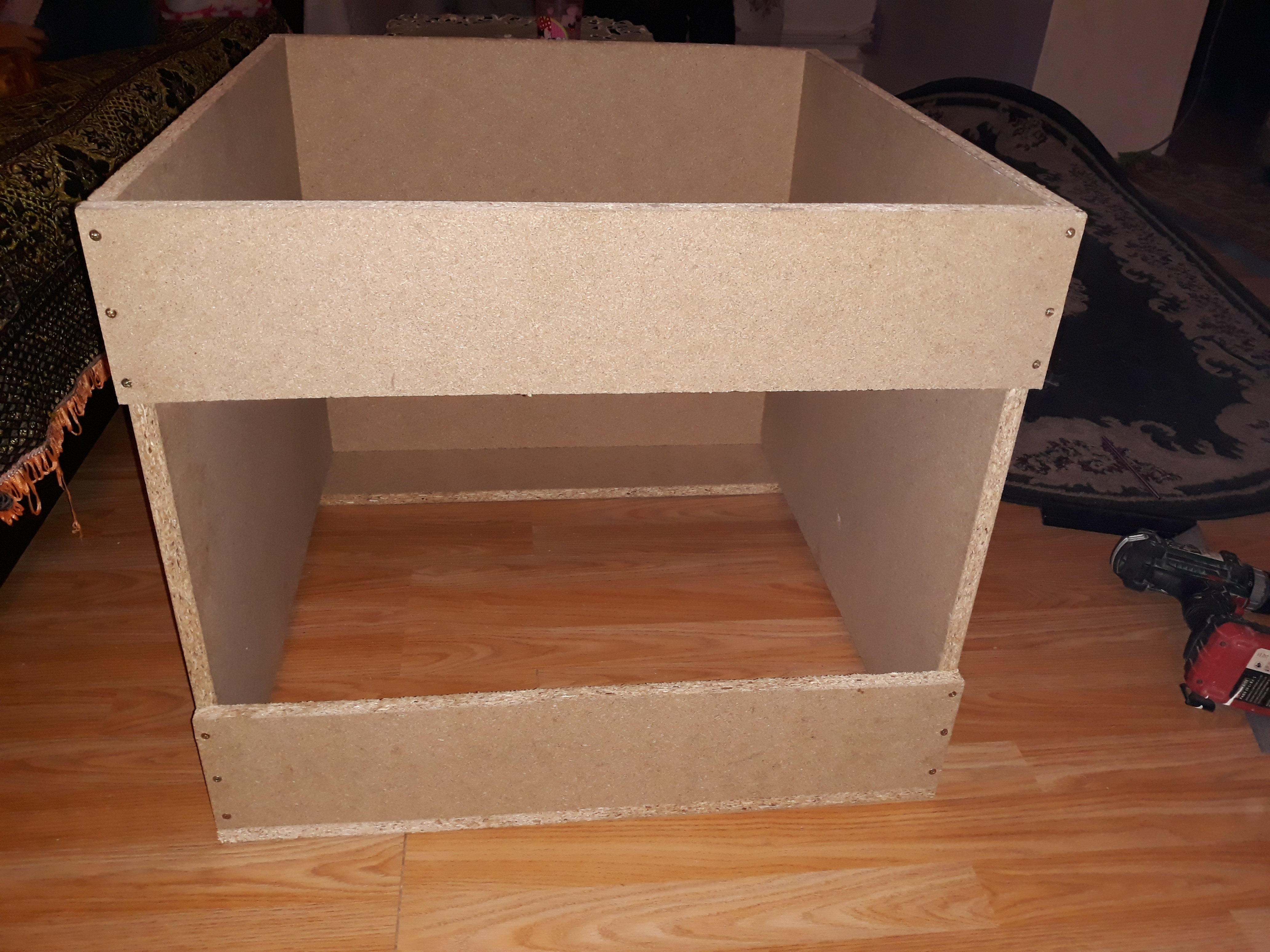

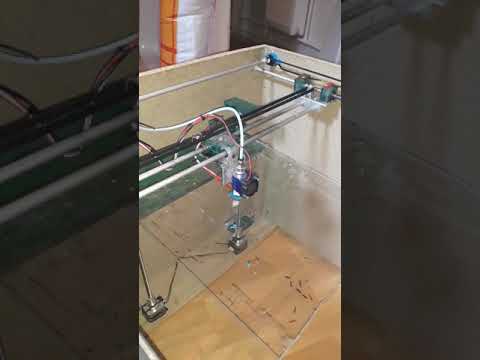

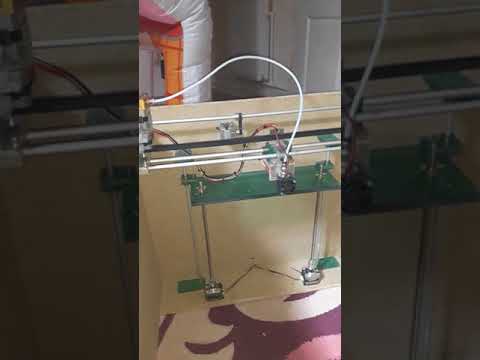

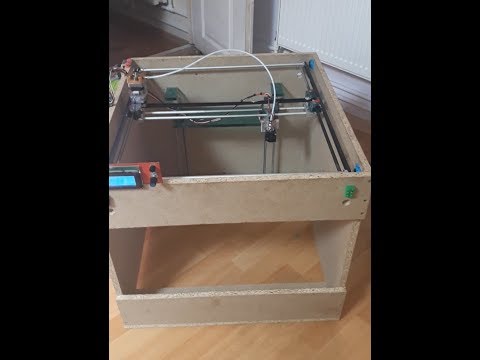

I added pictures to the printer frame.
You can use what measures you want depending on the measures you choose will affect your printing area.

To make electronic connections, I used this video that I added.

In the video you will see how to make cablaju step by step, very easy.

Step 8: Install Software
Get the Marlin Firmware Go and download the Marlin 3D printer Firmware, which is version 1.0.2 as of this writing, and place it somewhere you can find it. Click the Download Zip in the right hand side. See my images here if you can't find it. The file you downloaded is named Marlin-Development.zip which will create a folder named Marlin-Development when you unpack it. Put it someplace convenient like the desktop. Setup the Marlin Firmware in Arduino program From inside Arduino IDE: File -> Open Browse to your Marlin-Development folder and into the Marlin folder. Select and open the Configuration.h or Marlin.ino file (both opens a linked set of tabs/sketches, so it doesn't matter which one you choose). A new window opens containing the Marlin.ino. Close the other/old window. You have a lot of tabs in the open window. Select the Configratuin.h tab - see images.Defining Motherboard as RAMPS 1.4 with accessories. We need to define which Motherboard we are using. You can see all available board types in the boards.h file. Many guides around the web tell us to either edit at boards. or pins file or similar, to define motherboard. We do not have to do that anymore.

The variables we need are all placed in Configuration.h Configuration.h
-> Press CTRL+F to open the find window and write RAMPS Click Find to find the line containing: #define MOTHERBOARD...Here we need to define our board as pr. definitions in the boards.h file. Aside from defining we are using a RAMPS board, it is the the devices connected to the D8 (Heat-bed), D9 (fan) and D10 (heater)we define here. E is for Extruder, F for Fan, B for Bed.Make sure the line reads: #define MOTHERBOARD BOARD_RAMPS_13_EFBSay we had two fans and no heatbed we would define the last part a EFF instead. Save the file if you made any changes.Defining Baud rate, Extruders and Power Supply Default baud rate is 250000 now. If it gives you any problems (with your computer) you can change it to 125000. These steps are only for people WHO need to change it to the non-default 125000 configuration. Open Configuration.hFind the line containing #define BAUDRATE 250000 and put two slashes in front of it, like this: // #define BAUDRATE 250000 On a new line you write: #define BAUDRATE 125000 Save the fileExtruders are default defined as 1, so leave that alone. Power Supply is configured as standard ATX. PSU can be defined as X-Box as well. Defining Thermal Settings Temperature sensors There is a list with 20-25 different options for each sensor. Below the options is the list which defines our sensor inputs on the RAMPS 1.4 board. Default defines SENSOR_0 with option 1 which Means it is a // 1 is 100k thermistor - best choice for EPCOS 100k (4.7k pullup) or in other words: the standard thermistor used for temperature Measurements for 3D printers (that I know).
