Laptop Charger Manager


In this Project a "Laptop charger manager" has been made. If you have more than 3-4 laptops then their chargers will also be there and managing them on a small table becomes a very heavy and hectic task because their wires bother a lot, so for this I have made a laptop charger manager in this video which Can help a lot in managing these chargers and their wires.

Supplies


Requirements:

1) Rectangular wood Frame [Size 27cm X 20cm X 3.5 cm]

2) MDF Board [Size 27cm X 21.5cm X 0.5 cm] Qty- 2

3) Small hinges Qty- 2

4) Rubber or plastic stopper Qty- 4

5) Small neodymium magnet Qty- 2

6) Tools like Drill machine, files, hammer, fevikwik, screws, screw driver etc.


First make a Rectangular wood Frame with Size [ 27cm X 20cm X 3.5 cm].

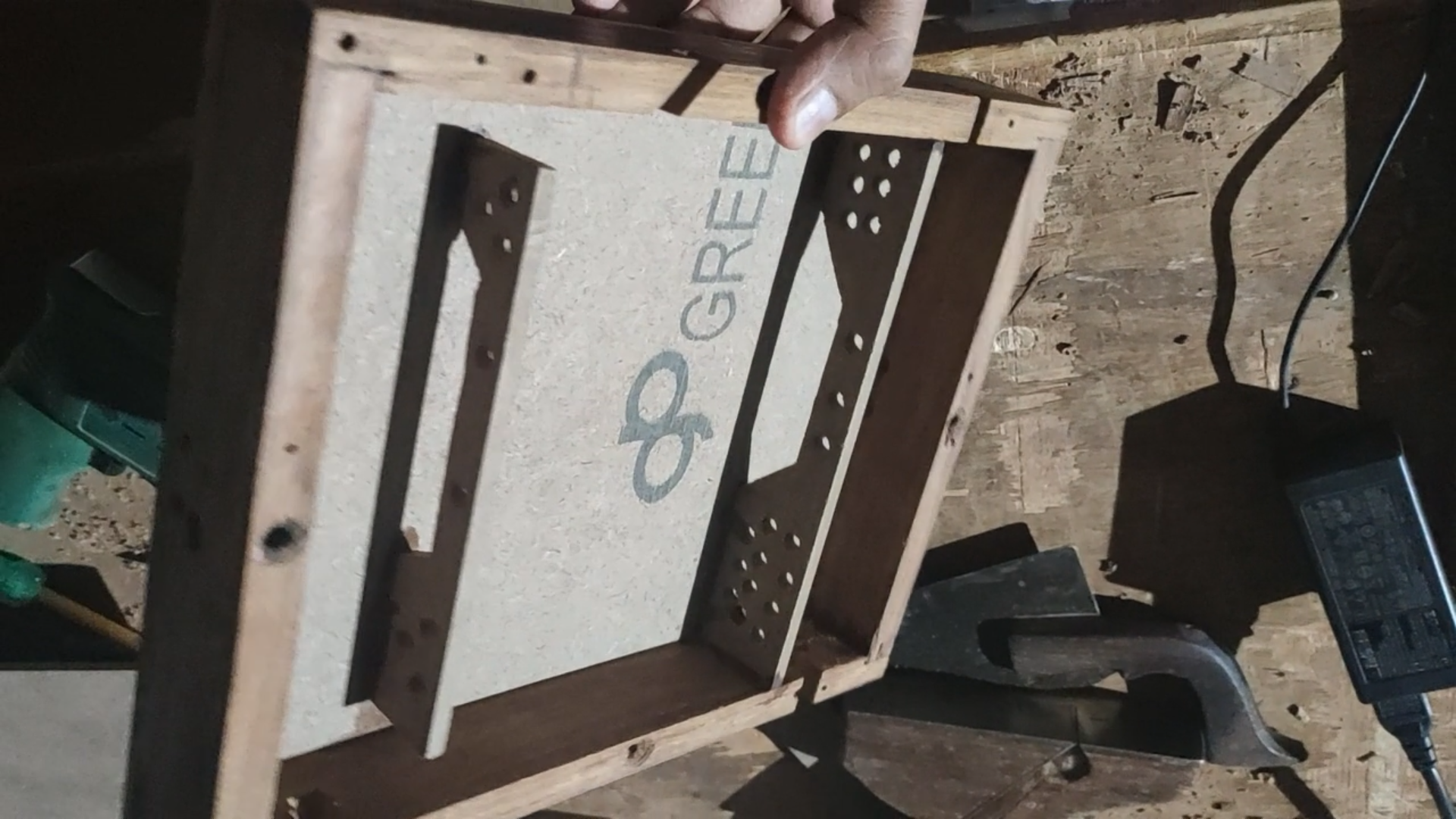

Then add one MDF sheet at one side with screws and stick 3 MDF stripes with gap size (5.5cm - to 7.5cm) on the MDF sheet. All laptop chargers approximately have 4-5cm in width.


Make 3 grooves in Rectangular wood Frame on both sides of length to fit wires of chargers from both side.

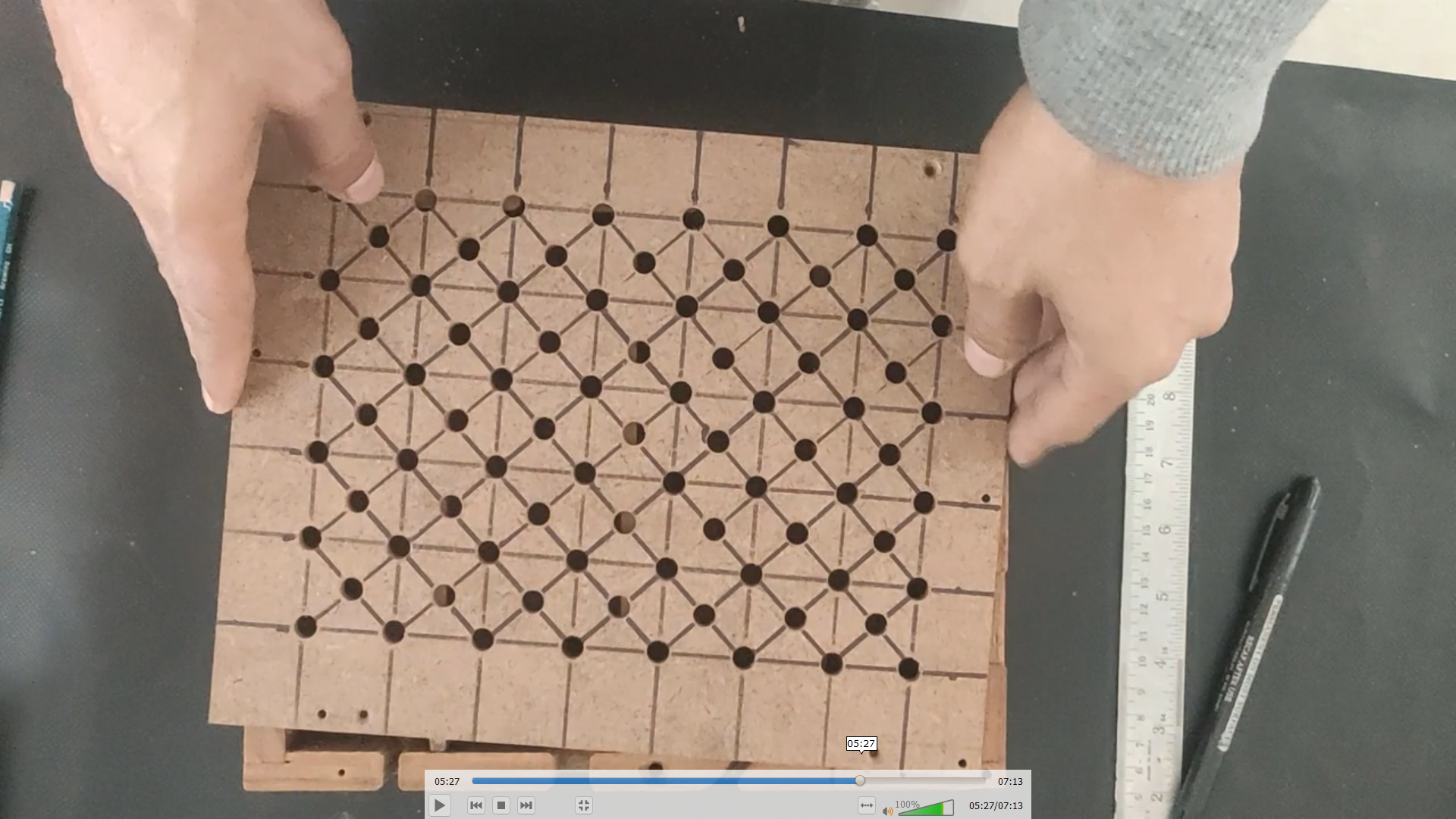

Make holes in both MDF sheet as per showing in the video or picture, so that heat of charger can pass outside.


Apply small hinges as shown.


Apply solid rubber or plastic stopper with fevikwik as shown on bottom corners.


Add Small neodymium magnet as shown with red circle in picture so that we can close the box with somewhat tight.

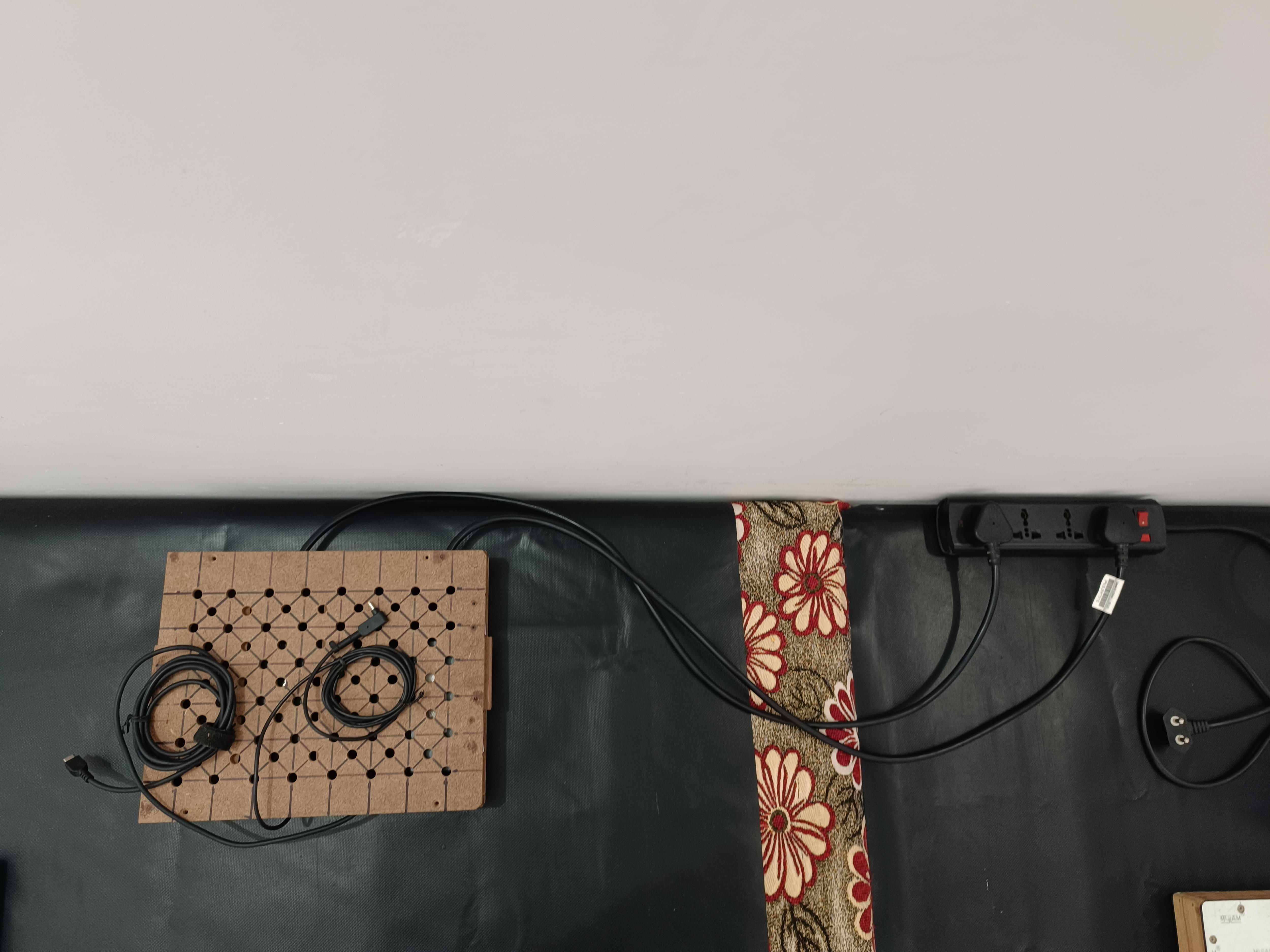

Done, Now we can put the chargers and manage them.

Laptop Chargers Manager

Here is the video of step by step process.

I hope you like this. Don't forget to follow if you like it !!

Thankyou for visiting my profile :)
