Laminating a Cover for My Disc Sander

If your following this series this is part 2 of making a 12 inch 300mm disc sander,in this Instructable I'm laminating a "U" shaped Cowl to fit over the disc for dust extraction.

I've taken the faceplate of the disc and I'm using it has a former to bend the 2.5 X 50mm strips.

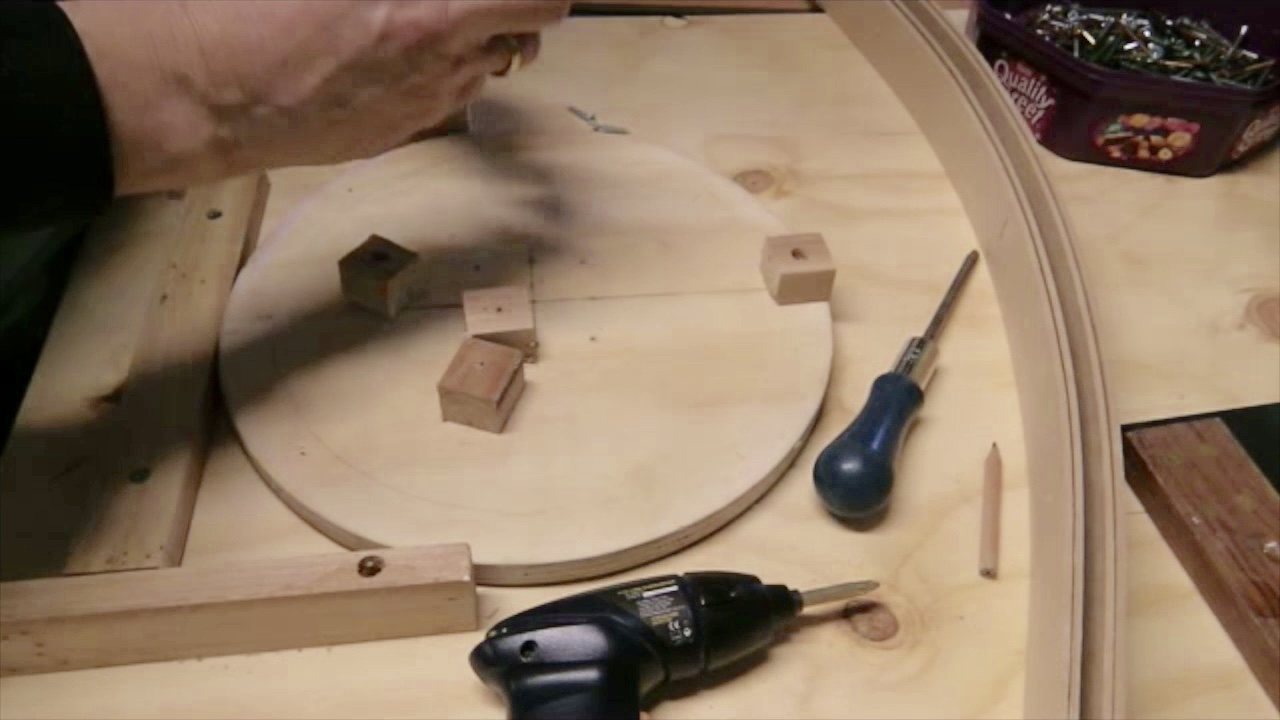

I have screwed 2 pieces of of 20x30mm either side of the disc and then screwed blocks to the outside of the disc spaced equally around the disc

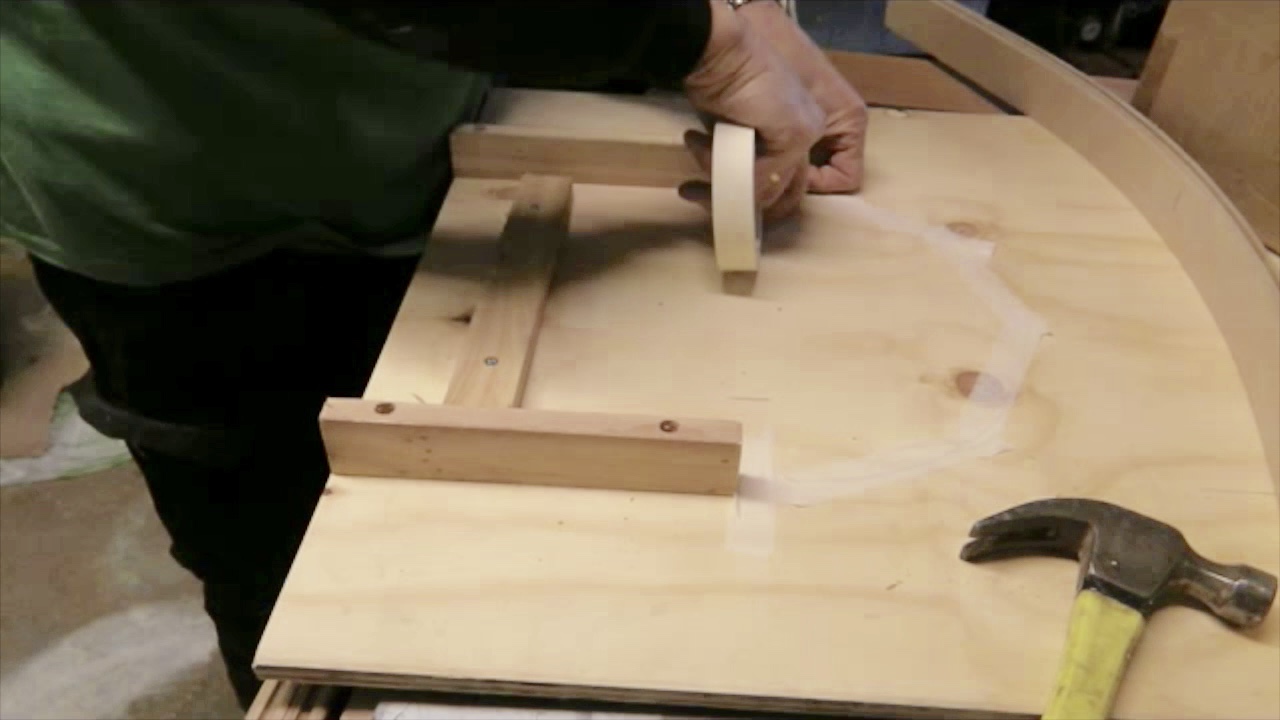

I've marked the board around the disc then taped up to protect the board from the glue.

the first strip was not glued to create a 3mm gap to the disc then i glued up with PVA glue the other 3 strips and bent them round the former.

I started clamping up from one side with spring clamps making sure that there was no gaps in the laminates and tapped them level.
