LPC2148 Interfacing With 16*2 LCD

In this tutorial I'm going to tell you about how to interface lpc2148 with 16*2 lcd.

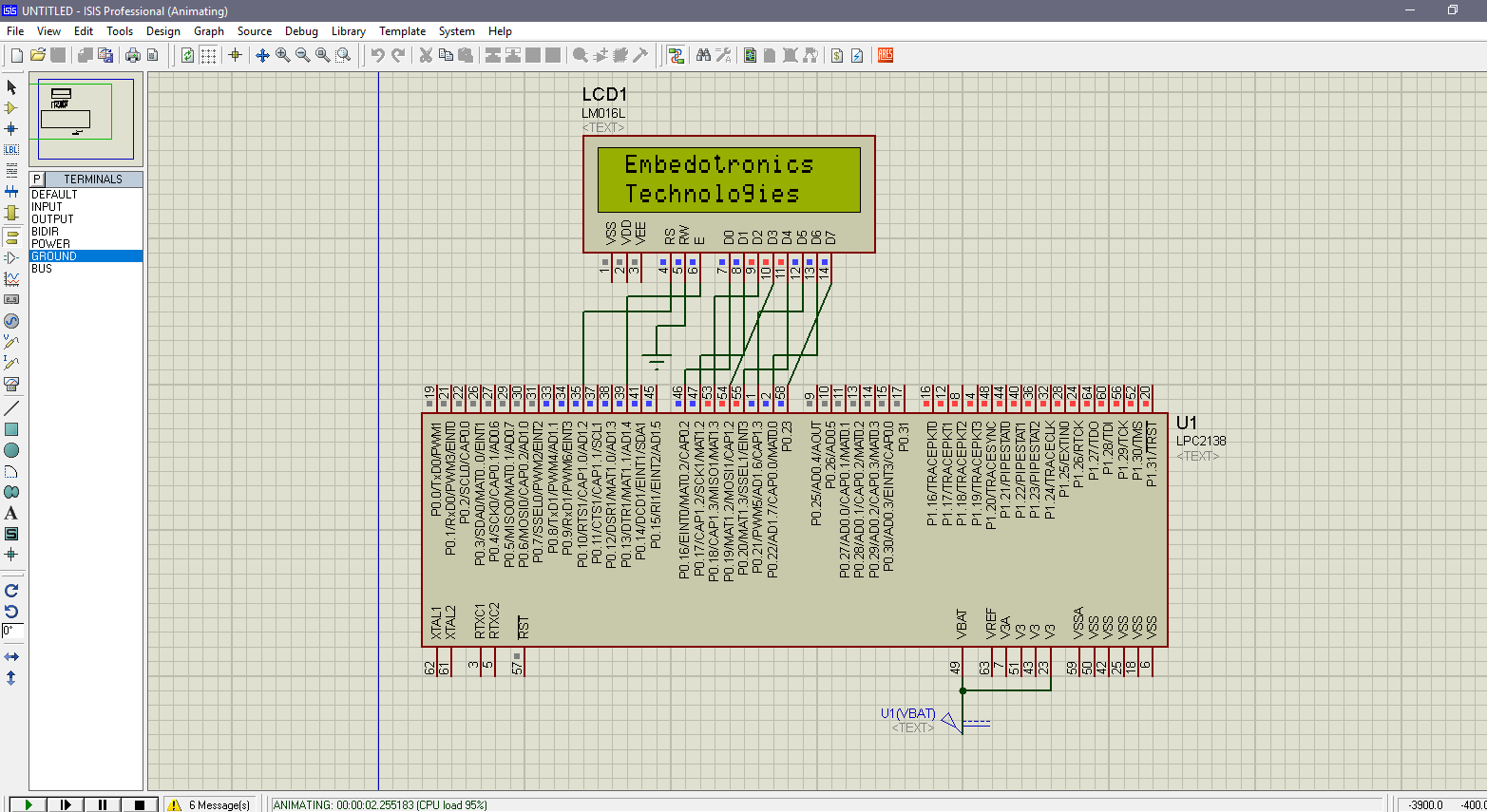

As we are showing proteus simulation so FOR CODING AND SIMULATION YOU REQUIRED:

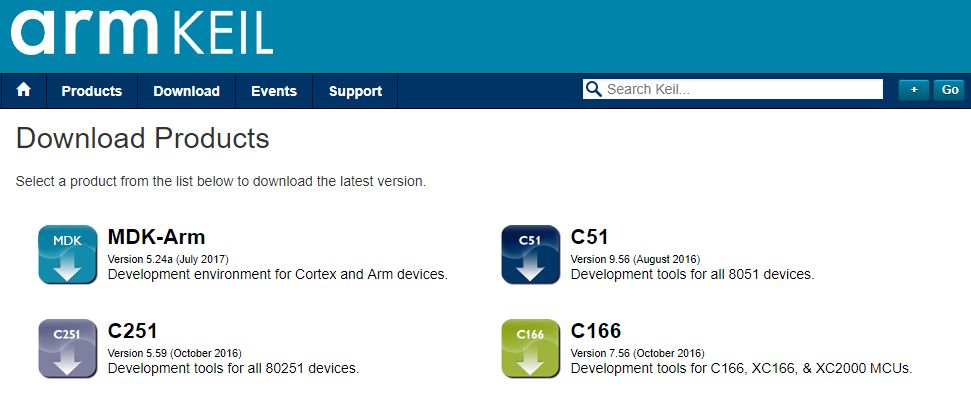

1 Keil uvision MDK-Arm: Their are lots of product from keil. so you will be required MDK-Arm compiler. You can download that software from here

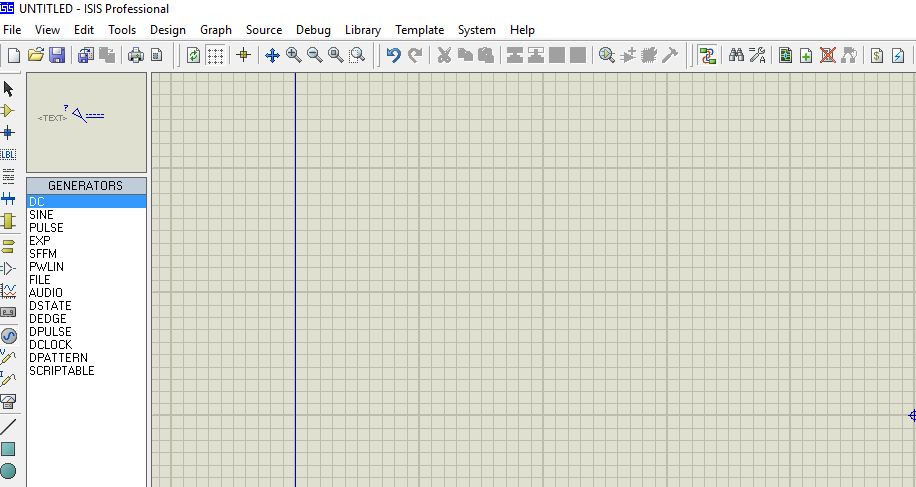

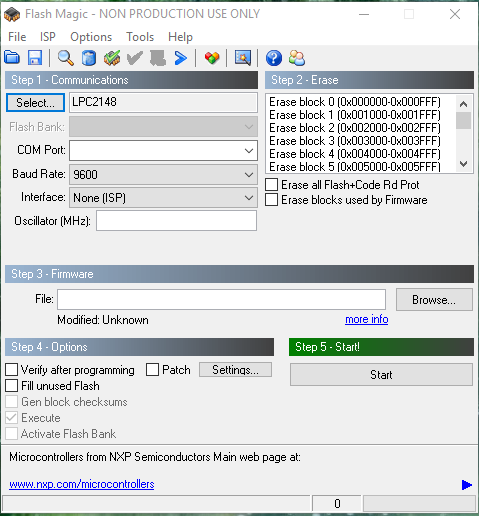

2 Proteus Software for simulation: This is the software to show simulation. You will get lot of information to download this software. If you are doing it in hardware then you would require one software that is flash magic to upload the code in your hardware. Remember flash magic is developed by NXP. So you can not upload all ARM7 family microcontroleer through this software. So Philips(NXP) based controller only you can upload. As LPC2148 is manufactured by nxp only so you can use flash magic to upload the code in this controller.

Here in our demo video we are using proteus simulation but definitely if you are doing it in your hardware you will be required these components for this project:

LPC2148 Development board: So if you have this board it will be better so that you can easily upload the code by yourself.

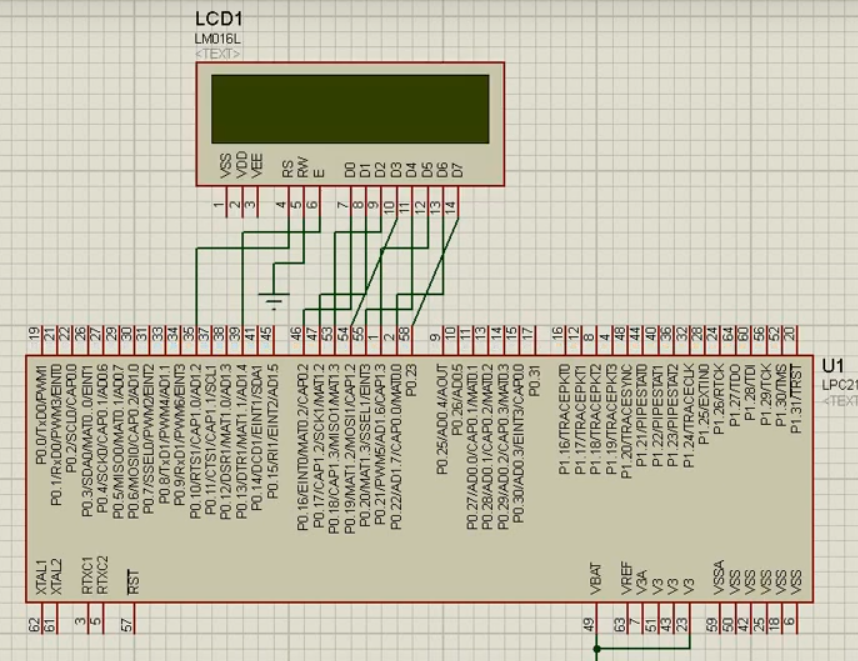

LCD 16*2: This is 16*2 LCD . In this LCD we have 16 pins.

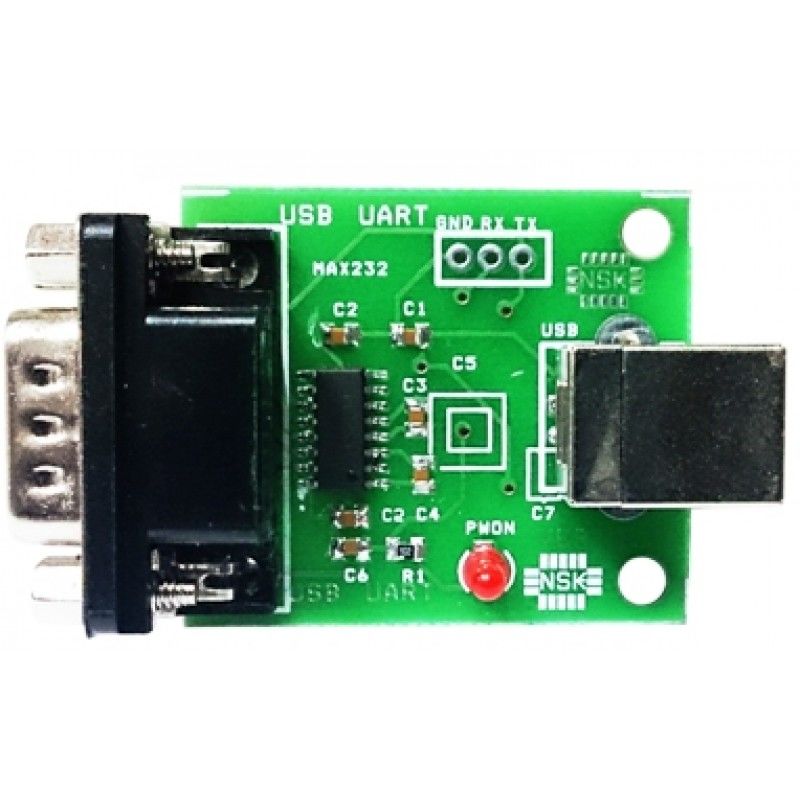

USB to UART converter: This is 9Pin D type male Connector For RS232 O/p Jumper Wires

You can get the Source code from the below link

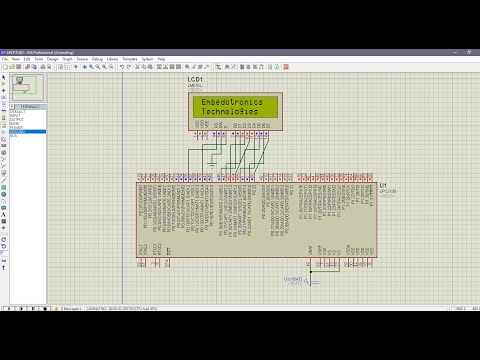

The whole project description is given in the above video.

If you have any doubt regarding this project feel free to comment us below. And if you want to learn more about embedded system you can visit our youtube channel

Please visit and like our Facebook Page for frequent updates.

Thanks & Regards,

Embedotronics Technologies
