LM317 Small Power Supply
This is LM317 small power supply.The input voltage must be at least 1.5 volts greater than the output voltage.
The output voltage is adjustable between 1.25 and 13.5 volts if the input is 15 volts,maximum current
limit is 1.5 Amps
A heat sink will be required for most aplications however

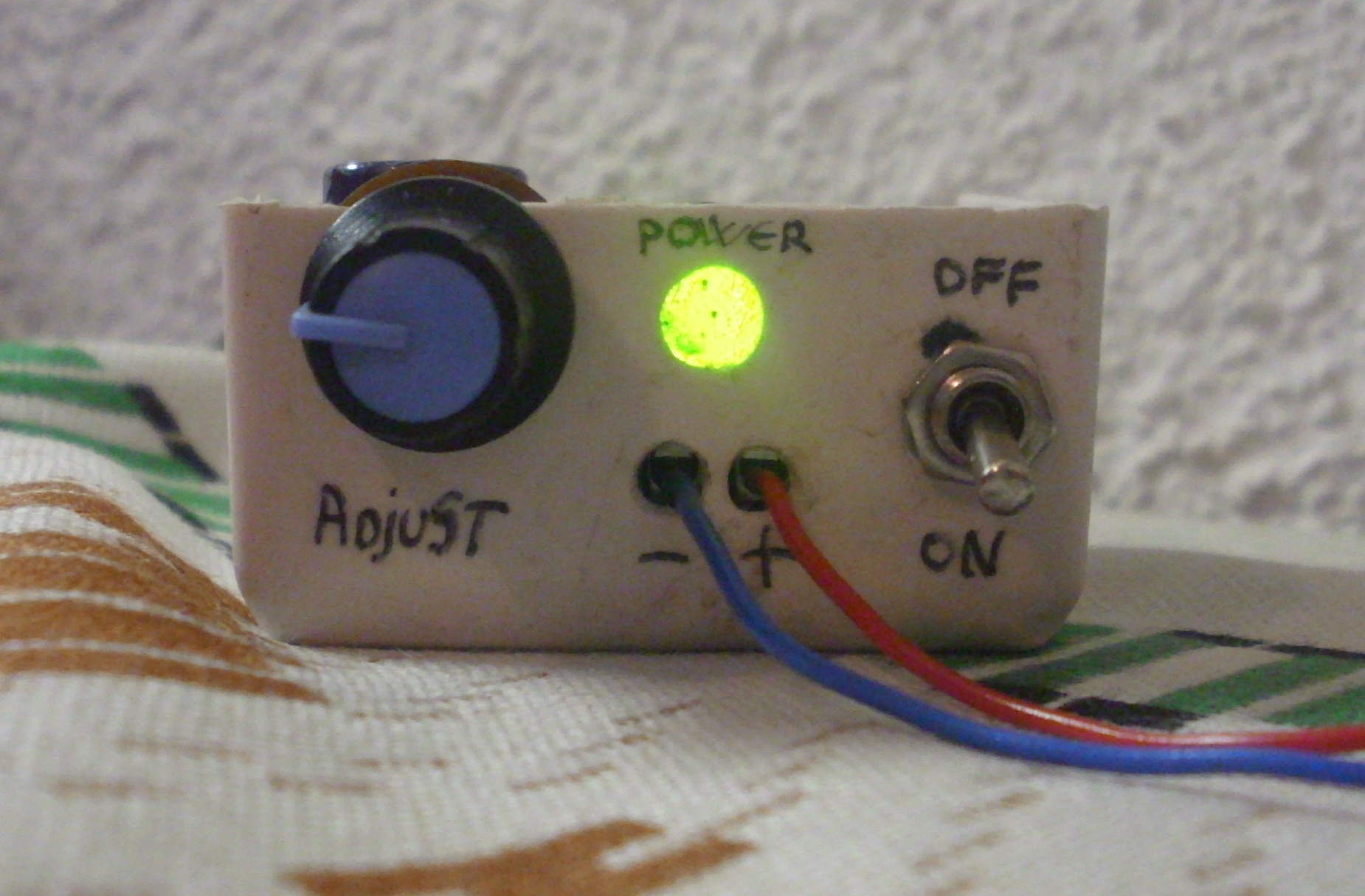

Here are pictures to see the power supply and schematic
The output voltage is adjustable between 1.25 and 13.5 volts if the input is 15 volts,maximum current
limit is 1.5 Amps
A heat sink will be required for most aplications however
Here are pictures to see the power supply and schematic
