LEGO Support for Mobile

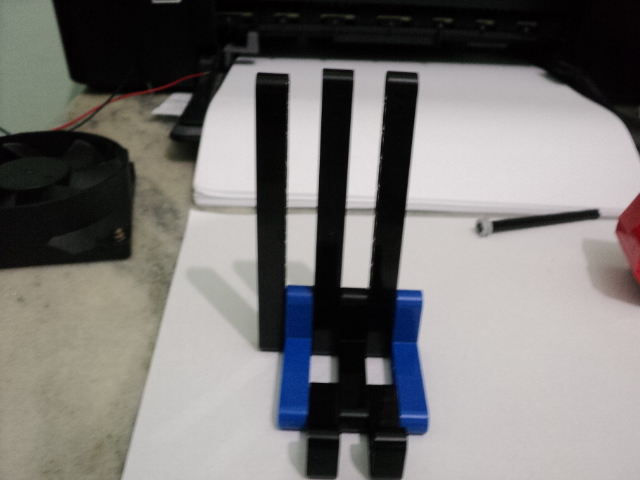

make a safe support for your mobile with pieces of LEGO Technic

Parts

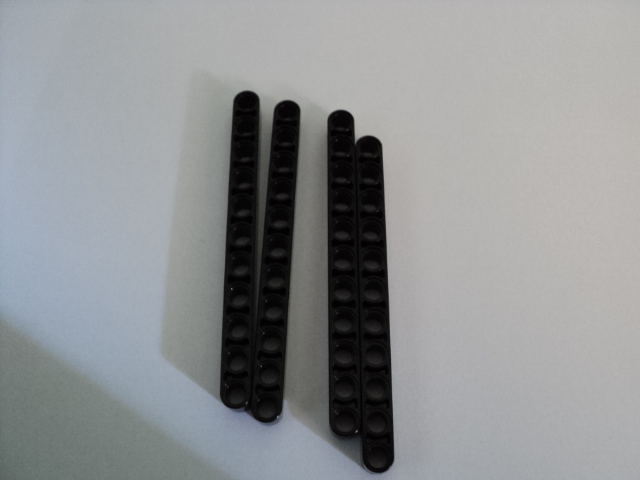

4 TECHNIC 11M BEAM
4 1/2 BUSH
3 BUSH FOR CROSS AXLE
2 CONNECTOR PEG W. FRICTION
4 CONNECTOR PEG/CROSS AXLE
1 CROSS AXLE 5M
2 CROSS AXLE 8M
2 TECHNIC ANG. BEAM 4X2 ° 90 °.
8 CONNECTOR PEG W. FRICTION 3M
3 TECHNIC ANG. BEAM 3X5 90 ° . black
2 TECHNIC ANG. BEAM 3X5 90 ° . blue
4 CROSS BLOCK 3M

Step 1

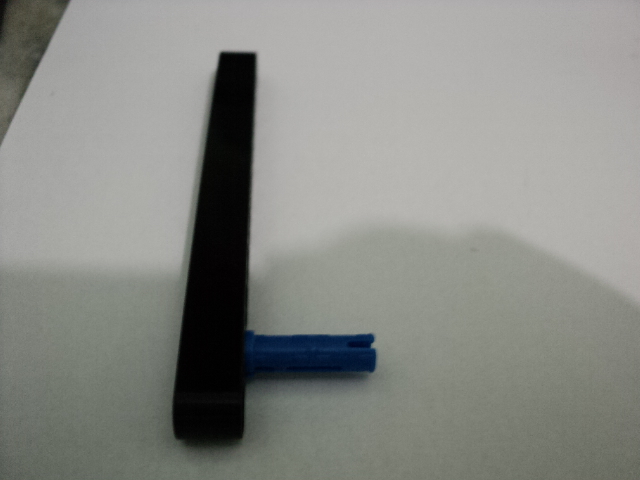

start putting the piece CONNECTOR PEG W. FRICTION 3M in the second hole part TECHNIC 11M BEAM as pictured

Step 2

Now place the part TECHNIC ANG. BEAM 3X5 90 °. blue in the set as shown in photo

Step 3

Now place the piece in the set TECHNIC 11M BEAM as shown in photo

Step 4

Now place the part CONNECTOR PEG W. 3M FRICTION in the set as shown in photo

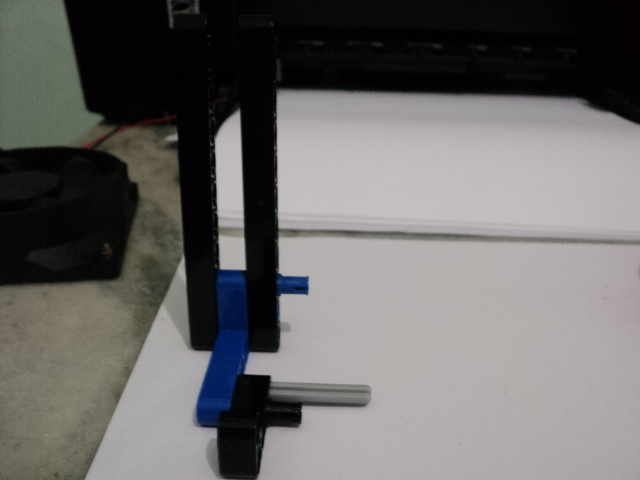

Step 5

Now place the part in CROSS AXLE 5M together as shown in photo

Step 6

add the part TECHNIC ANG. BEAM 4X2 ° 90 °. as shown in photo

Step 7

add the part CONNECTOR PEG W. FRICTION as shown in photo

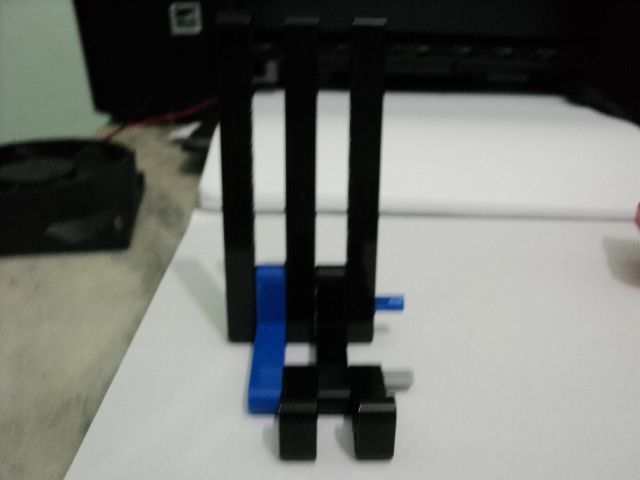

Step 8

add the part TECHNIC ANG. BEAM 3X5 90 °. black as shown in photo

Step 9

add the part CONNECTOR PEG W. 3M FRICTION as shown in photo

Step 10

add the part TECHNIC 11M BEAM as shown in photo

Step 11

add the part TECHNIC ANG. BEAM 4X2 ° 90 ° as shown in photo

Step 12

add the part CONNECTOR PEG W. FRICTION as shown in photo

Step 13

add the part TECHNIC ANG. BEAM 3X5 90 °. blue as shown in photo

Step 14

add the part CONNECTOR PEG W. 3M FRICTION as shown in photo

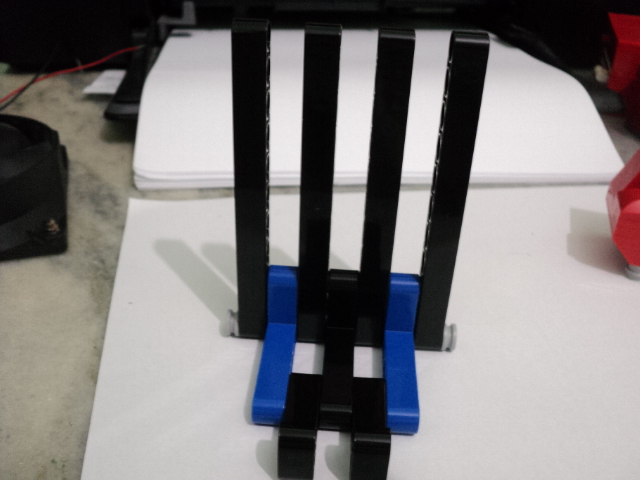

Step 15

add the part TECHNIC 11M BEAM as shown in photo

Step 16

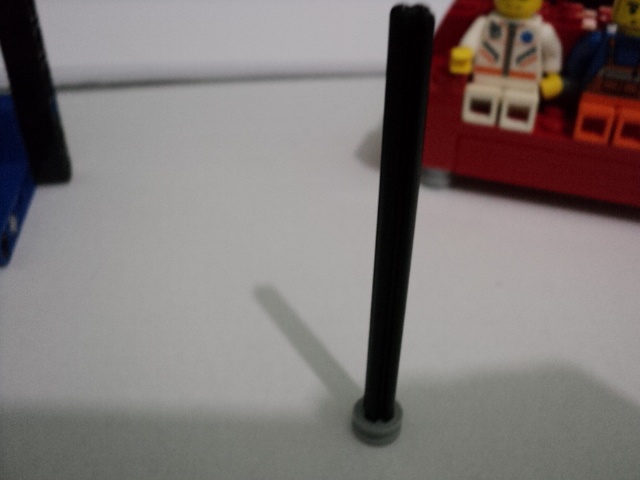

the party to make a set as shown in the picture with pieces 1/2 BUSH and CROSS AXLE 8M

Step 17

add the combination of the previous step as shown in the image

Step 18

add in the set piece 1/2 Bush as shown in the picture

Step 19

repeat step 16 and insert in the set plus 3 pieces BUSH FOR CROSS AXLE as shown in the picture

Step 20

add the part 1/2 Bush as shown in the image

Step 21

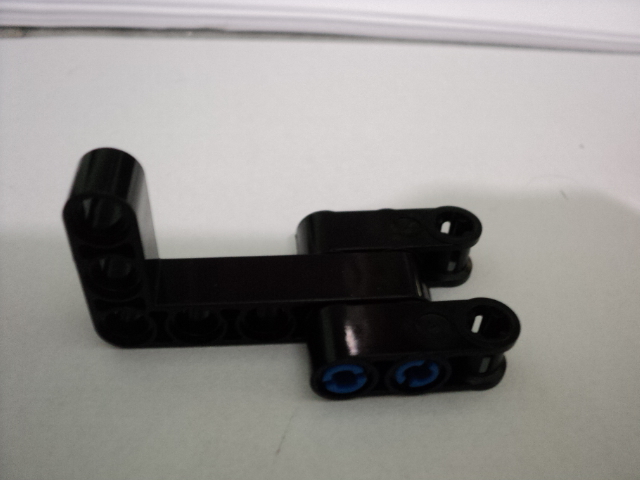

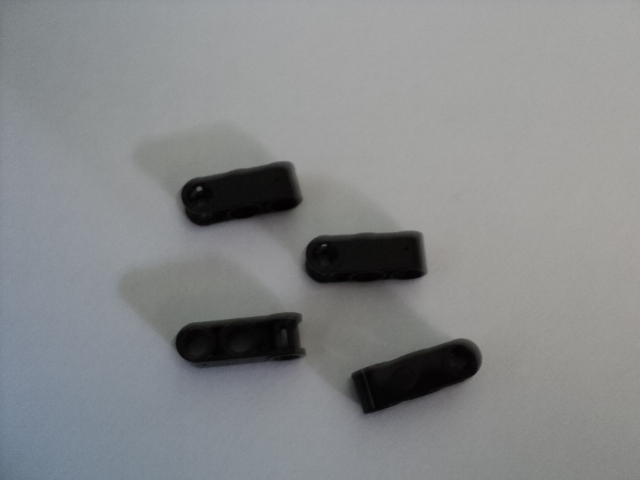

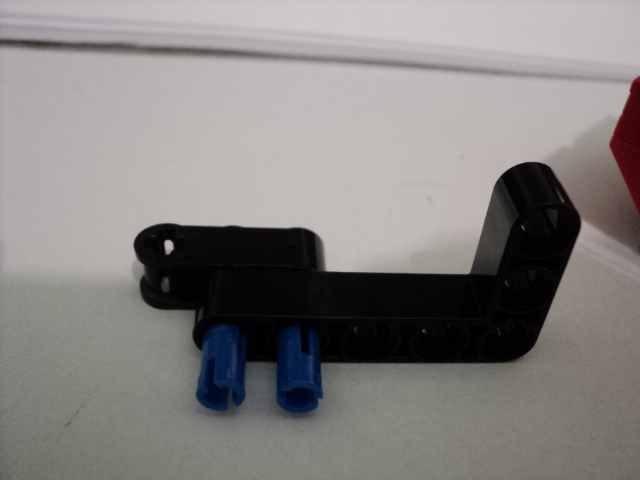

the party to make the "arms" of the structure. start with the part CROSS BLOCK 3M as shown in photo

Step 22

Now add the two parts CONNECTOR PEG W. 3M FRICTION as shown in the picture

Step 23

in this step you must place the piece TECHNIC ANG. BEAM 3X5 90 °. black as shown in image

Step 24

Now place the part CROSS BLOCK 3M in set as shown

Step 25

Now place 2 pieces CONNECTOR PEG / CROSS AXLE like the image

Step 26

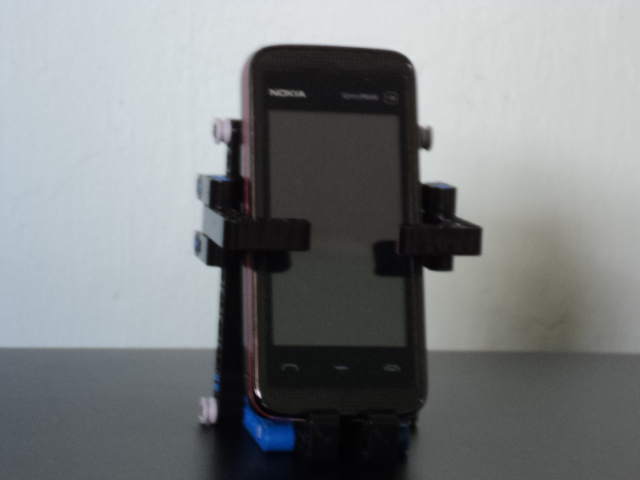

repeat the assembly of in the 5 steps above and enter in the construction and finished project
