LED's Powered by Human and Stored in Gravity Battery

by Drewrt in Circuits > Electronics

1482 Views, 2 Favorites, 0 Comments

LED's Powered by Human and Stored in Gravity Battery

Gravity Battery Mk1

Hello Internet!

I'm excited by the idea of being able to have electric light, and storage of power, with a no battery, low tech solution.

This is a byproduct of my research into recycling "hoverboard" motors into alternators for very low speed high torque VAWT's. I'm the inventor of a VAWT that I'm really excited about, and if you know much about VAWT's, you'll be sceptical of. You can find more about it here, and here.

This is a work in progress, and I'm entering it into the Instructable's "Glow" competition, which closes on the 27th.


I'll add a lot more detail before then.

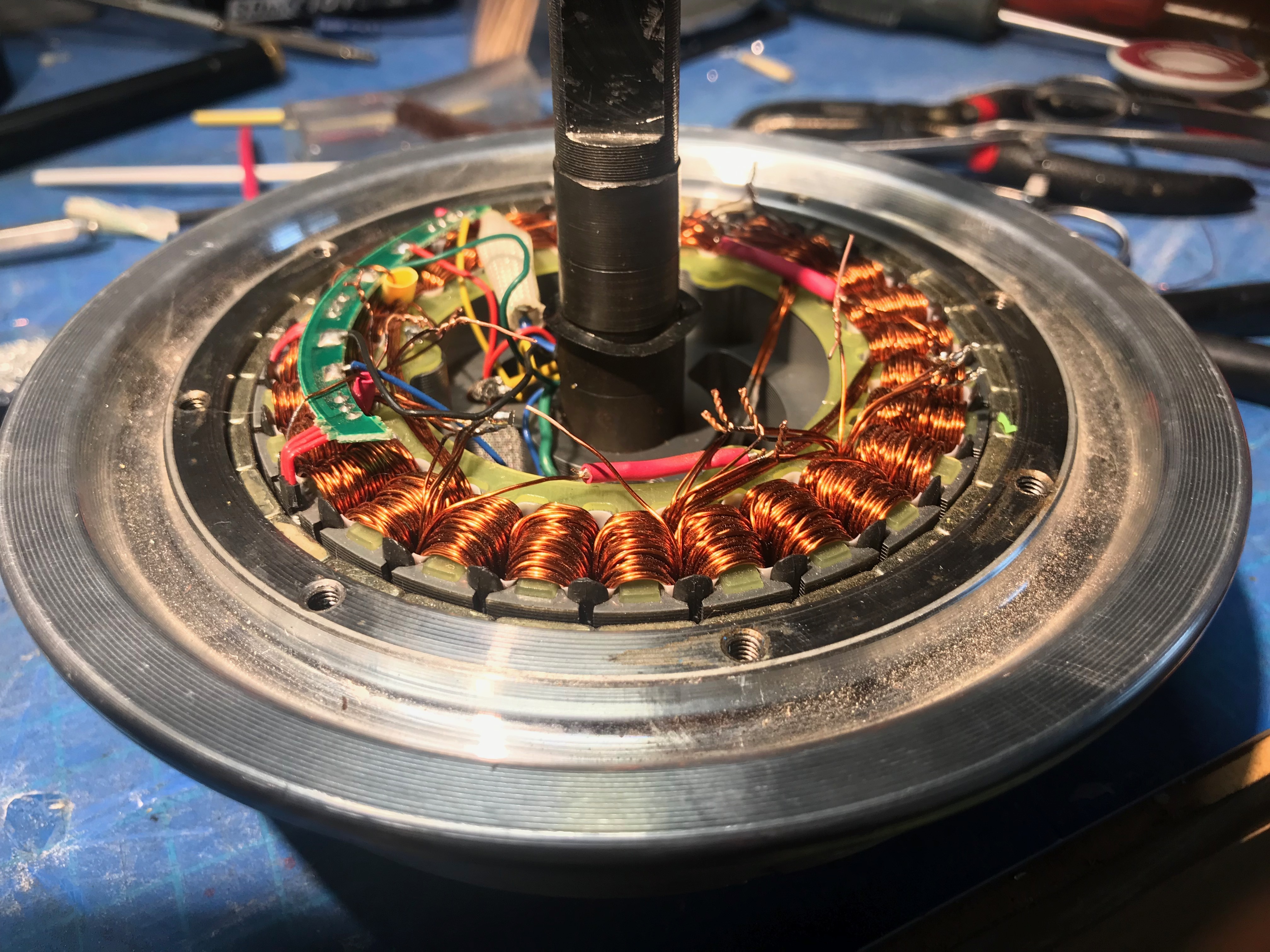

In essence what I've done is taken an alternator that produced around 12V 2-4 W at 200 rpm and changed some things in the wiring (more about that later) so that it produces around 12V 2-4 W at around 40 rpm. This is less than 1 revolution per second, so it's prettyyyyy ssssslllooooowwww. At that speed, with the right resistance LED load, it generates a surprising amount of light.

I've been testing it by wrapping a rope around it and attaching a weight then dropping it so that the weight gives the alternator a constant load.

This made me realize that it could be used as a gravity powered light source. If it could only store a minute or so's worth of power, it might still be useful, but it would have to be easy to reset and ideally could be reset with a pedal that could be pumped or treaded.

Supplies

-Used Hoverboard Alternator (eBay 30$-50$). Another alternative might be a wheel motor from a scooter, like all those scooters lying around in the street.

-Used Bike freewheel

-rope

some pulleys

Details will be added to fill out a couple of alternative versions.

Version A- all recycled material - no 3D printed parts

Version B- mostly recycled parts - some FDM printed PLA parts
