LED Torchiere

I chose to use the Philips Ambient LED bulb also known as the Philips EnduraLED bulb; 12.5watts, 800 lumens, 2700K (warm), dimmable.  This bulb is very similar to the L-Prize lamp (http://www.lightingprize.org/60watt.stm, http://en.wikipedia.org/wiki/L_Prize) that won the US Department of Energy prize for an LED bulb that closely matched a standard 60W incandescent but uses <10W.  The Philips AmbientLED was available for sale before the L-Prize lamp and has specs that are not quite as tight as the L-Prize lamp, but cheaper, and good enough.  In my area the AmbientLED bulb is available at Home Depot for $15 (heavily subsidized by local utilities).  I purchased my first one back when they were originally introduced at $40.

Both the AmbientLED and L-Prize lamps are the funny looking bulbs that look orange when not energized.  The plastic lenses have phosphor in them that gives the lens the orange color.  The bulb uses BLUE LEDs behind the lens so that when the blue light strikes the phosphor in the plastic the phosphor glows white.  This apparently has some efficiency advantages and helps with consistent light color.  'Regular' white LEDs are also blue LEDs but have the phosphor applied directly to the LED die (silicon) but Philips separates them for this bulb.  I popped open one of the orange plastic lenses and you can see the blue LEDs inside.

These LED bulbs are very bright and virtually match the color of a 60W incandescent.  They are also estimated to last 25,000 hours, or 22.8 years at 3 hours per day, per the box.  See my side by side comparison of a 60W incandescent to the 12.5W LED in my torchieres.  However, 60W is not enough so on with the build....

I wanted to have the 4 LED bulbs be located below the rim of the glassware on the torchiere so they stayed hidden.  I also didn't want any shadows on the glassware either.  This made retrofitting very difficult because of the limited space at the bottom of the glassware as well as the total height of the bulb and the socket that I anticipated adding for it.  Ultimately I gave up the sockets because of the height it added to the bulb.

You will have to see if you can fit a socket as well as determine the layout and orientation of the bulbs.  And how to mount them in the product you are retrofitting.  I didn't think it was too hazardous to omit the sockets because all the materials around the screw bases of the bulbs are either glass, ceramic or plastic (probably phenolic).  It's still a good idea to electrically insulate the bottoms of the bulbs to keep the electrical contacts from being exposed.  And it also keeps them insulated if the glassware should ever break.

I decided to make a frame to hold the 4 bulbs out of acrylic because of the electrical insulating properties and ease of working the material.  However, I would recommend polycarbonate because it has a higher working temperature.  Through experimentation I found that I needed to keep the clear acrylic almost a half inch away from the glassware to prevent a shadow, even thought its clear!

I had to determine how to fasten the frame down.  I chose to mount it to the existing center socket by capturing it between the socket and an adapter that screws into the socket.  I made a central hole in the frame large enough to just allow the threads of the socket adapter to slide through and screw into the existing torchiere socket.  This lets me easily remove the retrofit.

The four holes for the bulbs are located as far from the central hole as possible and equally spaced around it.  I also added two small holes to allow threading the power wires from my plug down to the underside of the frame to make the electrical connections to the bulbs.

The LED bulbs still generate a fair amount of heat so make sure they have ventilation.  The LED bulbs should not be installed in a closed space and should last longer if installed with the screw base at the bottom to keep the LEDs at the top for maximum cooling.  You should also be concerned about exceeding the temperature of the frame material, which is why I now recommend polycarbonate since it has a higher working temperature.  If there is any doubt you should measure the temperature on the frame and compare it to the manufacturer's specifications for the material.

Add the LED bulbs, but without sockets (at least in my circumstances).  The only real drawback of not having sockets is that the bulbs cannot be removed, the electrical wires carrying power to them are soldered directly to the bulb bases.  I didn't think permanent bulbs were much of a drawback since they are estimated to run for 22+ years.  However, should one of them fail it should not be too much trouble to replace it.  If you can fit sockets, install them.

Any portion of the bulbs' screw base that will be located above the acrylic frame should have electrical tape applied to prevent anyone from contacting it.   The bulbs are inserted through the holes in the frame and oriented so that one of the 3 bulb lenses faces away from center to give the best light distribution.  One end of the electrical cord is split part way to provide two separate conductors and each end passed through the hole in the frame to get it to the bulb base contacts.

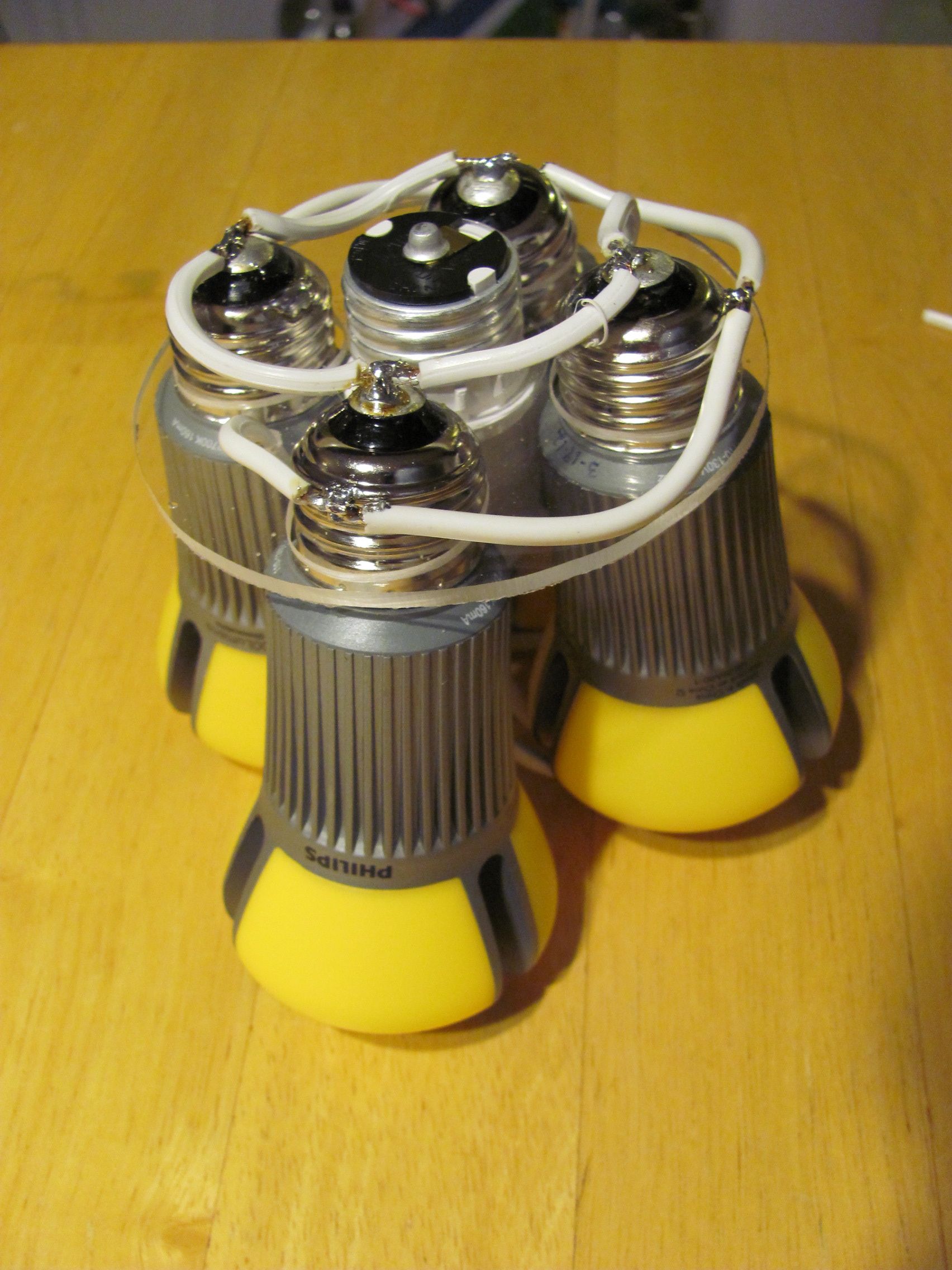

Solder the wires to the bulb metal base contacts.  Use a high wattage soldering gun (>140W) as it takes a lot of heat to solder to a screw base.  The center bulb contact is soldered to the wire that goes to the narrow plug blade (hot, line).  The outer screw bases are soldered to the other wire that goes to the wide plug blade (neutral).  Check that your solder connections are secure.  It is easy to get a cold solder joint that will pop off with a tug or bump.

The wires are connected to the polarized plug making sure the correct wire is connected to the correct blade as noted above.

After the wiring is done test the assembly to make sure the bulbs light.  If you have exposed electrical contacts make sure that they are not going to contact anything electrically conductive, yourself or another person.

If the bulbs light you can install the frame in the Torchiere and position the bulbs to their final orientation.  I had to angle mine slightly outward to keep them from touching each other and to allow room for the socket-to-receptacle adapter and plug.  After you find the optimum position you can secure the bulbs into the frame with silicone caulk or epoxy glue or both, depending on how permanent you want them mounted to the frame.

After the mounting adhesives have cured use Liquid Tape to coat any remaining exposed electrical parts to electrically insulate them.  (My photos do not show this step).   There should not be any exposed live electrical parts.  After the Liquid Tape has dried you are ready to install the retrofit kit.

Install the retrofit kit into the Torchiere by positioning it in the glassware so that the socket-to-receptacle adapter can be screwed in to the original socket, capturing the frame and lamps in place.  Insert the plug into the adapter and enjoy your 200 watt equivalent LED retrofit that only draws 50 watts.

Enjoy!
